Feature:
1.High luminous flux 20 times more than 3528 LEDs.
2.2835 1.5W LED source with heat sink, well heat transferring.
3.High light transmittance PMMA lens.
4.Constant current driver ensuring full bunch in same brightness and stably working.
5.Al substrate for LED and components in a low temperature condition.
6.Secondary optic design, 160degree visual angle resulting be tter ,average brightness and no brighter dots.
7.Best sealed, IP65 with moisture-proof, water-proof,dust proof and impact resistance.
8.Nice structure and design in PC process. Whole unit has been formed in one-time injection molding.
9.RoHS standard of all raw materials.
10.Long lifespan and low failure rate.
11. Color temperature: 6000-7000K

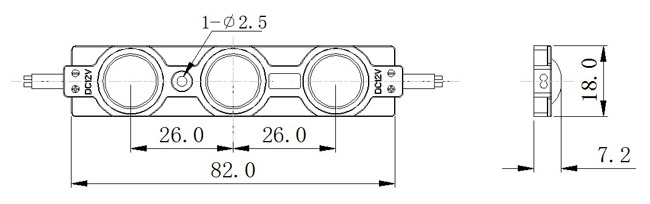

Product Sketch:
Instructions:
1. Installation
-- First position the module with double sided tape onto the back of module,then fix with glue.
-- Silicon gel directly fixing modules,but before installation,cleaning or polishing module surface.
-- Screw mounting the modules on the board.

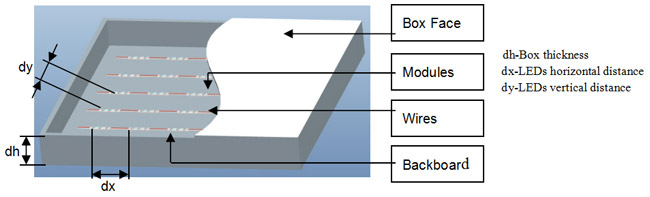

2. Modules Positioning (Vertical and Horizontal)
| Item Code |
Light box thickness dh (mm) |
Module horizontal distance
dx (mm) |
Module vertical
distance
dy mm |
Modules average
in 1m2
(pcs/m²) |
Surface illumination(lux) |
| LMI863F |
120 |
180 |
120 |
40 |
1116 |
Remarks:
1.The panel is 3mm Acrylic Board with transmittance 56%.
2.The above-mentioned data only for reference. |
Application:
1.Advertisement signs backlighting
2.LOGO & Letters backlighting
3.Advertisement Light boxes and billboards backlighting
4.Landscape, commercial, home and stage decoration

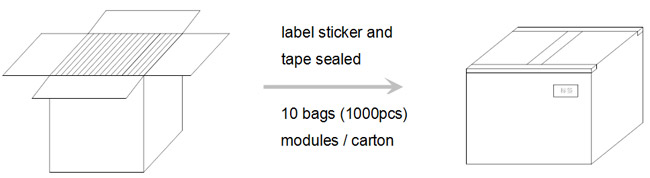

Packaging:
1. Carton size: 360mm*290mm*340mm, each bunch of modules 20pcs, 5 bunches in 1 foil bag, 1 bag 100pcs.
2. 10 bags / carton TTL:1000pcs / carton
3. Weight: 15kg (±10%)
4. The said packaging is subject to the above drawing shown here. Please take this for reference.
Notice:
1.The output of power supply should be matched with the module’s working voltage as module does’t have short circuit protection,overloading protection.So the selected power supply should be the short circuit protection and overloading protection functions.
2.The +/- of the modules should be connected rightly: red-anode and white-cathode.
3.Max 20pcs in one bunch,better not more than this as it will cause lower brightness or danger. If need over 20pcs modules,suggesting connection first in series then parelles.
4.Power supply should be 20-30% more than the exact LEDs power,and wires should be a little bigger than the current which is needed.
5.Modules forbidden to be put into a inflammable substance,never be covered with a tight cover or onto the heat insulated sheet materials.
6.In case of installation or replacement,sure first to cut off power.
7.This type LED Modules are not for dimmable function.
8.If there is something unusual ( dark or flickering),pls check firstly power is right on or output voltage is correct. If all is right,pls change the module.
9.This modules are only used for light boxes,signs which have cover to protect modules,not used in outdoor or directly opening conditions.
10. Standard to: EN55015 EN61547 EN60598-1
