60W AC100V-240V to DC 12V 5A Waterproof Metal Shell LED Power Supply Transformer Driver(for LED Module/LED Strip/LED Bar)

Free shipping on orders over $288! (Products include: LED Module, LED Strip and Bars, Power Supply, Dimmer, Controller, Advertising Light except Flood Light, All Decorative Light)

Unit Price:$17.00 - 18.48/pc(Discount Notice)

Buy More, Save More!

Qty (pcs) Discount Amount/pc
    1 - 9 0% $18.48
    10 - 19 5% $17.56
    20 - 39 8% $17.00

Need more quantities, please submit a Bulk Order inquiry

Get Coupon: $100Order ≥ $1000 $50Order ≥ $500 $30Order ≥ $300 $10Order ≥ $100

Quantity:
pc(s) Total Cost: USD $18.48

Shipping Weight: 1.1lb (0.5kg) freightFreight

  Free Shipping Over $288

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $17.00 - 18.48/pc Order Now
Cart 0 item(s) Back to Top

Features:
• Power Supply
• Input Voltage: 100-240V AC 50/60Hz
• Output Voltage: 12V DC 5A
• Waterproof Rating: IP67

Product size: 7.99" x 1.69" x 1.26" (203 x 43 x 32mm)
N.W:
0.5kg

Note:
Used for the LEDP Light Strip/Wireless Router,  ADSL Cats,  HUB,  Switches,  Security Cameras.  Audio/Video Power Supply.

Free shipping on order over 288usd in 25 areas: Puerto Rico, Canada, France, England, America, Australia, Germany, Japan, Thailand, Belgium, Spain, Maldives, Philippines, Russia, South Korea, India, Malaysia, Singapore, Indonesia, Vietnam, Cambodia, Greek, Israel, Pakistan.

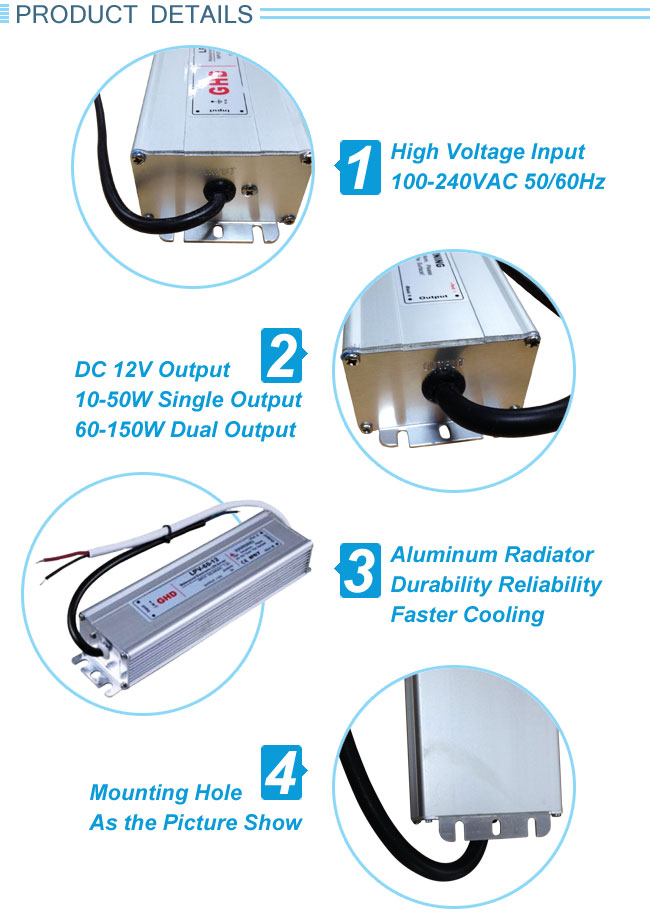

Details:

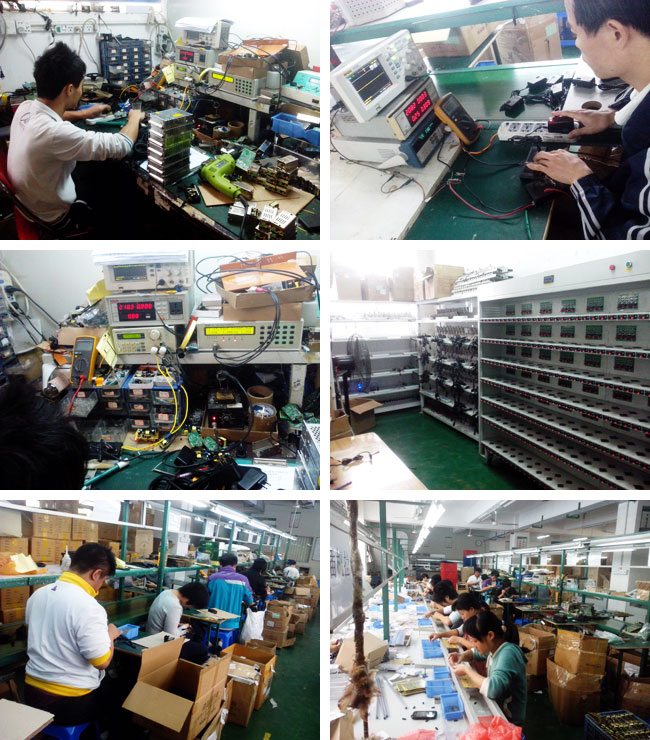

Process:

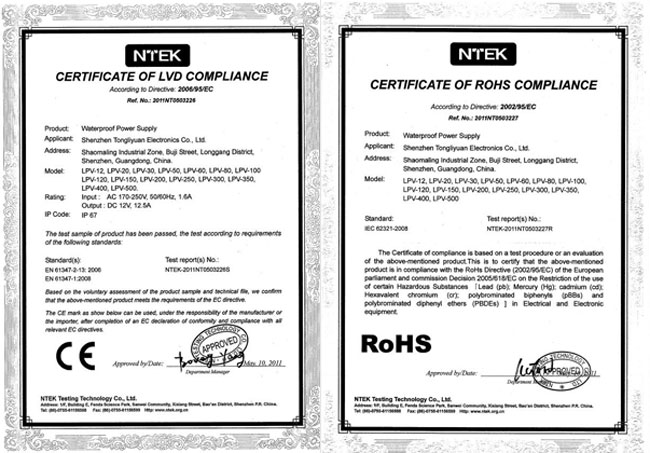

Quality Report:








1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
This product has no attributes!
Specification
Model
LEDP-TLY-LVP-60-12
Output DC Output Voltage 12V
Output Voltage Tolerance ±1%
Rated Output Current 12.5A
Output Current Range 0~12.5A
Power 60W
mvp-p 100mvp-p
DCVoltage Adjustable Range ±10%
Start, rise, and holding time 200ms, 100ms, 30ms/230VAC.
Input Input Voltage Range 100~130VAC, 170~264VAC, 47~63Hz
Efficiency 0.78
Inrush Current Cool start current 40A
Leakage Current <3.5mA/240VAC
Protection Overload Protection 115% ~ 135% of the rated output power over load protection
Feature Protection method: Hiccups model,
load can be automatically restored after removing abnormal conditions
  Over Voltage Protection 115% ~ 135% cut output, automatic recovery
  Over Temperature
protection
Over temperature protection, 85 °C or higher to cut off the output, automatic recovery
Environment Working Temperature
and Humidity
- 10 °C ~ + 60 °C; Deduction 20% ~ 90% RH (please refer to the load curve)
Safety Pressure Resistance

Between the input and output: 1.5 KVAC input
and ground: 1.5 KVAC output and ground: 0.5 KVAC

Insulation Resistance Between the input and output:
the input and ground,  and the output: 100 m Ohms / 500 VDC
Others Weight/Packing 1.3kg/16PCS/20.8kg/22.3kg
Carton size: 38*33*22CM
Note: 1. When not specified, all parameters are at 230 VAC input voltage and rated load
and under the condition of 25 °C measurement value.
2. Ripple and noise voltage is at 20 MHZ bandwidth oscilloscope with 12 inch twisted-pair cable ends plus 0.1 u and 47 u measured capacitance.
3.Tolerance is the voltage setting error, the sum of voltage regulation and current regulation.
