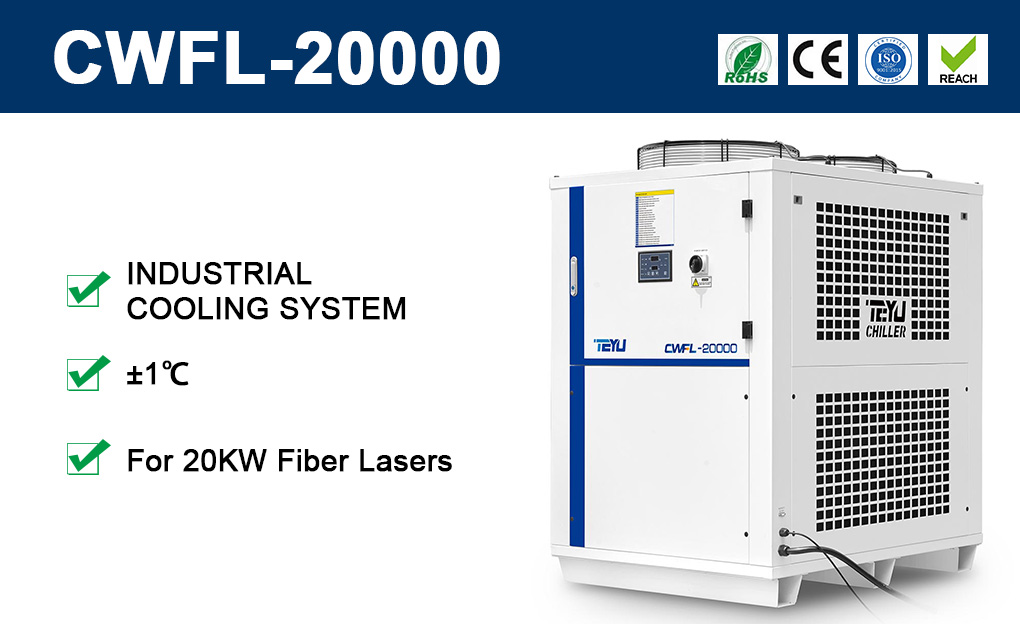

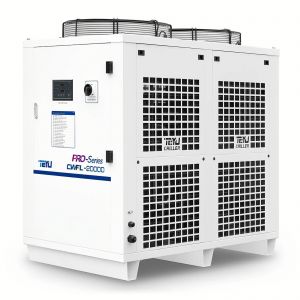

Industrial Cooling System CWFL-20000 for 20KW High Performance Fiber Laser (AC 3P 380V 60HZ )
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

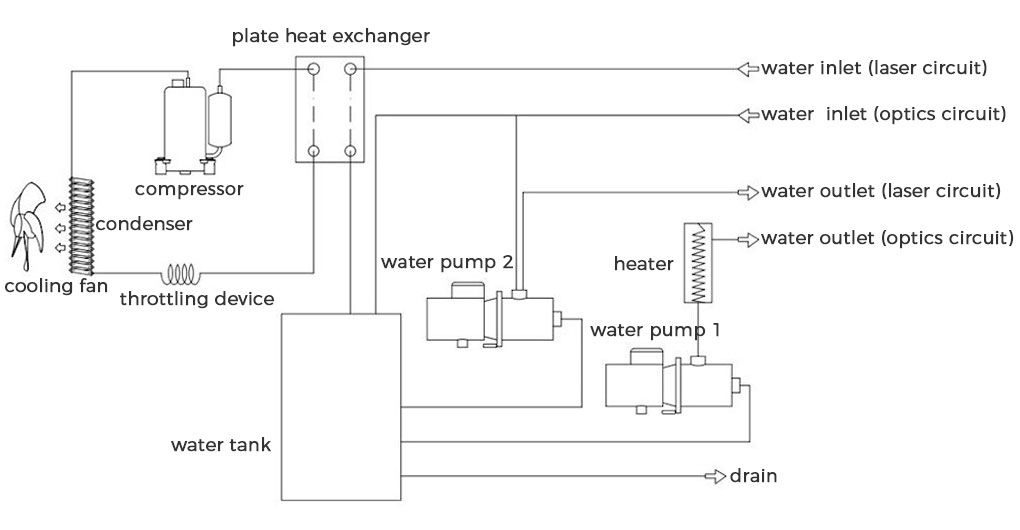

Industrial cooling system CWFL-20000 is suitable for laser cutting machines, laser welding machines and laser marking machines, Its advanced cooling features make the operation of 20KW fiber lasers easier and more efficient. With dual refrigeration circuit, this Recirculating Water Chiller system has enough capacity to cool the fiber laser and the optics independently and simultaneously. All of the components are carefully selected to ensure reliable operation. A smart temperature controller is installed with advanced software to optimize the chiller's performance. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. RS-485 interface is provided for communication with the fiber laser system.
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410A
6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability
11. Available in 380V
|
Model |
CWFL-20000FTPTY |
|
Voltage |
AC 3P 380V, 60Hz |
|
Current |
7~44.7A |
|
Power consumption |
25.83kW |
|
Heater power |
1kW+7.5kW |
|
Precision |
±1.5℃ |
|
Reducer |
Capillary |
|
Pump power |
3KW |
|
Tank Capacity |
170L |
|
Inlet and Outlet |
Rp1/2"+ Rp1-1/4" |
|
Max. Pump pressure |
6.75bar |
|
Max.flow |
5L/min+>150L/min |
|
Net Weight |
275Kgs(606.3lb) |
|
Gross Weight |
312Kgs(688lb) |
|
Product Dimension |
56" x 32.7" x 52" (1420 x 830 x 1320 mm) |
|
Package Dimension |
58" x 36.2" x 59" (1470 x 920 x 1500 mm) |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

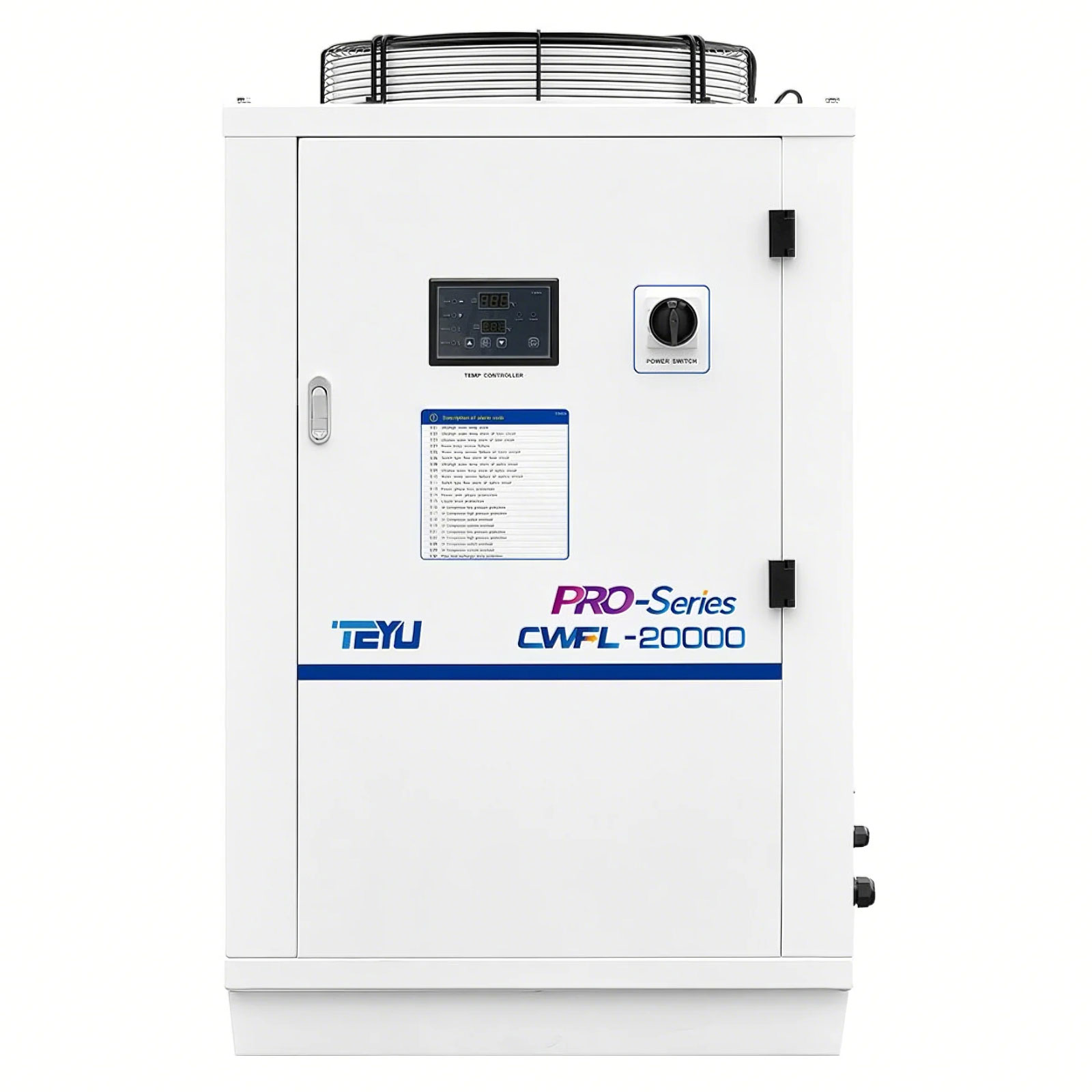

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

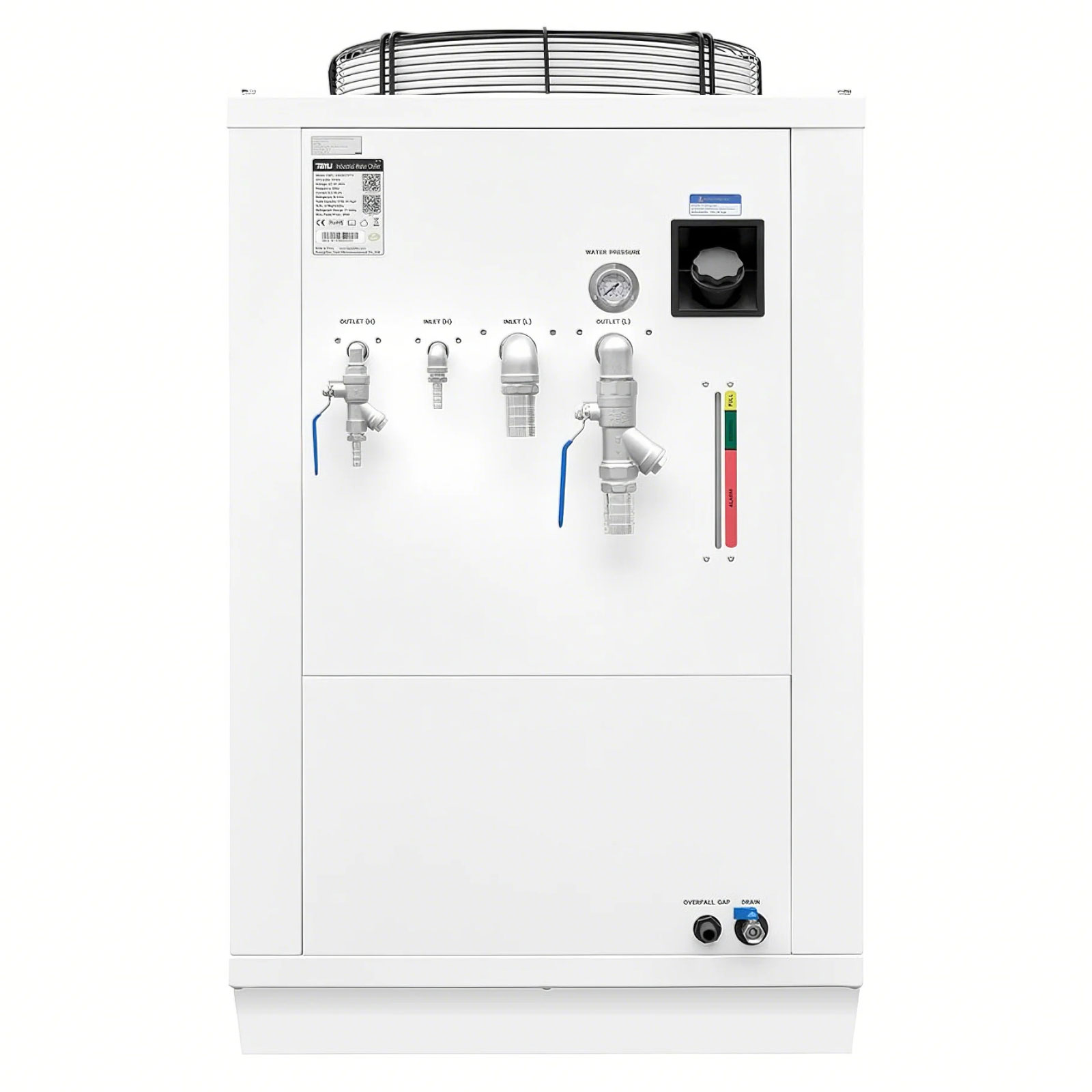

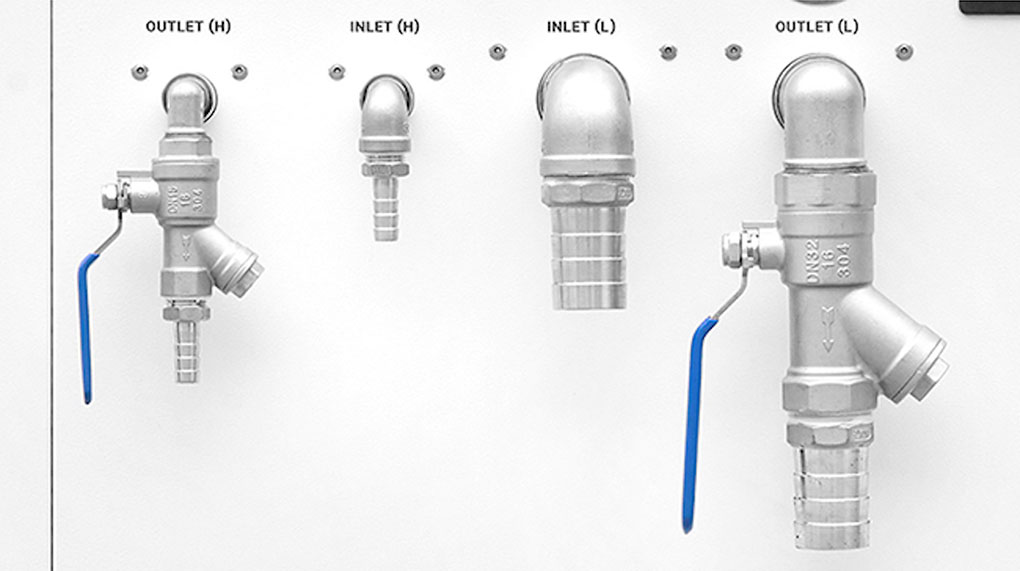

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

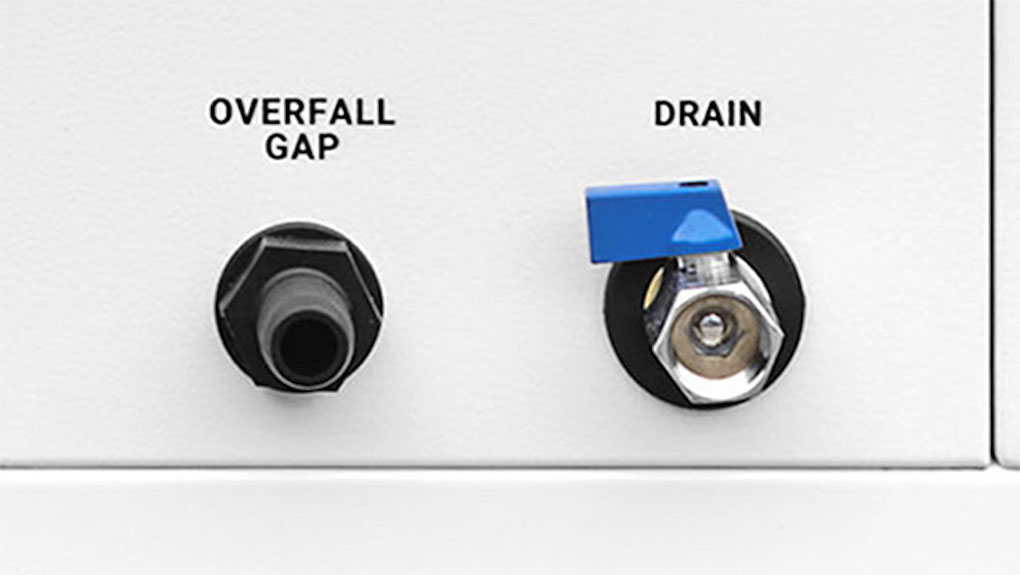

Easy drain port with valve
Draining process can be controlled very easily.

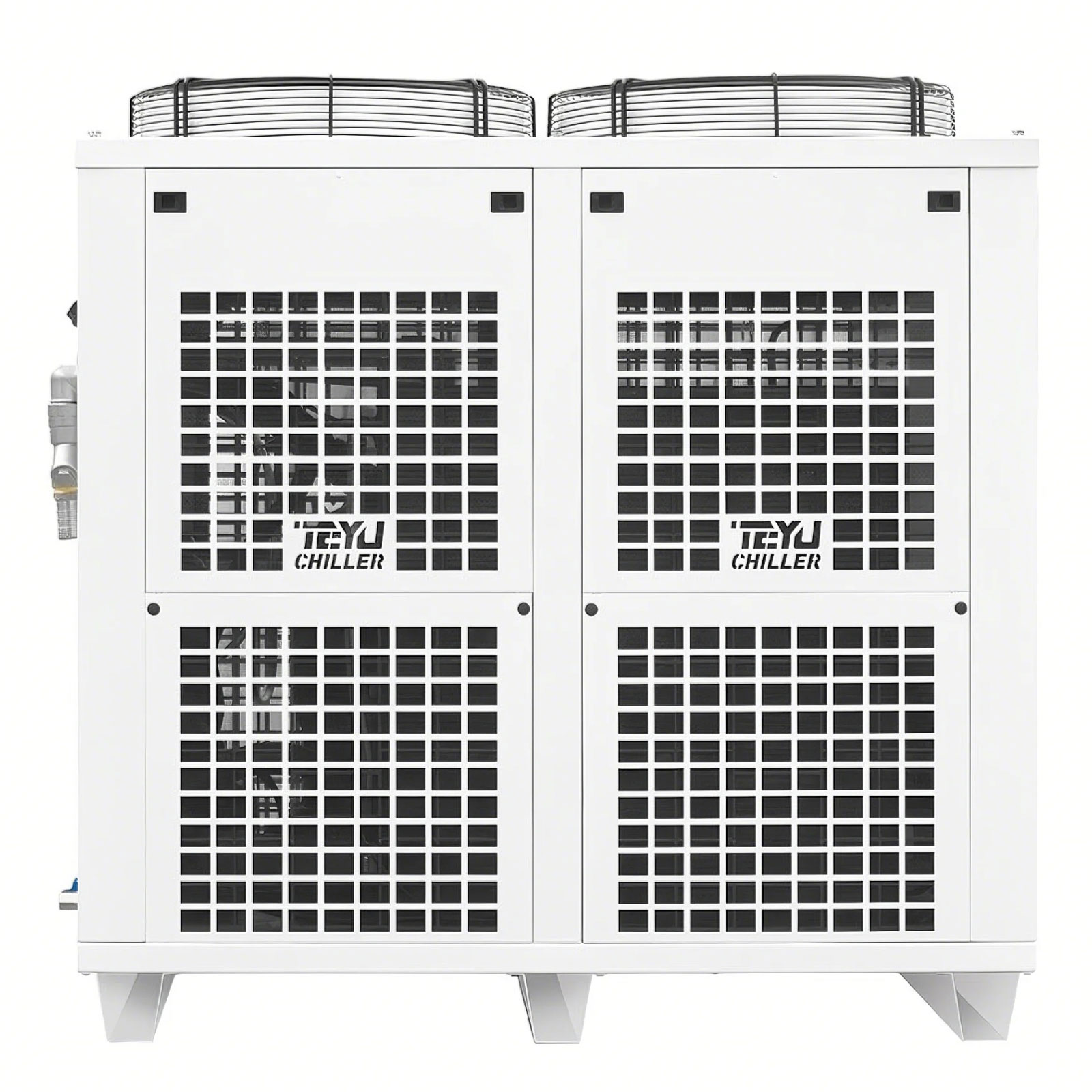

Cooling fan of famous brand installed.
With high quality and low failure rate.
|
Model |
CWFL-20000FTPTY |
|
Voltage |
AC 3P 380V, 60Hz |
|
Current |
7~44.7A |
|
Power consumption |
25.83kW |
|
Heater power |
1kW+7.5kW |
|
Precision |
±1.5℃ |
|
Reducer |
Capillary |
|
Pump power |
3KW |
|
Tank Capacity |
170L |
|
Inlet and Outlet |
Rp1/2"+ Rp1-1/4" |
|
Max. Pump pressure |
6.75bar |
|
Max.flow |
5L/min+>150L/min |
|
Net Weight |
275Kgs(606.3lb) |
|
Gross Weight |
312Kgs(688lb) |
|
Product Dimension |
56" x 32.7" x 52" (1420 x 830 x 1320 mm) |
|
Package Dimension |
58" x 36.2" x 59" (1470 x 920 x 1500 mm) |
