S&A CWFL-2000BN industrial water chiller for Cooling 2000W Fiber Laser, 3.08HP, AC 1P 220V, 50Hz
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the Accessories box before running the chiller.
Warm Tips:
The water chiller is delivered without a power plug, connection to the electrical power source shall be done by a licensed electrician. The electrician can either install a suitable amperage, phase and voltage rated plug for whatever country the unit is being installed.
S&A compressor refrigeration industrial Water Chiller CWFL-2000 with dual temp control function is produced by Guangzhou Teyu Electromechanical Co., Ltd. Our brands"S&A" and "TEYU" have gained approval and trust from thousands of manufacturer at home and abroad which enables our product export rate maintained at over 60% in long-term.
S&A CWFL series chiller is special for cooling Raycus, IPG, Max, nLIGHT, trumpf, Rofin and SPI fiber laser.
CWFL-2000 chiller is special applied for cooling 2000W fiber laser which is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
1. Dual cooling circuit, active cooling
2. Temperature stability: ±0.5°C
3. Temperature control range: 5°C ~35°C
4. Refrigerant: R-410A
5. User-friendly controller interface
6. Integrated alarm functions
7. Back mounted fill port and visual water level
8. Optimized for high performance at low temperatures
| Model | CW-FL-2000BNPTY |
| Voltage | AC 1P 220~240V |
| Frequency | 60Hz |
| Current | 3.9~19.9A |
| Power consumption | 3.84kW |
| Heater power | 0.55kW+0.6kW |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.75 KW |
| Tank capacity | 14L |
| Inlet and outlet | Rp1/2"+Rp1/2" |
| Max. Pump pressure | 5.3bar |
| Max. pump flow | 2L/min+>20L/min |
| N.W | 69Kgs (152lb) |
| G.W | 81Kgs (178.6lb) |
| Dimension | 70cm x 47cm x 89cm(27.6" x 18.5" x 35") |
| Package dimension | 730mm x 570mm x 1050mm(29" x 22.4" x 41") |
Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

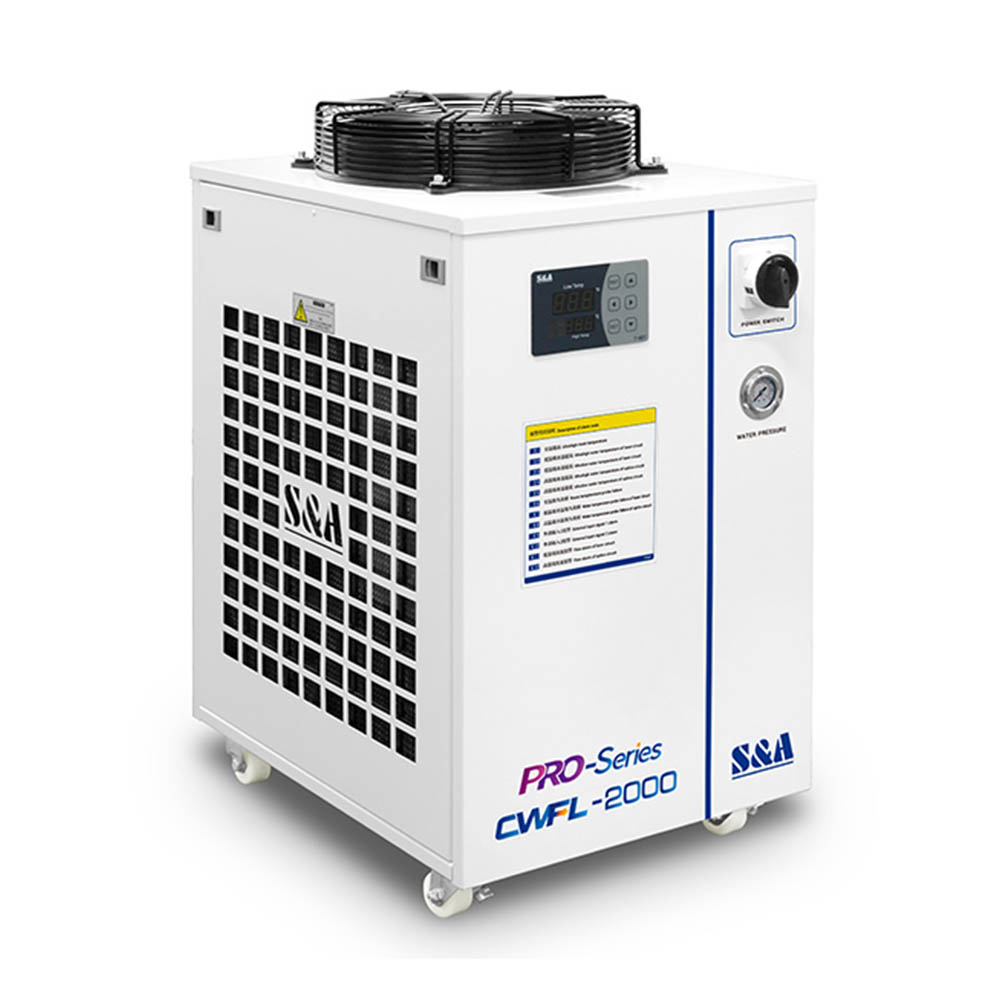

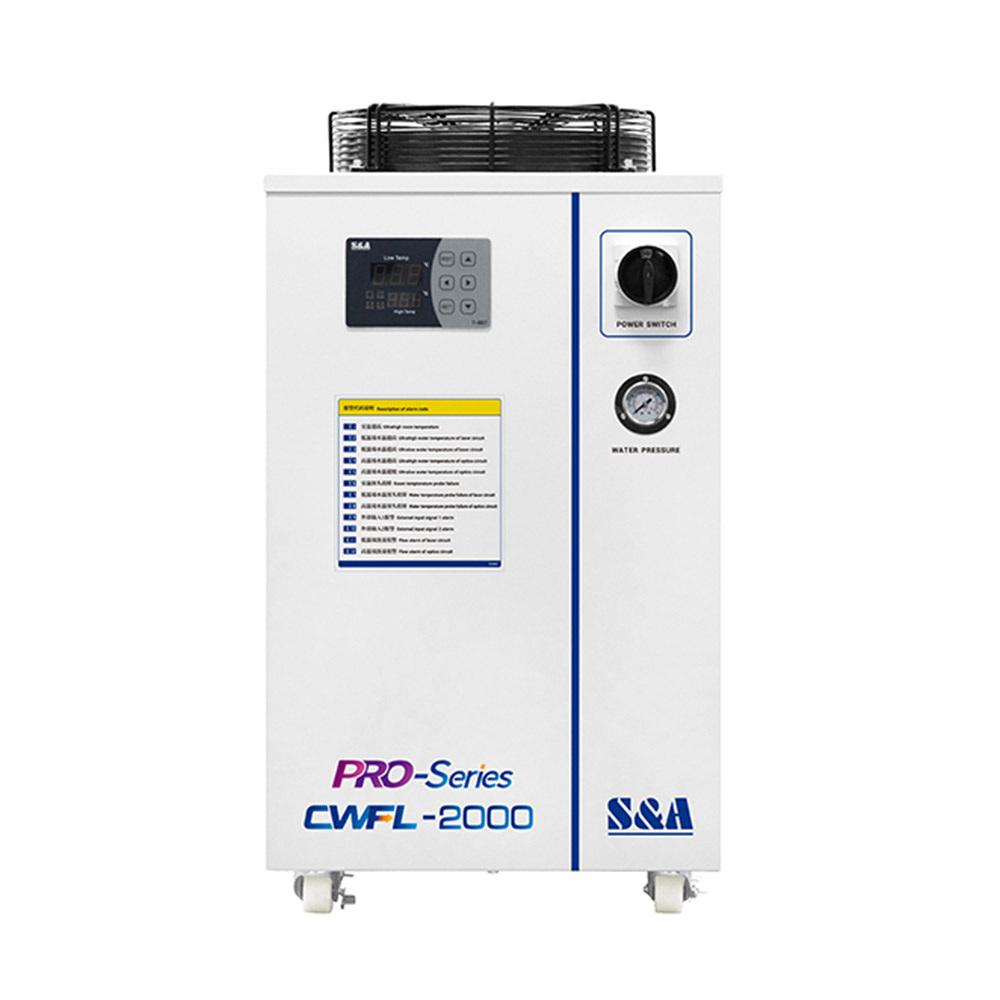

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

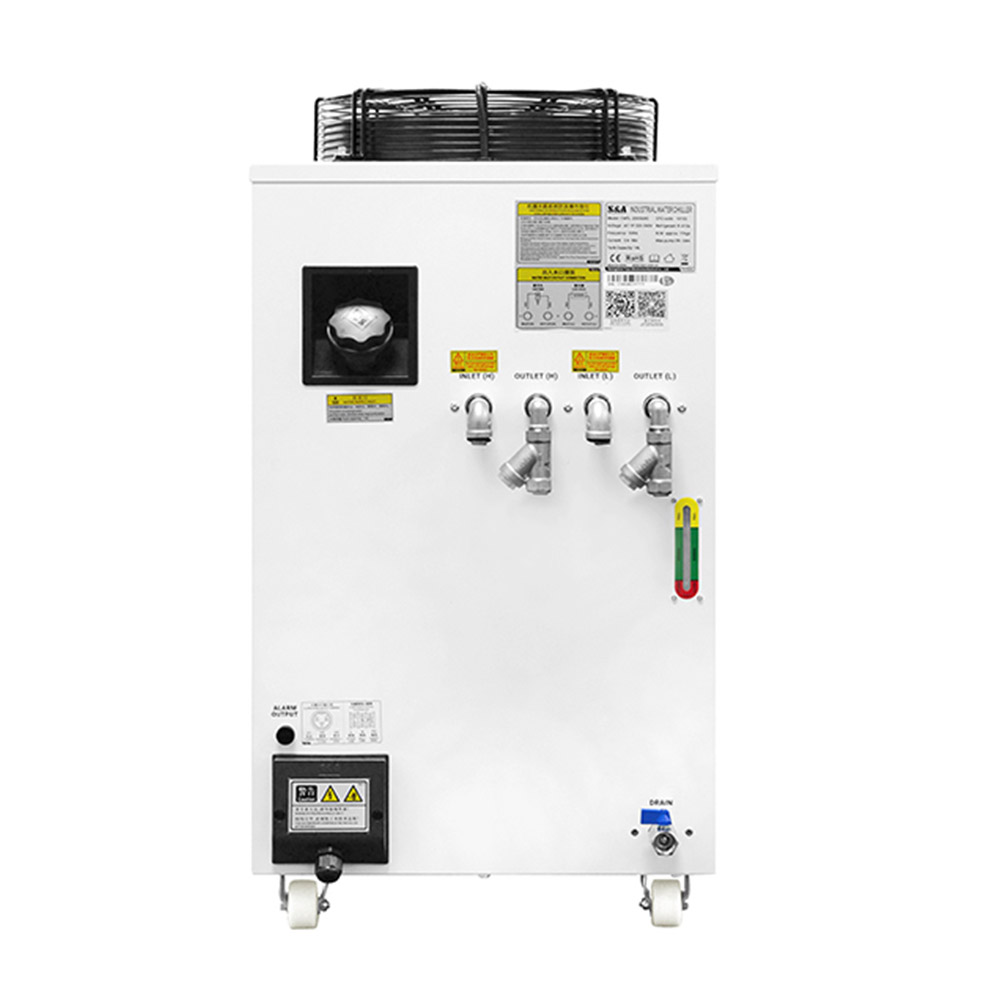

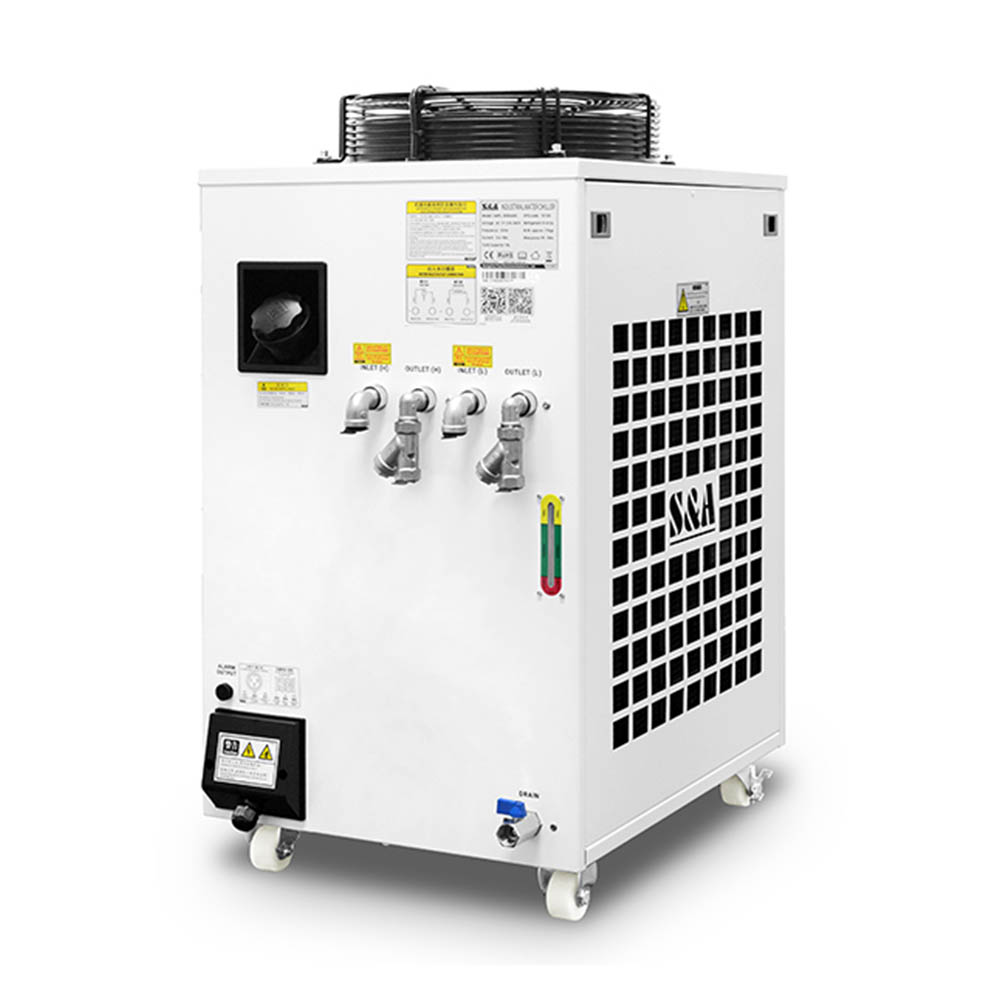

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
| Model | CW-FL-2000BNPTY |
| Voltage | AC 1P 220~240V |
| Frequency | 60Hz |
| Current | 3.9~19.9A |
| Power consumption | 3.84kW |
| Heater power | 0.55kW+0.6kW |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.75 KW |
| Tank capacity | 14L |
| Inlet and outlet | Rp1/2"+Rp1/2" |
| Max. Pump pressure | 5.3bar |
| Max. pump flow | 2L/min+>20L/min |
| N.W | 69Kgs (152lb) |
| G.W | 81Kgs (178.6lb) |
| Dimension | 70cm x 47cm x 89cm(27.6" x 18.5" x 35") |
| Package dimension | 730mm x 570mm x 1050mm(29" x 22.4" x 41") |
