Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better
Features:
1.Fully automatic feeding, automatic slotting and automatic bending according to the characteristics of the font.

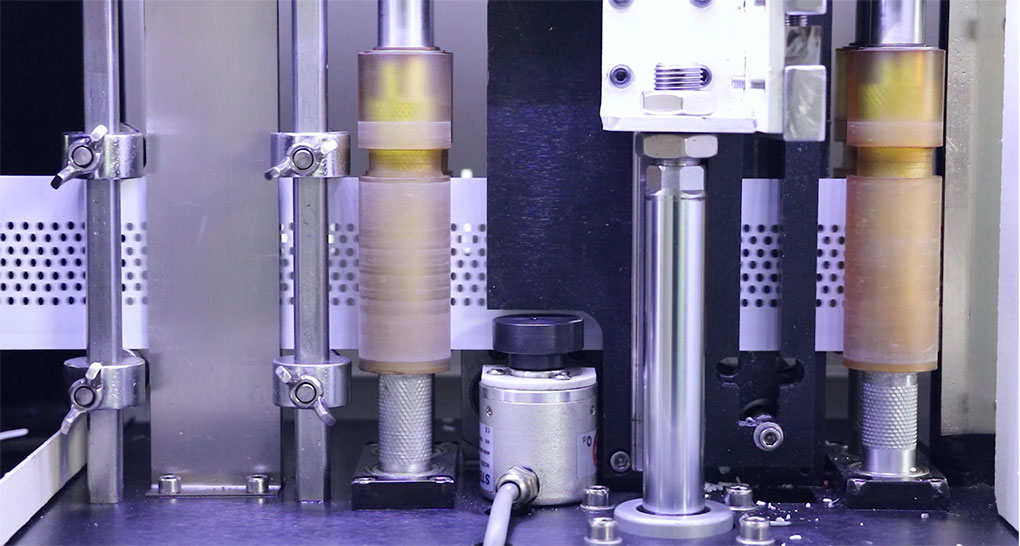

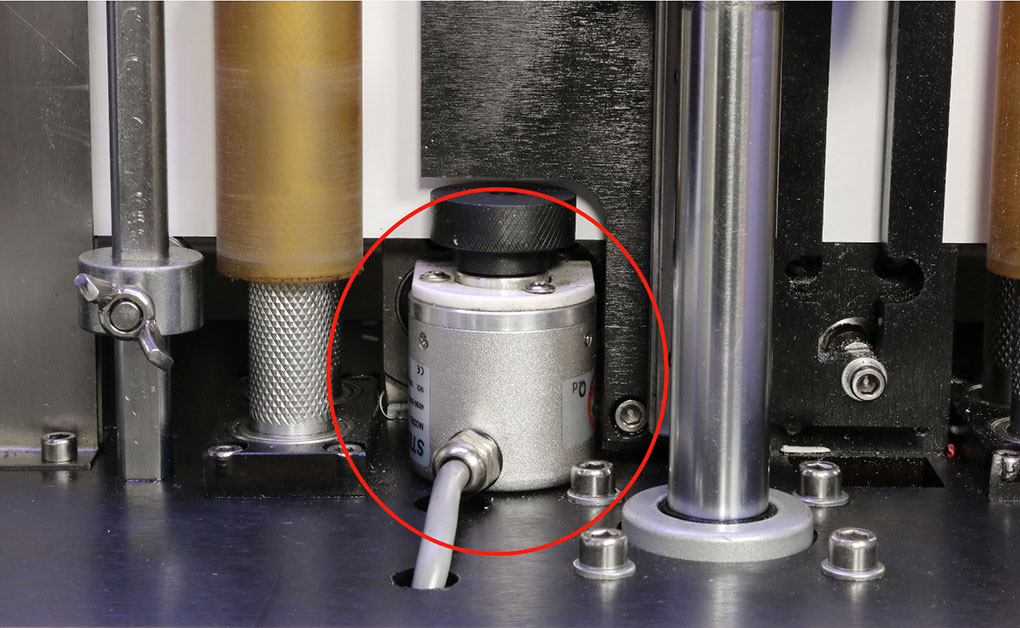

2.The feeding adopts feeding feedback of closed-loop encoder, which effectively avoids size inaccuracies caused by material sliding.
3.Material grooving adopts a planer imported from Japan, which has low cutting sound, wear-resistant, not easy to break, and easy to replace.

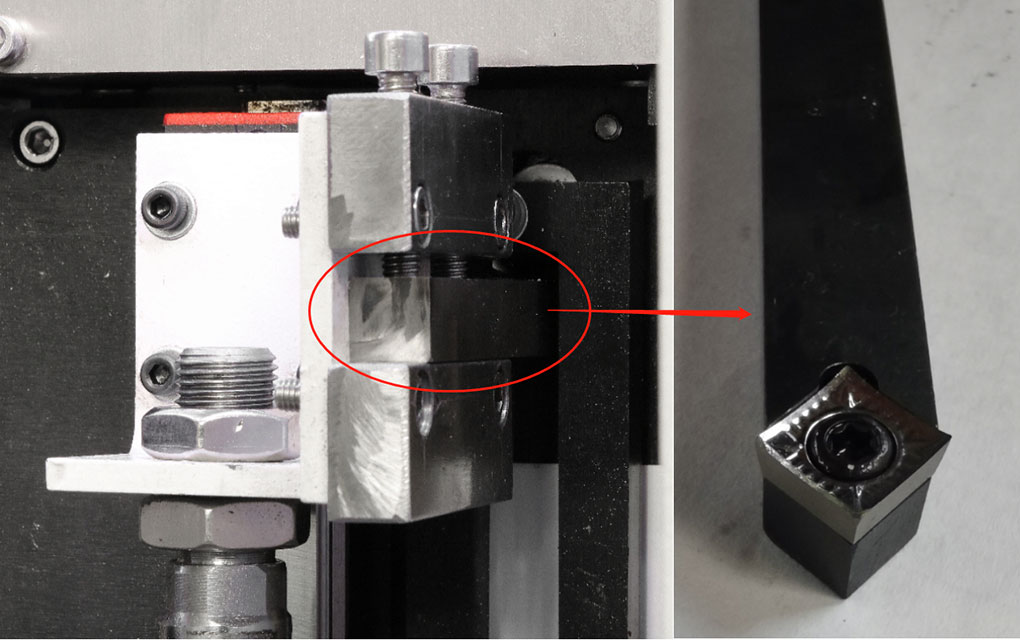

4.The slotting method adopts high-precision guide rail and pneumatic system, ultra-hard white steel blade slotting method, low cost and good effect.

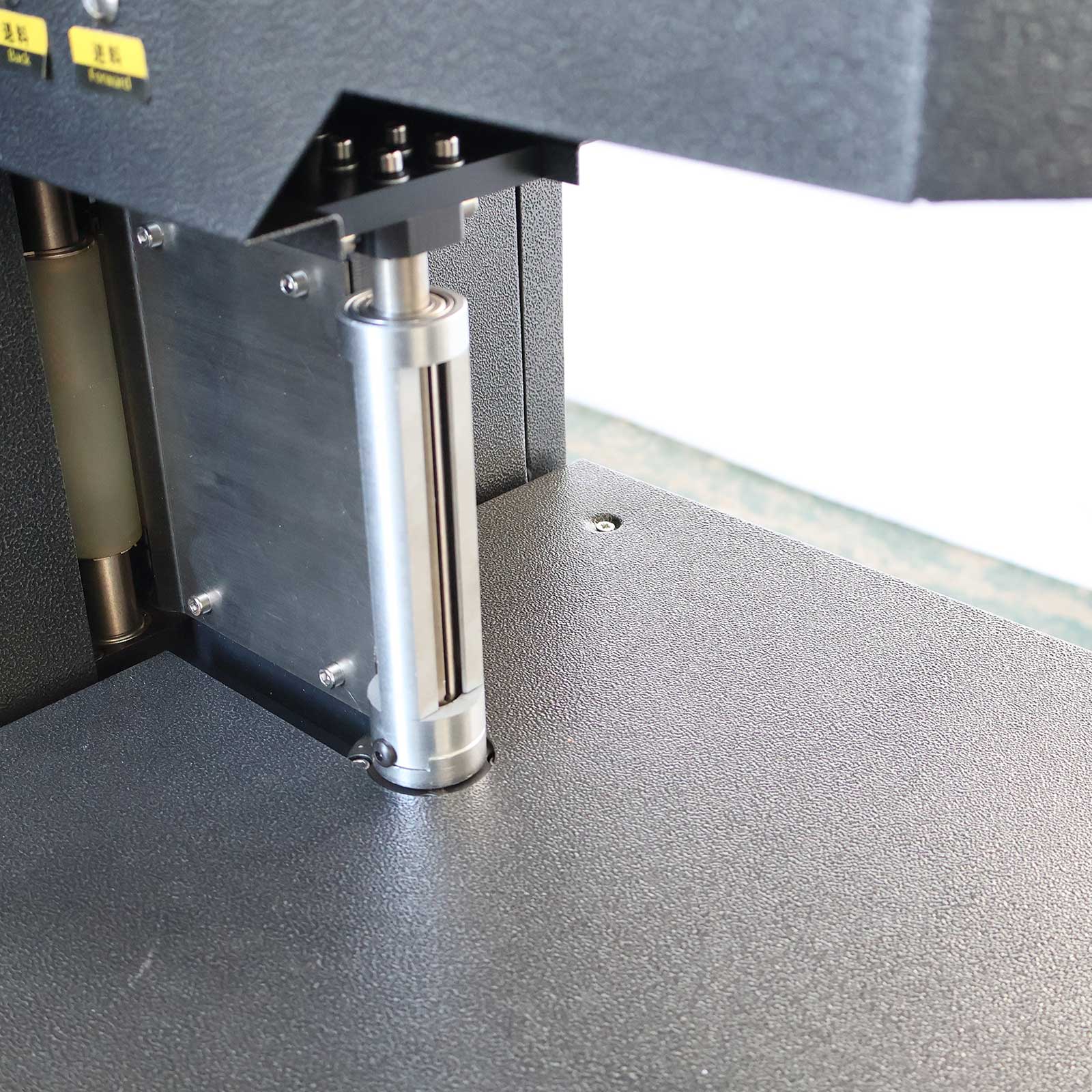

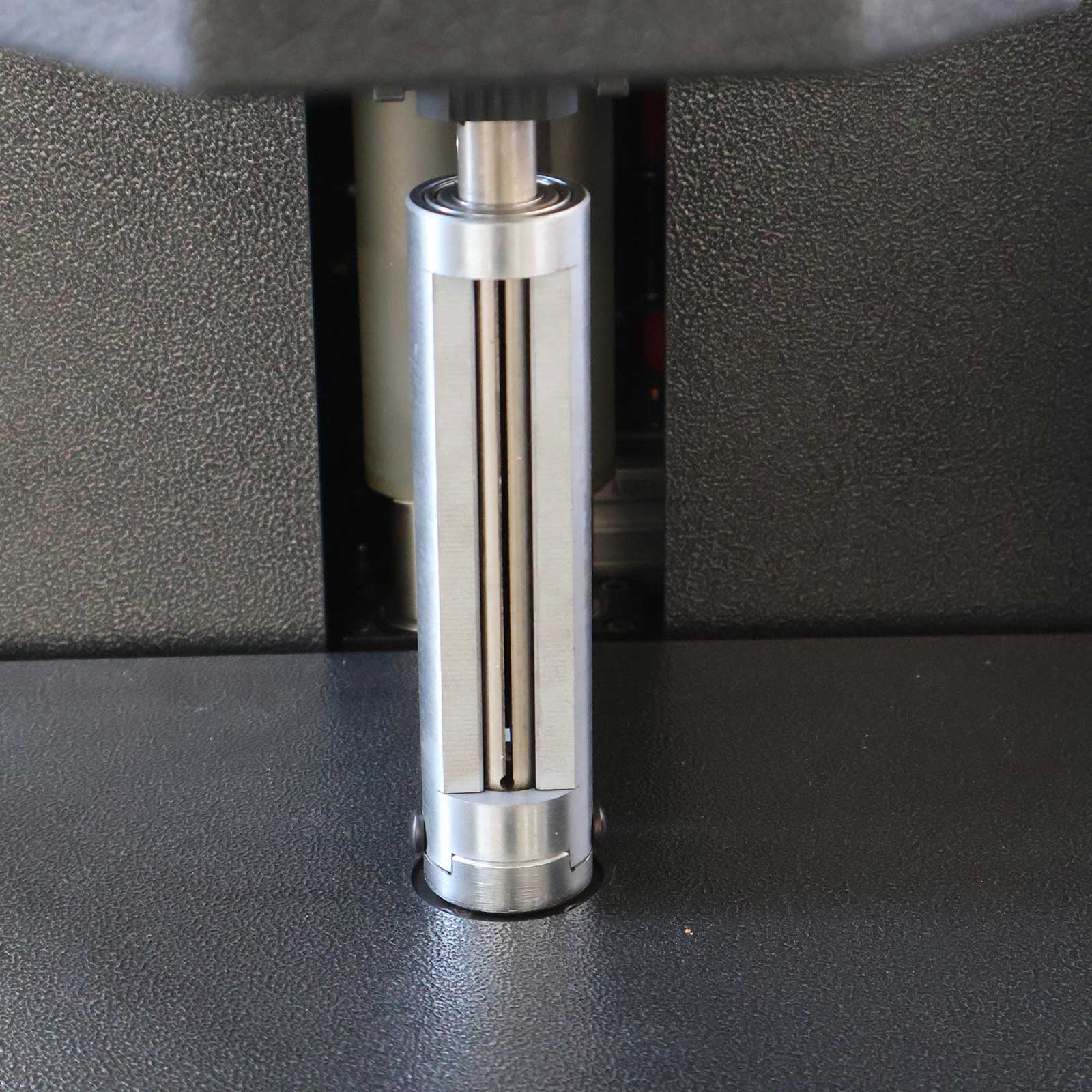

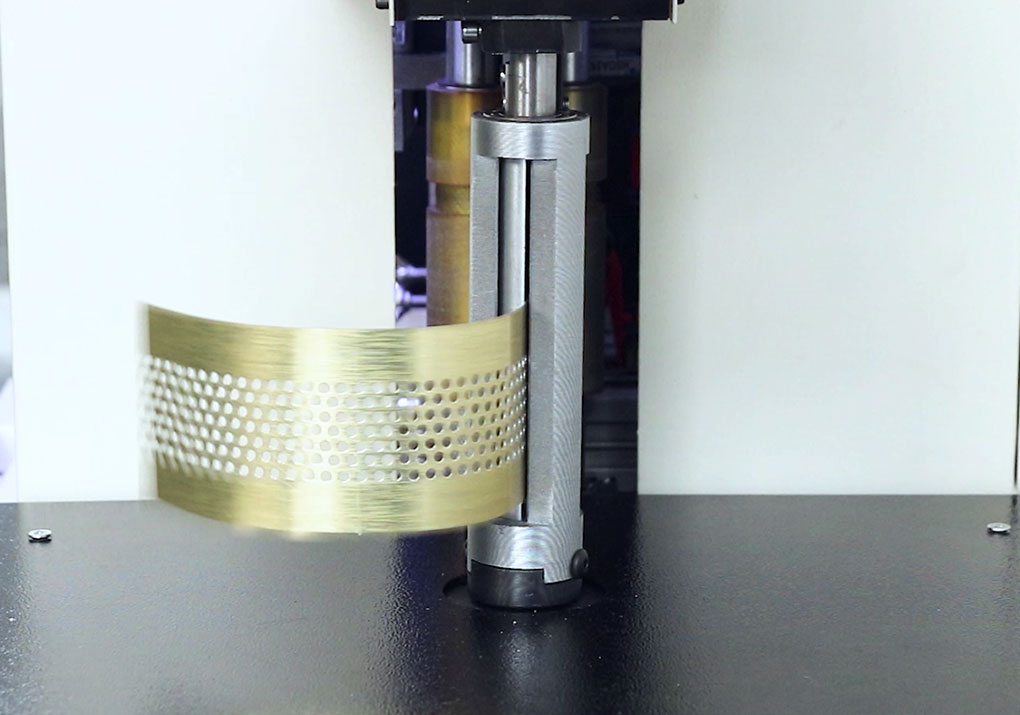

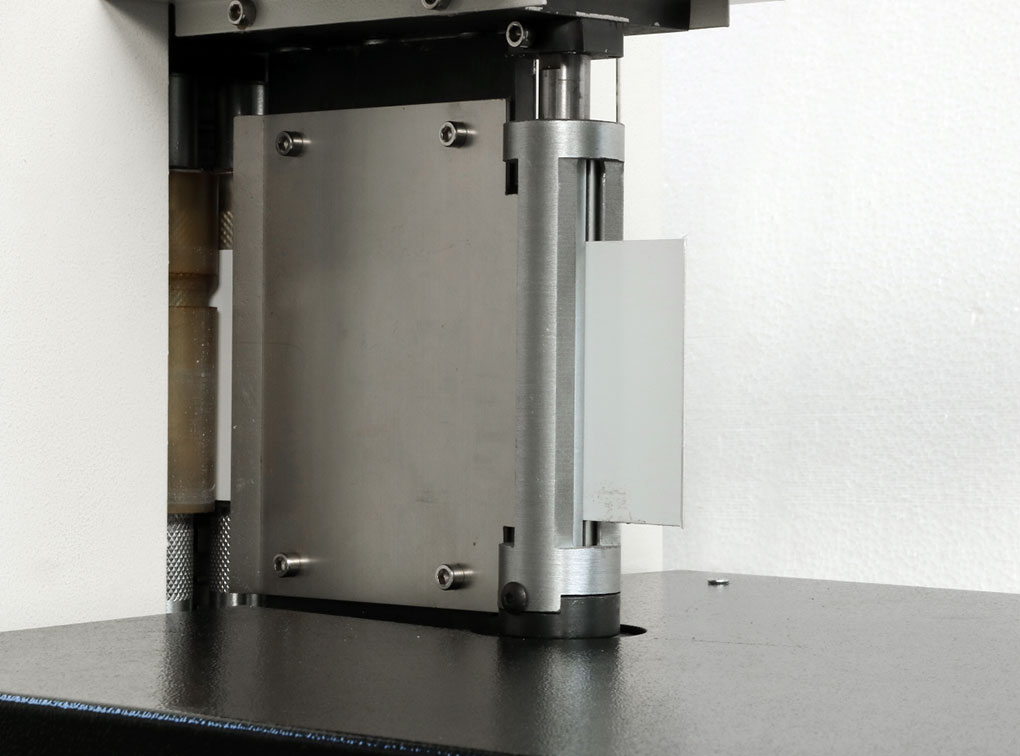

5.The bending system adopts a high-precision servo system, which effectively increases the speed of the arc.

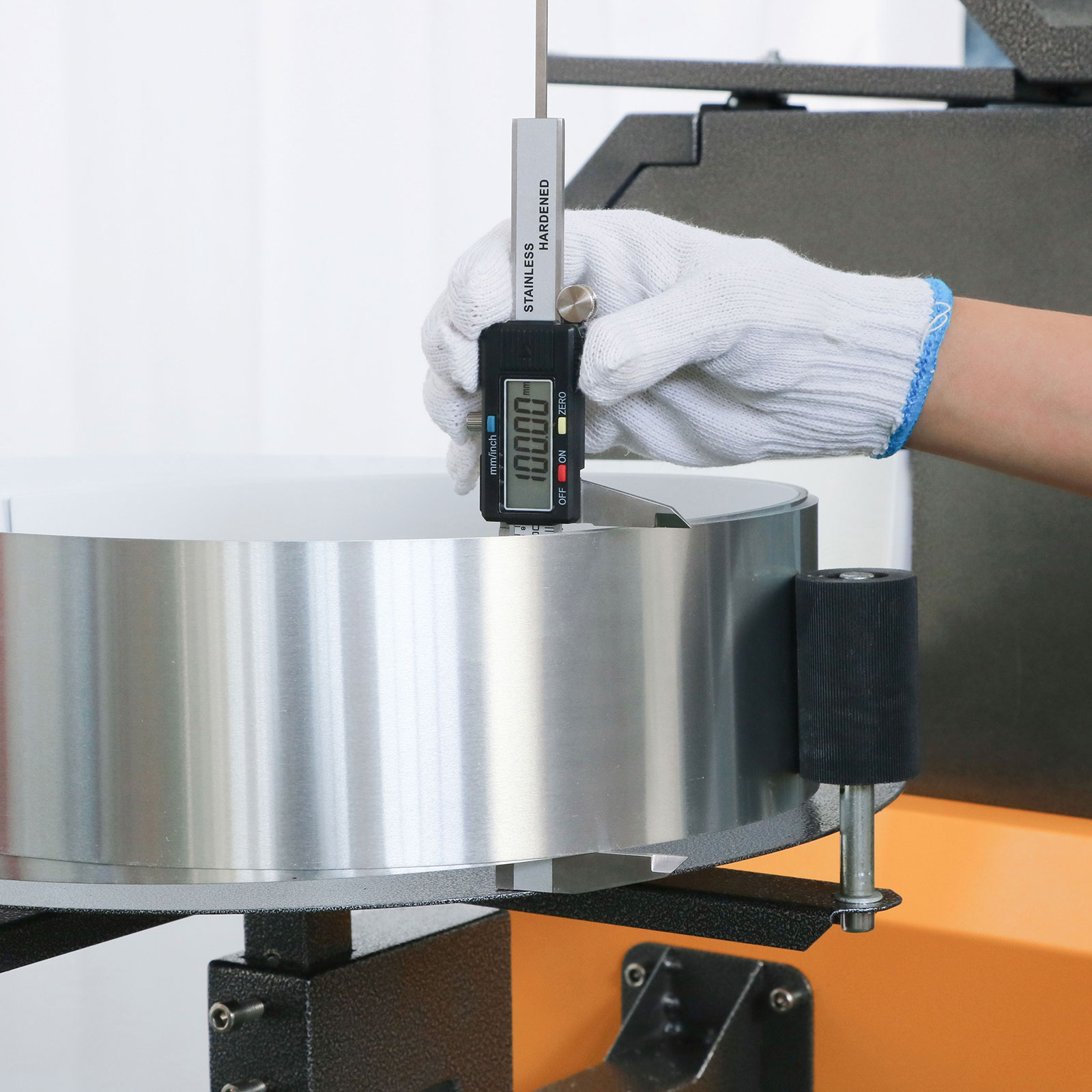

6.Humanized operating software, fixed grooving depth, durable tool, and constant depth.
7.Special specifications can be customized.
Application:

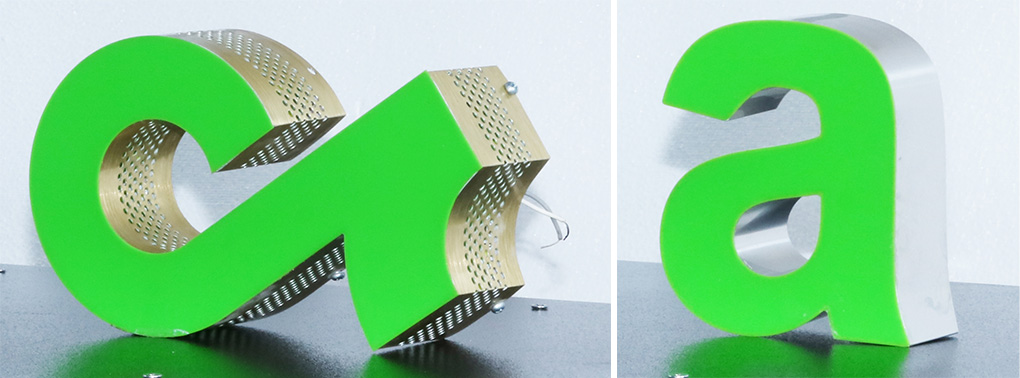

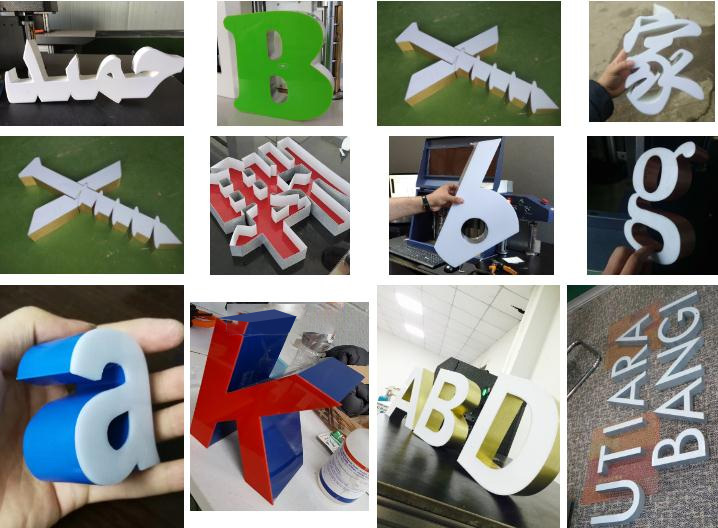

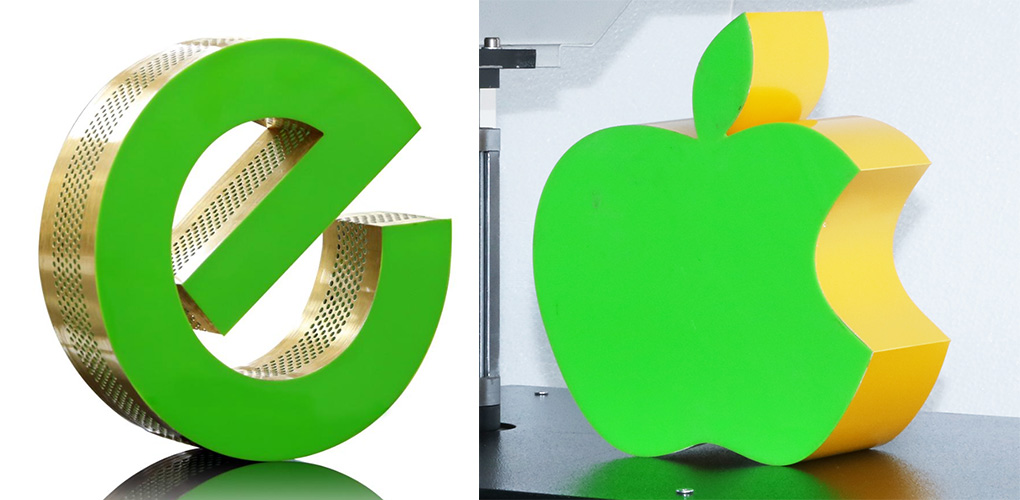

Rimless Channel Letter, Liquid acrylic channel letter, Aluminum epoxy channel letter.
| Scope of Application | Aluminum Channel letter |
| Notching | No |
| Flanging | -No- |

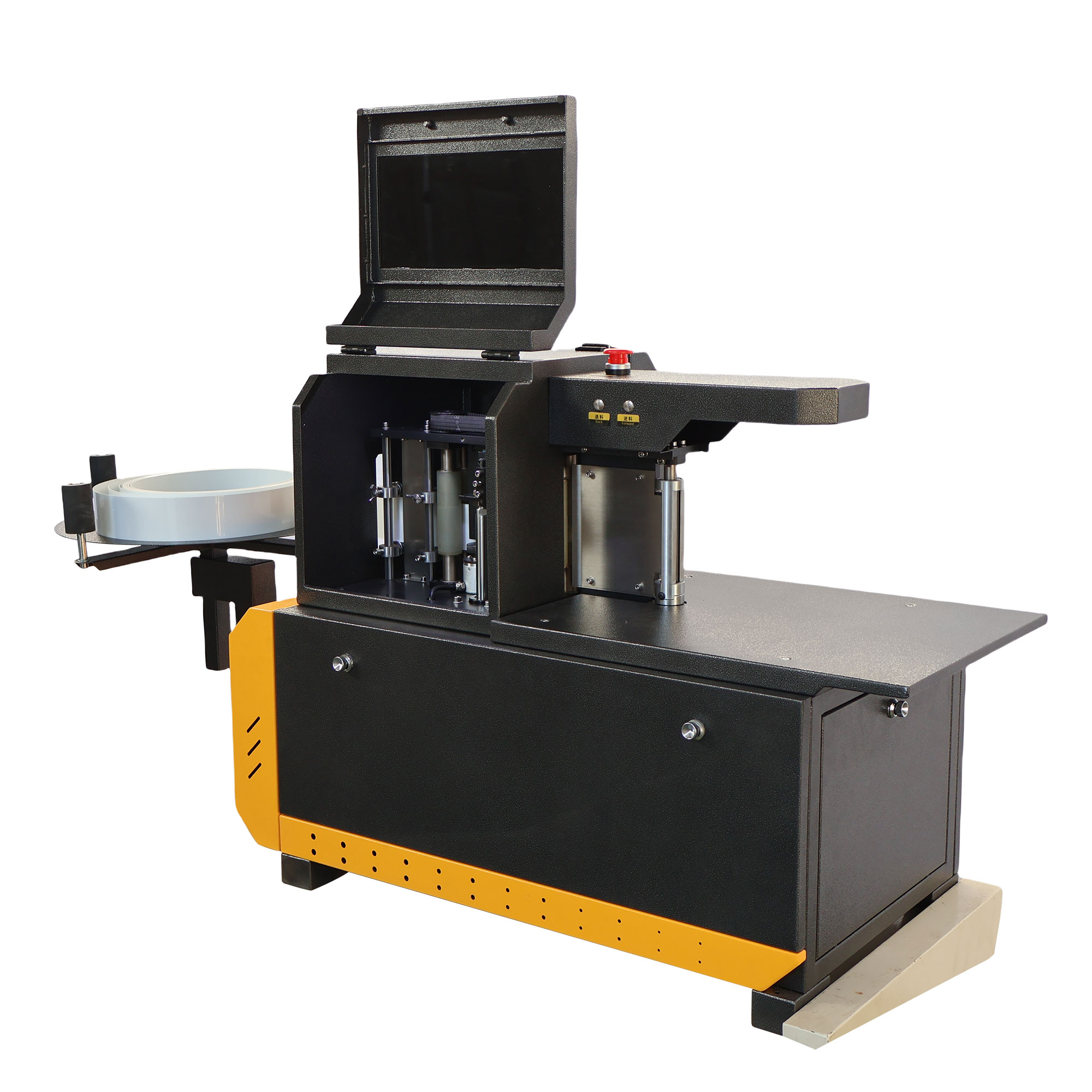

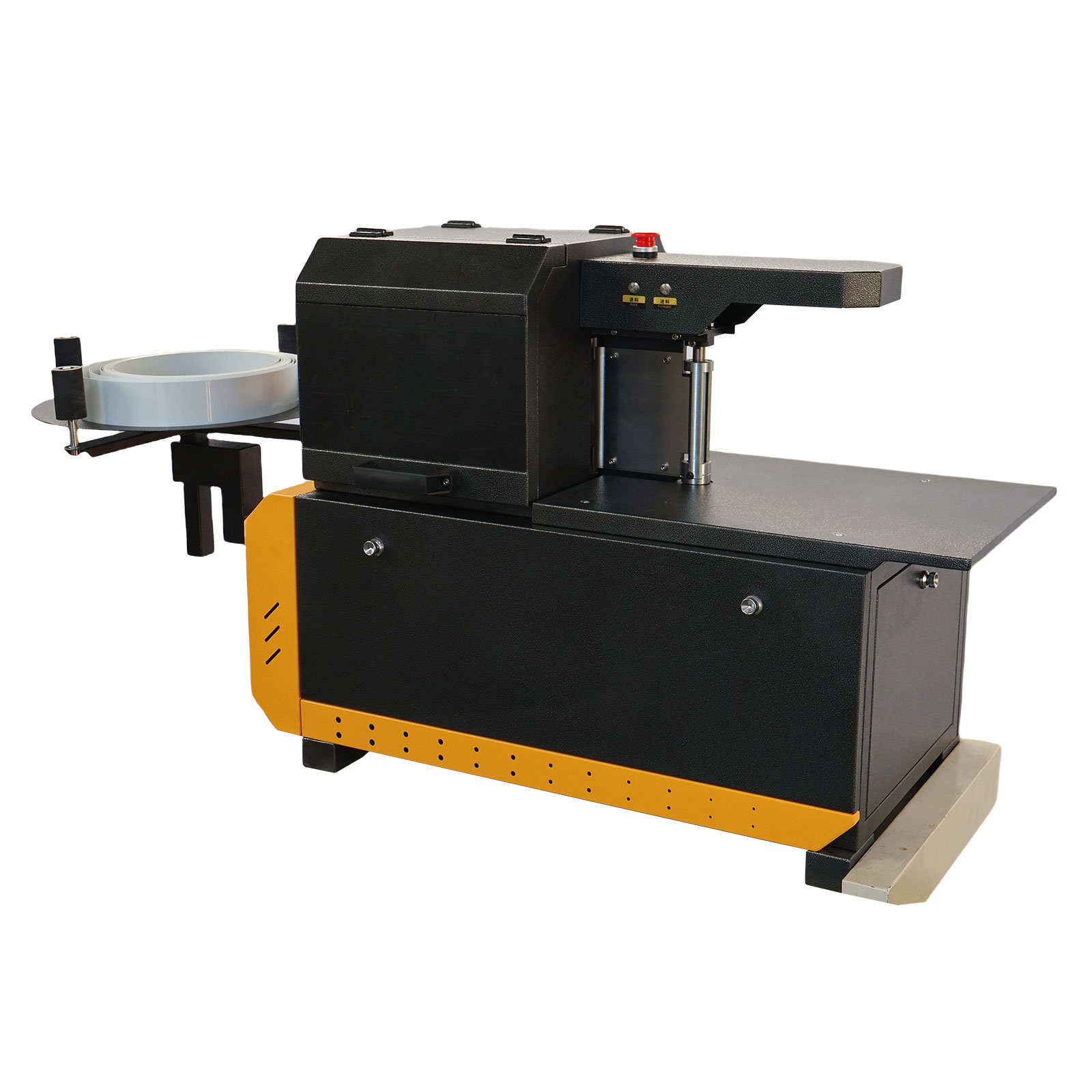

| Model | MBM-JH-M3100 |

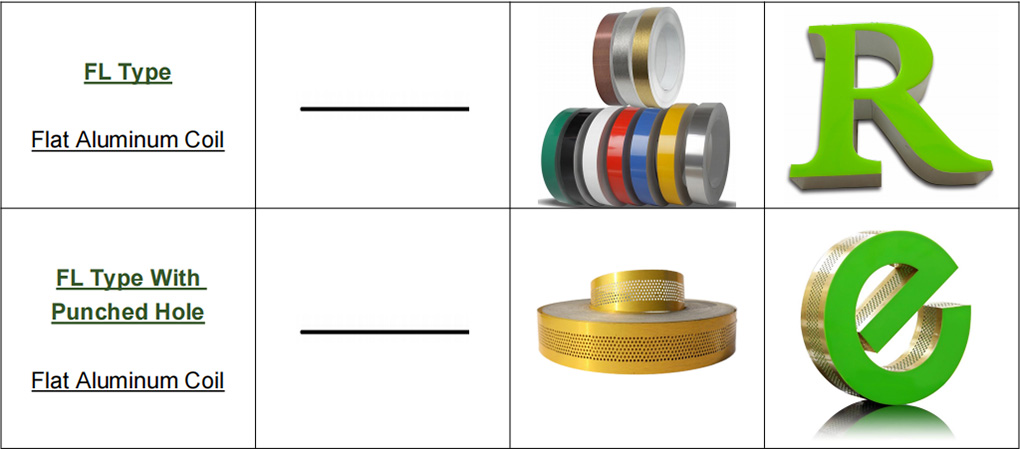

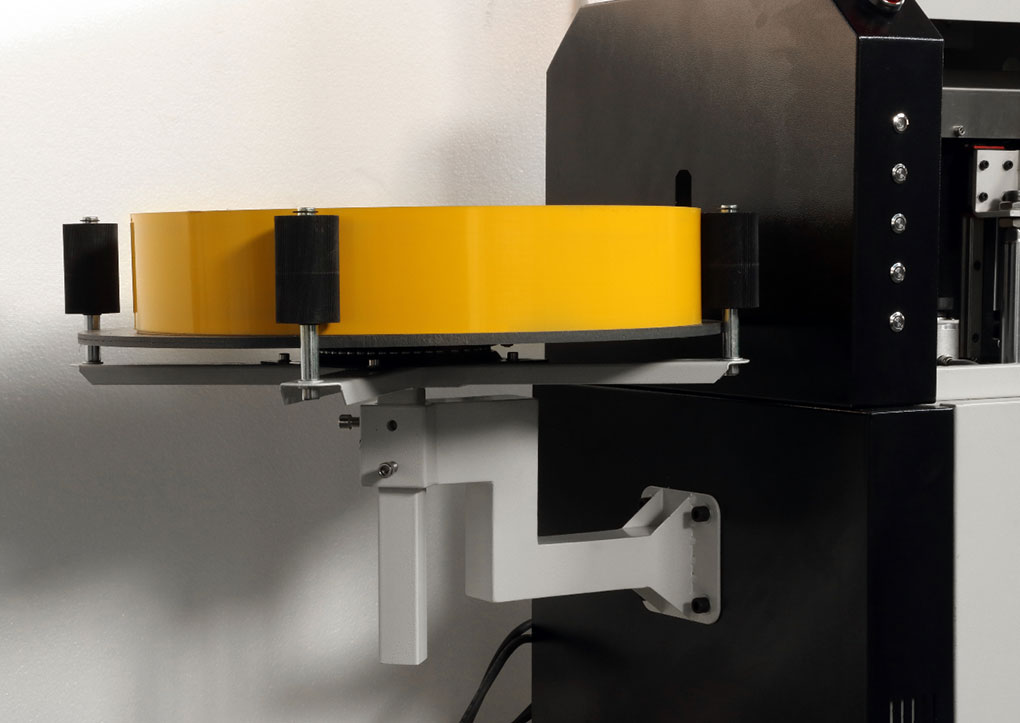

| Applied Material | Flat aluminum coil |
| Material Width | 0.79-3.94in(20-100mm) |
| Material Thickness | Maximum 0.031in(0.8mm) |
| Feeding Speed | 2-5m/min |
| Bending Mode | Double rod linkage |
| Minimum Bending Radius | 4mm |
| Motor | Servo motor: 1pc |
| Stepper motor: 1pc | |
| Power | 600w |
| Voltage | 220v 50/60hz 1p |
| Air Pressure | 0.6MPa |
| Supported File Format | DXF PLT AI |

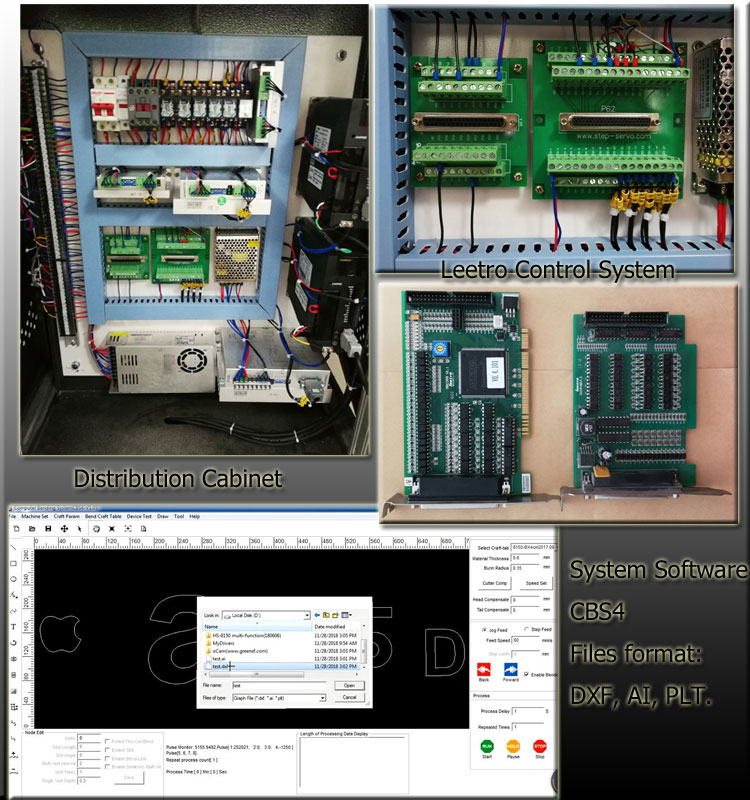

| Control Software | Original Leetro Software CBS |
| Package Details | |
| Machine Weight | 154lbs(70kgs) |
| Gross weight | 198lbs(90kgs) |
| Machine Size | 55*15.7*27.5in(1400mm(L)*400mm(W)*700mm(H)) |
| Packing Size | 39*21.6*31.5in(1000mm*550mm*800mm) |
