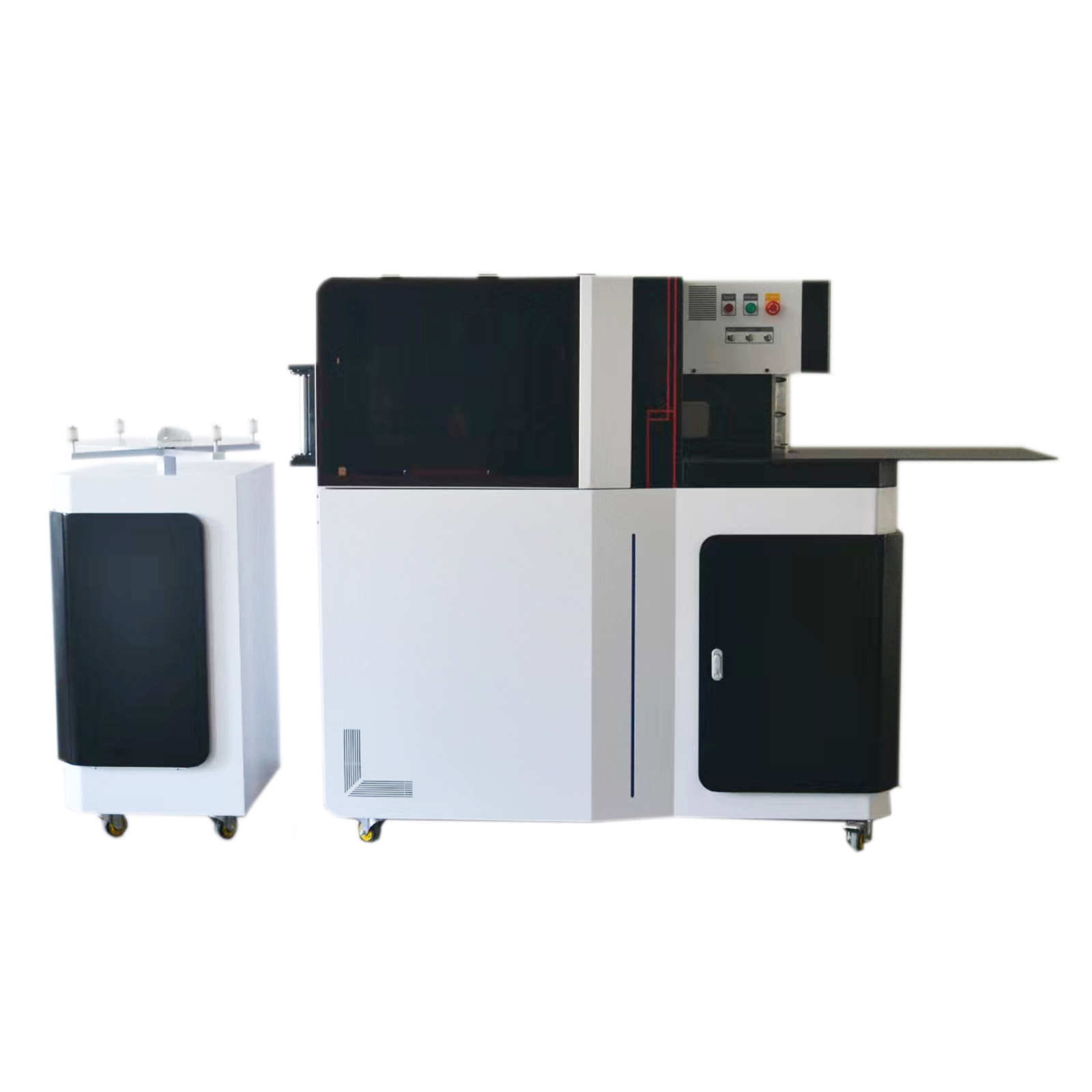

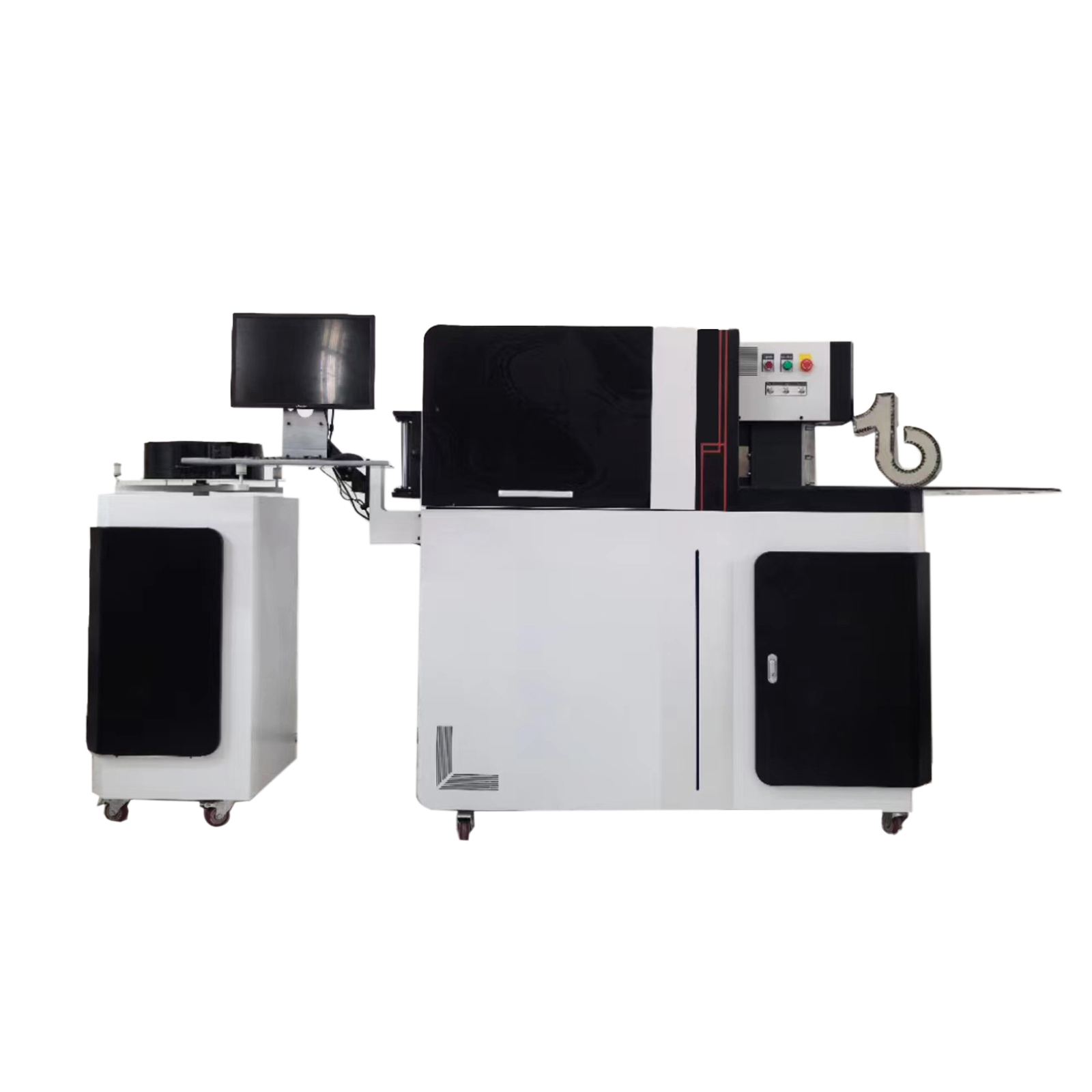

Automatic Multi-functional CNC Metal Channel Letter Bending Machine
This CNC metal channel letter bender is the machine with full function: auto feeding, auto notching, auto flanging, auto bending and auto cutting.
| Scope of Application | Stainless Steel Channel Letter,Aluminum Channel letter |
| Notching | Yes |
| Flanging | -Yes- |
| Item Code | MBM-ZW-X180C | |

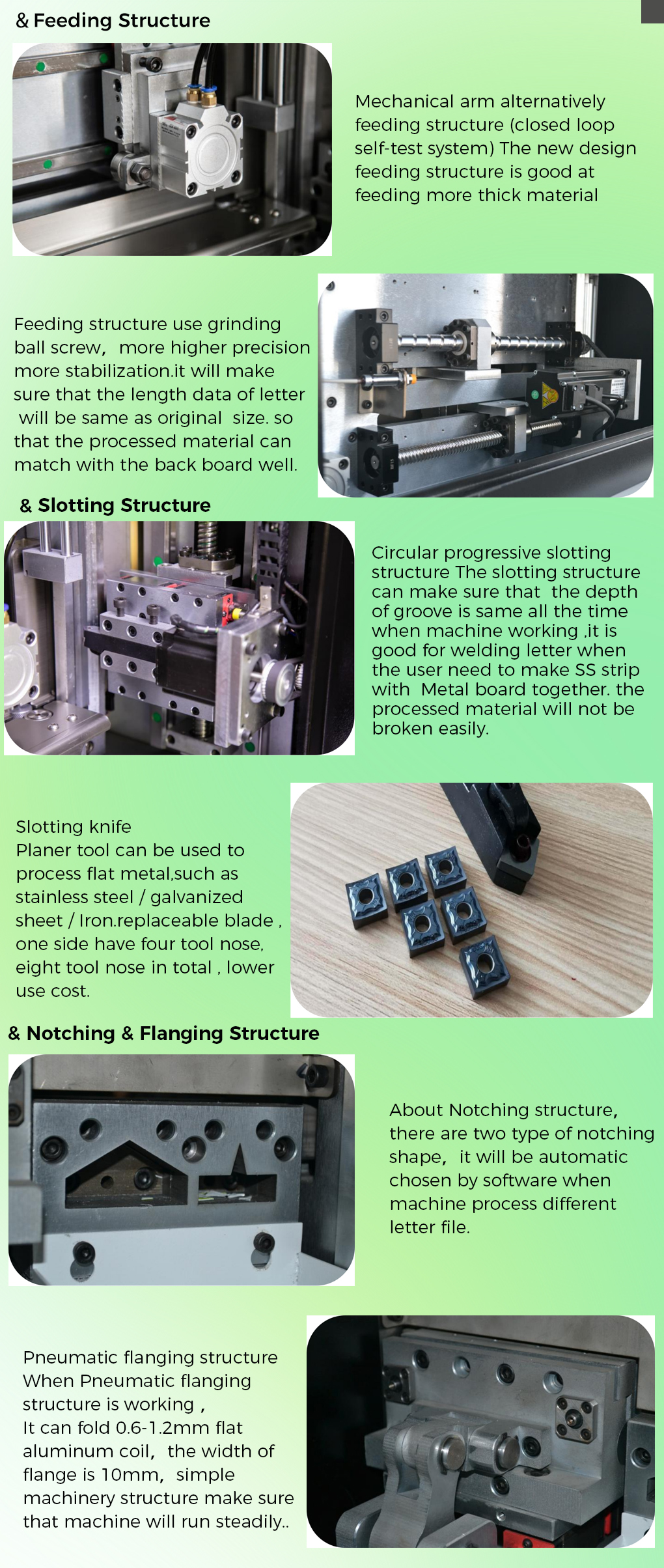

| Hardware | Feeding system | Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system) |
| Slotting system | Hard alloy planer | |
| Notching structure | Notching by Servo motor | |
| Flanging structure | Pneumatic flanging by air cylinder | |

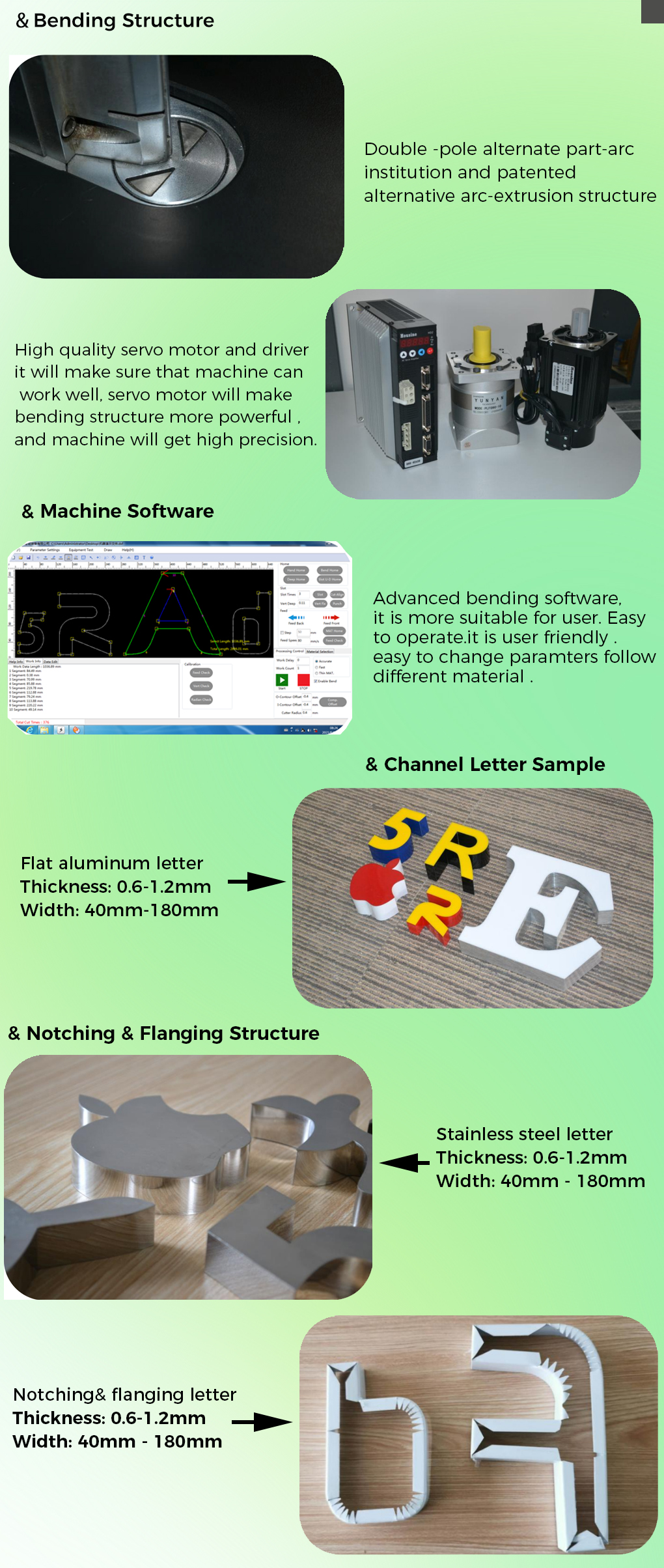

| Bending system | Double -pole alternate part-arc institution and patented alternative arc-extrusion structure | |
| Driving motor | Servo motor 4 set; stepper motor 1 set | |
| Weight | 680kg | |
| Dimensions | Body:L2140mm*W700mm*H1560mm;Feeding | |
| tableL500mm*W500mm*H1100mm | ||
| Performance | Material category | Flat aluminum /Stainless steel / Galvanized plate (height: 40-180mm) |
| Material thickness | Flat aluminum :0.6 - 1.2 mm/ SS : 0.3-1.2mm / Galvanized sheet: 0.4-1.2mm | |
| Flanging thickness | Flat aluminum 1.2 mm | |
| Notching angle | 30° / 120° | |
| Flanging width | 10mm | |
| Support format | AI/PLT/DXF/NC | |
| Feeding accuracy | Length + 0.1mm Radius > 4mm | |
| Software | Control card | Leetro Four -axis motion control card |
| Software system | Auto drive / CBS4 auto bending system | |
| Input voltage | 220V 50Hz 3Kw | |
| Air pressure | 0.6-0.8Mpa | |
Average Rating: 0
| Machine Dimension | 2140mm*700mm*1560mm (84" x 27.5" x 61") |
| Machine Weight | 650kg(1430lb) |
| Packing Size | 2450*810*1810mm (96" x 32" x 71") |
| Gross Weight | 680kg(1496lb) |
Spare Part
| Name | QTY |
| Power Cable | 1 PC |
| Hexagon Wrench | 1 SET |
| Control Card | 1 PC |
| Signal Cable | 1PC |
| Software CD | 1 PC |
| Photo-electric Sensors | 2 PC |
| Relay | 2 PC |
| USB Cable | 1PC |
