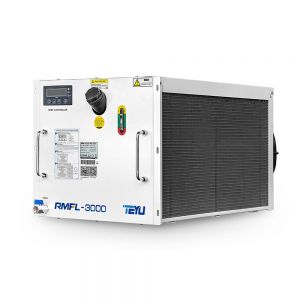

S&A Rack Mount Recirculating Laser Chiller RMFL-3000 For 3KW Handheld Fiber Laser Welding Machine(2.77HP AC 1P 220V 50HZ)
Rack mount Water Chiller RMFL-3000 is designed for cooling 3KW handheld laser welding & cleaning machine and mountable in a 19-inch rack. Because of the rack mount design, this compact air cooled chiller allows stacking of related device, indicating a high level of flexibility and mobility. Temperature stability is ±0.5°C while the temperature control range is 5°C to 35°C. This refrigerated Recirculating Chiller comes with a high performance water pump. Water fill port and drain port are mounted on the front together with a thoughtful water level check.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
Features:
1. Rack mount design
2. Dual cooling circuit
3. Active cooling
4. Temperature stability: ±0.5°C
5. Temperature control range: 5°C ~35°C
6. Intelligent digital control panel
7. Integrated alarm functions
8. Integrated front handles
9. High level of flexibility and mobility
| Model |
CW-RMFL-3000ANTTY
|
| Voltage | AC 1P 220~240V, 50Hz |
| Current | 2.3~16.3A |
| Machine power | 3.54kW |
| Compressor power | 1.7kW, 2.27HP |
| Refrigerant | R-32/R-410a |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.48kW |
| Tank Capacity | 16L |
| Inlet and Outlet | Rp1/2"+Rp1/2" |
| Max. pump pressure | 4.3bar |
| Max.flow | 2L/min+>25L/min |
| Net Weight | 58Kgs (128lb) |
| Gross Weight | 70Kgs (156.5lb) |
| Dimension | 88cm x 48cm x 43cm (34.6" x 19" x 17.7") |
| Package Dimension | 99cm x 58cm x 61cm (39" x 23" x 24") |
Note: The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Dual temperature control
Intelligent temperature controller. Controlling the temperature of the fiber laser and optics at the same time.
Integrated front handles
The front-mounted handles help move the chiller very easily.

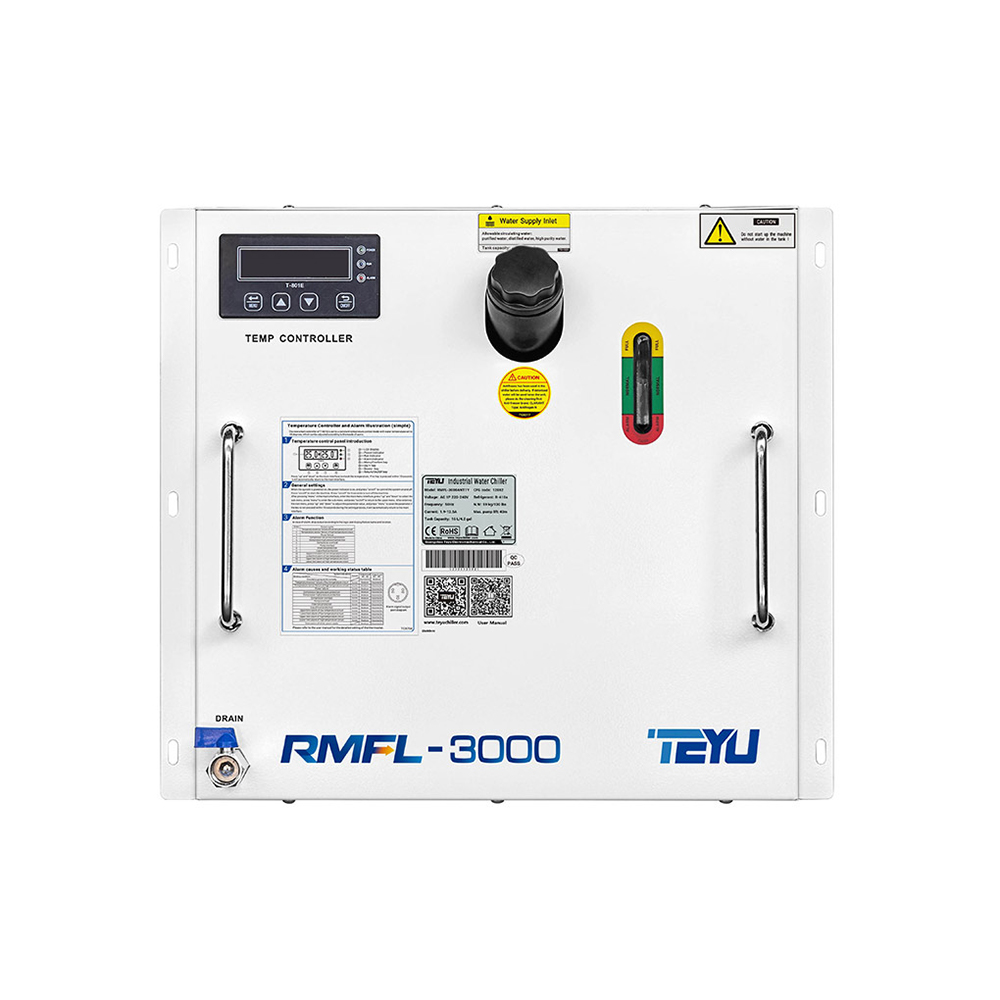

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.
| Model |
CW-RMFL-3000ANTTY
|
| Voltage | AC 1P 220~240V, 50Hz |
| Current | 2.3~16.3A |
| Machine power | 3.54kW |
| Compressor power | 1.7kW, 2.27HP |
| Refrigerant | R-32/R-410a |
| Precision | ±0.5℃ |
| Reducer | Capillary |
| Pump power | 0.48kW |
| Tank Capacity | 16L |
| Inlet and Outlet | Rp1/2"+Rp1/2" |
| Max. pump pressure | 4.3bar |
| Max.flow | 2L/min+>25L/min |
| Net Weight | 58Kgs (128lb) |
| Gross Weight | 70Kgs (156.5lb) |
| Dimension | 88cm x 48cm x 43cm (34.6" x 19" x 17.7") |
| Package Dimension | 99cm x 58cm x 61cm (39" x 23" x 24") |
