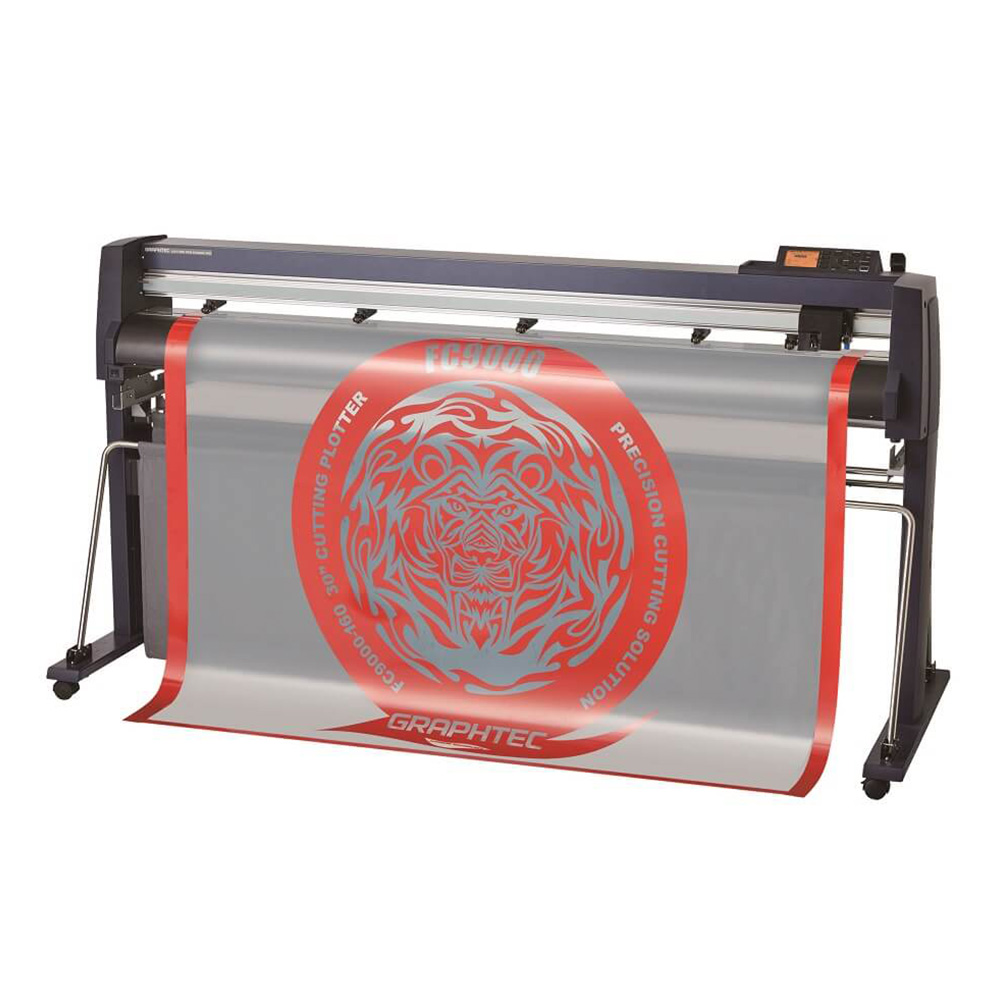

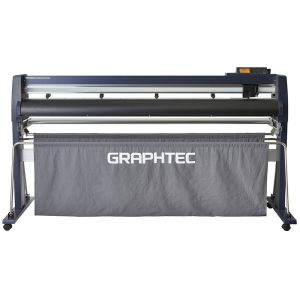

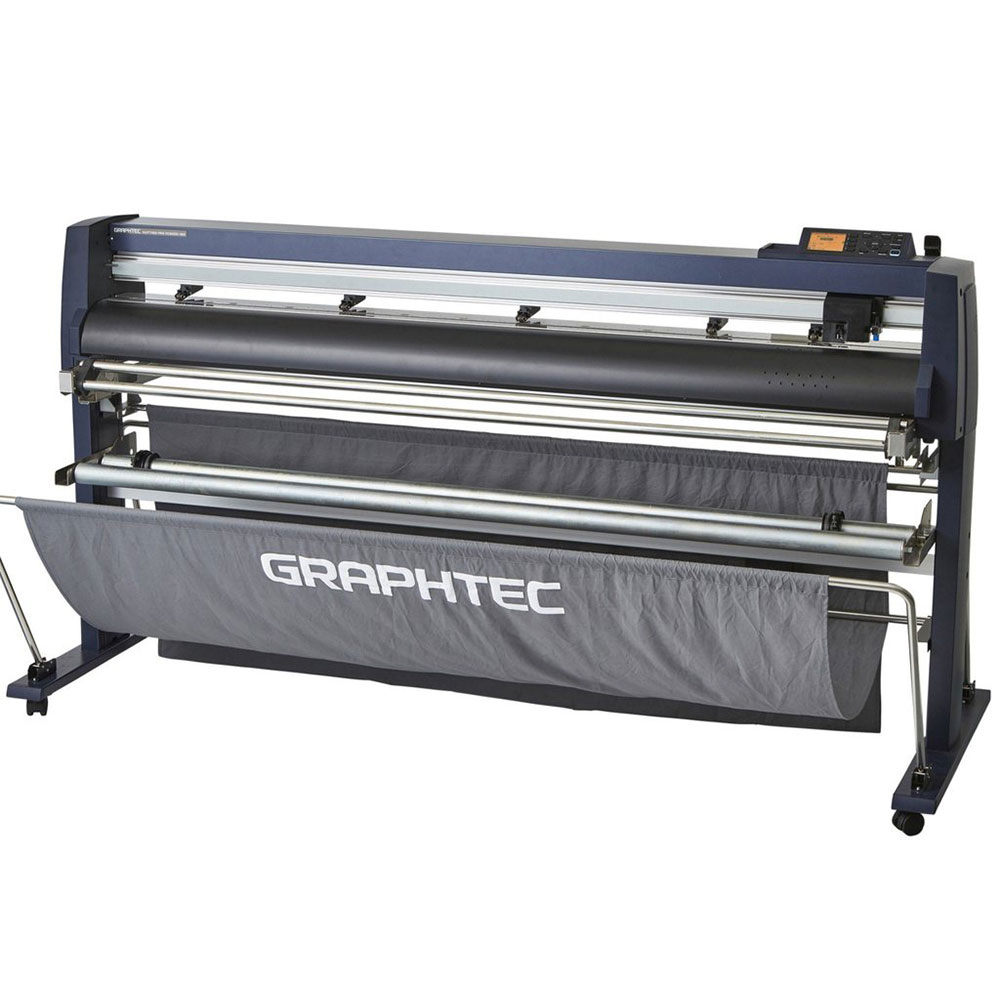

64" Graphtec FC9000-160 High Performance vinyl cutting plotter, Automatic Take-Up Spool are not included
The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.
Features:
1. Highest level cutting speed, acceleration and cutting force
2. Auto panelling
3. Data output via USB flash memory without PC
4. User friendly control panel
5. Improved ARMS for high precision cutting (ARMS 8.0)
6. Data link function
7. Continuous cut
8. Supports colored marks/specialty media
9. Supports Adobe Illustrator crop marks
10. Expanded cutting area
11. Segment area compensation (XY)
Details:
Optional automatic roll is only available for models 140 and 160
Standard Accessories:
Power cord x 1 (The type of cord is different by destination.)
USB Cable x 1 (2.9m long)
Cutting blade holder x 1 (PHP33-CB09N-HS)
Cutting Blade x 1 (CB09UB-1P)
Loupe x 1 (PM-CT-001)
Fiber-tip pen holder x 1 (PHP31-FIBER)
Water-based Fiber-tip pen x 1 (KF700-BK (black))
Stand x 1
Media Stocker x 1
Basket x 1
DVD-ROM x 1 (User manual, Windows driver,
Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4)
Printed document x 1 (Setup Manual, Cutter Blade Manual and Safety Manual)
Application:
| Specifications | |
| Max. cross cut width | 42 in |
| Max. cutting speed | 58.5 inches per second (45 degree direction) 41.3 (axis direction) |
| Cutting force | Max. 600 gf in 48 steps |
| Axial acceleration | Max. 39.2 m/s2 (4 G) in 8 steps |
| Number of push rollers | 3 rollers |
| Compatible roll media diameter | Min. 2.99 in Max 7.8 in. |
| Mechanical resolution | 0.005 mm |
| Distance accuracy | Max. 0.1 mm or 0.1 % of plotted length |
| Blade types | Supersteel (0.9 mm or 1.5 mm diameter) |
| Compatible paper for pouncing | Regular paper from 0.06 to 0.13 mm thick |
| Perforation cutting | Supported (performed by force control) |

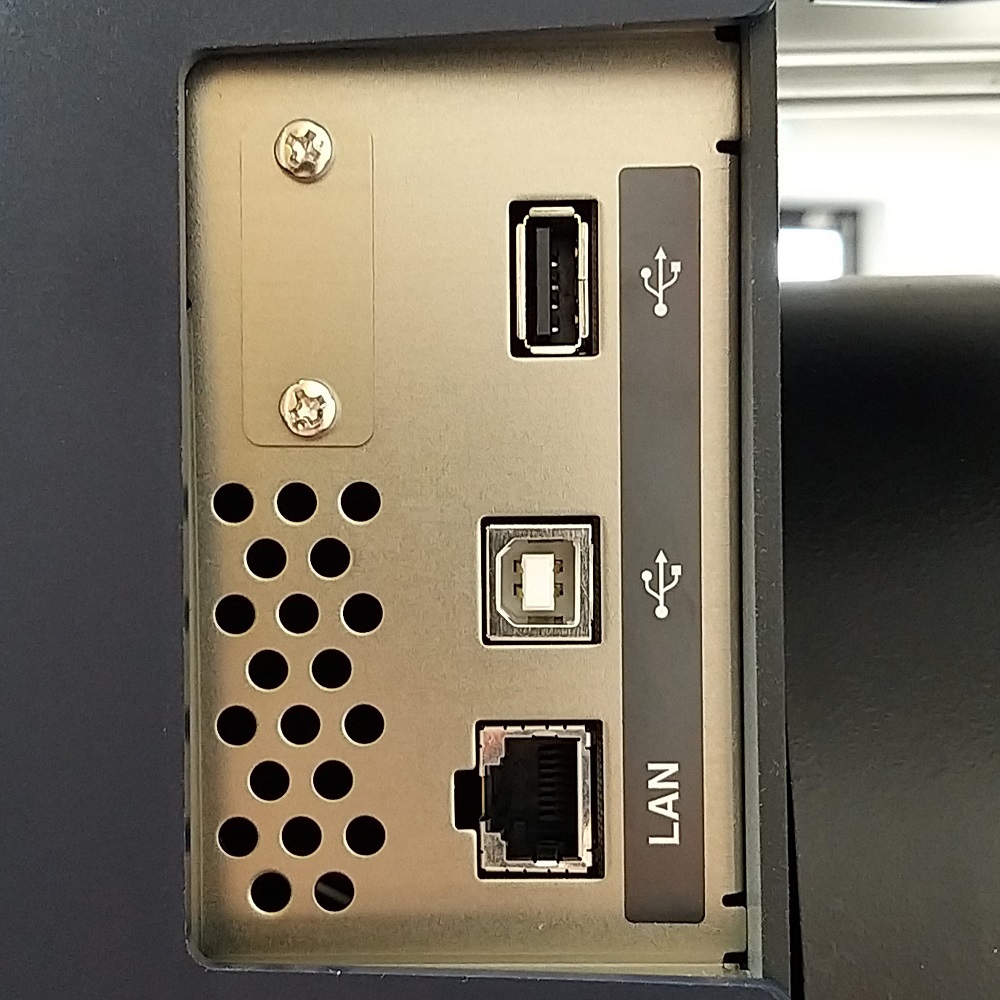

| Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX |
| CPU | 32-bit CPU |
| Buffer memory | 2 MB |
| Display | Graphic type LCD (3.7-inch, backlight) |
| Power source | 100 V to 240 V AC, 50 / 60 Hz |
| Power consumption | AC100-240 V, 50/60 Hz |
| Included software | Windows driver, Plotter controller, Graphtec Pro Studio, Cutting Master 4, Graphtec Studio for Mac |
| Compatible OS | Windows 10 / 8.1 / 7, Mac OS X 10.6 to 10.11, Mac OS 10.12 to 1.14, |
| Graphtec Studio | 10.6 to 10.14, |
| Cutting Master 4 | 10.7-10.14 |
| Safety | PSE, UL/cUL, CE mark) |
| External dimensions | 1570 x 715 x 1219 mm(61.8" x 28" x 48") |
| Weight | 56KG(123 lbs) |
| Packing Size | 1610 x 755 x 1259 mm(63.4" x 29.7" x 50") |
| Gross Weight | 66KG(145.5lbs) |
