24" (600mm) Manual Acrylic Light Box Plastic PVC Bending Machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness

Unit Price:$89.87 - 105.73/set(Discount Notice)

Buy More, Save More!

Qty (sets) Discount Amount/set
    1 0% $105.73
    2 - 3 10% $95.16
    4 - 5 15% $89.87

Need more quantities, please submit a Bulk Order inquiry

Please choose

  • 110V
  • 220V
Quantity:
set(s) Total Cost: USD $105.73

Shipping Weight: 13.2lb (6kg) freightFreight

Order Now Add to Cart Ask A Question

Buyer Protection

Your are Viewing: Price : $89.87 - 105.73/set Order Now
Cart 0 item(s) Back to Top


24" (600mm) Manual Acrylic Light Box Plastic pvc bending machine Heater, 0.04" – 0.24"(1mm - 6mm) Thickness
Description:
• The acrylic bending machine heater is the core part of bending machine. You can assemble various kinds of ideal practical acrylic bender with this heater.
• Processing Material: Acrylic, Plastic, PVC, Plexiglass.
• Used for: This acrylic bending machine heater can be widely used in decoration engineering, sign making, display cabinet, aquarium wrapping, lighting LED Channel Letter, bending the supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates.
• The acrylic bending machine heater can bend all kinds of plastic sheet. If the thickness of acrylic sheet is beyond 6mm, you can use two heaters heat the top and bottom of the sheet at the same time, or you need to cut a slot on the sheet.
• You can also use many acrylic bender heaters to heat more bents at the same time.

Feature
• Reasonable design, small size, compact structure and beautiful appearance;
• Heat even and temperature adjustable;
• With circulating cooling water system on both sides of heating pipe;

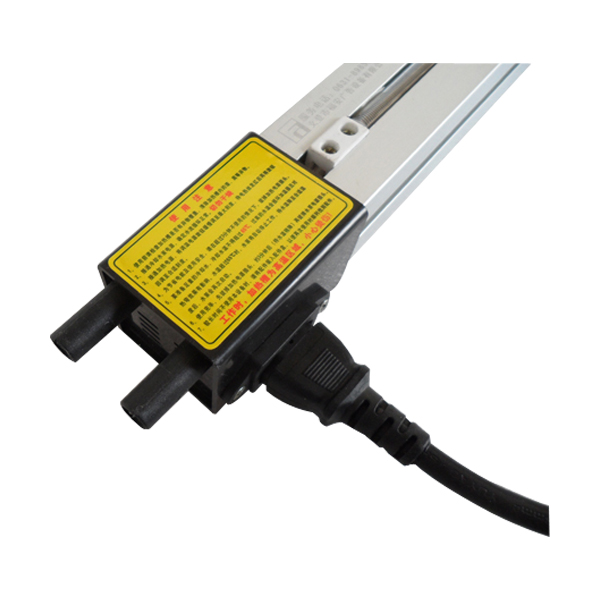

• Power supply joint and waterpipe joint are at the same end;
• The body is made of special aluminum extrusions.

Advantage
• Portable, small occupation, low consumption and reliable operation;
• Light and practical with low cost, value-priced;
• Circulating cooling water system can make sure other parts (no heating is required) won’t get thermal deformation.
• Free plugging and unplugging, easy to storage and assembles to worktable very conveniently;
• Straight appearance, the effective heating length is 610mm (24").

Benefit
• Low consumption, low cost;
• Can be assembled to a hot bending machine or used alone;
• Save space, light and practical;
• Can bend all kinds of plastic sheet.

Sepcification

Model ABM-BT-600
Maximum Bending Width 24" (600mm)
Power 800W
Power Supply AC 100-120V/60Hz; AC 220-240V/50Hz
Heating Slot Width 0.31" (8mm)
Heating Thickness 0.04" – 0.24"(1mm - 6mm)
Heater Size 1.8" x 1.8" x 33.5"(45 x 45 x 850mm)
Heater packing size 4.9'' x 4.9'' x 38"(125 x 125 x 965mm)
Box packing Size 13.8'' x 7.9'' x 7.1''(350 x 200 x 180mm)
Gross Weight 13.23lb(6kg)





Temperature tips:
• The temperature at the central of heating tube is the highest, which can be up to 500°, and greater the distance from the central the lower the temperature.
• Actually, the appropriate temperature for bending acrylic is about 240°.
• The heater can work 24 hours a day on the circumstance that the water temperature is not high.

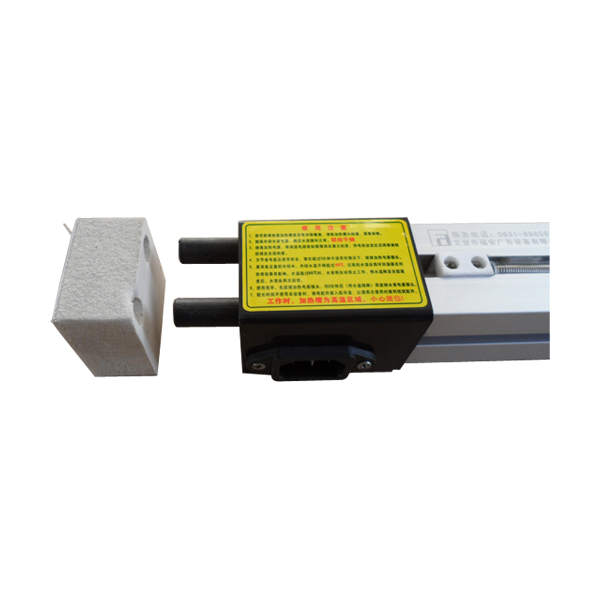

Water outlet material
The copycat are using the copper water outlet, the bronze looks really good and I think everyone think copper part will be better than others, but you should know the basic thing is the water will corrode copper and make it rusty and get holes, which will cause water leak.
Beside this copper part price is not higher than our nylon material part.
The water oulet of our acrylic bender is Nylon material, the reason we use this material is this material do not inflate during water current flow and it do not have water corrosion problems.

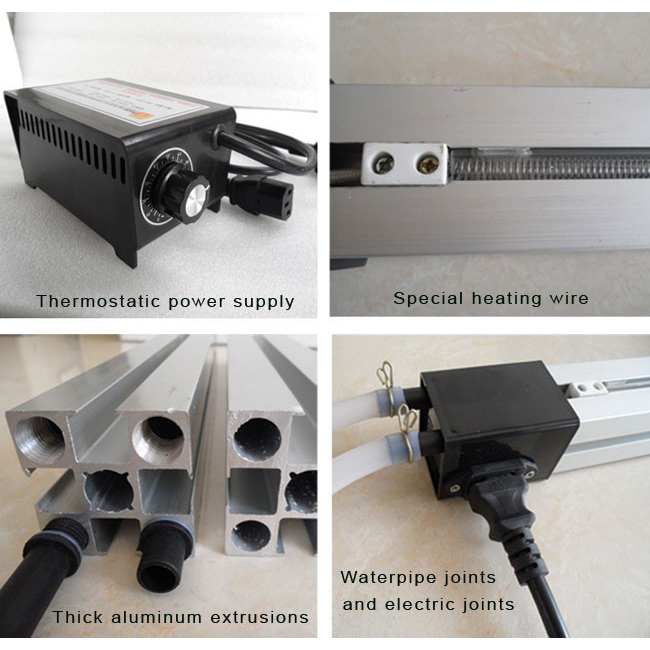

Alchrome Heating wire inside
The copycat heating wire width is not even and its material is not pure Alchrome, if the material is not pure, that will cause part of different temperature. It cause part of Acrylic is soft and other part is still hard. It will cause second time bending or part of Acrylic crack. The heating wire of our acrylic bender is made by screw pitch which will insure the width and have even temperature to bend acrylic sheet.

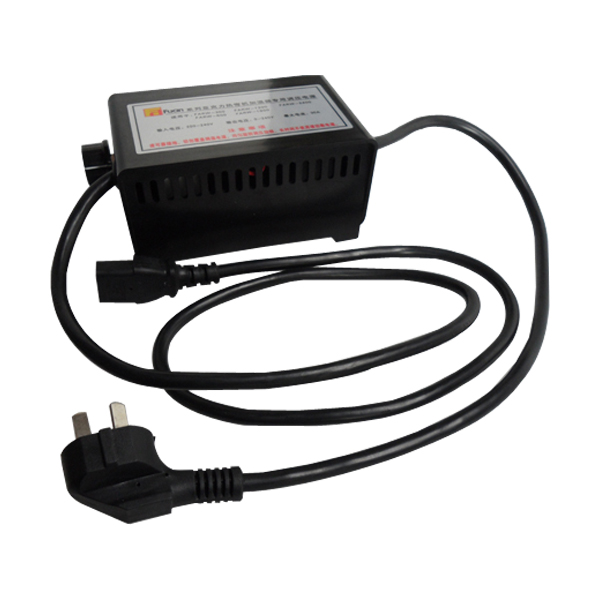

Thermostat
Copycat's thermostat is common thermostat without heat dissipation base. Thermolator of our acrylic bender is Solid-state thermostat, theirs are common thermostat We also design 4 stands below this thermostat to make sure has better heat dissipation.

ABM-BT series acrylic bending machine heater has wide applications, such as lighting LED channel letter making, sign making, display cabinet, supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates making, etc.

CS-HD-BC06 Model Sign Letter Tool is mainly used for lighting luminous channel letters or characters.

ABM-BT series acrylic bending machine heater is core part of bending machine, it soft the acrylic, you need to bend acrylic by hands. It is space saving, low cost. ABM-SB series acrylic bending machine bends acrylic by electric, with super high precision, but it is expensive relatively.


Processing Material: Acrylic, Plastic, PVC, Plexiglass
This acrylic bending machine heater can be widely used in decoration engineering, sign making, display cabinet, aquarium wrapping, lighting LED channel letter, bending the supermarket shelves, curtain wall, large light box, acrylic plates and plastic plates.





This product has no attributes!
This product has no Specifications
Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 5 (3)

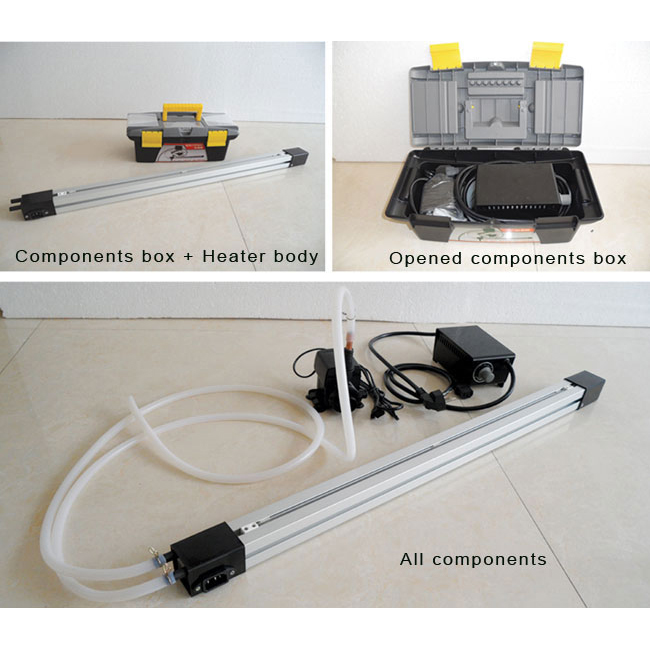

Packing list:

Bending Machine Heater
1 pc
Water pump
1 pc
Silicone hose
2 pcs
Temperature controller
1 pc







Using of Acrylic Bending Machine Heater

Comprehensive guarantee for 2 years except the wearing parts
24 - hour technical support by email or calling
User - friendly English manual for machine using and maintaining

Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
If you want to buy any parts from us, please tell us the names or pictures of the parts.

Satisfaction Guarantee
For the items other than consumable products sold via www.Sign-in-China.com, we provide 24 months warranty after delivery. All the extra parts for equipment can be purchased from www.Sign-in-China.com.
We offer 14 days 100% satisfaction guarantee on all our machines. If you are not satisfied after receiving an item, Sign-in-China.com promises that, within 14 days after actual delivery of such an item, you are allowed to return the item to us and get complete refund, provided the returned item does not affect its subsequent re - selling and you also undertake the charge of returning delivery.
