1.1 Working principle
The working principle of this laser machine is to take the advantages of the laser deposit welding and uses the technology of collective and spot welding with high heat of laser. It can effectively treat the welding defects of tiny parts and conduct repair work. This technical advantage fills the gap of the traditional argon-arc welding and cold welding, which cannot reach the precision requirements of fine welding.
1.2 Brief Description

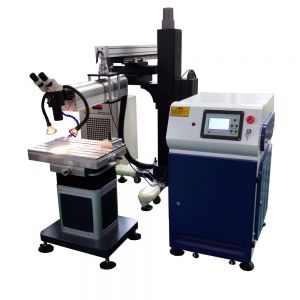

CY-WY series laser welder was originally designed for mould industry for molding and repairing of plastic molds, die-casting molds, extrusion molds, glass molds, plastic blow molds, rubber molds, molds of digital products/mobile phone/toy/automobile/motorcycle/etc. By applying suitable soldering wires, it is possible to fill the crack or blowholes and reuse the mold which saves production cost and improves working efficiency significantly. General laser mould welder also can be used in metal sheet stitching welding, pipe/ tube conjunction welding, and manufacturing of sensor, level switch and fine auto parts, etc. Laser mold welding machine is mainly used for the repairing of precision plastic molds and suitable for the repair welding of different types of mold steel. In addition, it also can be used for the welding of all sorts of small and precision metal parts (K gold, Platinum, Titanium, Silver, Copper Nickel, Aluminum, Magnesium, Stainless steel, etc.), featuring firm welding joints and smoothly welding lines.
This Laser Welding Machine can not only be used for molds repairing/re-shaping, but also for the precision welding of small articles, such as jewelry, electronics, telecommunication devices, electrical hardware, watch and clocks components, products of military industry, etc. Materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, steel alloy, high tenacity aluminum alloy, etc. Other metals like gold, silver, brass, aluminum-magnesium alloy, titanium, and platinum are also applicable.
1.3 Features& Specialties
This machine features its small size, easy operation, firm and good-looking welded spots. It is suitable for repairing of different kinds of metal materials and can work for long time continuously, with small heated area and pollution free worksite. It can be used for welding different sorts of steel as used for making molds, beryllium copper, stainless steel, aluminum, platinum, K gold, silver and titanium and different metals and alloys.
• Welding point’s diameter only 0.1-3.0mm, with high precision and accuracy;
• Wavelength of YAG Laser is 1064nm which is less harmful to human skin compare to other laser
• Small heating scope ensures distortion free and bubble free work pieces
• Compensating the deficiency of traditional argon-arc welding and cold welding in repairing the fine surfaces; low oxidation effects and color change free for work pieces;
• Welding operations can be done within the small spaces or deep cavity areas, no damage will be caused to the surrounding walls. No distortion on the mold nor dents around the weld pool can occur.
• Edge won’t be damaged by burning when fine parts are repaired.
• Argon gas protection ensures the repairing parts and base materials won’t be burned nor oxidized.
• Joystick control, movable work piece, fitting and curve;
• Operations monitored by microscope, ensuring good vision of fine parts;
• Imported welding wires, fitting different kinds of imported mold materials, Polishing and texturing can also be realized.
• Processing cost can be greatly saved in terms of materials, labor and time consuming.
| Welding classification | Laser |
| Specification | |

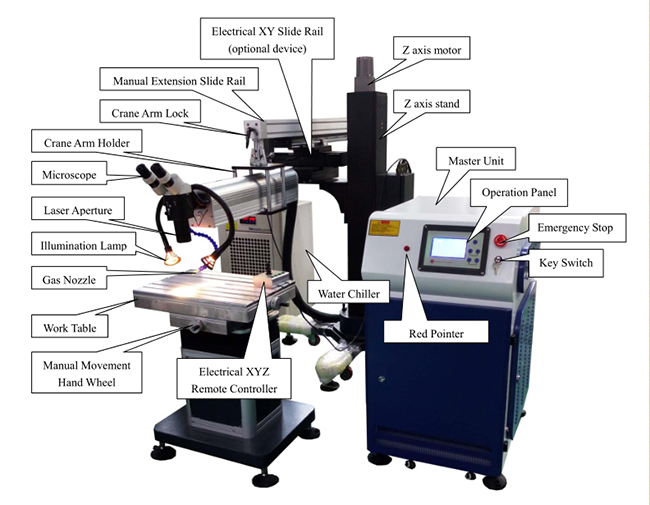

| Machine Name | Laser Welding Machine |
| Model No. | LWM-CY-WY300B |
| Laser Power | 300W |
| 3-axis stroke | X=250mm, Y=150mm,Z=250mm (X, Y manual, Z auto) |
| Work table capacity | ≤150KG |
| Power Supply | 220V/50Hz |
| Laser Type | Nd: YAG Pulse |
| Adjusting range of the light spot | 0.1~0.3mm |
| Diameter of laser spot | 0.2~3mm |
| Laser Wavelength | 1064nm |
| Pulse Energy | 90J |
| Pulse Width | 0.3-20ms |
| Pulse Frequency | 0.1-50Hz |
| Laser Output Focal Length | 110mm |

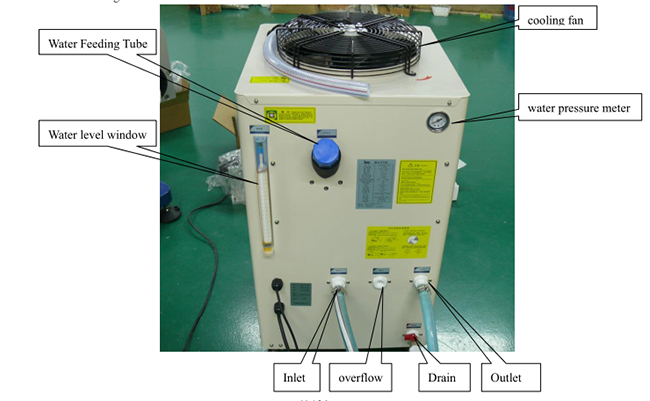

| Laser Cooling | Water Chiller 1HP |
| Observing System | Microscope 10X |
| Shield gas | One line (argon) |
| Welding Rods Diameter | 0.1mm～0.8mm |
| Machine Weight | 370-420kg per different configurations |
| Peak Power Consumption | 9KW+1.2KW |

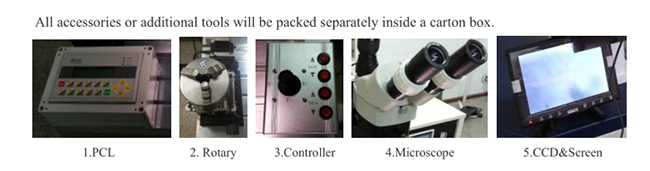

| Optional Items/Features | CCD observation and LCD display |
| 3HP water chiller or 60Hz water chiller | |
| Rotary Jig | |
| Motorized X/Y worktable | |
| Motorized X/Y slide rail | |
| PLC programmer | |
