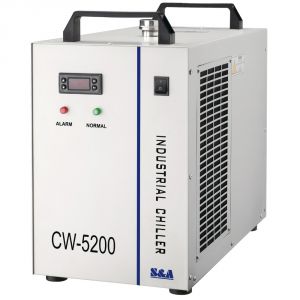

Ving Brand CW-5202AH industrial water chiller for 8KW Spindle, Welding Equipment or 2 100W CO2 Laser Tubes Cooling
Description
Our CW-5202AH is refrigeration type industrial Water Chiller of 1400W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There are 2 specifications as 1 water outlet / inlet and dual water outlet / inlet, applicable to cool single laser glass tube.

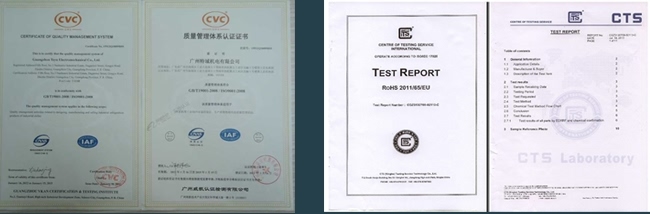

Have design patent Certificate, CE and RoHS Certificate.
This Water Chiller has been sold largely to Europe, South America, Asia and other markets.
Economic cooling equipment, easy to install and operate, compact and easily movable.
Our industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features
• 1400W cooling capacity; optional environmental refrigerant;
• Compact size, long working life and simple operation;
• ±0.3°C precisely temperature control;
• The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
• Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• Multiple power specifications; CE approval; RoHS approval;
• Optional heater and water filter.
Details:

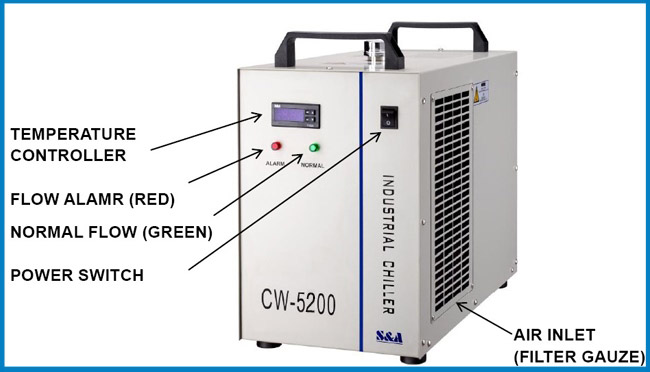

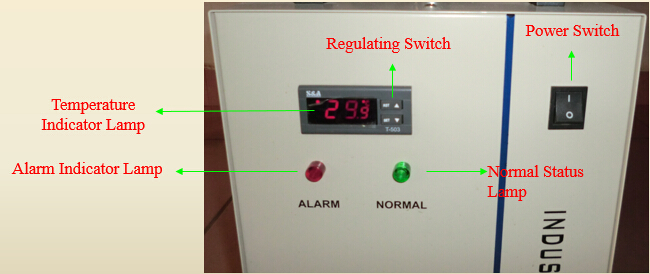

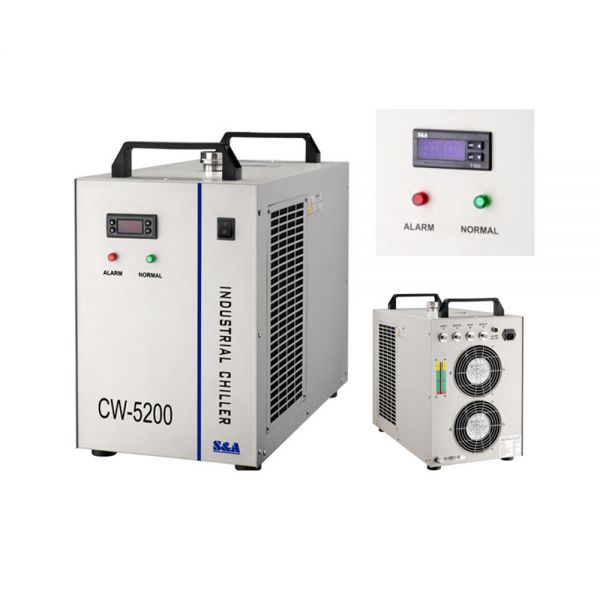

Temperature controller panel:

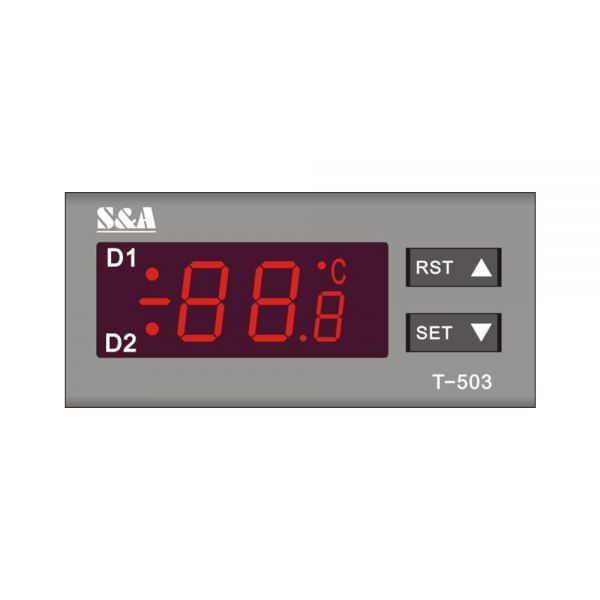

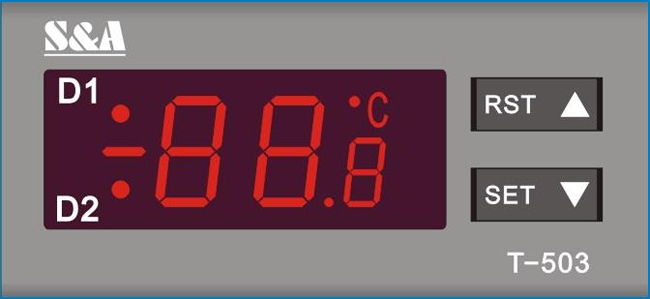

Under normal circumstance, the new intelligent temperature controller does not need to adjust the controlling parameters.
It will self-adjust controlling parameters according to room temperature, guaranteeing to meet cooling requirements for machines.
Alarm Function’s Description:
Flow alarm and output ports:
In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-5200series chillers possesses an unique low flow alarm protection.
The cooling water circulation loop alarm causes and the work of the state table
|
Normal Flow
Indicator
|
Flow Alarm
Indicator
|
Buzzer |
Output Ports
Hi, H2
|
Output Ports
H1, H3
|
|
| Circulating pump works properly | ON | OFF | NOT RING | DISCONNECTION | BREAKOVER |
| Blocked cooling water circulation loop | OFF | ON | RING | BREAKOVER | DISCONNECTION |
| Alarm of water shortage | OFF | ON | RING | BREAKOVER | DISCONNECTION |
| Faulted circulating pump | OFF | ON | RING | BREAKOVER | DISCONNECTION |
| Power interruption | / | / | / | BREAKOVER | DISCONNECTION |
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.
Comparison
 |
 |
 |
| CW5200H Cooling Method: Compression refrigeration Cool for a Single 8KW Spindle or Welding Equipment or 2 x 100W CO2 laser tubes Adopt intelligent controller, it will automatically adjust control parameters according to room temperature changes. |
CW5000H Cooling Method: Compression refrigeration Cool for a Single 5KW Spindle or Welding Equipment Cooling Adopt intelligent controller, it will automatically adjust control parameters according to room temperature changes. |
CW3000F Cooling Method: Fan Thermolysis Cool for Single 0.8KW / 1.5KW Spindle It's mainly used on the equipment for heat exchange between the heat and the air environment. The water temperature is related to ambient temperature. |
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
CW-5202AH, CW-5200BH, CW-5200DH: Applied to a cool a single 8KW CNC spindle, welding equipment or two 100W CO2 laser tubes.
CW-5200AG, CW-5200BG, CW-5200DG: Applied to cool a single 130W / 150w co2 laser tube.
CW-5200AI, CW-5200BI, CW-5200DI: Applied to a cool single 50W-75W laser diode, a single15W-30W solid-state laser or a single 30W RF laser tube.
| Model | CW-5200AG | CW-5200BG | CW-5200DG | CW-5202AH | CW-5200BH | CW-5200DH | CW-5200AI | CW-5200-BI |
| Voltage | AC 1P 220V |
AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V | AC 1P 110V | AC 1P 220V | AC 1P 220V |
| Frequency | 50Hz | 60HZ | 60HZ | 50Hz | 60HZ | 60HZ | 50Hz | 60HZ |
| Current | 2.4-3.1A | 2.6-3.3A | 4.5-6.5A | 2.4-3.1A | 2.6-3.3A | 4.5-6.5A | 2.4-3.1A | 2.6-3.3A |
| Compressor Power | 0.52KW | 0.5KW | 0.68KW | 0.52KW | 0.5KW | 0.68KW | 0.52KW | 0.5KW |
| 0.71HP | 0.68HP | 0.93HP | 0.71HP | 0.68HP | 0.93HP | 0.71HP | 0.68HP | |
| Refrigeration Capacity | 5084Btu/h | 4982Btu/h | 5186Btu/h | 5084Btu/h | 4982Btu/h | 5186Btu/h | 5084Btu/h | 4982Btu/h |
| 1.49KW | 1.46KW | 1.52KW | 1.49KW | 1.46KW | 1.52KW | 1.49KW | 1.46KW | |
| 1281Kcal/h | 1561Kcal/h | 1307Kcal/h | 1281Kcal/h | 1561Kcal/h | 1307Kcal/h | 1281Kcal/h | 1561Kcal/h | |
| Refrigerant Charge | 360g | 380g | 350g | 360g | 380g | 350g | 360g | 380g |
| Pump Power | 0.03KW | 0.05KW | 0.1KW | |||||
| Mac. Lift | 10M | 12M | 25M | |||||
| Max. Flow | 10L/min | 13L/min | 16L/min | |||||
| Inlet and Outlet | External Diameter: 10mm brass connector | Diameter 10mm speedy connector | ||||||
One of the differences between the CW5200 water tank and the cw3000 tank lies in that the CW5200 water tank can keep the water at a uniform temperature. Its cooling function can keep the temperature at a certain value, which can be adjusted manually. All the parameters related to the water tank have been set as the correct value by our company before delivery. The user may refer to the parameter instruction manual of the water tank for detailed description on the parameters. It is strongly suggested that the user should not change the parameters without authorization. Our company accepts no responsibility for any insolvable problems caused by the user’s unauthorized changing of parameters
6. Please pay attention to the effect of the condensate water! With greater ambient humidity, when the water temperature is lower than the ambient temperature, the condensate water will generate on the surface of water circular pipes and the cooled components. If above circumstance appears, it is recommended to set a higher water temperature or keep pipes and cooled parts warm.
Application:

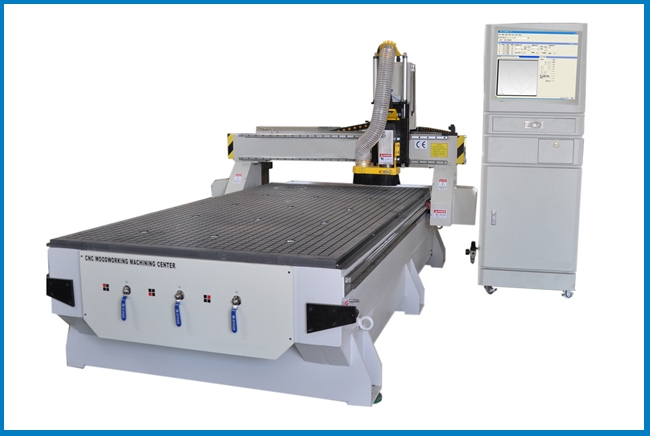

1.CW-5200 industrial water chiller cool for a single 8KW spindle

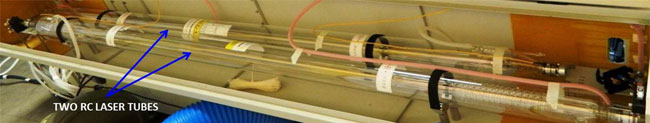

2.CW5200 water chiller cool for 2 x 100W laser tube

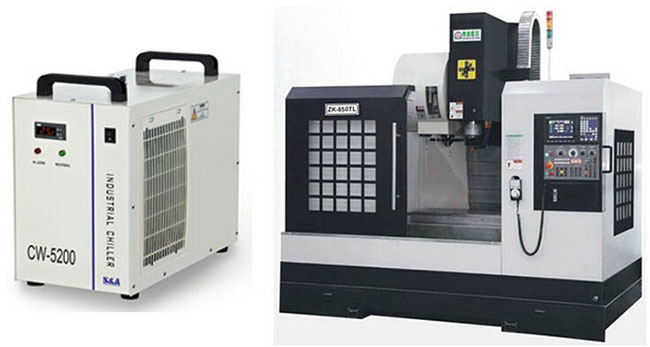

3.CW5200-water-chiller-cool-for-cnc-machining-center-lathe

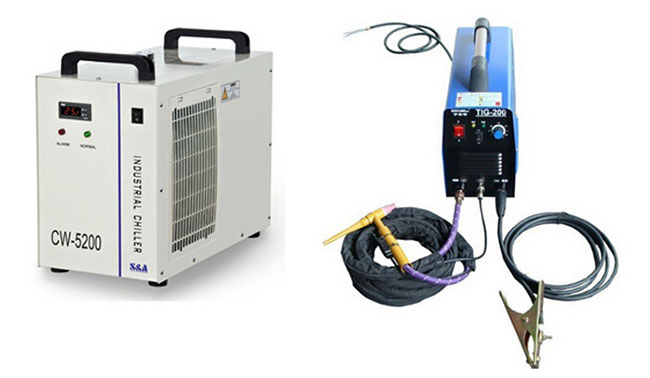

4.CW5200-water-chiller-for-cooling-argon-arc-welding-clamp

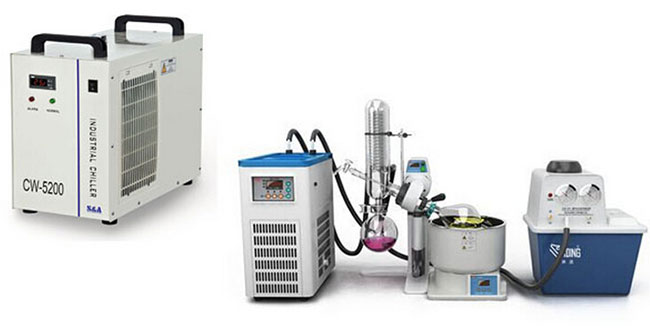

5.CW5200-water-chiller-cool-for-lab-vacuum-pump

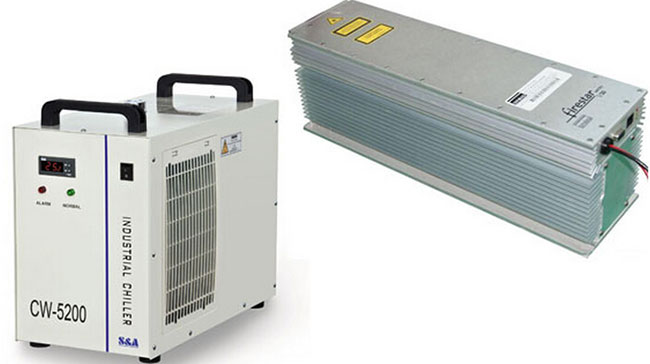

6.CW5200-water-chiller-cool-for-SYNRAD-RF-metal-lasers

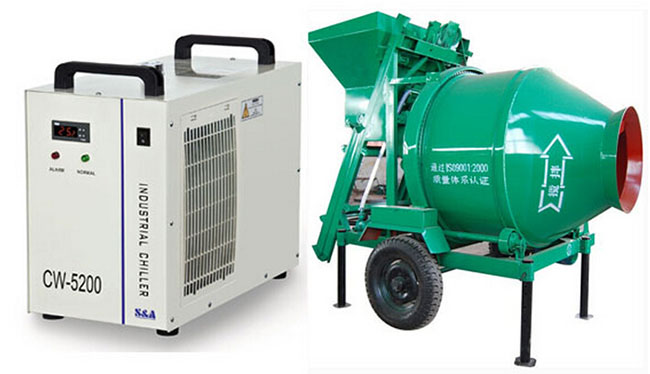

7.CW5200-water-chiller-cool-for-blender

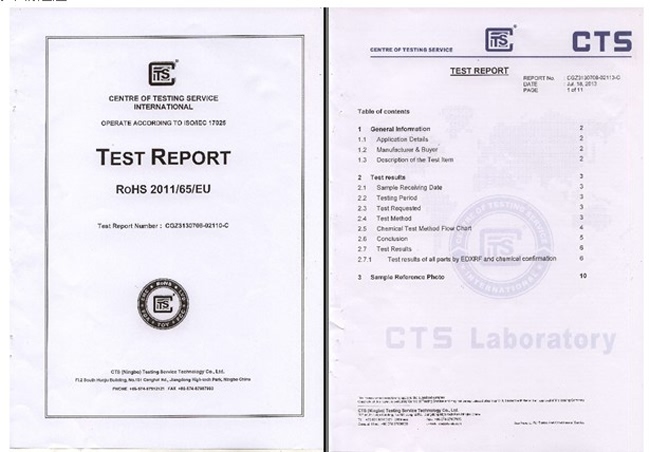

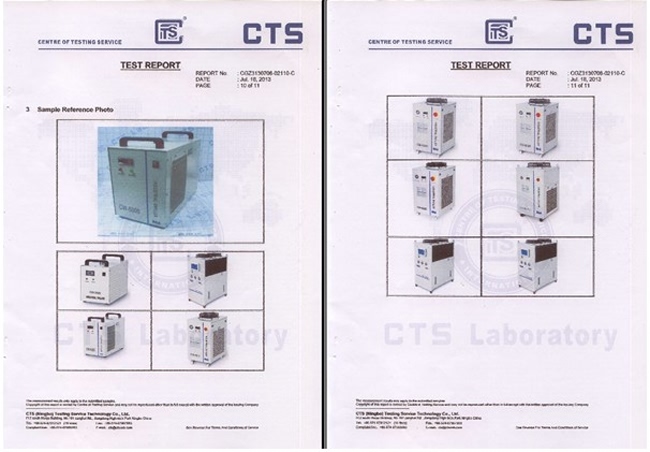

Quality report
| Temperature Control Range | 5~35℃ |
| Temperature Precision | ±0.3℃ |
| Flow Rate | 13L/min |
| Pressure | 12M |
| Cooling Capacity | 1.49KW |

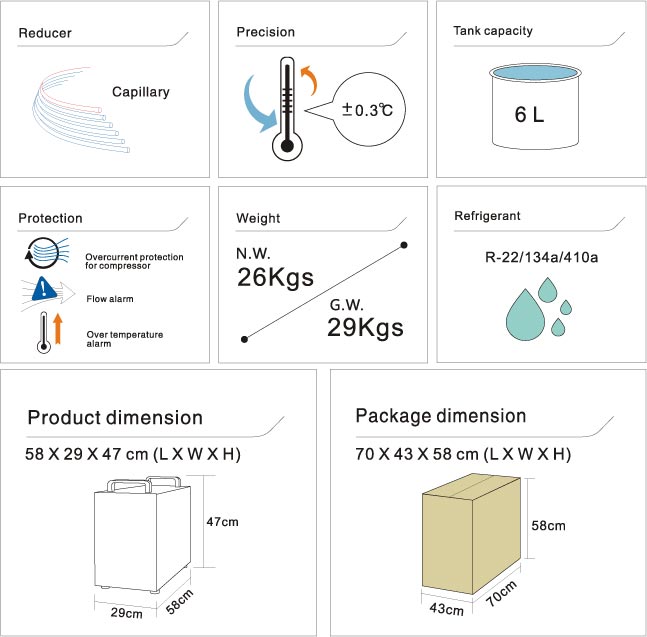

S&A CW-5202AH Industrial Water Chiller for 8KW Spindle, Welding Equipment or 2 100W CO2 Laser Tubes Cooling, AC 1P 220V, 50Hz
| Model | CW-5202AH |
| Power Supply | AC 220V, 50Hz |
| Current | 2.4~3.1A |
| Compressor Power | 0.52KW |
| 0.71HP | |
| Refrigerating Capacity | 5084Btu/h |
| 1.49KW | |
| 1281Kcal / h | |
| Refrigerant | R-22 / R-134a / R-410a |
| Refrigerant Charge | 360g |
| Precision | ±0.3°C |
| Tank Capacity | 6L |
| Reducer | Capillary |
| Protection | Over current protection for compressor, flow alarm, over temperature alarm |
| Pump Power | 0.03KW |
| Maximum Flow | 13L / min |
| Maximum Pumping Lift | 12M |
| Inlet and Outlet | External Φ10mm brass connector |
| Net Weight | 26kg |
| Gross Weight | 29kg |
| Product Dimension | 22.8" x 11.4" x 18.5" (580 x 290 x 470mm) |
| Package Dimension | 27.6" x 16.9" x 22.8" (700 x 430 x 580mm) |
Alarm function
|
E1
|
E2
|
E3
|
E4
|
E5
|
|
Over high room temperature
|
Over high water temperature
|
Over low water temperature
|
Room temperature sensor failure
|
Water temperature sensor failure
|
|
Order
|
Code
|
Project Setting
|
Range
|
Factory
Setting
|
Notes
|
|
1
|
F0
|
Temperature setting
|
F9 – F8
|
25
|
Constant temperature control effecting
|
|
2
|
F1
|
Temperature difference values
|
-15 - +5
|
-2
|
Intelligent control effecting
|
|
3
|
F2
|
Cooling hysteresis
|
0.1 – 3.0
|
0.8
|
|
|
4
|
F3
|
Way of control
|
0 - 1
|
1
|
1: intelligent
0: constant temperature
|
|
5
|
F4
|
Alarm for over high water temperature
|
1 - 20
|
10
|
|
|
6
|
F5
|
Alarm for over low water temperature
|
1 - 20
|
15
|
|
|
7
|
F6
|
Alarm for over high room temperature
|
40 - 50
|
45
|
|
|
8
|
F7
|
Password
|
00 - 99
|
8
|
|
|
9
|
F8
|
The allowed highest water temperature
|
F0 - 40
|
30
|
|
|
10
|
F9
|
The allowed lowest water temperature
|
1 – F0
|
20
|
|
Average Rating: 0
Wooden Box: There is total one carton box.
|
Machine Dimension |
22.8" x 11.4" x 18.5" (580 x 290 x 470mm) |
|
Machine Weight |
57.2ib (26kg) |
|
Package |
Carton box |
|
Packing Size |
27.6" x 16.9" x 22.8" (700 x 430 x 580mm) |
|
Gross Weight |
63.8ib (29kg) |
Packing list:
|
|
CW-5202AH water chiller machine
|
1 set
|
 |
Power cable
|
1 pc
|
 |
Connection hose
|
1 pc
|
 |
Sealing washer
|
2 pcs
|
 |
250V/2A spare fuse
(Mounted on the power socket interface within the insurance reserve) |
1 pc
|
 |
User manual
|
1 pc
|
 |
Alarm signal output plug | 1 pc |
 |
cooling water additive
|
1 / 0 bottle
|
P.S.: cooling water additive is forbidden by express company, so we could not put it into the package. You can buy it from local.
Caution: The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction, children supervised not to play with the appliance!
Package:
Note: The Water Chiller is ordering production, need 3 to 5 days of stock up time.
