51" x 98" (1300mm x 2500mm) Woodworking cnc router
With 9KW HSD Spindle, Servo Motor, Vacuum System, Siemens 808D Controller
Application: This series is widely used in the woodworking industry, kitchen cabinet, sign-making, decoration and so on. Meanwhile this series of machine are popular in the processes of kinds of board materials, such as aluminium plate, copper plate, Acrylic Board, marble board, MDF board, wood plate and so on. Its max. Engraving area is 1300mm x 2500mm (51" x 98").
Materials that can be engraved: 3D curving crafts, wave broad, kinds of panels, furniture working, door & window, folding screen, etc. 3D sign, embossment, LED and neon light letter, plastic-absorbing light-box, mold 3D-making; Board materials processing industries, like toys, marble, gifts, packaging, etc.
Machine Color: Black or White. We will send machine randomly. Custom colors are available.
Machine Main Configuration
| Model |
CNCR-TG-1325VS-ATCSIE |
| Item |
Specifications |
Parameters |
Remarks |
| 1 |
Working size |
1300 x 2500 x 200mm |
51" x 98" x 7.87" |
| 2 |
Driving system |
Servo motor and drivers |
YASKAWA XY750W, Z400W |
| 3 |
Ball screw X Z |
Hiwin, size: 25mm |
From Taiwan |
| 4 |
Linear guide |
Hiwin linear for Y axi-25mm |
From Taiwan |
| 5 |
Spindle |
9kw, ATC HSD, air-cooling, 24000rpm, ER32 |
From Italy |
| 6 |
Controller |
Siemens 808D |
From Germany |
| 7 |
Inverter |
Delta 11KW |
From Taiwan |
| 8 |
Table |
T-slot with vacuum table |
Bakelite |
| 9 |
Cable |
Igus |
From Germany |
| 10 |
Electronics |
Switch, terminals, fuse, contactor |
From Siemens, Schneider or Phoenix |
| 11 |
Painting |
Sand polishing and powder coating |
|
| 12 |
Tool sensor |
Yes |
|
| 13 |
Dust collector |
Yes |
380v,3ph,50hz Two bags |
| 14 |
Power |
380V, 3PH, 50HZ |
|
| 15 |
Tool holder |
8pcs |
ISO30 |
| 16 |
Mode ATC |
Linear ATC |
|
| 17 |
Speed for Y |
80M/MIN |
|
| 18 |
Gantry |
One |
Steel with heavy table |
| 19 |
Vacuum pump |
yes |
Chinese vacuum pump 140cbm/h |
| 20 |
Lubrication system |
Auto lubrication system |
|
Details
 |
| Syntec windows |

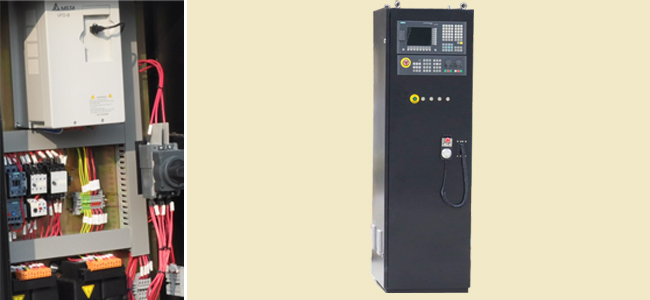

Cabinet from Delta Siemens, Schneider or Phoenix, cable Igus from Germany |
 |

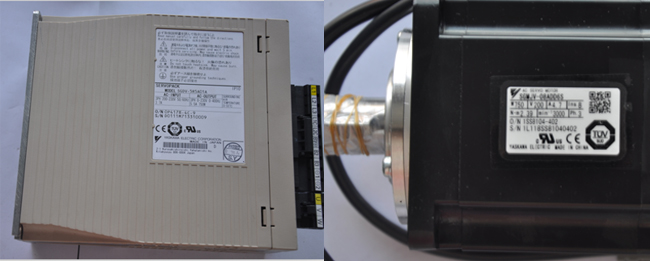

| Yasakawa Driver and Motor |
 |

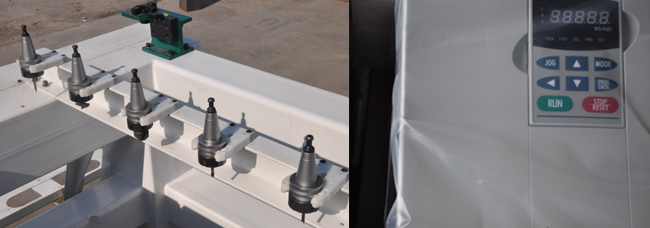

| Tool holder ISO30 |
Delta Inverter |
 |

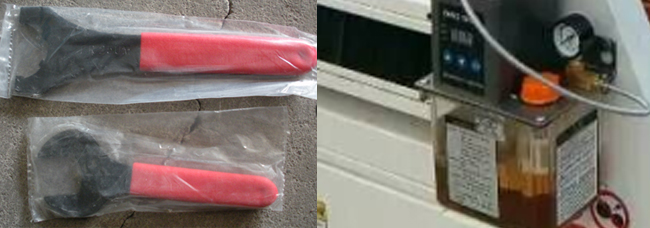

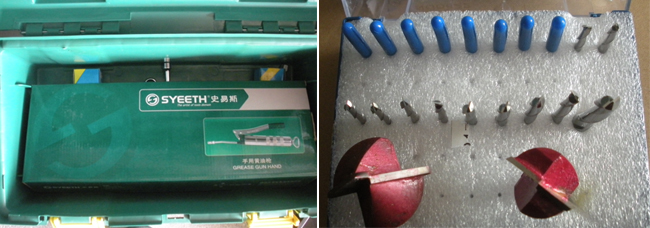

| Tool box |
Tool box |
 |
| Tool box |
Auto lubrication system |
 |

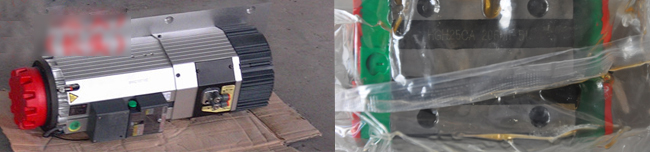

| 9KW Spindle |
Slider |
Usages
Make sure there is enough room around the machine, especially around the gantry and the controller.
1. Machine Installation - Main parts installation
Includes: Z axis parts installation, controller installation, spindle installation, connection of all cable, and tool sensor installation, etc
More information, please refer to the User Manual.
2. Engraving Software installation, edit the image you want to process
3. Fix the workpieces onto the working table, start to process
4. Finishing work!
Sample:
