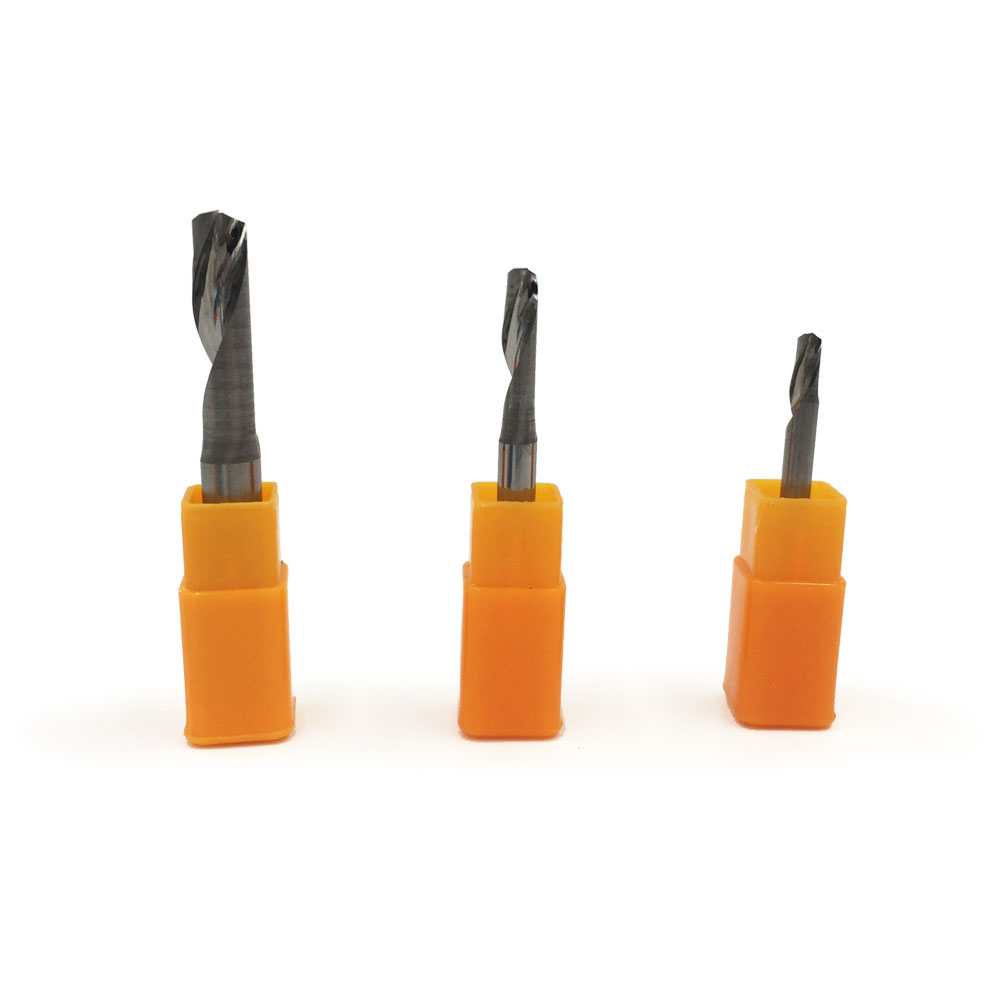

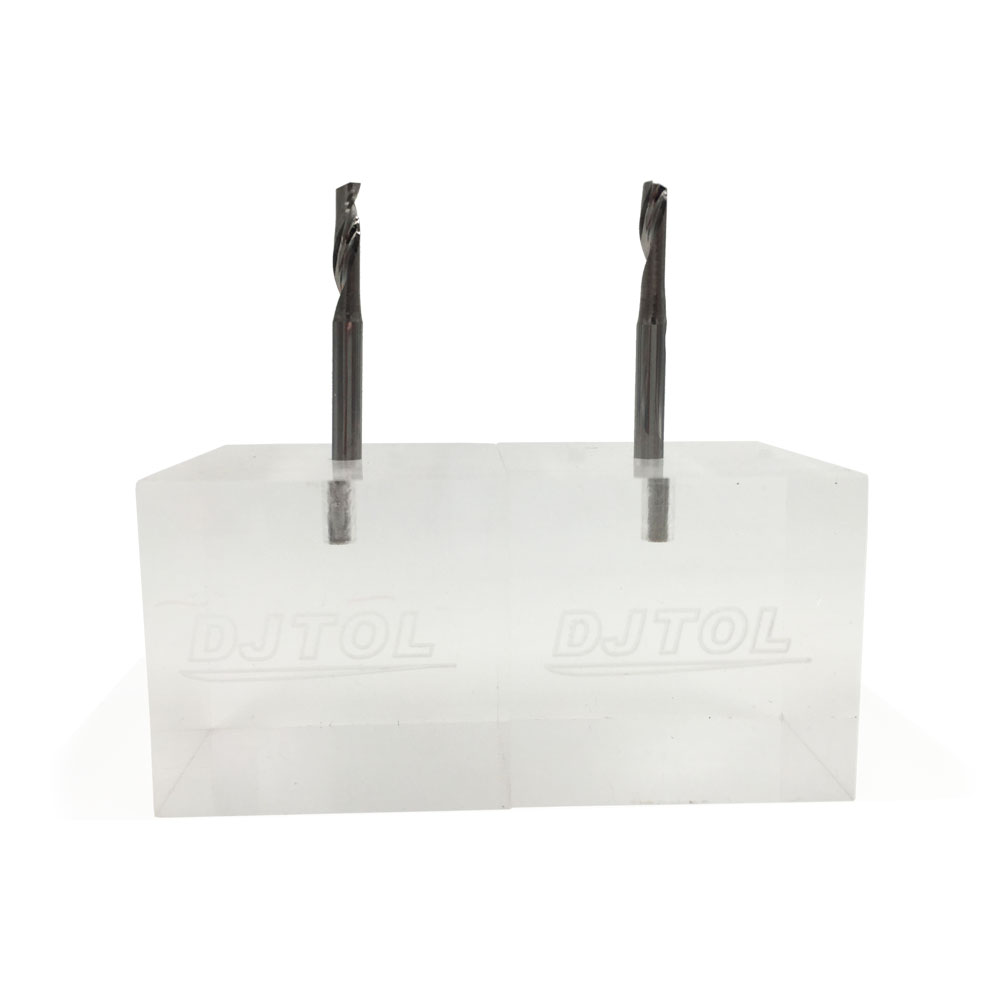

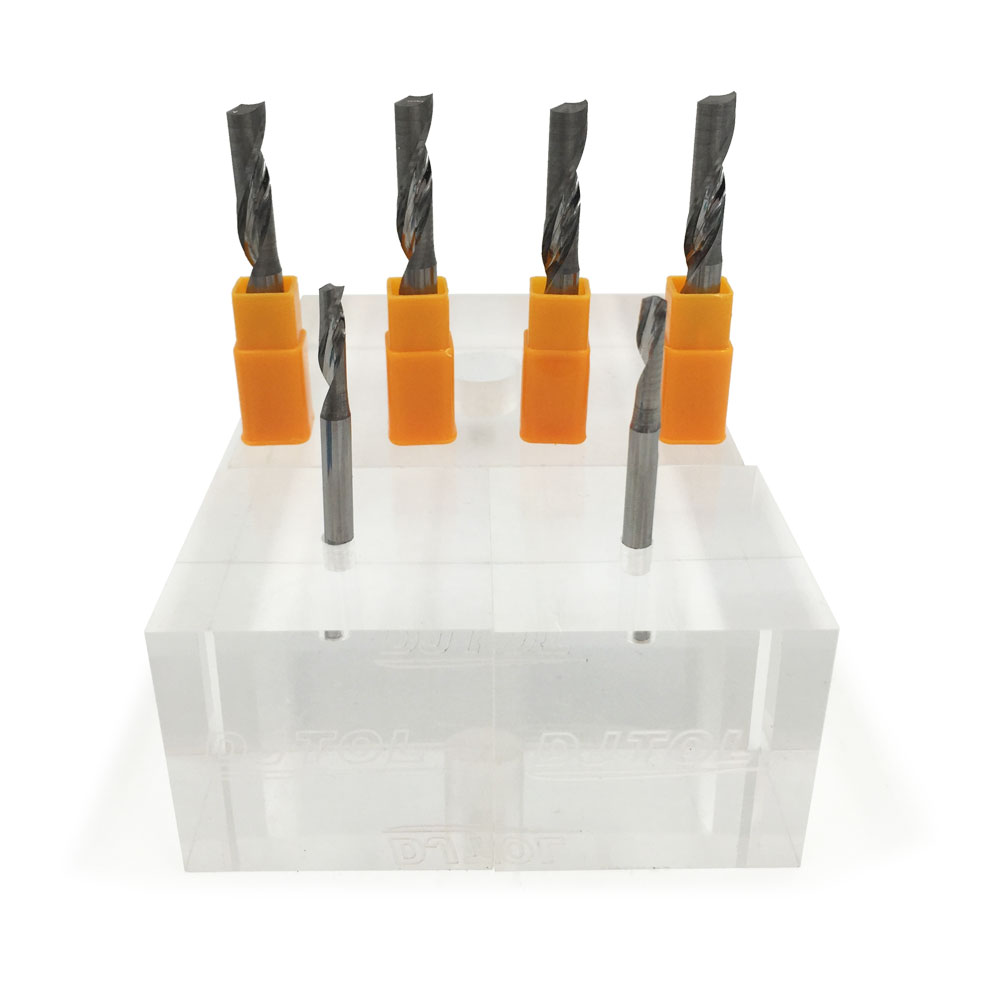

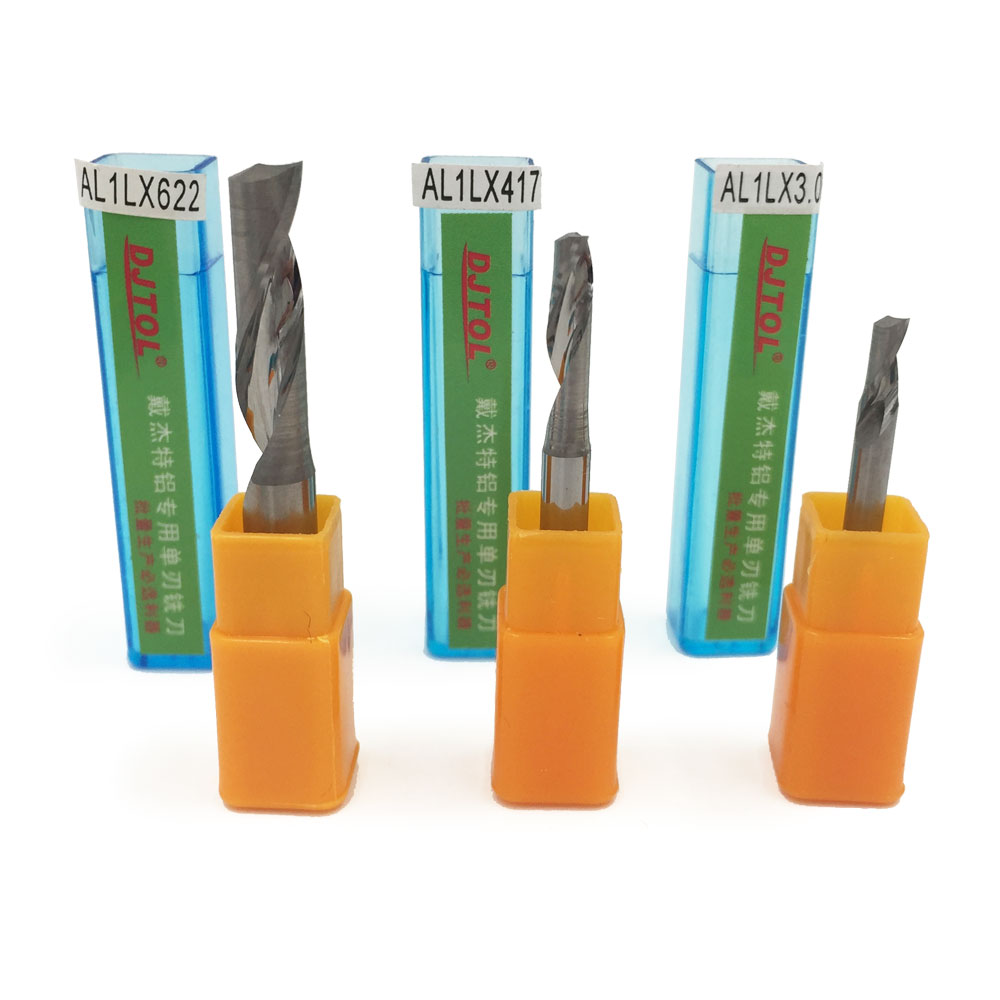

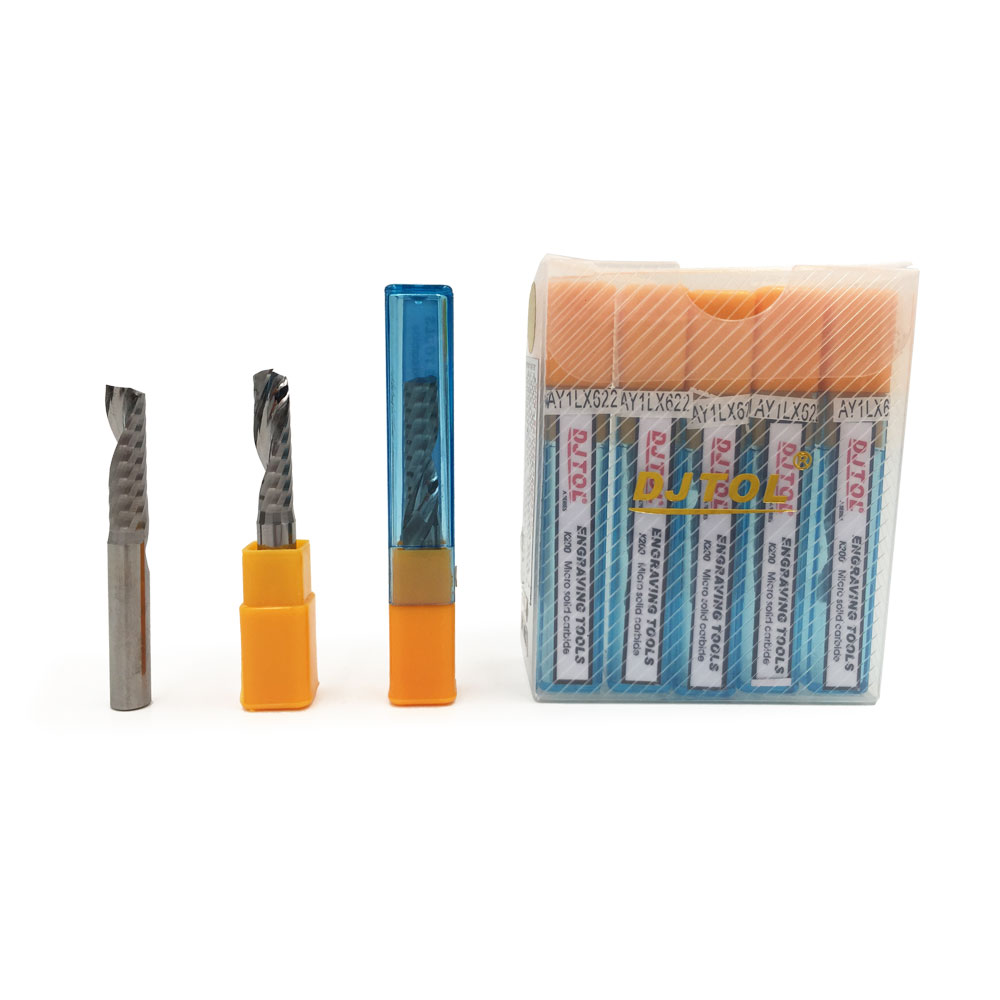

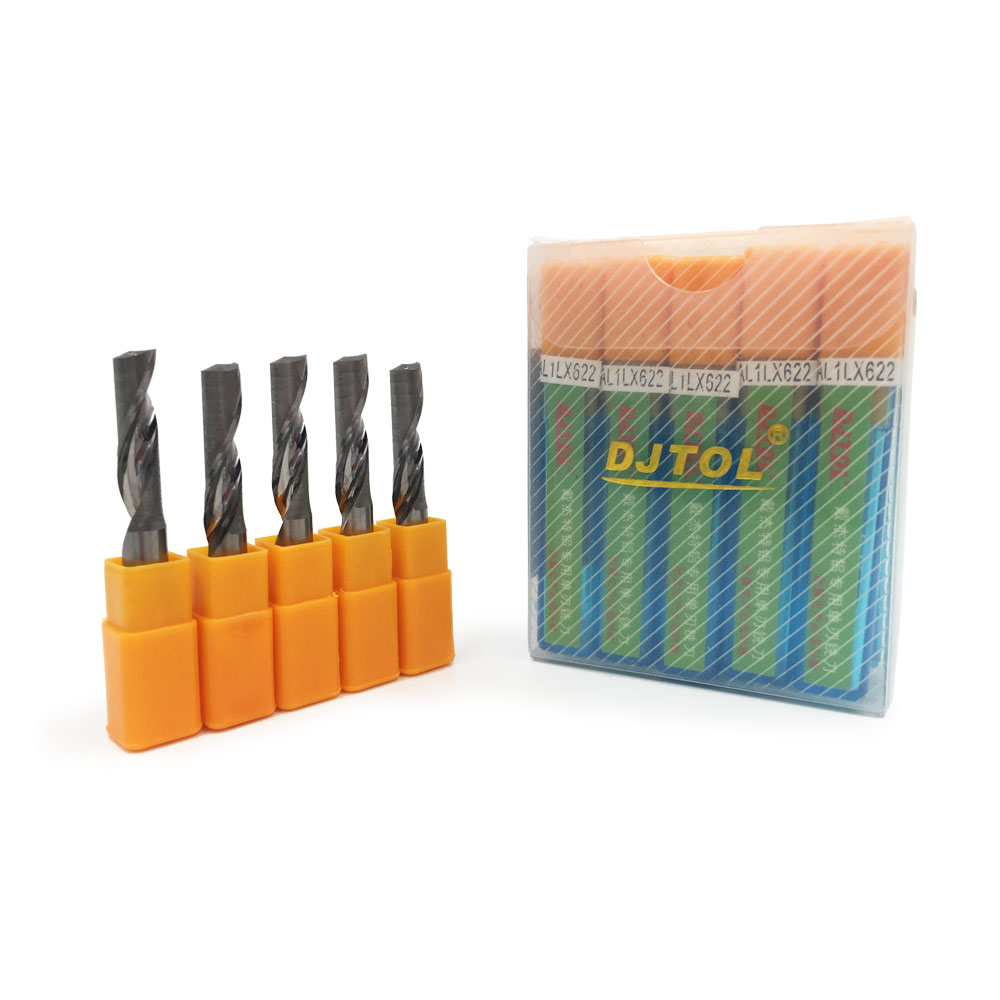

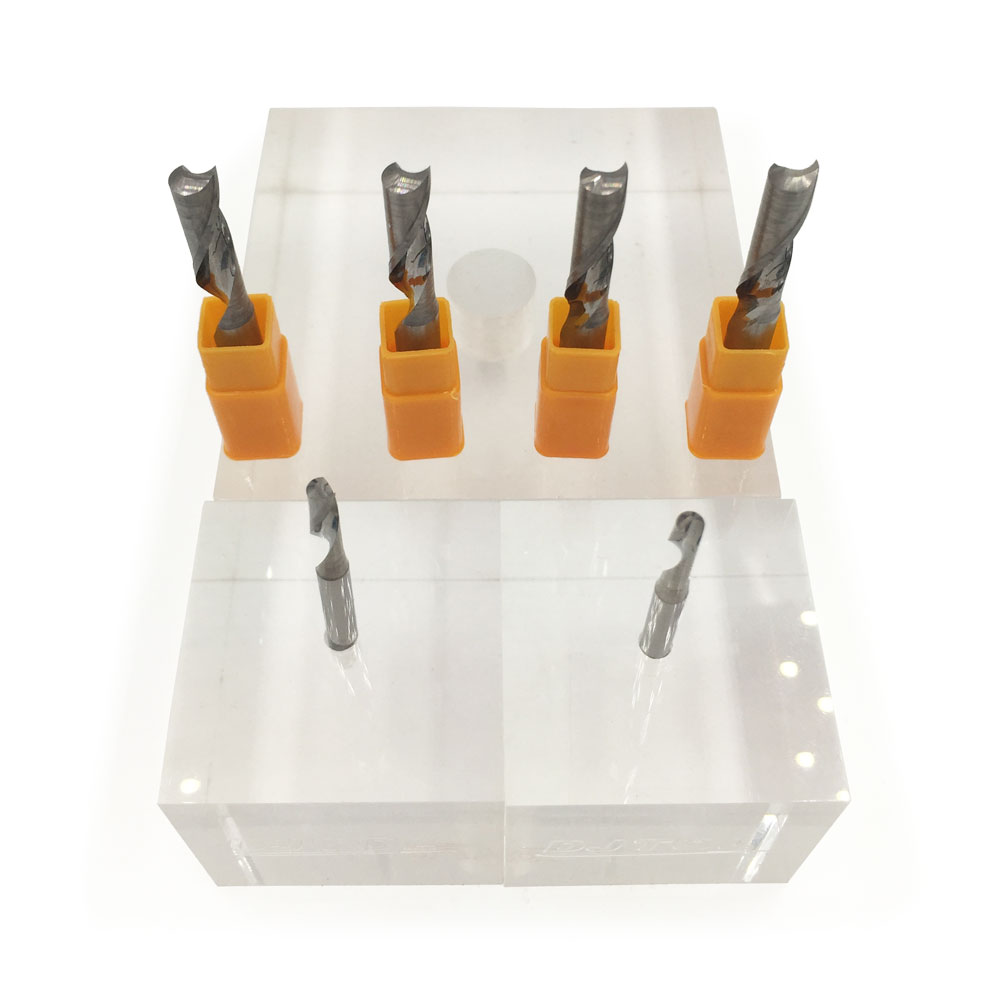

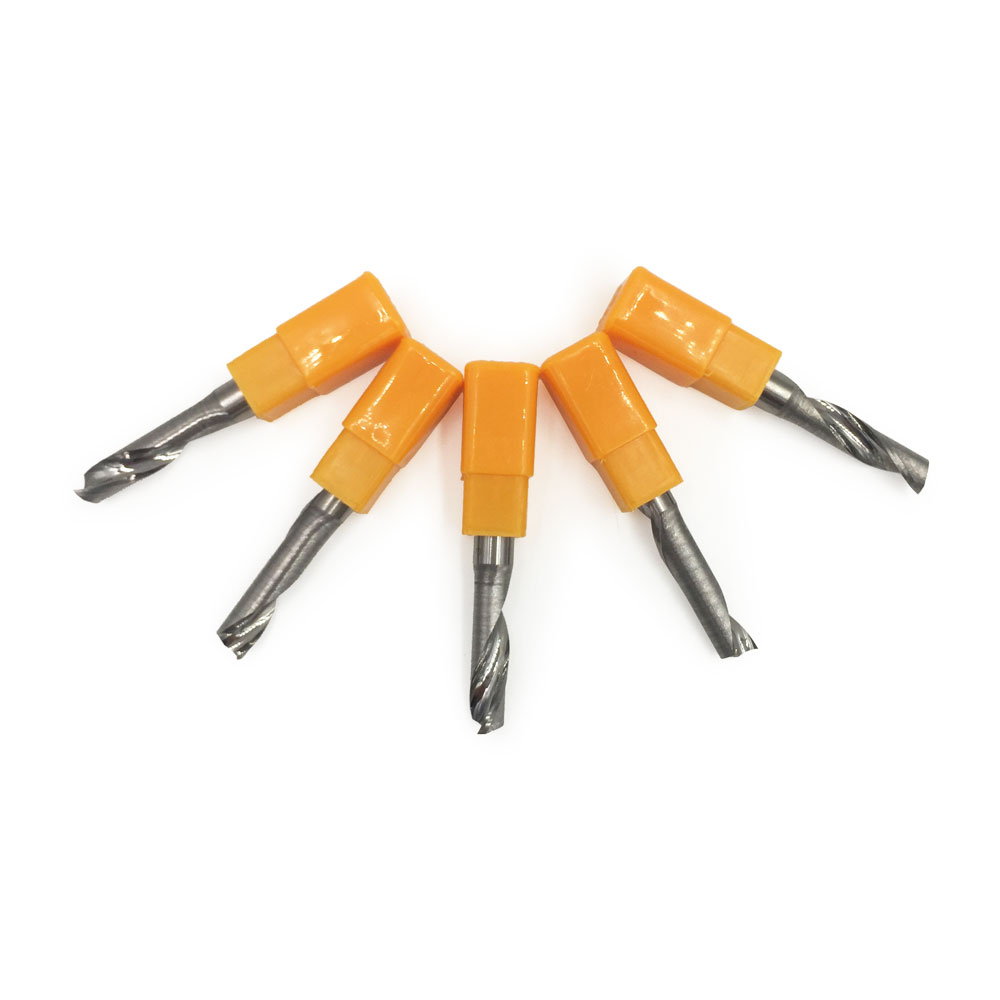

Imported Tungsten Steel Solid Carbide Single Flute Spiral End Mills cnc router Bits for Aluminum Cutting
Good for: Low power spindle, high speed rotation above 15000 per minute processing.
Available Shrank Diameter: 1/8" / 0.157" / 0.197" / 0/24" / 0.32" / 0.39" / 0.47" (3.175mm / 4mm / 5mm / 6mm / 8mm / 10mm / 12mm).
About Materials: At present, we have N, A, AA, 3A, four kinds of materials.
· The N series material stands for tungsten steel material made in China and its rigidity is at 88-89HRA (Rockwell Hardness, A Scale).
· The A series CNC Router Bits are made of tungsten steel material from Taiwan and their rigidity at 90-91HRA., HRC of material to be processed is 45.
· The AA series cnc Router Bits stand for German ultrafine tungsten steel and rigidity is at 93-94HRA, HRC of material to be processed is 50.
· The 3A series cnc router bits stand for German best quality ultrafine tungsten steel and rigidity is at around 96HRA. HRC of material to be processed is 60.
Usage Tips:
The better quality of material is, the higher rigidity and durability as well as materially longer lifespan.
The stronger rigidity it is, the bits won’t distort during process and give better processing effect.
And the more fine tungsten steel’s particle is, the sharp bits of the blade polished as a result for better processing effect.
Remark: Please Choose the Model when ordering.
Package included
1 x Imported Tungsten Steel Solid Carbide Single Flute Spiral End Mills CNC Router Bits for Aluminum Cutting
Specification:
CED: Cutting Edge Diameter;
CEL: Cutting Edge Length;
OVL: Overall Length;
SHK: Shank diameter
| Model | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) |
| EC-L1LX3.102 | 1 | 2 | 3.175 | 40 |
| EC-L1LX3.1.503 | 1.5 | 3 | 3.175 | 40 |
| EC-L1LX3.204 | 2 | 4 | 3.175 | 40 |
| EC-L1LX3.206 | 2 | 6 | 3.175 | 40 |
| EC-L1LX3.2.506 | 2.5 | 6 | 3.175 | 40 |
| EC-L1LX3.2.508 | 2.5 | 8 | 3.175 | 40 |
| EC-L1LX3.06 | 3.175 | 6 | 3.175 | 40 |
| EC-L1LX3.08 | 3.175 | 8 | 3.175 | 40 |
| EC-L1LX3.10 | 3.175 | 10 | 3.175 | 40 |
| EC-L1LX3.12 | 3.175 | 12 | 3.175 | 40 |
| EC-L1LX408 | 4 | 8 | 4 | 40 |
| EC-L1LX410 | 4 | 10 | 4 | 40 |
| EC-L1LX412 | 4 | 12 | 4 | 40 |
| EC-L1LX415 | 4 | 15 | 4 | 45 |
| EC-L1LX510 | 5 | 10 | 5 | 45 |
| EC-L1LX512 | 5 | 12 | 5 | 45 |
| EC-L1LX517 | 5 | 17 | 5 | 50 |
| EC-L1LX6204 | 2 | 4 | 6 | 50 |
| EC-L1LX6306 | 3 | 6 | 6 | 50 |
| EC-L1LX6408 | 4 | 8 | 6 | 50 |
| EC-L1LX6512 | 5 | 12 | 6 | 50 |
| EC-L1LX612 | 6 | 12 | 6 | 45 |
| EC-L1LX617 | 6 | 17 | 6 | 50 |
| EC-L1LX622 | 6 | 22 | 6 | 50 |
| EC-L1LX820 | 8 | 20 | 8 | 60 |
| EC-L1LX1025 | 10 | 25 | 10 | 70 |
| EC-L1LX1230 | 12 | 30 | 12 | 80 |
