Description:

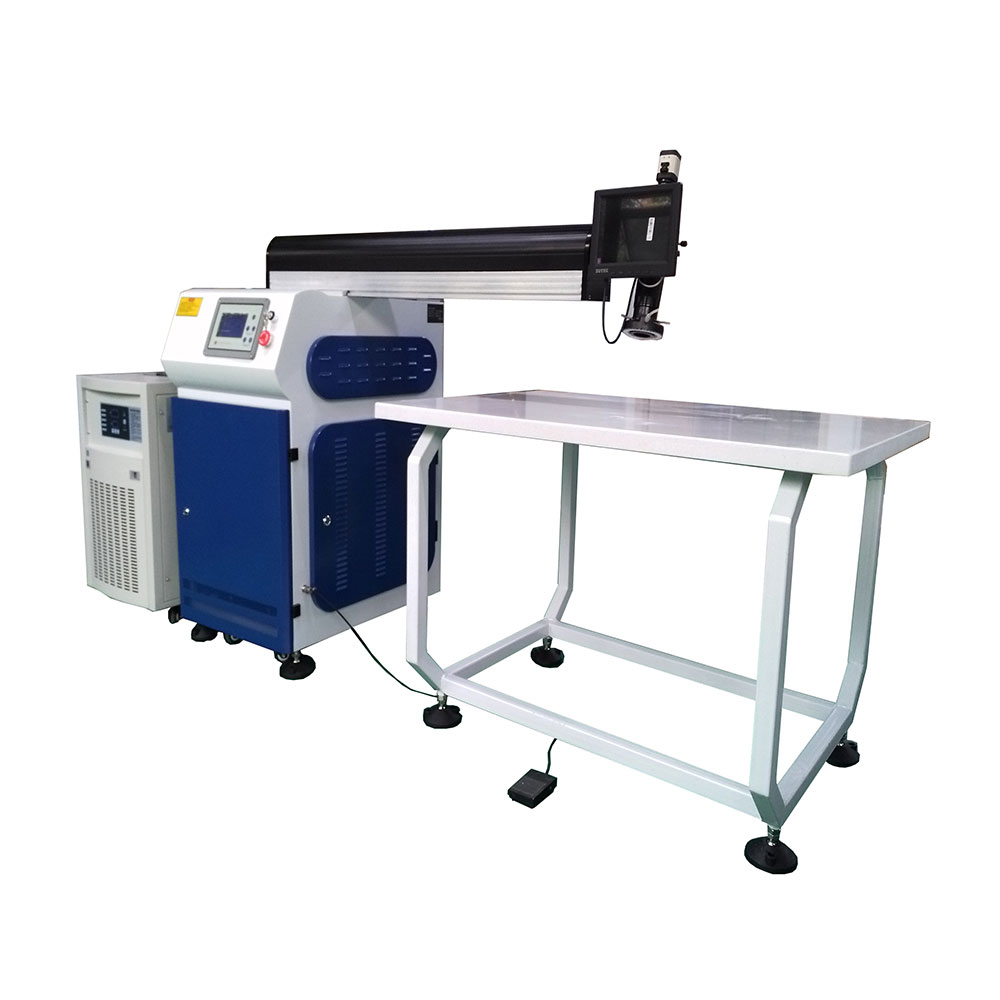

300W Standard YAG Laser Welding Machine for Fine Metal Channel Letter Making
With CCD camera, Ceramic focusing cavities, laser head can 360 degree rotate.
With CE certificate, 2-year warranty.

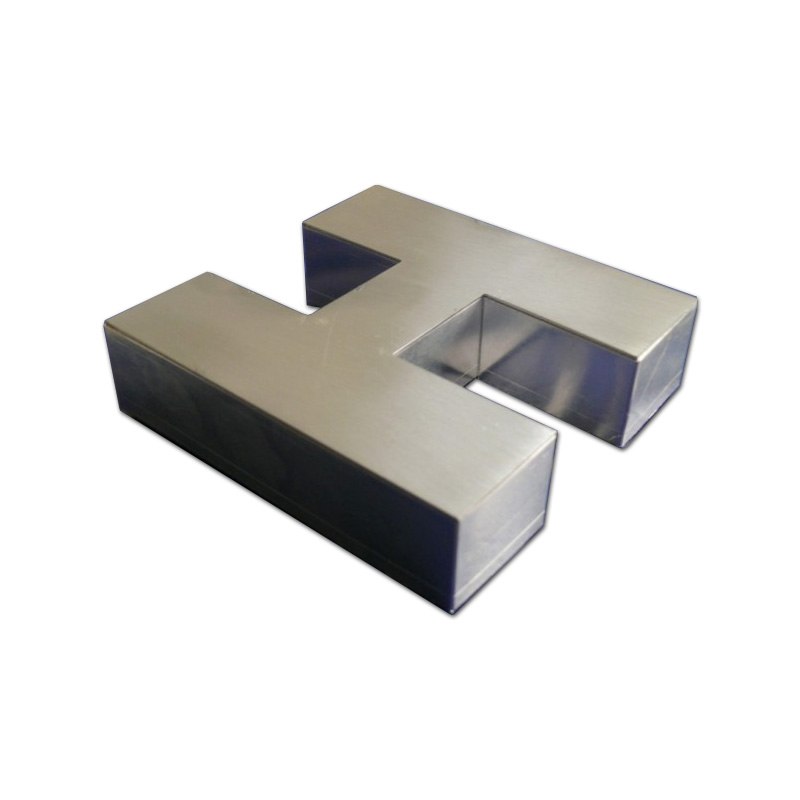

The 300W YAG laser welding machine is mainly used for welding several of metal letters LED illuminated letters, customized metal signage, and exterior billboards.
This laser welder can weld small and complex letters.
Applicable these materials: Stainless steel, Iron, Galvanized sheet, Titanium, Aluminum, thickness is within 1.2mm. (For welding aluminum, You’d better choose 400W laser welder)
This Laser Welder includes four parts: laser beam + power box, cooling system, marble table
Advantages:
Red light spot fast positioning, CCD display, microscope optional.
Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.
Slight distortion and affect by heating.
Capable of partial heating process.
Able to deal with complex, profiled, or tiny letters welding.
Low noise and no pollution.
Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position.
New metal processing technology brings higher quality of end products.
Details:
|

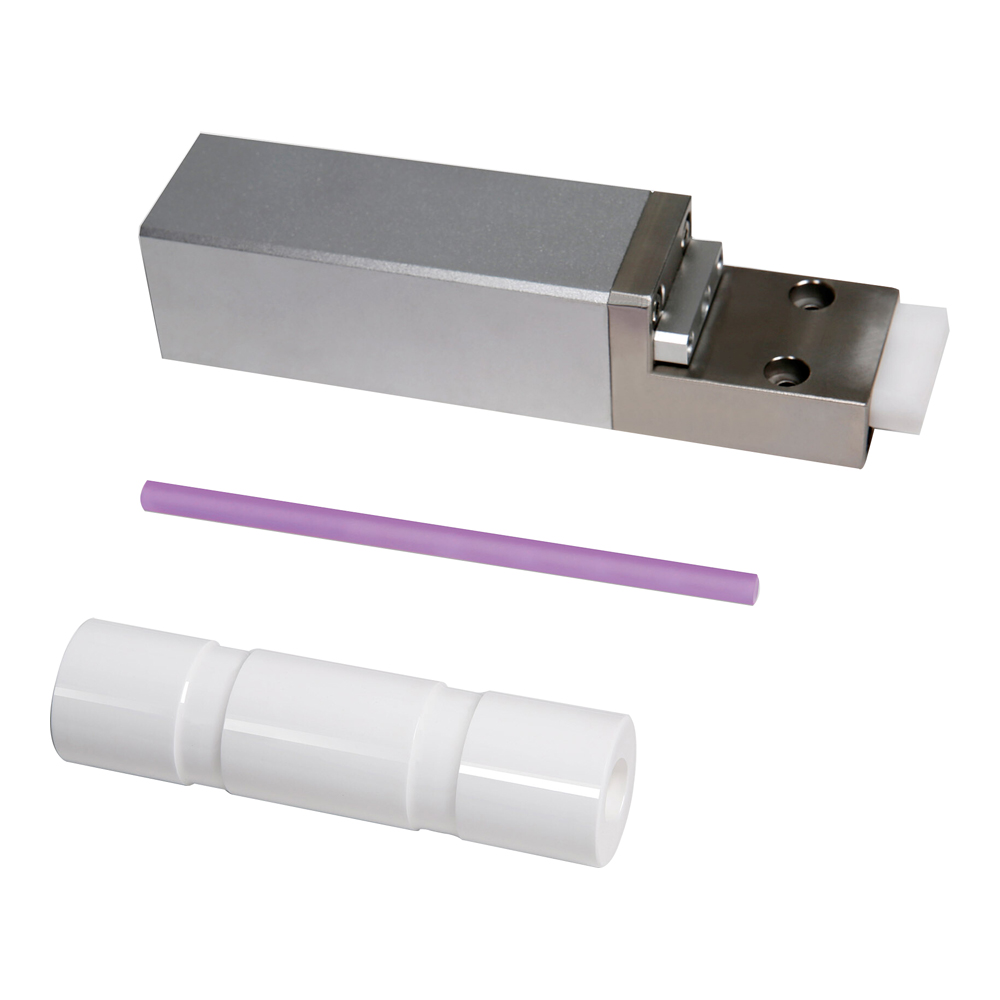

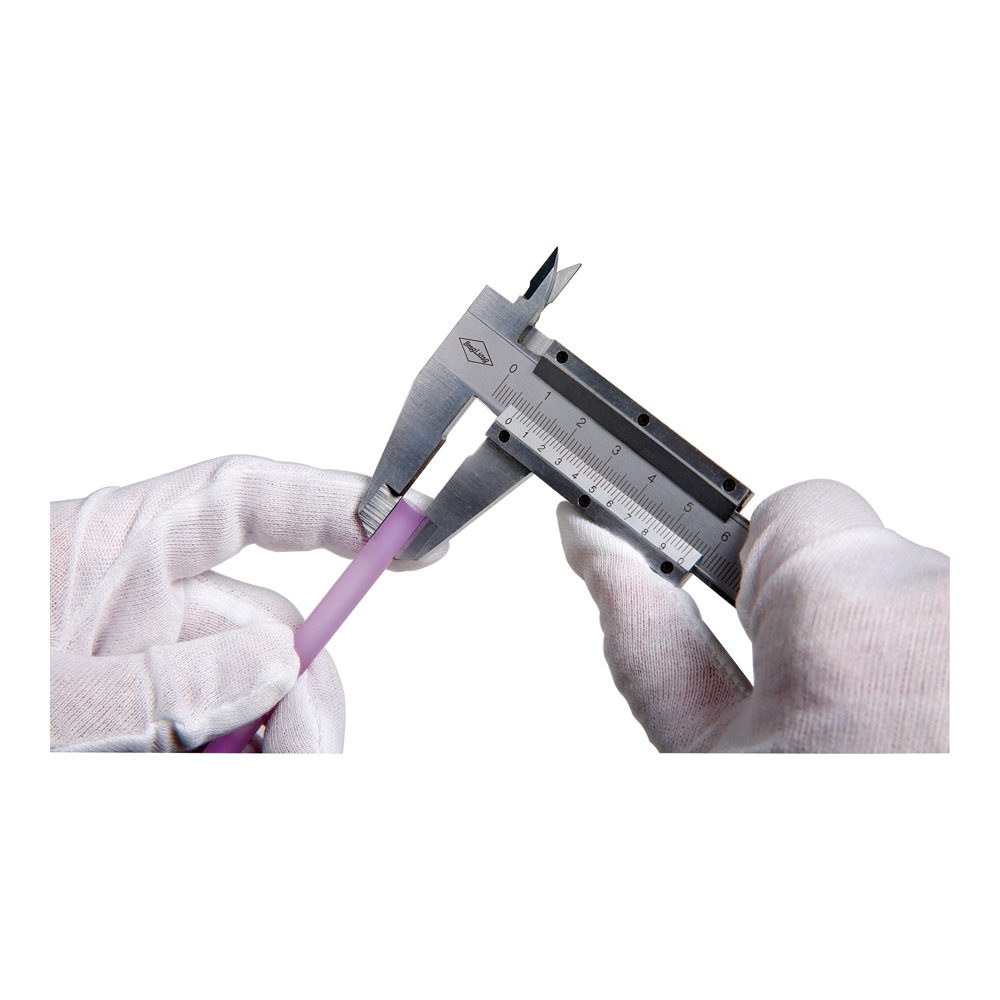

Crystal bar: Φ7 x 145mm (specification)
|
Ceramic cavity is imported from U.K.
|

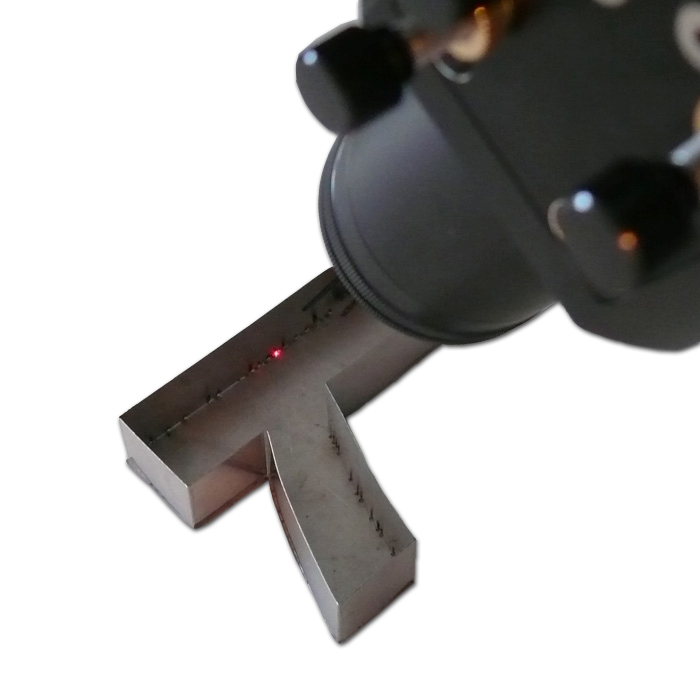

Red Light Locator: Quickly finds welding point, the faster laser locating.

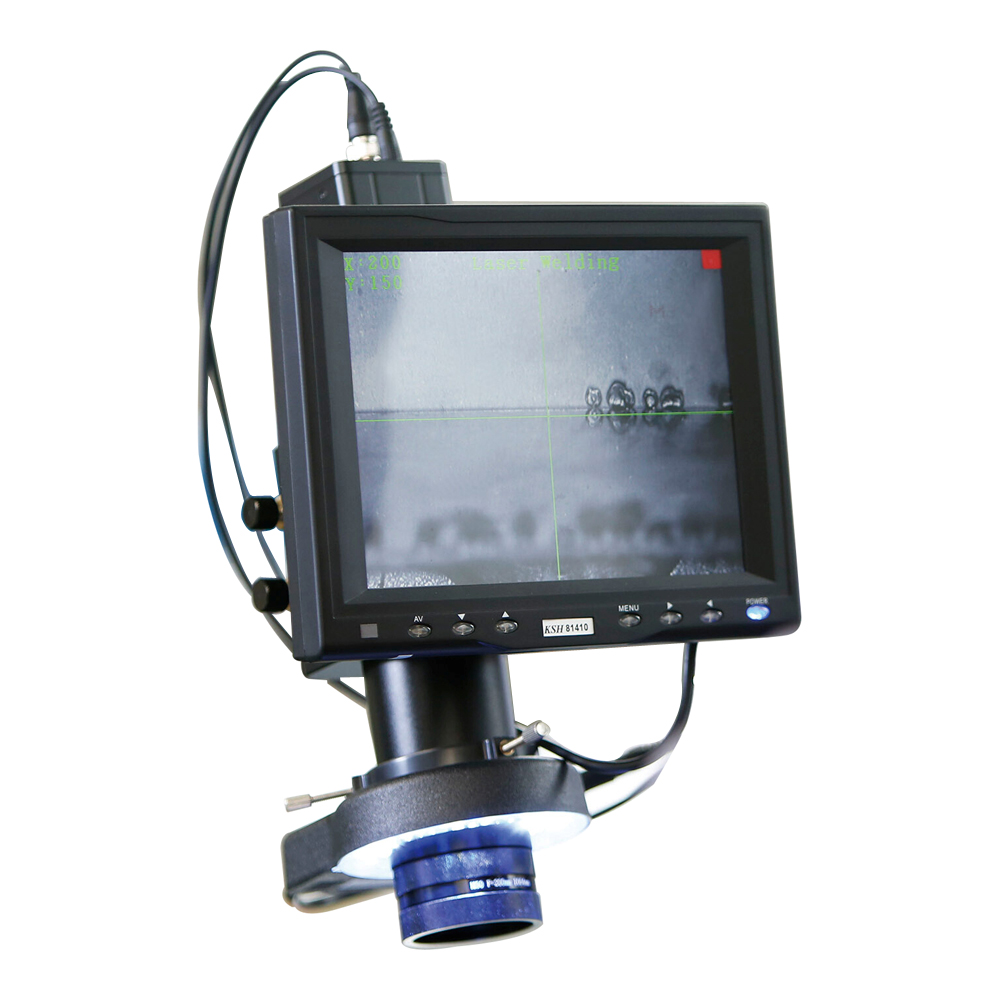

| Laser Head: 360-degree rotation which makes easy to fix welding position for particular objects. | CCD Direct Observation: Easy adjustments for light point sizes and welding point positions. |

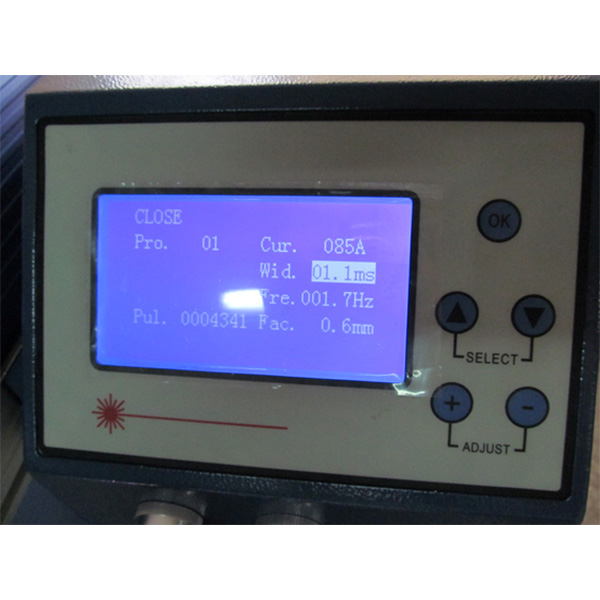

| Parameter Settings: Very simple adjustment with 10 savable settings available and possible to export anytime. | White Marble Working Surface: Low coefficient of friction will help to reduce the possibility of gloss metal baseplate getting scratched. |
Unique Aluminum Welding Function: This laser welding machine adopts high peak-value power supply and controller made by ourselves. It can easily weld those materials such as aluminum, copper, etc. that difficult for other brands machines. (For welding aluminum, please choose the model 400W)
Customer Case:
Paraguay Customer Buy Channel Signs Making Equipment to Expand Business!
I own a printing & sign making company. Last year, we just started our sign business. At first, we googled and find Sign-in-Global.com. Then we purchased a set CNC Channel Letter Bender and a set laser welding machine from this website on Jun 27, 2017.
Soon we got both of the machines. They look good. Then we use a sample to make a test by the welding machine. It worded very well. We are very satisfied. And sign-in-global provide after-sales technical online support, which is very helpful to us. In the following days, we placed many orders including printheads, Printer spare parts, CVD ZnSe Focus, etc.
I trust Sign-in-Global. It’s very professional. I can always find what I want here. We decide to buy some roll steel plates for sides of letter from this website later.

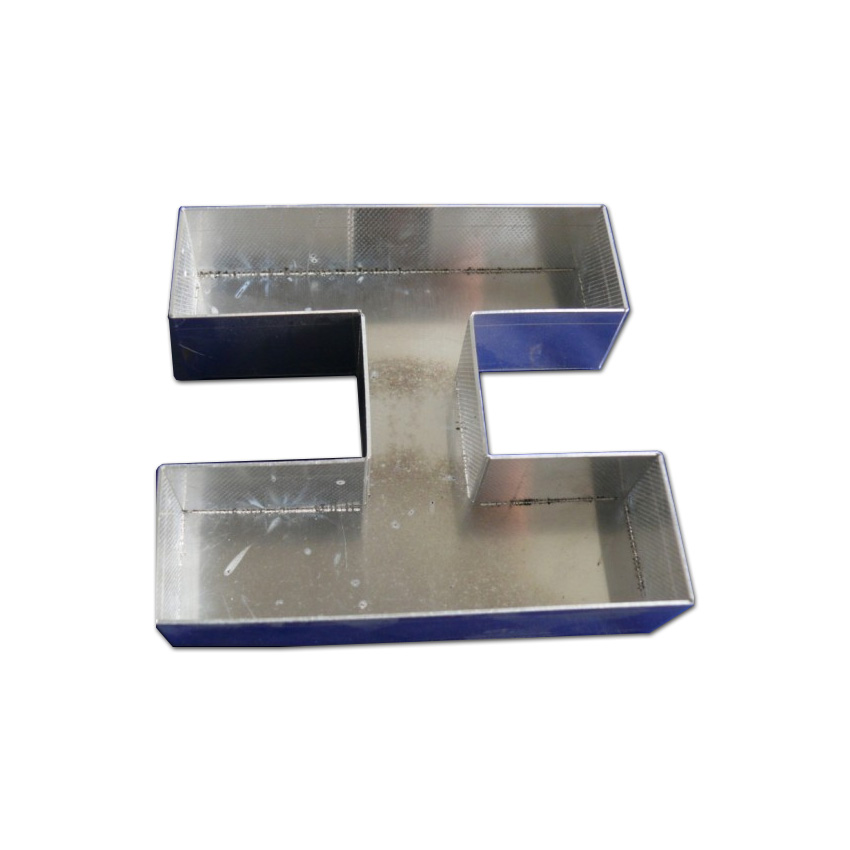

Samples:
Exhibition Gallery:
| Welding classification | Laser |
300W Standard YAG Laser Welding Machine for Fine Metal Channel Letter Making
|
Model No.
|
CY-WY300HZ
|
|
Laser Power
|
300W
|
|
Laser Source
|
Nd 3+: YAG rod ф7 x 145mm
|
|
Laser Wavelength
|
1064nm
|
|
Laser Tube Quantity
|
1 pc
|
|
Single-pulse Energy
|
90J
|
|
Pulse Duration
|
0.1~10ms
|
|
Frequency Range
|
0.1~30Hz
|
|
Workable Current
|
50~200A
|
|
Welding Spot Size
|
0.2~3.0mm
|
|
Laser Output Focus Length
|
150mm - 250mm
|
|
laser Cavity
|
Length: 1100mm, can rotate 360 degrees
|
|
Table Size (L x W)
|
1000mm x 750mm
|
|
Laser Arm Radius
|
Up to 840mm
|
|
Z-axis Adjustment Range
|
Z=50mm
|
|
Settings Memory
|
10 groups
|
|
Control Panel
|
Dust - proof button control
|
|
Language Option
|
English
|
|
Power Supply
|
220V/50Hz or 60Hz
|
|
Power Consumption
|
6+1KW
|
|
Applicable Materials
|
S/S, Titanium, Iron
|
|
Material Thickness
|
<1.5mm
|
|
Warranty Period
|
2 years
|
|
Sight Positioning
|
CCD digital camera
|
|
Cooling System
|
Water Chiller
|
|
Cooling Capacity
|
2700W
|
|
Machine Size
|
1400mm x 800mm x 1100mm, Machine body
600mm x 420mm x 750mm, Water chiller |
Main Consumption: Protection lens, Xenon lamp, Thimble
HS. Code: 8515800090 or 8515809090
Remarks:
1. Work frequency 4-10Hz for spot welding and 10Hz-30Hz for continuous welding.
2. The water inside the chiller tank has to be changed once a month in winter, or twice a month in summer. Deionized water is preferable, but bottled drinking water is also fine.
Parameters Setting Guide (Just for your reference)
|
Material Type
|
Current (A)
|
Pulse (MS)
|
Frequency (HZ)
|
|
0.3mm Stainless Steel
|
60
|
2
|
5 - 20
|
|
0.5mm Stainless Steel
|
65
|
2
|
5 - 20
|
|
0.8mm Stainless Steel
|
70
|
2
|
5 - 25
|
|
1.2mm Stainless Steel
|
75
|
2
|
5 - 30
|
|
1.5mm Stainless Steel
|
80
|
2
|
5 - 40
|
|
0.3mm Titanium
|
50
|
2
|
5 - 10
|
|
0.8mm Titanium
|
60
|
2
|
5 - 20
|
|
1.2mm Titanium
|
70
|
2
|
5 - 30
|
|
0.5mm Galvanized Iron
|
80
|
3
|
5 - 15
|
|
1mm Galvanized Iron
|
100
|
3
|
5 - 20
|
|
1.5mm Galvanized Iron
|
120
|
3
|
5 - 30
|
|
0.5mm Aluminum
|
100
|
2
|
5 - 80
|
|
0.8mm Aluminum
|
120
|
2.5
|
5 - 10
|
|
1.2mm Aluminum
|
130
|
3
|
5 - 12
|
|
0.6mm Brass
|
100
|
2
|
5 - 15
|
|
1mm Brass
|
110
|
2
|
5 - 15
|
|
1.5mm Brass
|
130
|
2
|
5 - 15
|
Average Rating: 0
Package:
Package: One wooden box
Packing Size and Gross Weight:
Wooden box: 1750mm x 850mm x 1200mm (69" x 33.5" x 48"), 300kg
Tool Kit:
Cross screwdriver 1 piece
Straight screwdriver 1 piece
Hexagonal Socket 5 pieces
Photographic paper 1 piece
Thread seal tape 1 piece
Quoits 4 pieces
Thimble 2 pieces
Petal Switch 1 set
