Description:

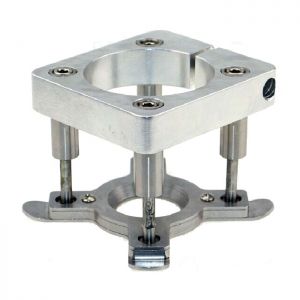

Multifunctional auto pressure plate device, no need of clamp, few drops of 3-second glue, and save more than 95% of labor force. There is no injury happening for users and the qualification ratio of engraving products (except human factors) reaches 100%. Specific engraving measurement, sound deadened, dustproof, etc. No influence to bits changing, the auto elasticity stretching range of pressure plate device is around 2 cm. It is definitely a new unparalleled product with less investment but high returns.
Features:
Product Material: Aluminum, Stainless Steel
Category: Engraver Pressure Plate
Use Position: Principal Axis of Engraving Machine
Applicable Model: 65
Applicable Principal Axis: Hydro and Air Cooling

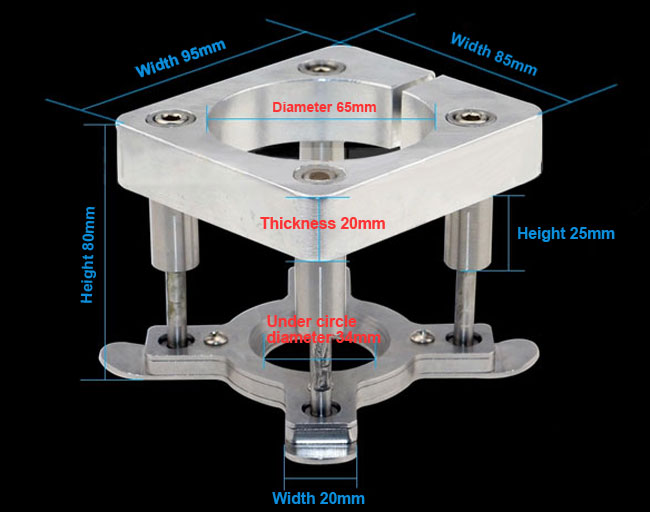

Principal Axis Diameter: 65mm
Applicable Brands: The principal axis of shuntong,qiancheng,changsheng,etc.
Suitable Materials: It is suitable for various boards such as acrylic, aluminum, plastic, double color plate, Medium Density Fiberboard (MDF), etc., especially, the boards with thickness less than 1cm.
Warm Tips:
Buying large diameter of pressure plate device, it depends on the user’s principal axis diameter. We have listed some of the ordinary axis diameters for your reference. Among which, there could be few principal axes’ specifications do not match each other, hereby we request the buyers must specifically measure the principal axis diameter before purchasing.
Installation:

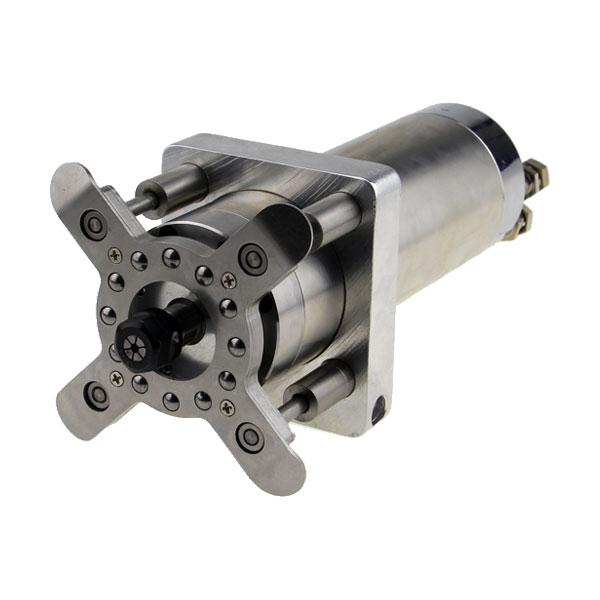

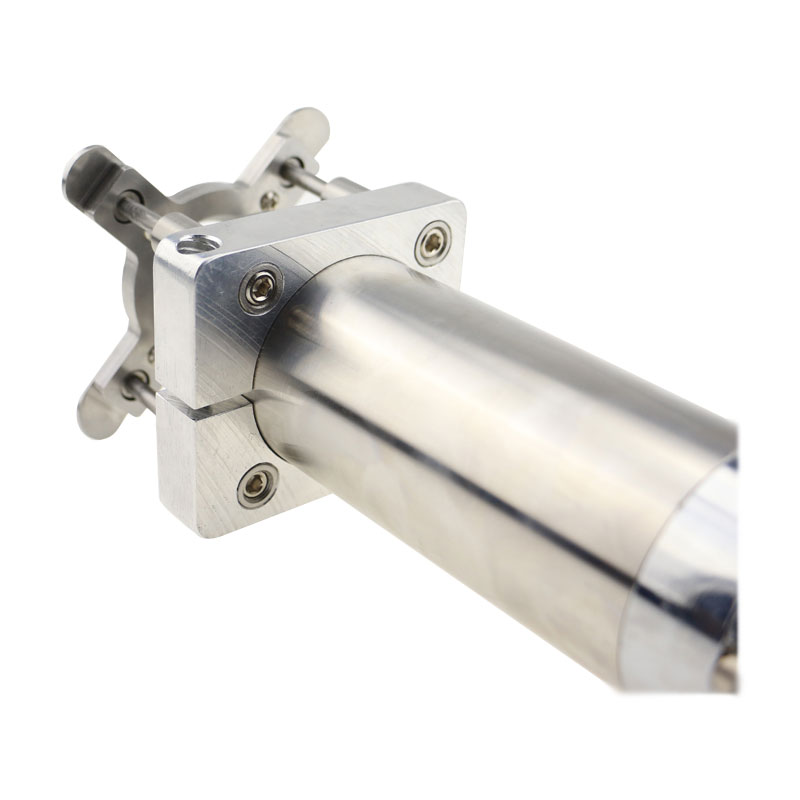

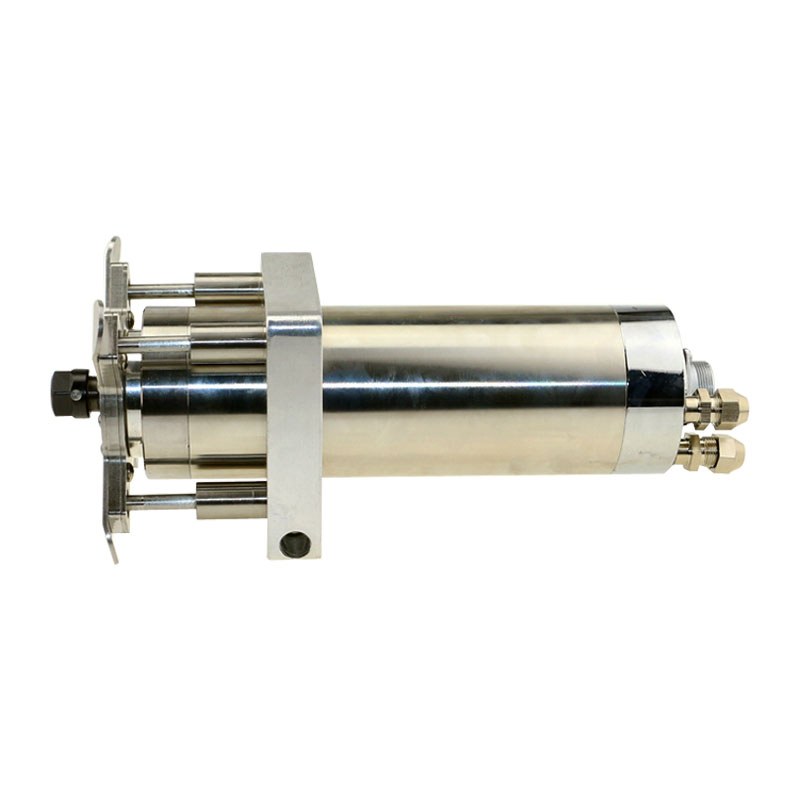

Put the pressure plate device on the principal axis of motor, adjust the position properly up and down then just tighten the screw on the ring (the position up and down: if less than 3mm thickness plate, the bottom of pressure plate device is parallel to the knifepoint; if plates from 4mm to 6mm, adjust the pressure plate device upwards 2mm to 3mm; and then the same manner of adjustment for the rest).
Principle of Operation:
Use little 3-second glue to paste the board on the working platform of engraving machine, then fix the pressure plate deviceon the motor of the machine. By the force of motor running, it makes the pressure plate device move along with motor moving and automatically pressing the board peacefully on the working platform for which it controls the board not moving up and down but stably working without any extra force.
How it works:
Fix board(such as Acrylic Board) on the worktable of engraving machine with the help of some double-sided adhesive, and then install,this automatic plate device on the spindle. This automatic device can run together with the spindle and press the board on the worktable, the platen is with motor sports, so that the sheet is not jumping up and down, running smoothly, without any additional force.
| Drifting Head Technology | Welding Technology |
| Full abrasive Forging, scientific rigor. | Very rough, easy to scratch board |
Wood Engraving Machines, Advertising Engravers, Stone Cutting, etc.
Why use the pressure plate device?
1. This pressure plate device rolls along with the principal axis moves for which it replaces users manually pressing board materials hence it saves labor force and effectively improves work efficiency.
2. It releases users from burdensome engraving work and stays far from dust or debris so that it creates good and safe environment in respect of the users ad their health.

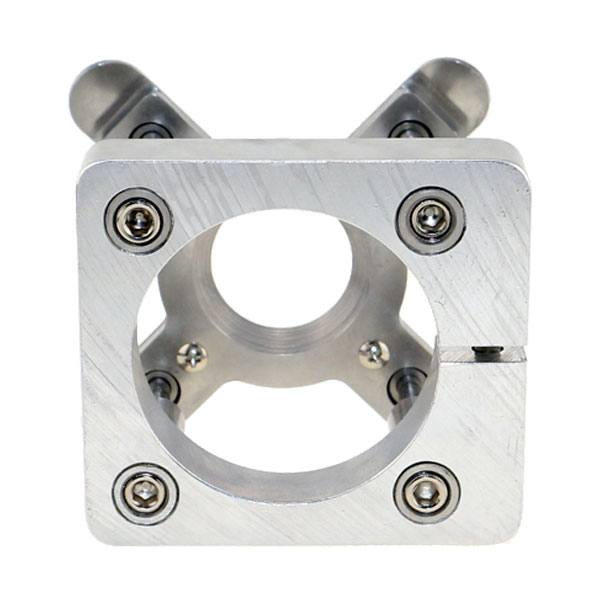

3. The clincher is adopted with adjustable knob which is easy, tight and applicable to various brands of principal axes in use.
