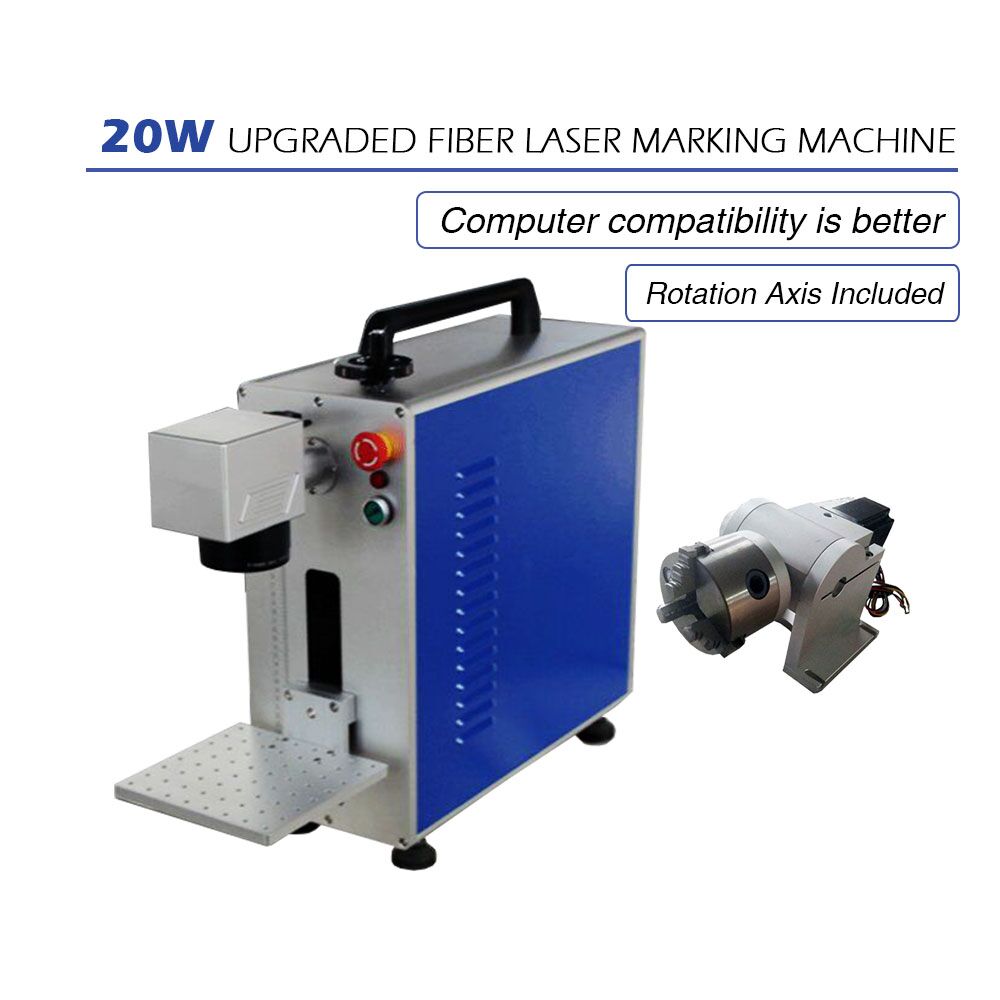

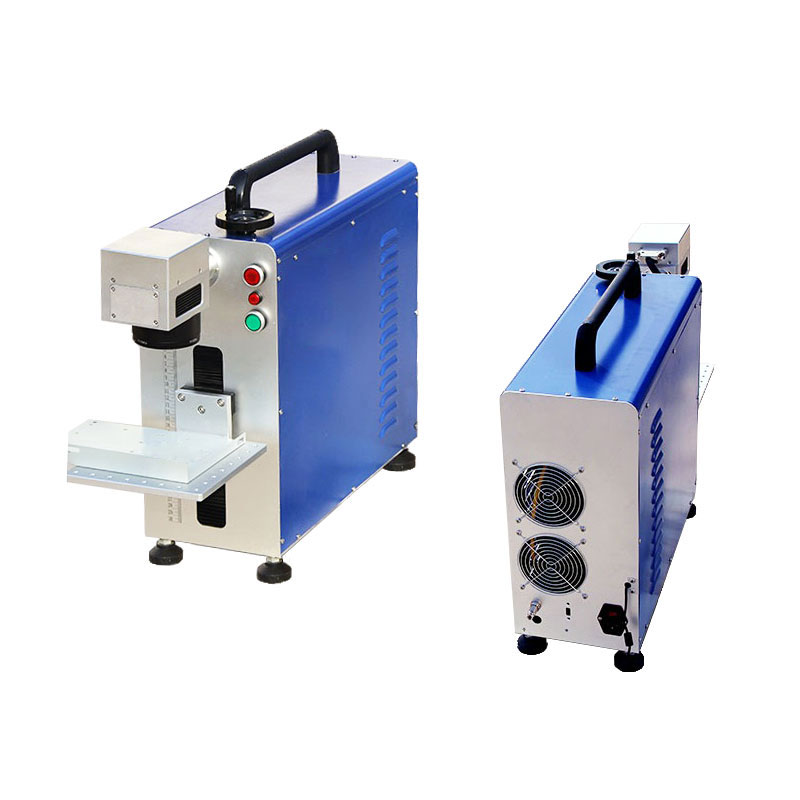

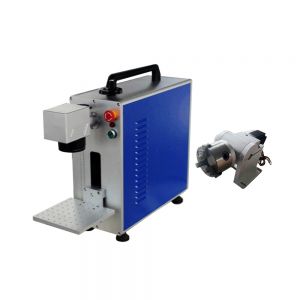

Portable 20W Fiber Laser Marking Metal EngravingEZ Cad FDA Certified, Rotary Axis Include

Fiber Laser Marking Machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.

Name

Origin(brand)

Remarks

Optical maser

Max, Raycus, IPG fiber laser (optional)

Long service life, high reliability, fine beam quality

Galvo mirror

Galvo-tech(digital)

Fine marking, more quick and high reliability

F-θ lens

wavelength

High quality optical device

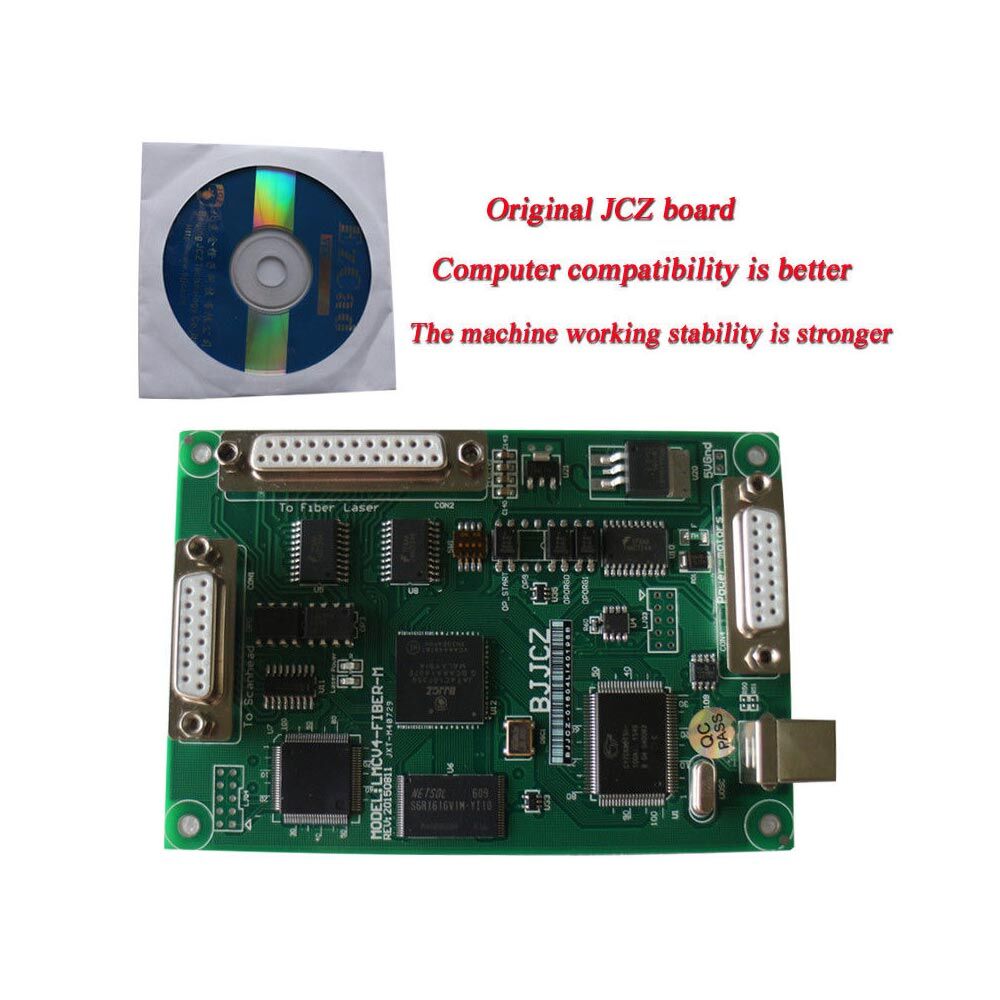

Board bjjcz 2.12.0 version

Marking software

Special marking Software (Ezcad2 software)

Powerful, simple and convenient operation, Auto-cad, CorelDraw, AI8.0, Photoshop software compatible form

Control cabinet

China

Optical fiber special cabinet, all the mold production, high seal


Feature:

1. Optical Fiber Laser, environment friendly, easy maintenance.
2. Life of the laser can be up to 100000 hours.
3. Small volume and weight, less than 35KGS.
4. Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5. Runs without consumable spare parts, no need maintenance, great for continuous working.

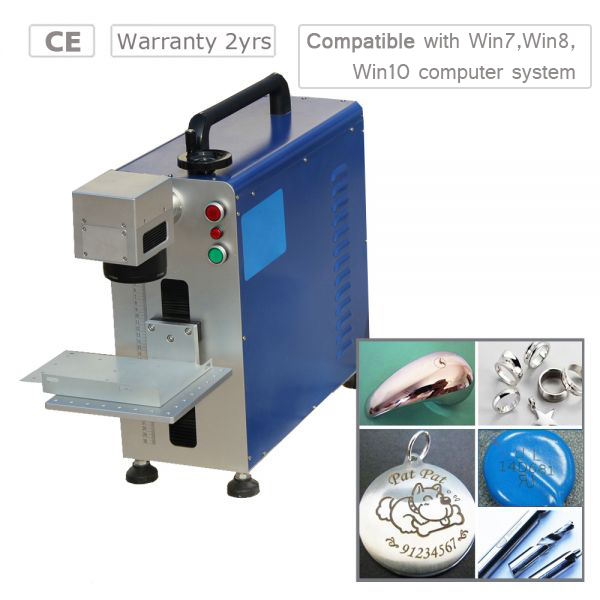

6. Computer System Requirements: Win7,Win8,Win10

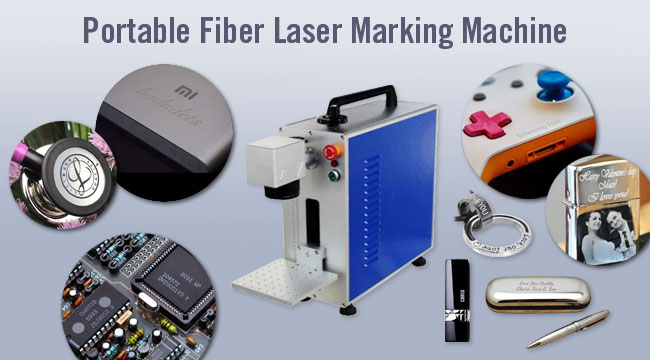

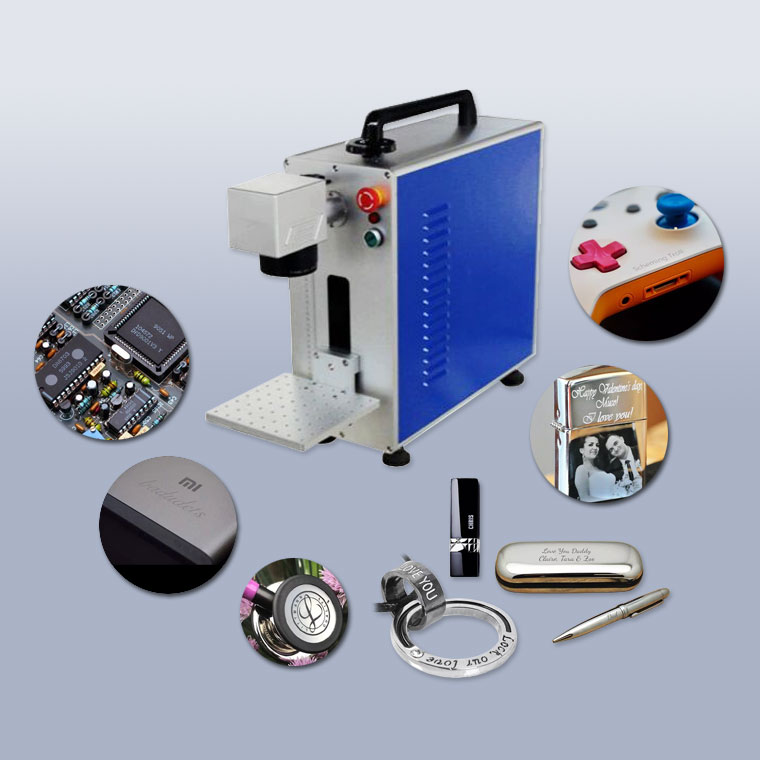

Application Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

Application Materials:

Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, Accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)

Details:
1. The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
2. The smallest volume, suitable for harsh environment, friendly interface, easy operation.
3. Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.

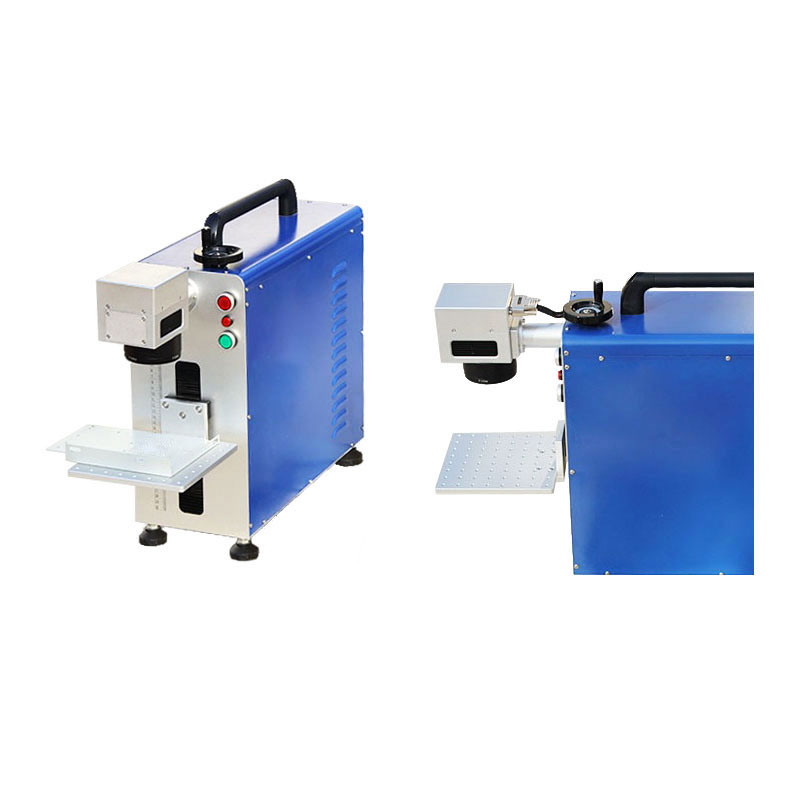

4. Compact, lightweight, simple interface, flexible and adjustable processing direction.
5. The master switch, red light switch and galvanometer switch,

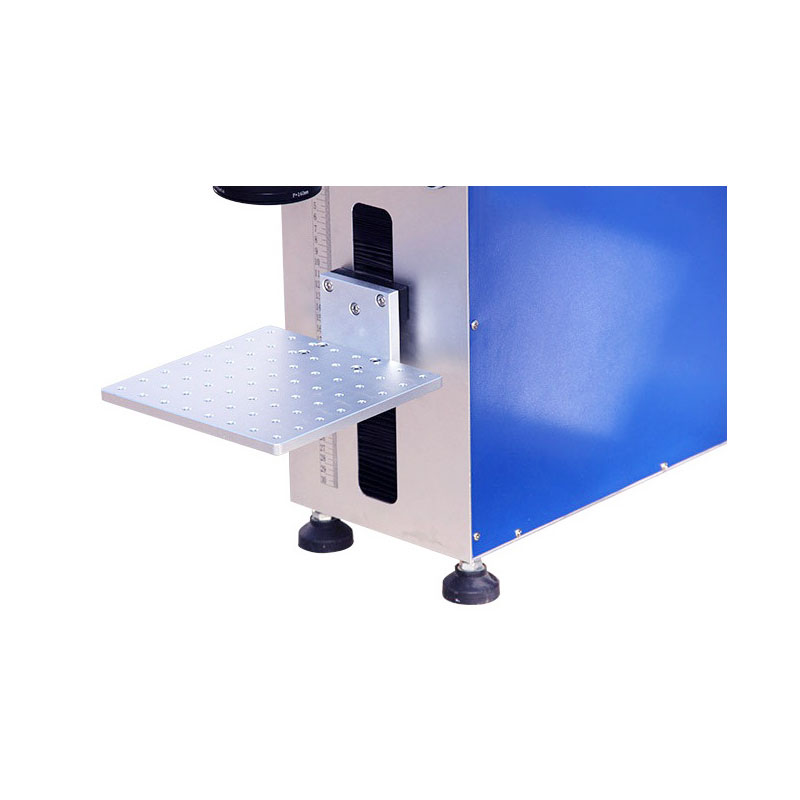

6. High precision scale

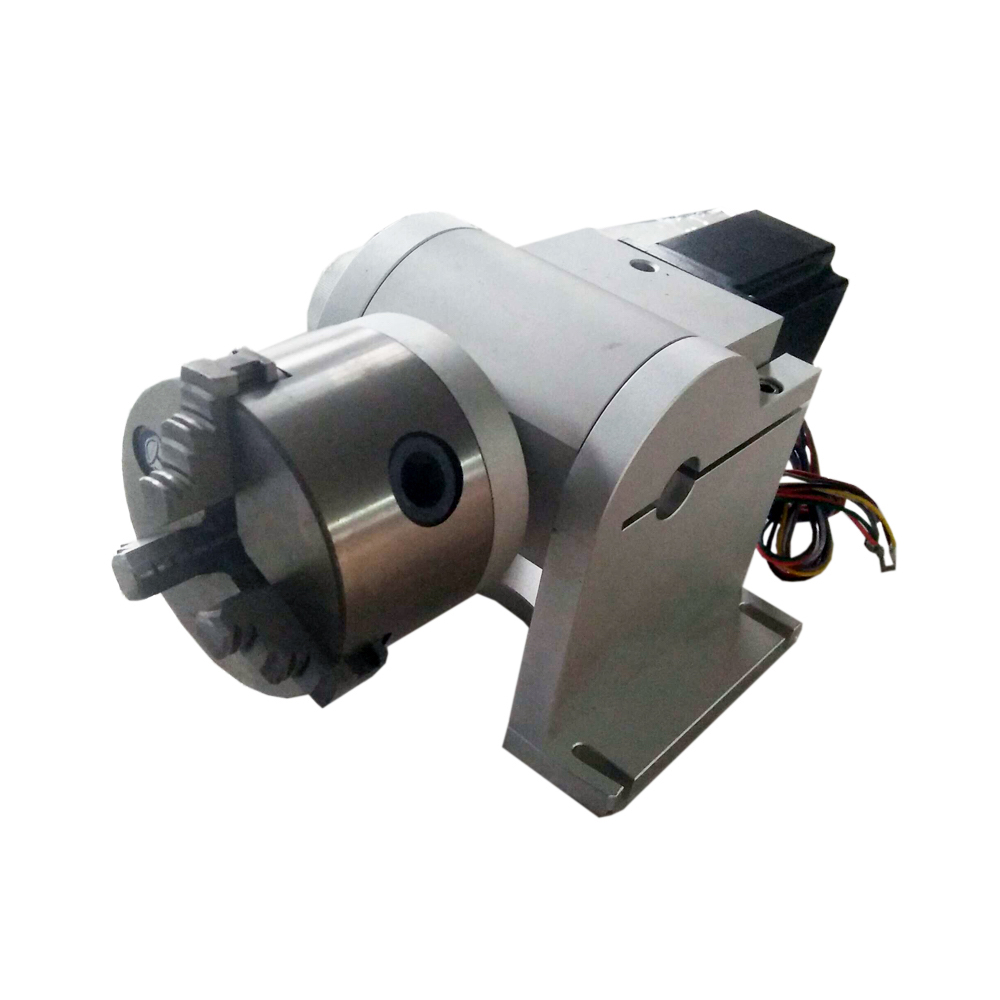

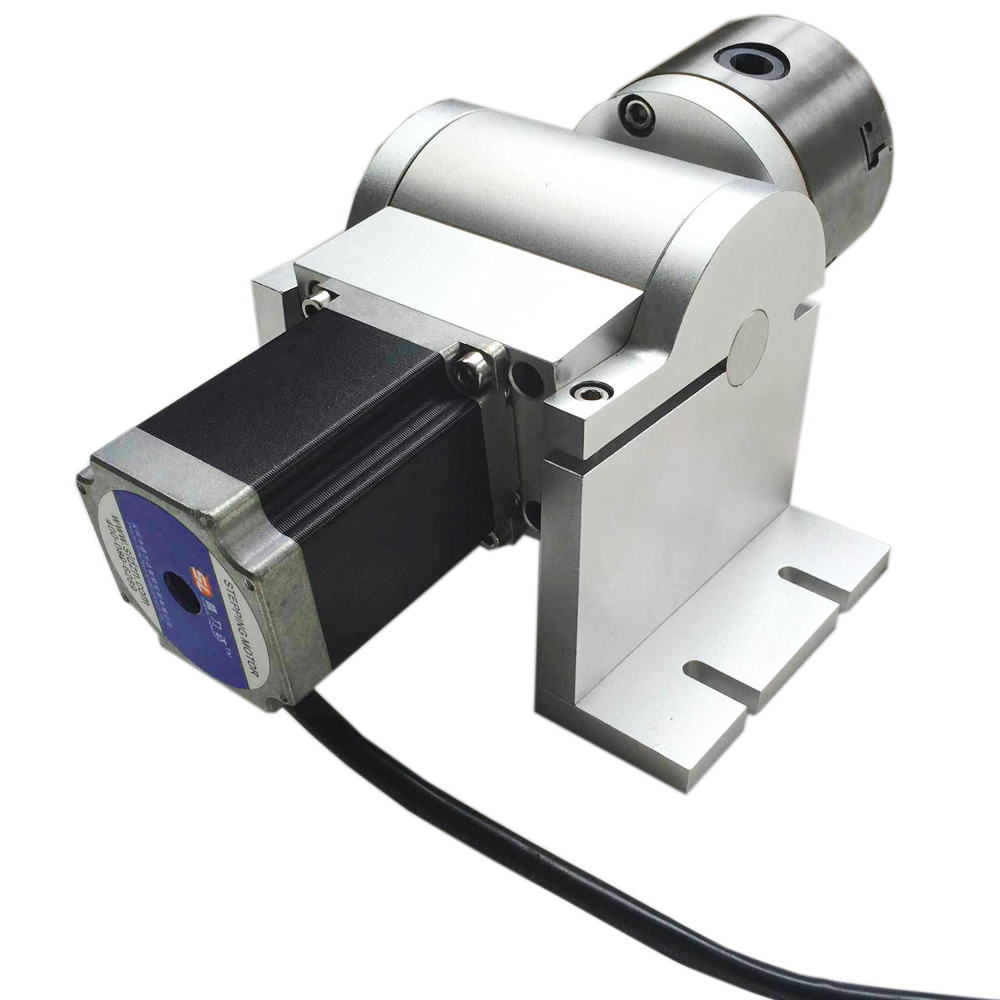

7. Rotary axis is included, you can mark on regular cylinder or inside / outside ring.







Customer Case:
You Should Be Very Proud of Your Sturdy Product
I'm Michael from the United States. I ordered a 20W Fiber Laser Marking & Engraving Machine several days ago from Sign-in-Global.com.
They’re in high quality and fast shipping. I received the laser on time. The package’s very good though UPS.
You should be very proud of your sturdy product. Thanks.

Samples:







Quality Report:

1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
Cooling Method Air cooling
Marking Speed 0-8000mm/s
Laser Power 20W(10W30W/50W optional)
Marking Range 110x110mm(150x150mm/200x200mm optional)
Pulse Frequency 20-100kHz
Laser Wave Length 1064nm
Laser Medium Maxphotonics (RAYCUS /IPG laser optional)
Specification Form

Model

LMM-F-20W

Fiber Laser Source

Max, Raycus, IPG fiber laser (optional)

Output Power

20W(10W 30W / 50W optional)

Laser wavelength

1064nm

Modulation frequency range

30-60kHz

Speed

0-8000mm/s

Precision

0.001mm

Minimum line width

0.01mm

Minimum height of characters

0.05mm

Cooling way

Air cooling

Marking range

110x110mm(150x150mm / 200x200mm optional)

Laser power supply

0.5KW,220V/50Hz, 110V/60HZ

Software

Auto-cad, CorelDraw, AI8.0, Photoshop software compatible

Graphic Format Supported

AI / BMP / DST / DWG / PLT

Rotary device

Yes

Weight 35KGS

Computer System Requirements

Win7,Win8,Win10



Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Packing List:

Machine Dimension 70x20x50cm
Machine Weight 35KGS
Packing Size 110x36x70cm
Packing Weight 45KGS
Package Wooden box
Accessories list with marker Power line, USB wire, software and manual CD





 10W, 20W portable fiber laser marking on mobile phone shell



20W portable fiber laser marking logo on cup



20W portable fiber laser marking photograph on metal nameplate (1)



20W portable fiber laser marking photograph on metal nameplate (2)
