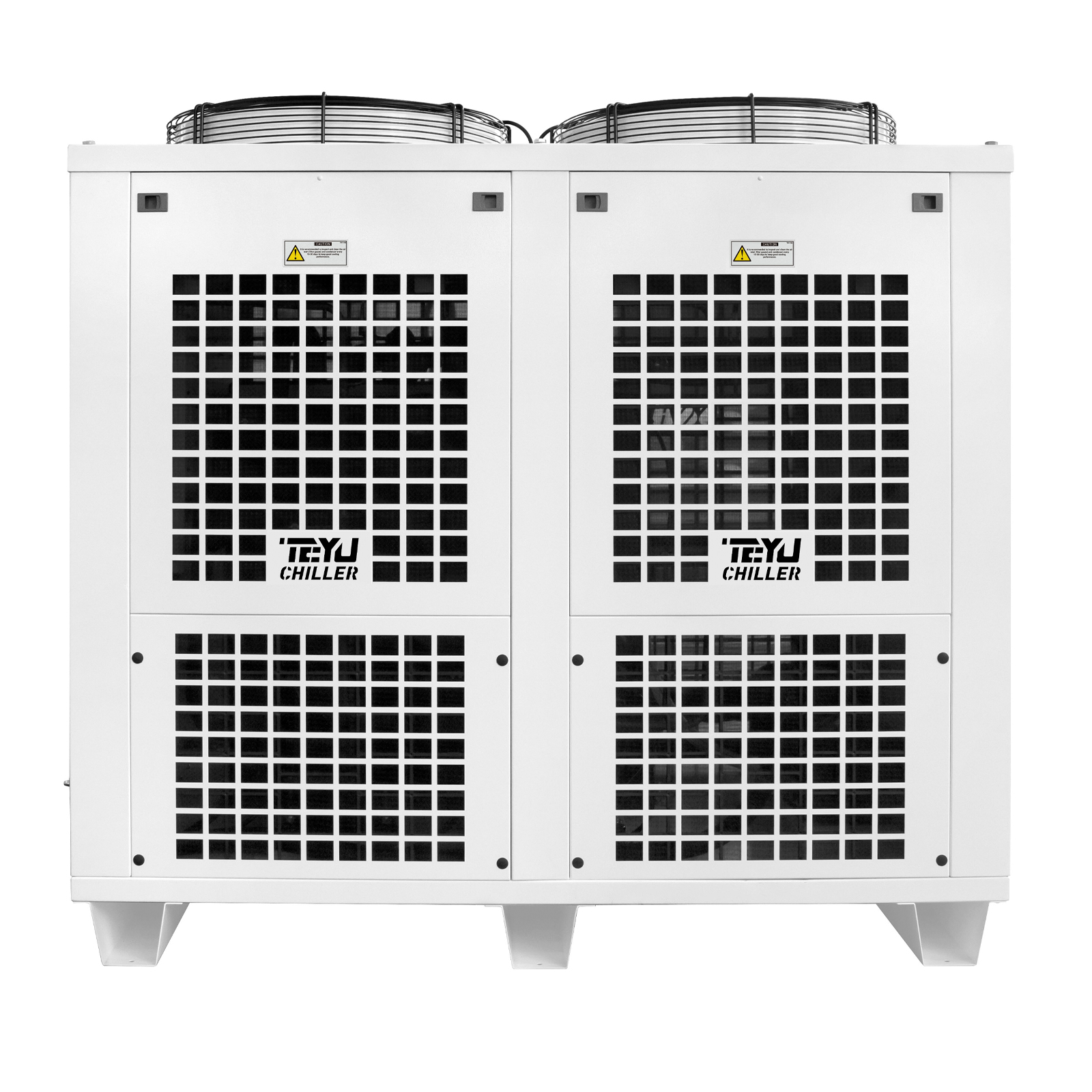

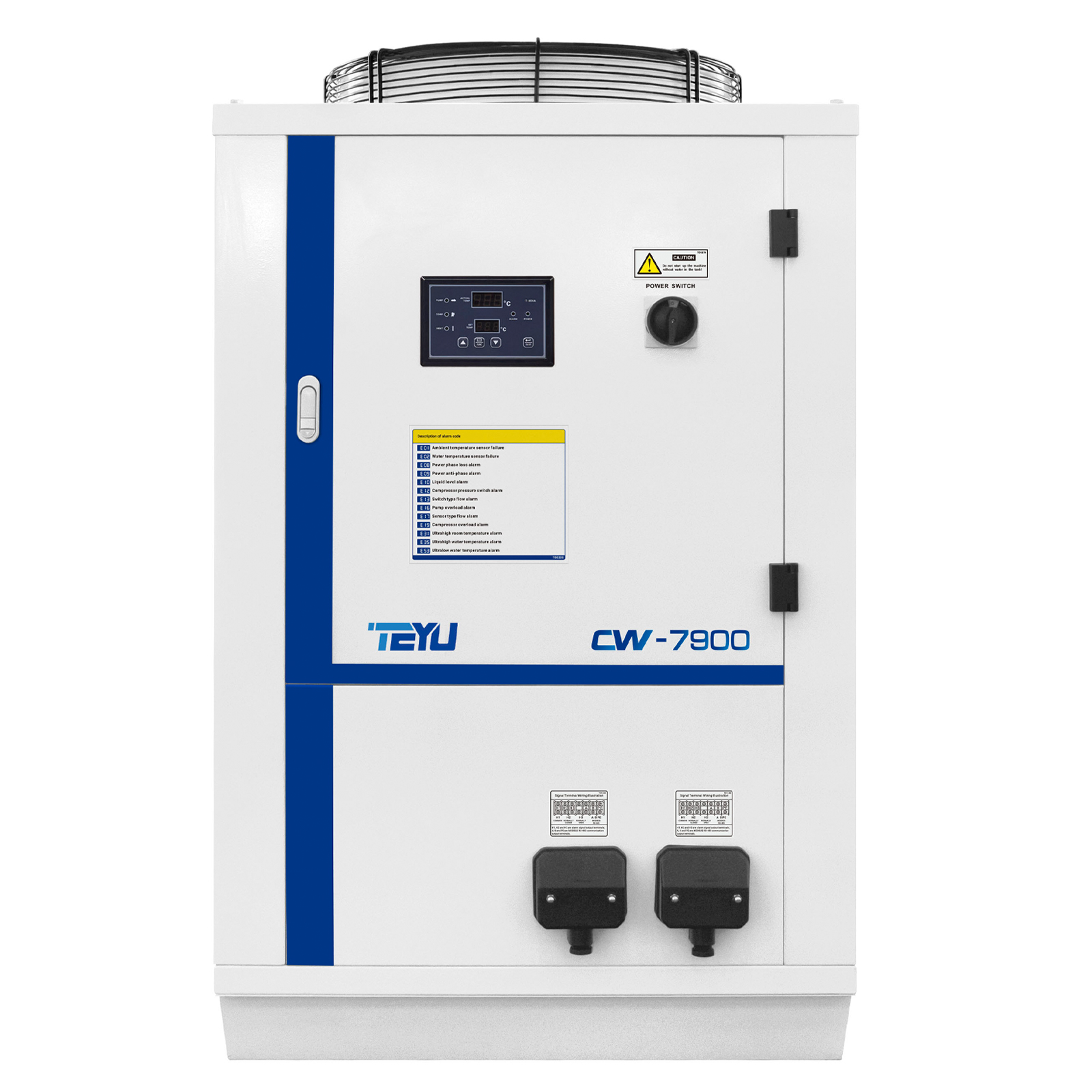

S&A 12HP, AC 3P 380V 50HZ CW-7900EN industrial water chiller for Single 5000W Fiber Laser or 800W-900W YAG laser Cooling
Description:
S&A CW-7900 Industrial Water Chiller units with 30000W cooling capacity, multiple alarm functions,support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.
Features:
1. 30000W cooling capacity; optional environmental refrigerant;
2. ±1℃ precise temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE approval; RoHS approval; REACH approval;
6. Optional heater and water filter;
7. Support Modbus-485 communication protocol, which can realize the communication between the laser system and multiple water chillers to achieve two functions: monitoring the working status of the chillers and modifying the parameters of the chillers.
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the Accessories box before running the chiller.

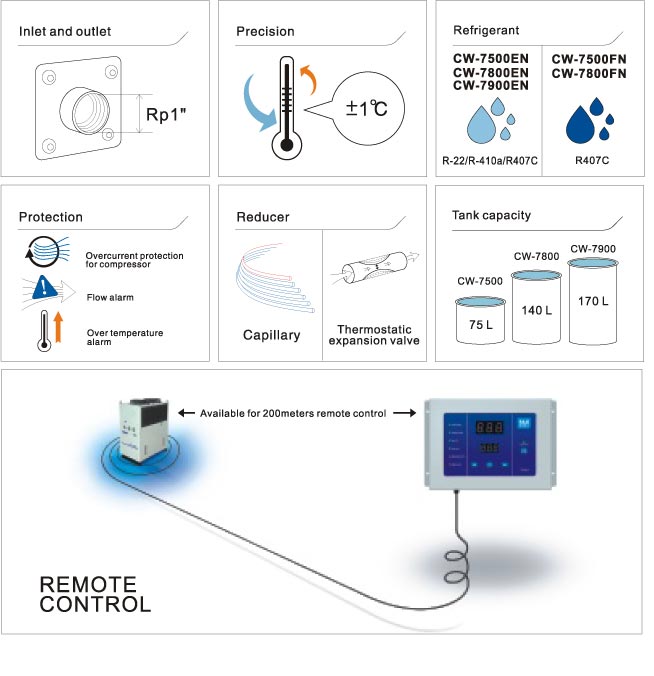

SPECIFICATION
| Model |
CW-7900EN |
| Voltage |
AC 3P 380V 50Hz |
| Current |
2.1~34.1A |
| Machine power |
16.42KW |
| Compressor power |
10.62kW, 14.24HP |

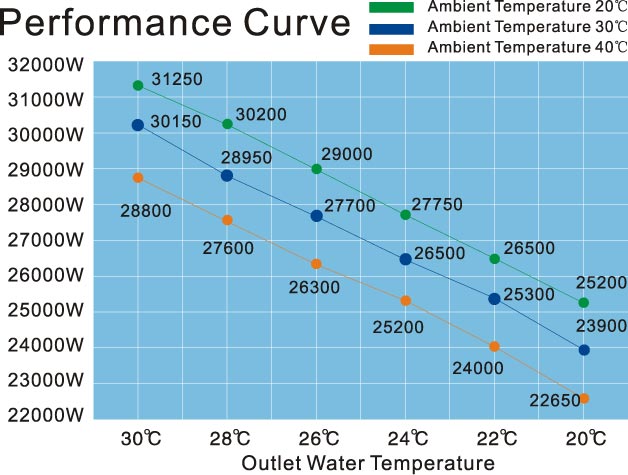

| Refrigerating Capacity |
112596Btu/h, 33kW, 28373Kcal/h |
| Refrigerant |
R-410a |
| Refrigerant Charge |
7100g |
| Precision |
±1℃ |
| Reducer |
Capillary |
| Pump Power |
1.1KW |
| Tank capacity |
170L |
| Max.flow |
117L/min |
| Pump pressure |
6.15bar |
| Inlet and Outlet |
Rp1" |
| Net Weight |
291Kgs(641.5lb) |
| Gross Weight |
331Kgs(729.7lb) |
| Dimension |
61" x 31.5" x 53" (1550 x 800 x 1350mm) |
| Package Dimension |
67" x 36.6" x 60" (1700 x 930 x 1520mm) |
| Note |
the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product. |
PRODUCT INTRODUCTION

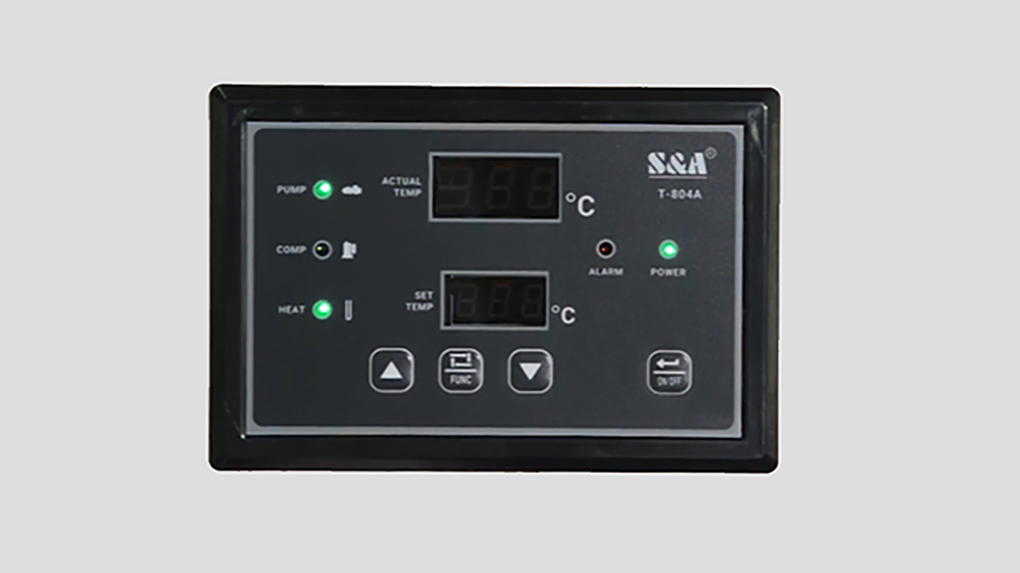

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

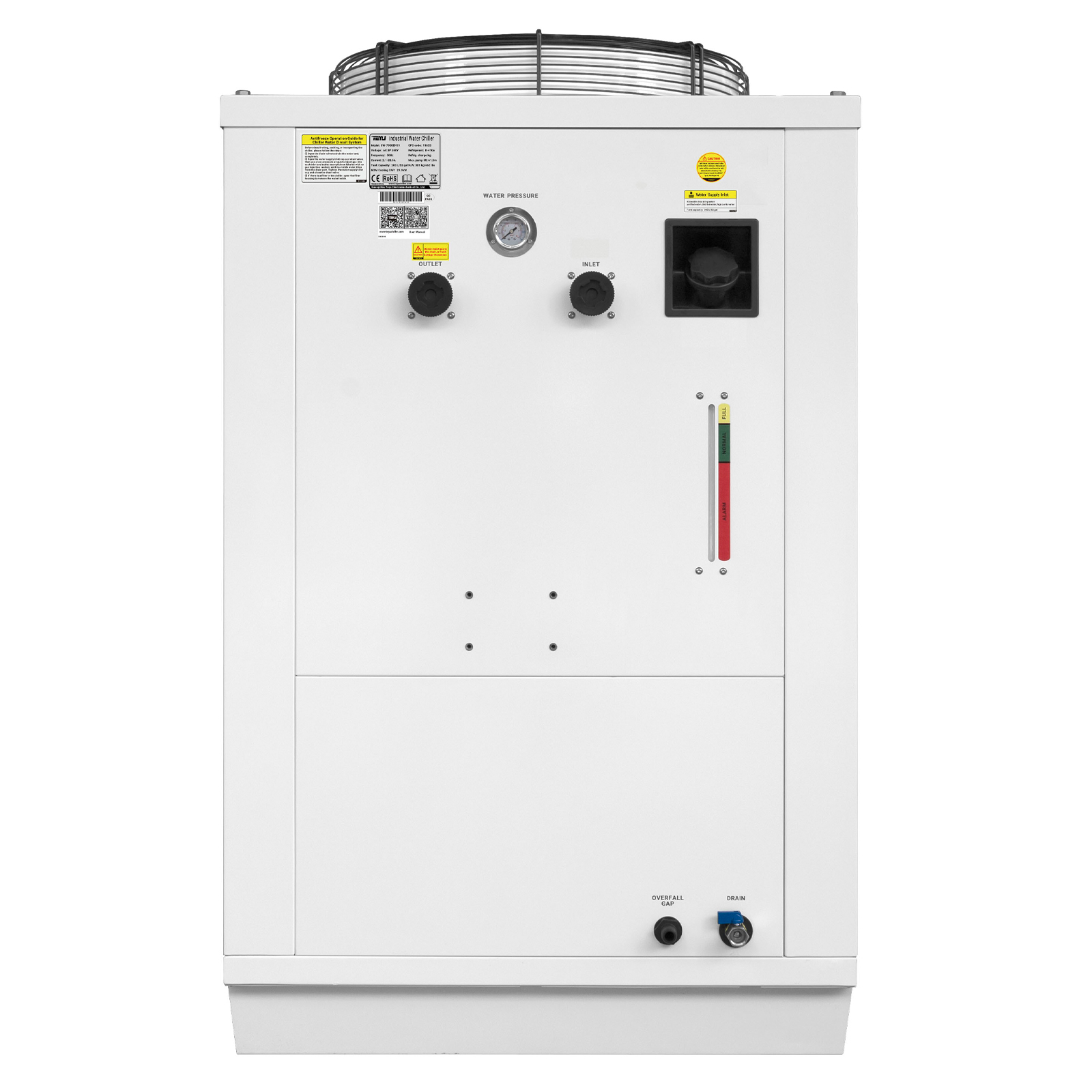

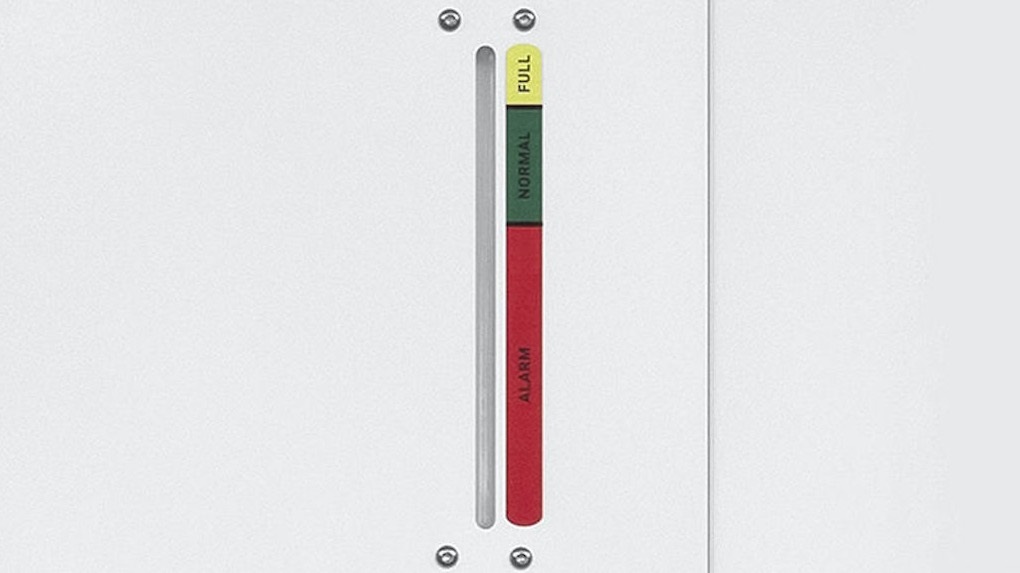

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

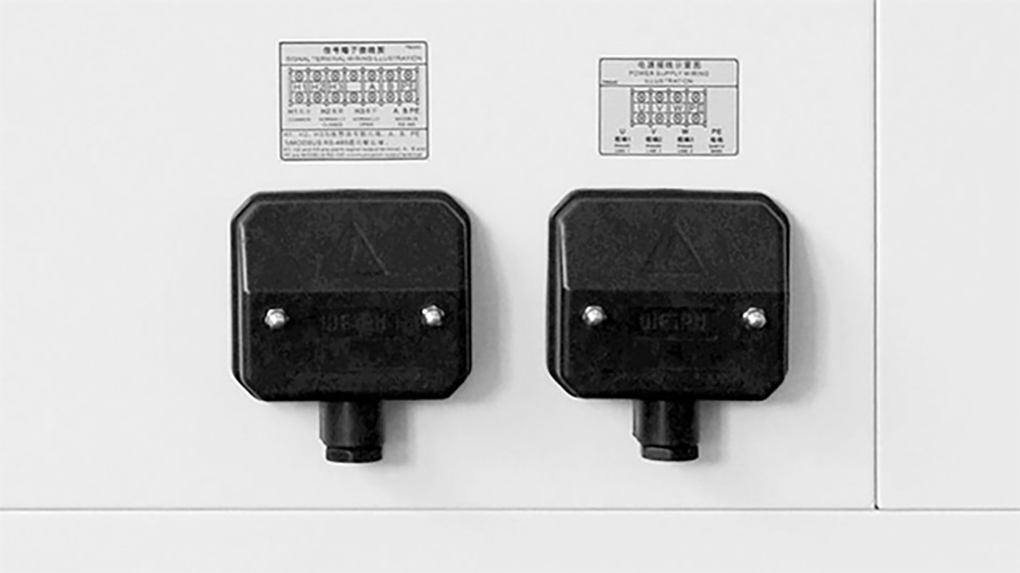

Junction Box
S&A engineers' professional design, easy and stable wiring.

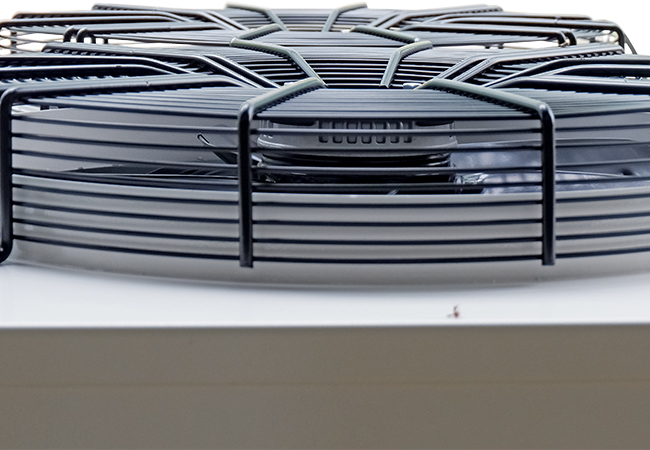

Cooling fan of famous brand installed.
With high quality and low failure rate.

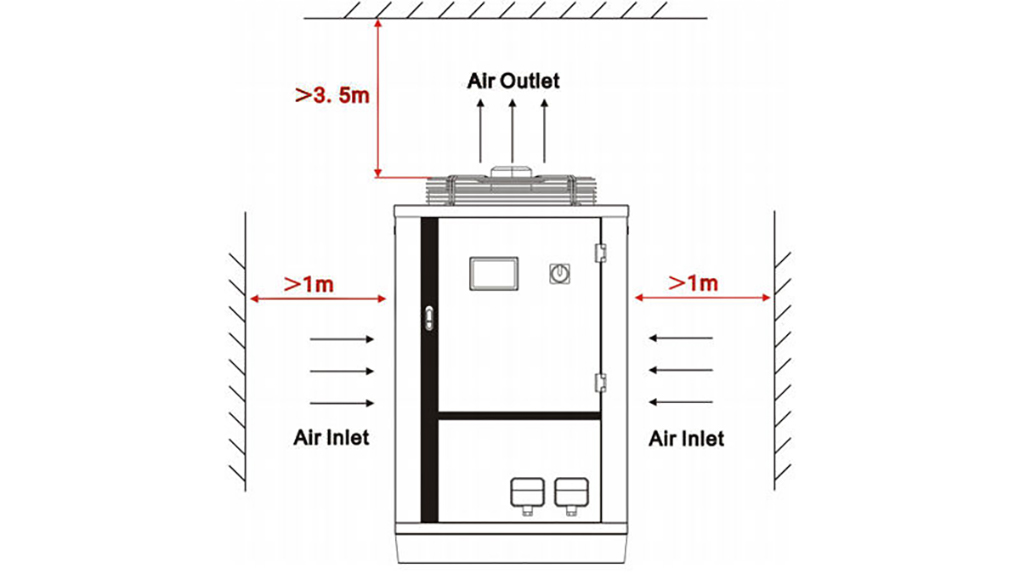

Ventilation Distance
Certificate

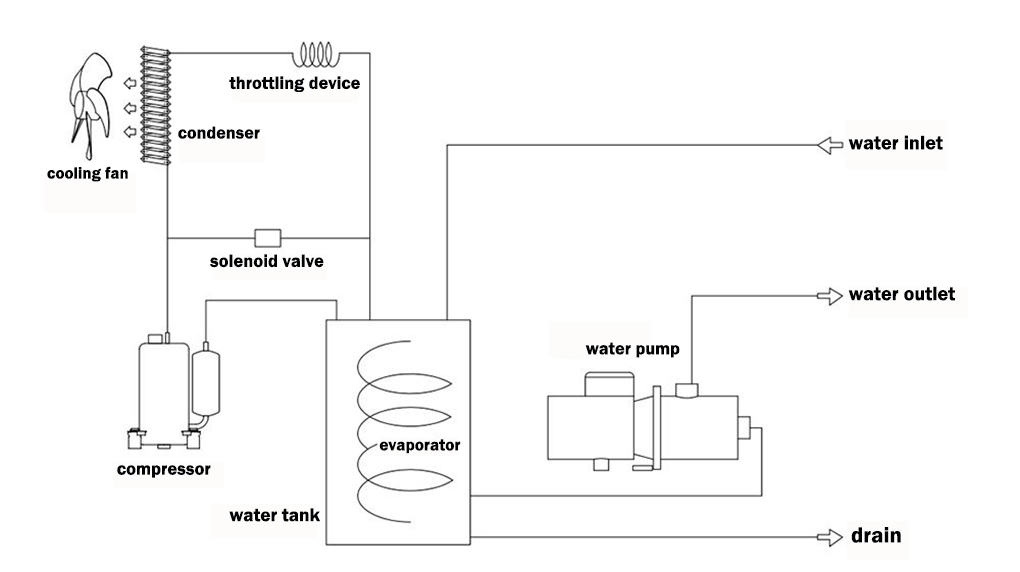

Product Working Principle
