Main Configuration:
Max. Working Area: 51" x 35" (1300mm x 900mm)
Max. Cutting Speed: 15.7" (400mm) / s
Max. Engraving Speed: 23.6" (600mm) / s
Laser Power: EFR F4 CO2 glass laser tube 100W-130W (Normal lifespan: about 10000 working hours)
Max. Cutting Thickness (Acrylic): ≤1.2" (30mm)
Resolution Ratio: 0.0064mm
Min. Shaping Character: Chinese Character: 0.1" x 0.1" (2mm x 2mm), letter: 1mm x 1mm
Location Precision: <0.01mm
Power Supply:AC110V±10%,60HZ; AC220V±10%, 50HZ
Gross Power: <1250W
.jpg) |
 |
.jpg) |
Electric Lifting Worktable(Optional) |
Control Panel |
Honey Comb Table(Optional) |
.jpg) |
.jpg) |
.jpg) |

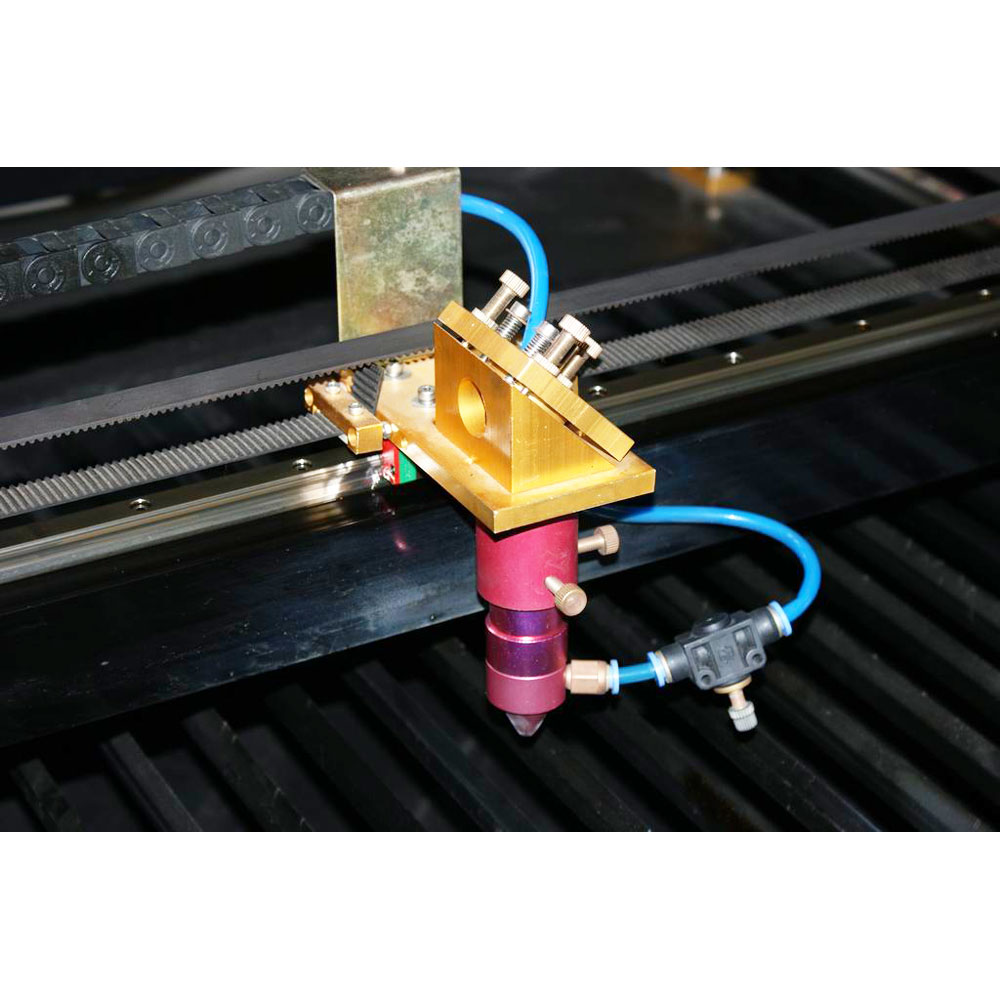

Laser Head |
Linear Guide |
Rotary Fixture(Optional) |



Instructions of Laser Engraving Cutting Software
There are three kinds of RD laser cutting software. One is the direct output software based on CorelDraw (hereinafter referred to as CorelDraw_Laser); the other is based on the direct output software based on AutoCAD (hereinafter referred to as AutoCAD_Laser). In addition, there is another kind of independent software (hereinafter referred to as LaserWork), which is more simple to use in the first stage of using laser cutting machines.




Why buy from us?
Best quality control system in low power laser industry!
 |
 |
Parts quality guaranteed

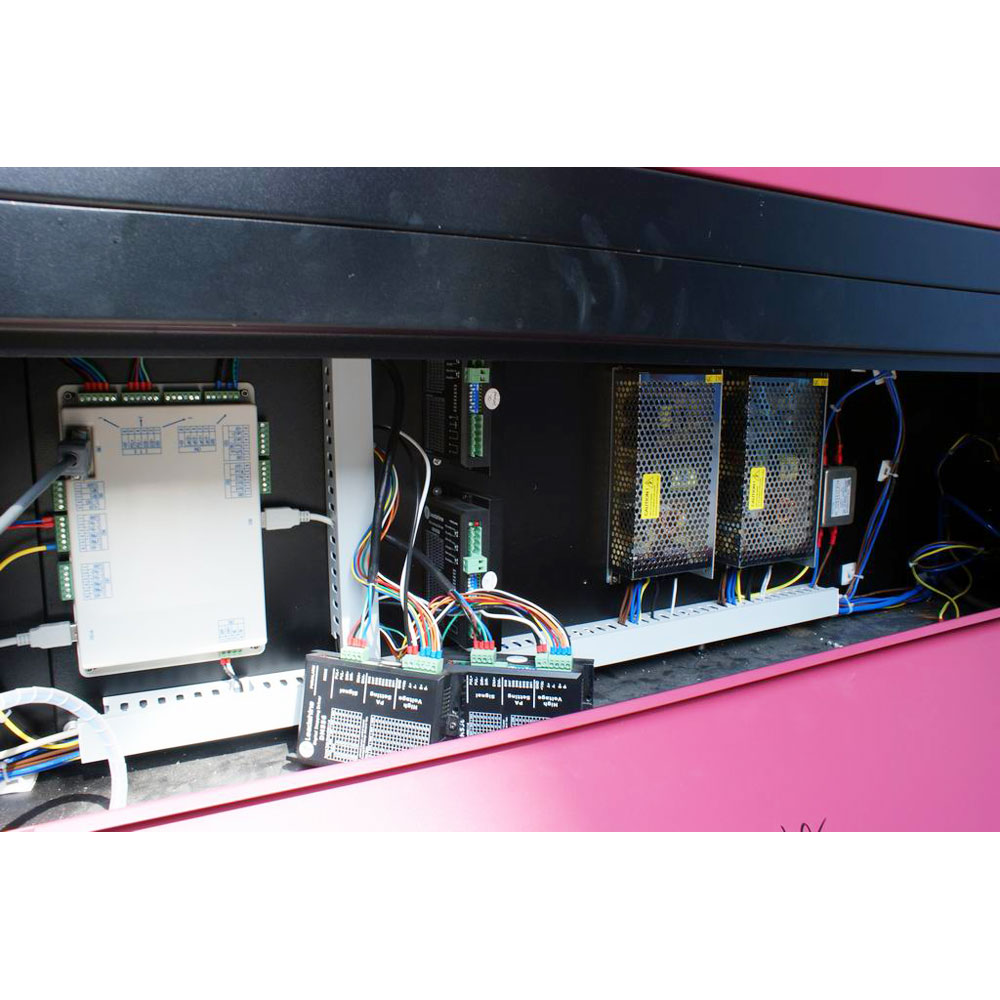

The main board and power supply of laser cutting machine were put into an oven at temperature of 50 degree for an aging test, minimally 4 hours. |

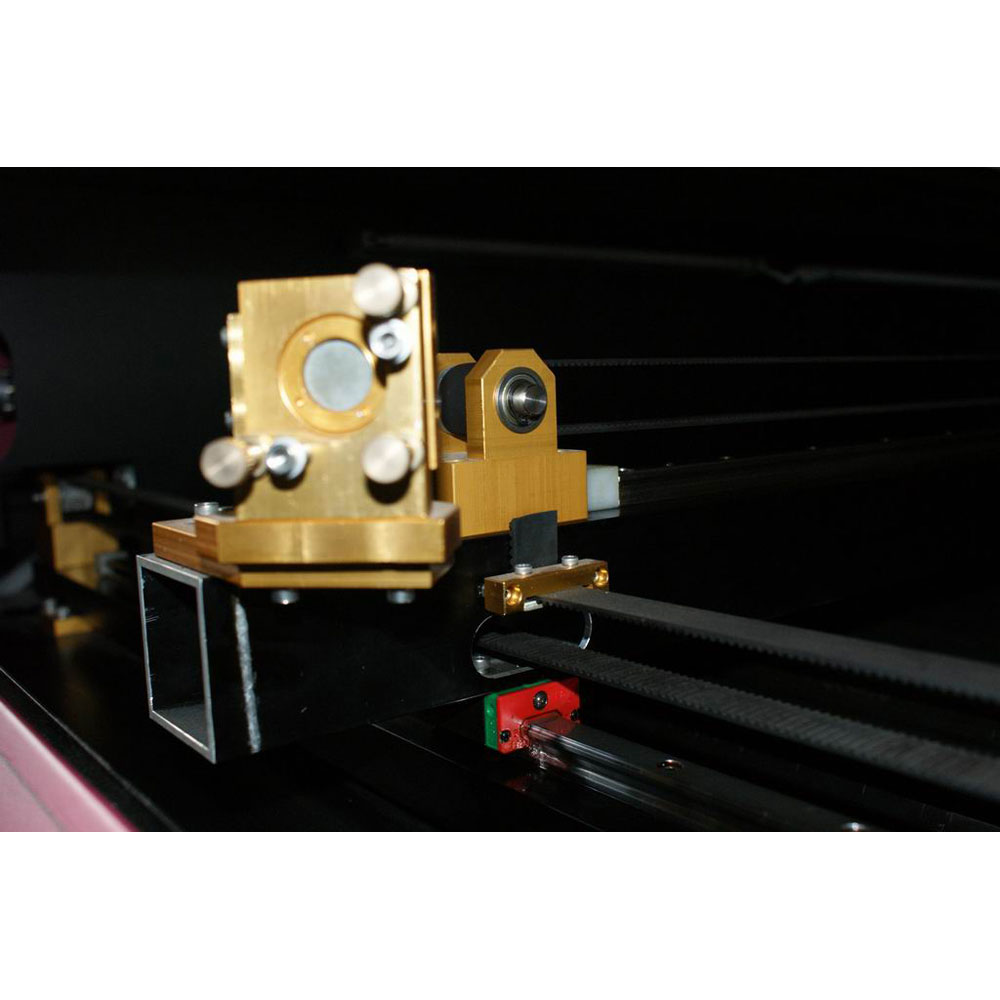

Laser head
Enclosed, with air blowing device, which is safer than unclosed head. |
 |
 |
Laser Test
Each laser tube and its power source shall be tested for 8 hours on/off power test: There are strict inspection criterions for its light beam quality and laser power. |
Guide rail
High precision equilibrium linear guide rail imported from Korea. Each guide rail shall be tested before installation.
|
 |
 |
100% Check of Materials
We perform 100% check to all the parts of laser cutting machine in order to avoid any disqualified parts coming into the next step of work. |
Inspection Before Delivery
Any laser cutting machine before departing the factory, we will perform cutting test with the cutting precision at 0.1mm to test its verticality and dimensional deviation. |
 |
 |
Test of Main Board & Power Supply
Put the main board and power supply of laser cutting machine into an oven at temperature of 50 degree for an aging test, minimally 4 hours. |
Test of Transmission Parts
Check the synchronizing wheel and bearing of the laser engraver whether are concentric and easy in rotation as well as its deviation whether is less or equal to 0.02mm. |
 |
 |
Processing Crotrol
During the production of laser engraving machines, our quality inspector will patrol and check its installation quality. It is mainly to check the parts of mechanics and electrics, cables whether satisfy the requirements of installation blueprint. If any error or problem found, the correction treatment will be executed immediately. |
Test of Guideway and Rectangular Tube
Mainly to test the flatness, linearity and torsion resistance of t the guideway and rectangular tube. Put the rectangular tube and the guideway onto a marble platform, then use dial gage calibrator to check: the tolerance bigger than 0.05mm/m is disqualified.
|
 |
 |
Stretching Force Tester for the Belt of Laser
Cutting Machine
Ensure the machine platform cutting in consistency. |
Collimator Test
The test method for the linearity, flatness and verticality of the laser cutting machine’s guideway is to use Auto Pricise Collimator 1401 Double-way. |
 |
 |
Handy Power Indicator of Laser Cutting Machine
Any point of the laser cutting machine’s power test, ensure the laser cutting machine to give best cutting effect. |
Electromagnetic Oscillograph of Laser Cutting Machine
To test the electromagnetic interference and ensure the running stability of laser cutting machine. |
Product Highlights:
– 51" x 35" (1300mm x 900mm) working area
– Up to 23.6" IPS (600mm/s) high working speed
– Pass-through front and rear doors to accommodate long work pieces
Three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, safety and effectiveness.
– Laminated Safety Glass, glass viewing windows creating a safe enclosure for laser processing.
– Adopt the super fine cutting technology, which has features of extensive material processing, smooth cutting edge and burr-free, avoid polishing, processing high speed, high precision.
– Original Singapore imported lens with molybdenum base, making the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost.
– Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube.
– The laser cutter is equipped with aluminum strip shape platform, which can bear heavier materials, such as organic glass, wood and much more.
– This machine uses USB port to transmit data, it is equipped with large internal memory capacity, improving the working speed with greater efficiency.
– LCM-BY-Z1309 laser cutting machine, adopts high quality CO2 glass laser tube made in China, with a fine cutting effect and price advantage.
– Equipped with high quality water chiller cw5000, which can prolong the lifespan of the laser tube and ensures a better engraving effect.

Please download the PDF file of User Manual of LCM-BY-Z Series Laser machine to learn more!
I.Machine Installation
Include: Laser tube assembly; Water Chiller installation; Air pump connection; Exhaust fan installation; Grounding wire connection.

II. Software and USB driver Installation

III. Software Operation
Edit the images in the engraving software or input the color pictures into the engraving software, edit it, and then set the processing parameters, output images to our laser cutting machine, finish the work.
IV. Finished works!




Customer Case:

Comment:
I am dealing with printing and carving business, three months ago, we purchased a set 1300*900mm laser cutting machine, finally we received this machine on October, my technician help install this machine, it works well and it has enough power to cut material, we are satisfied with this machine, thanks for your good service, I will go on our business in future.
