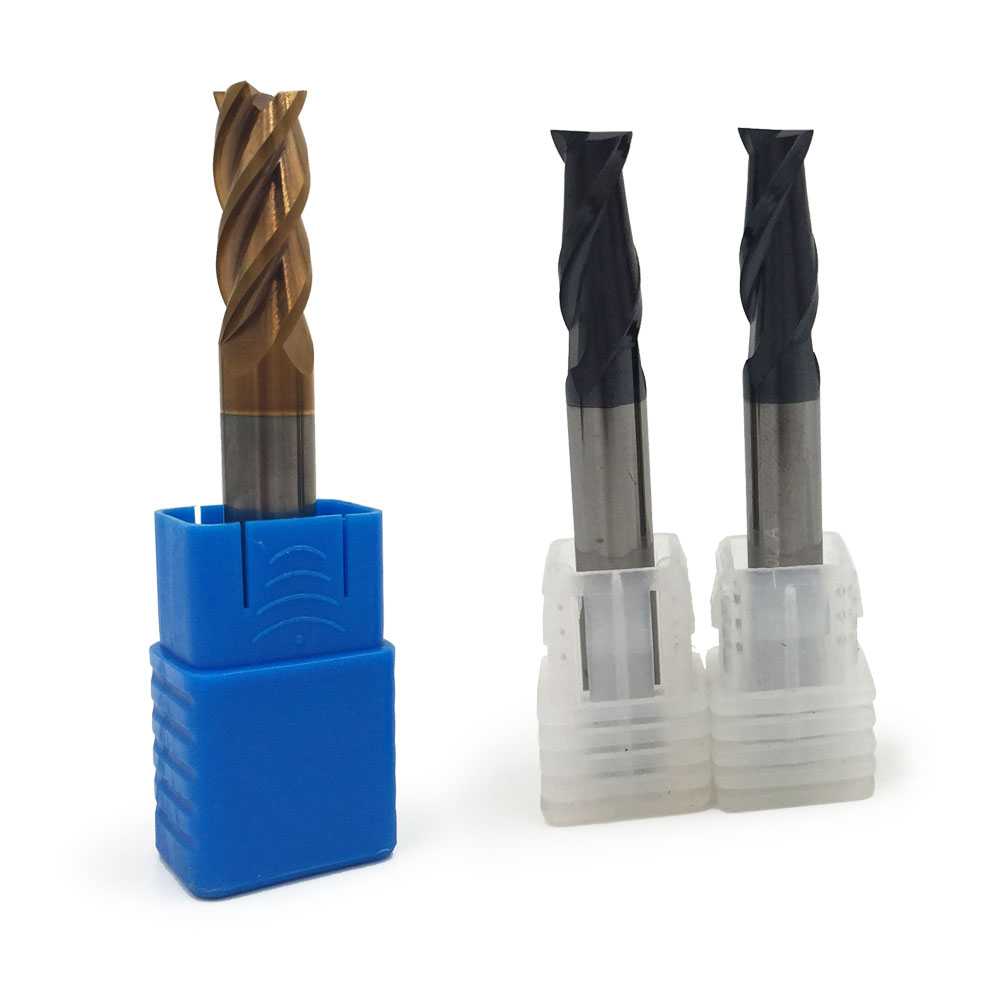

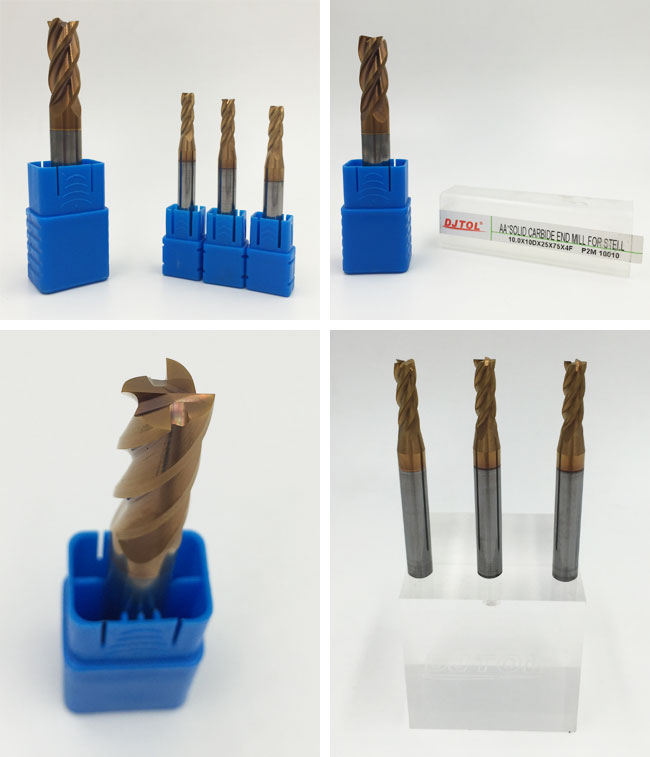

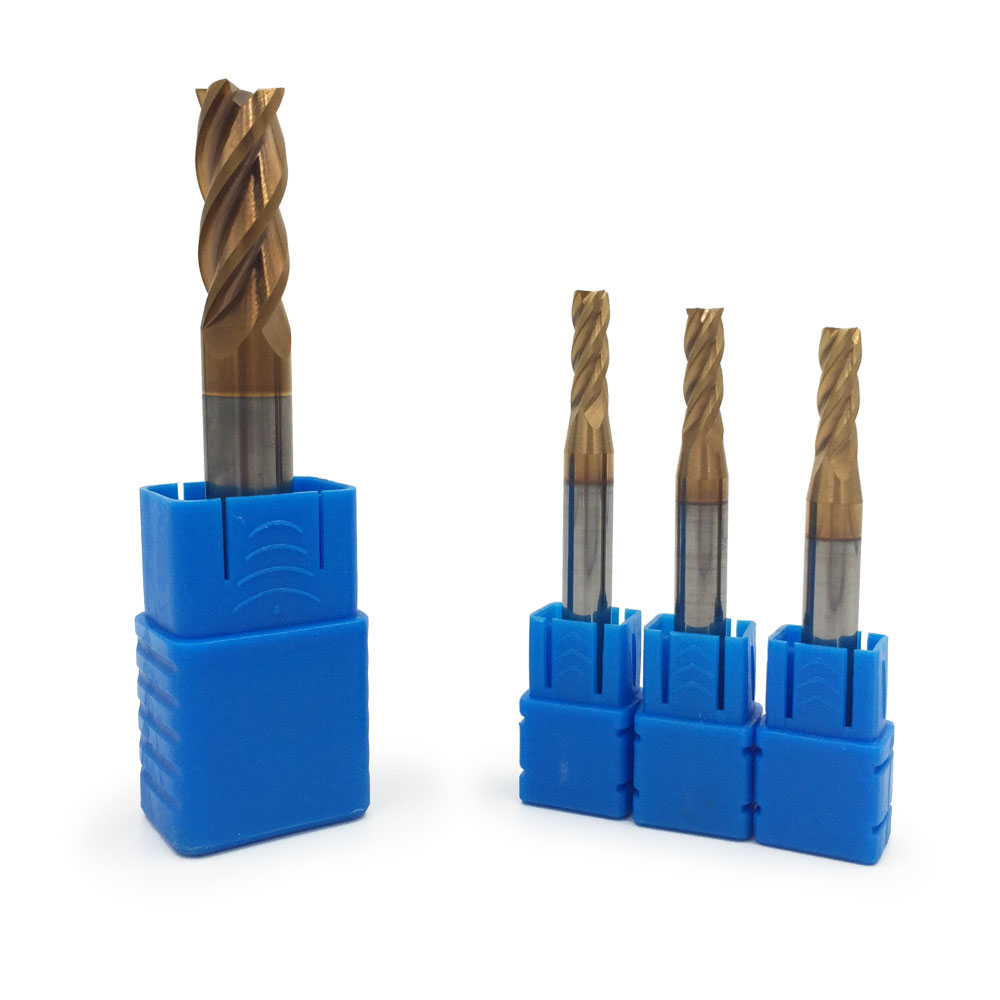

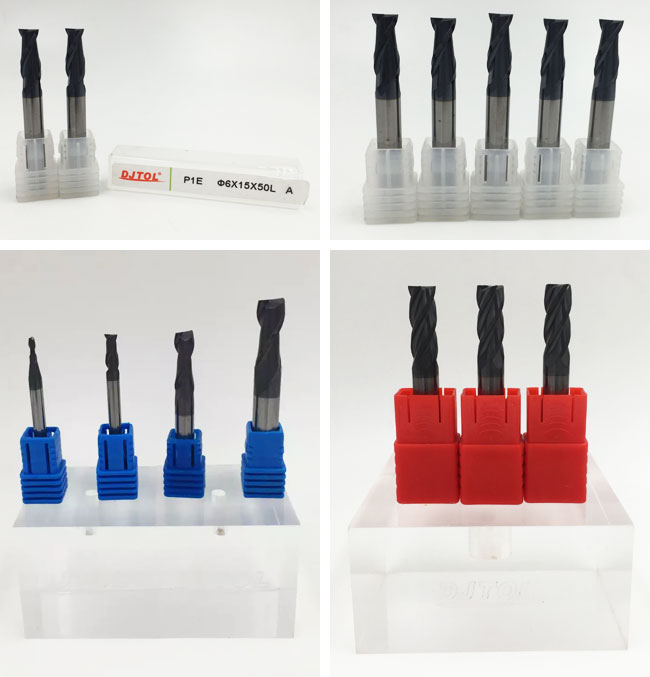

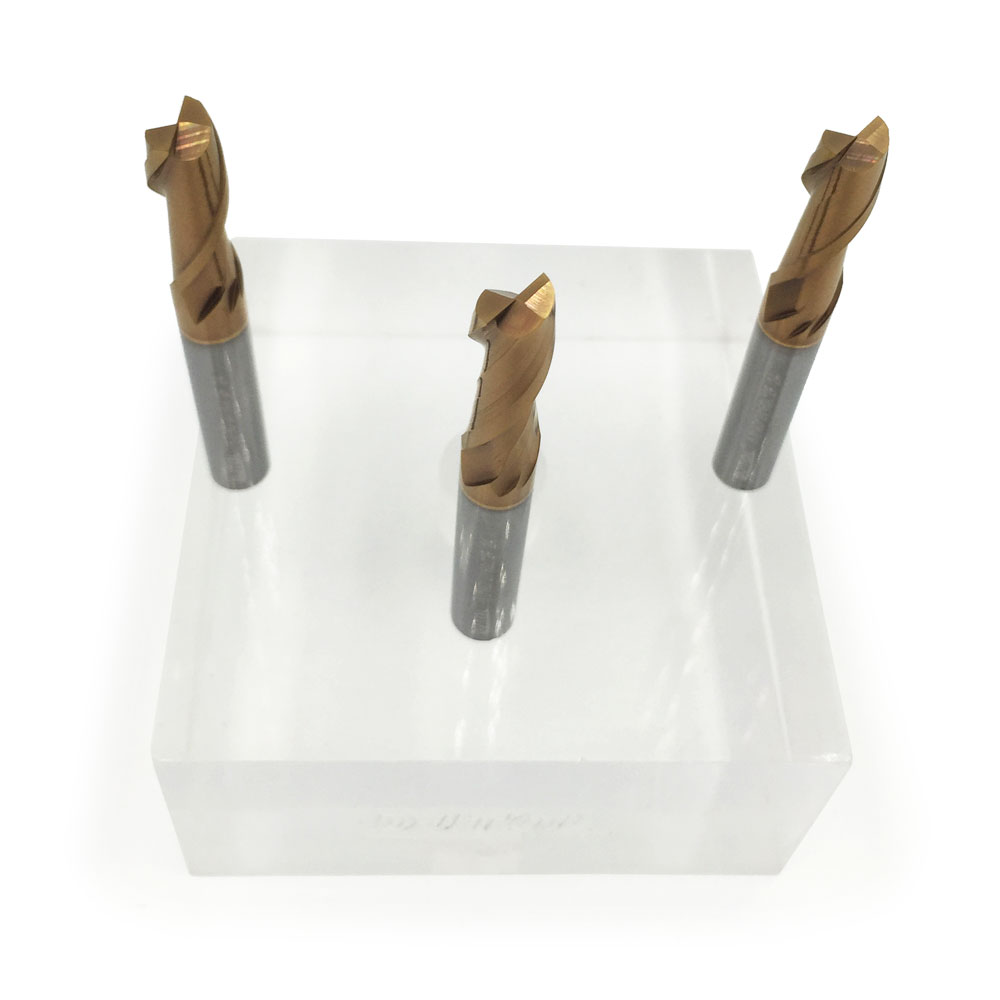

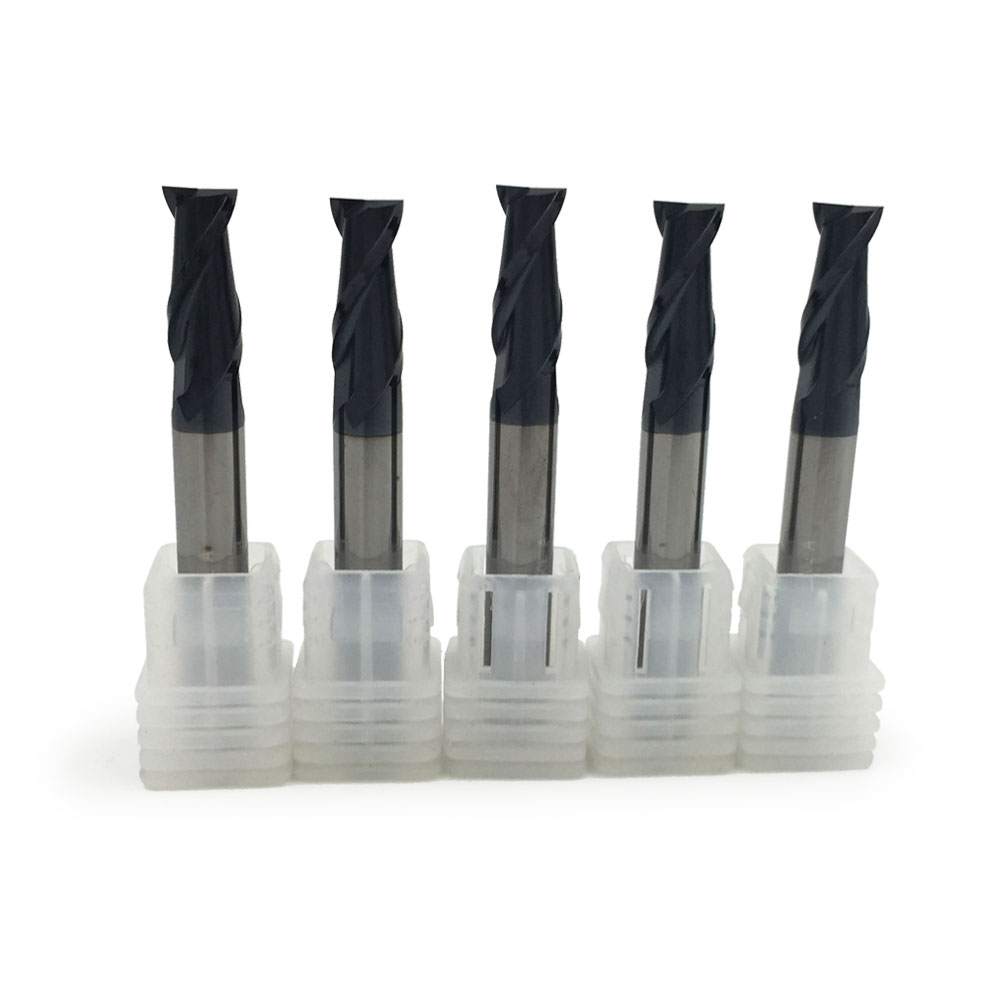

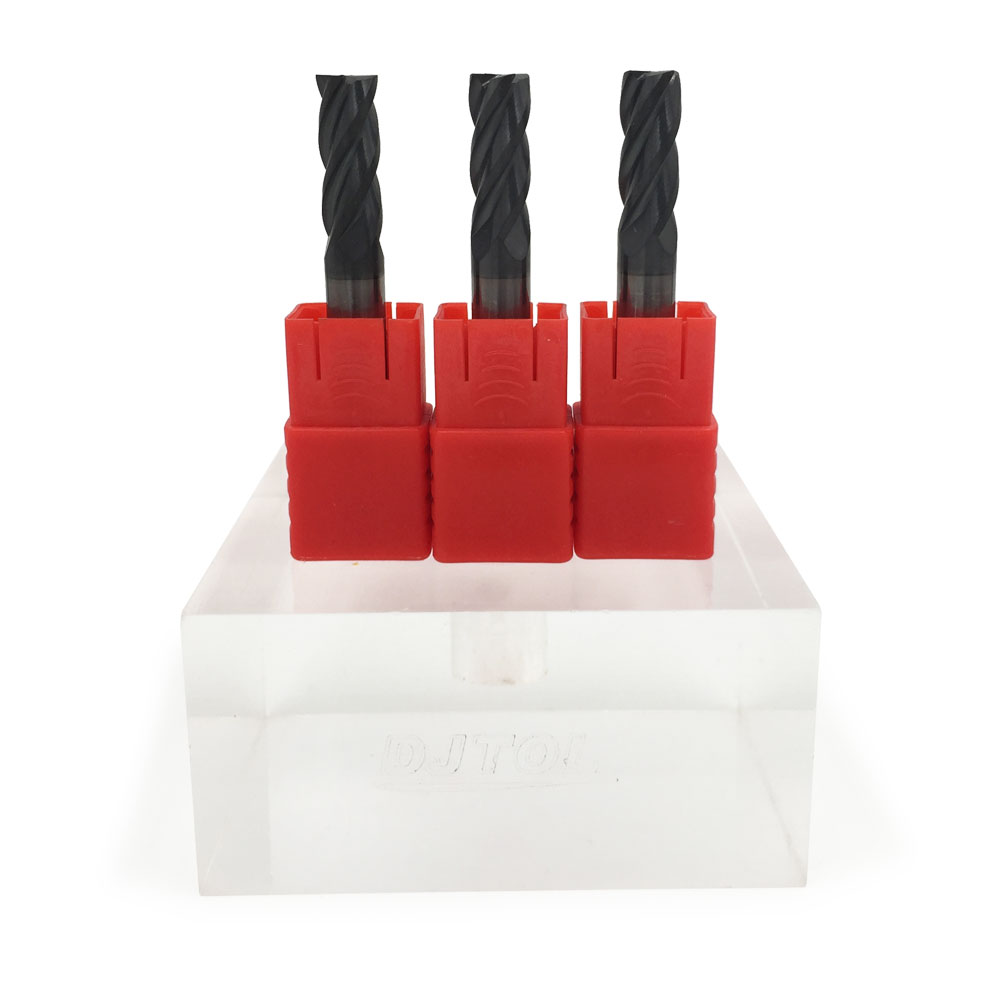

Imported Tungsten Steel Solid Carbide Two Flutes Spiral End Mills cnc router Bits, Double Flutes Milling Cutter
Available Shrank Diameter: 0.16" / 0.24" / 0.32" / 0.39" / 0.47" / 0.55" / 0.63" / 0.71" / 0.79" (4mm / 6mm / 8mm / 10mm / 12mm / 14mm / 16mm / 18mm / 20mm);
Materials:
At present, we have A, AA, 3A, 3 kinds of materials.

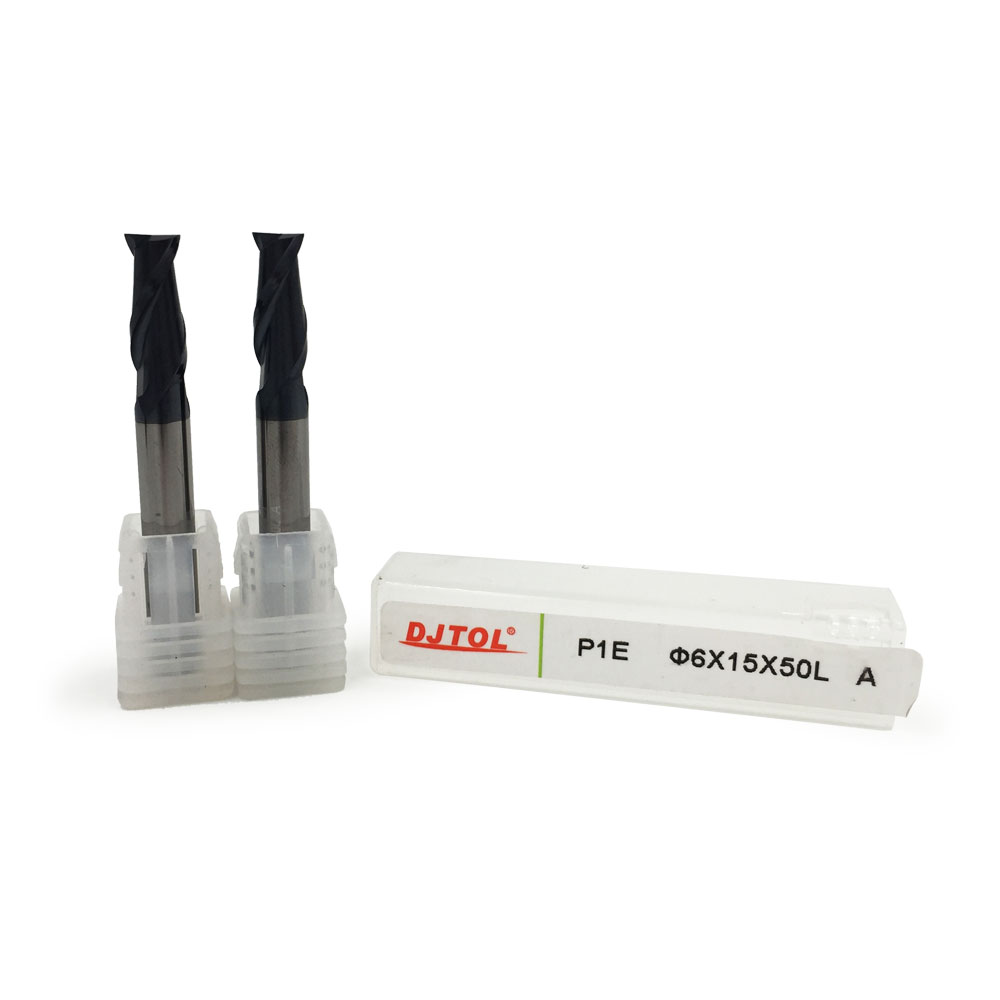

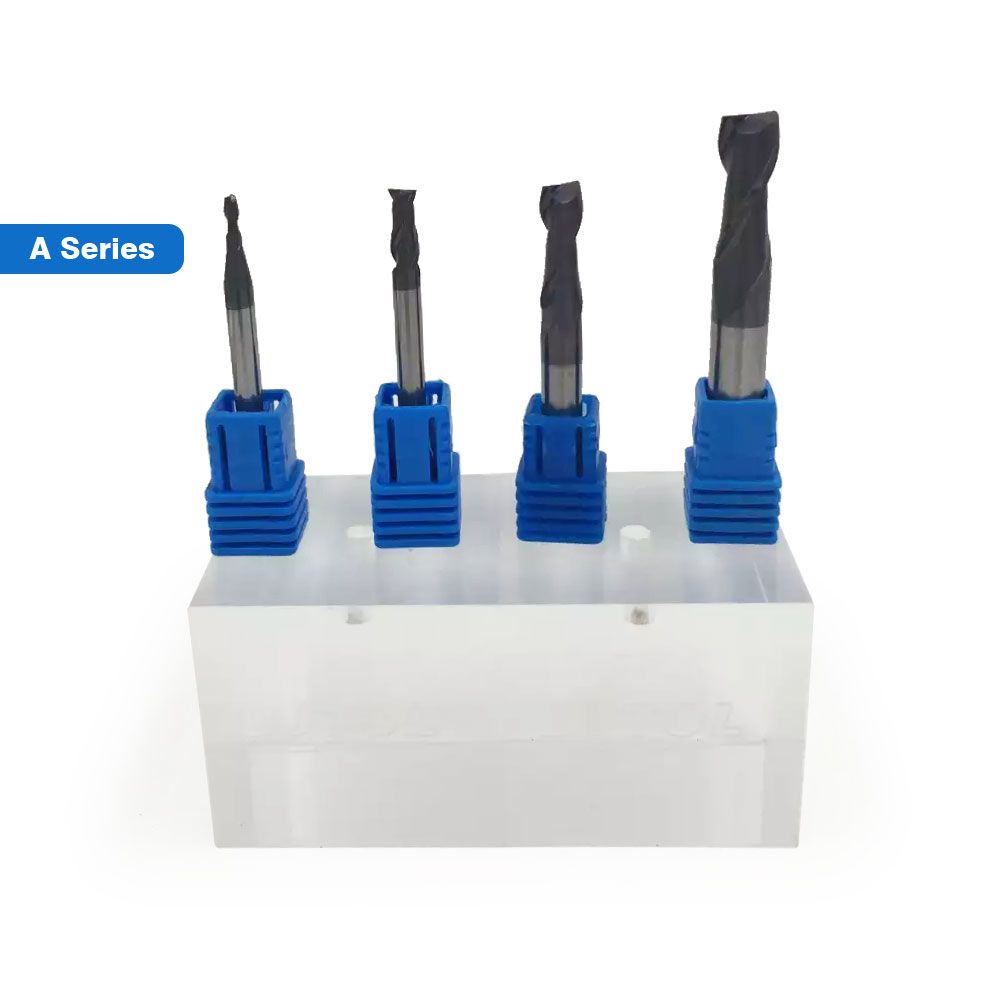

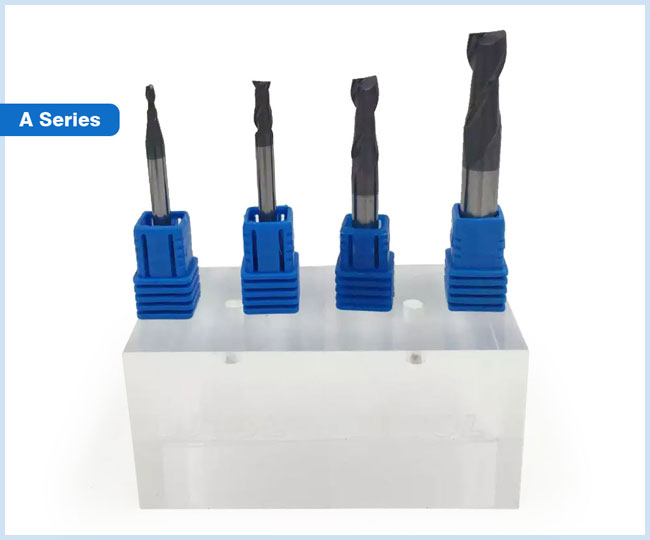

· The A series CNC Router Bits are made of tungsten steel material from Taiwan and their rigidity at 90-91HRA., HRC of material to be processed is 45.

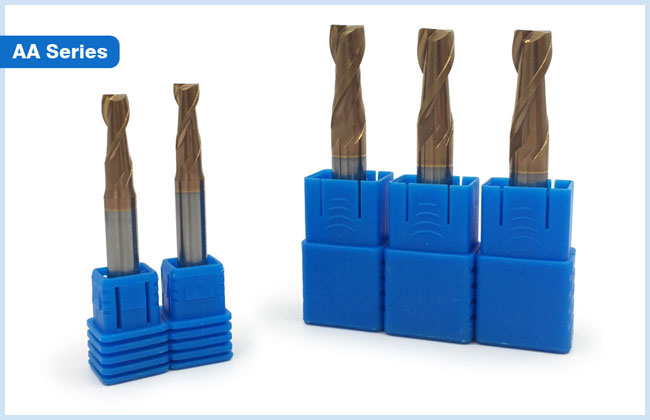

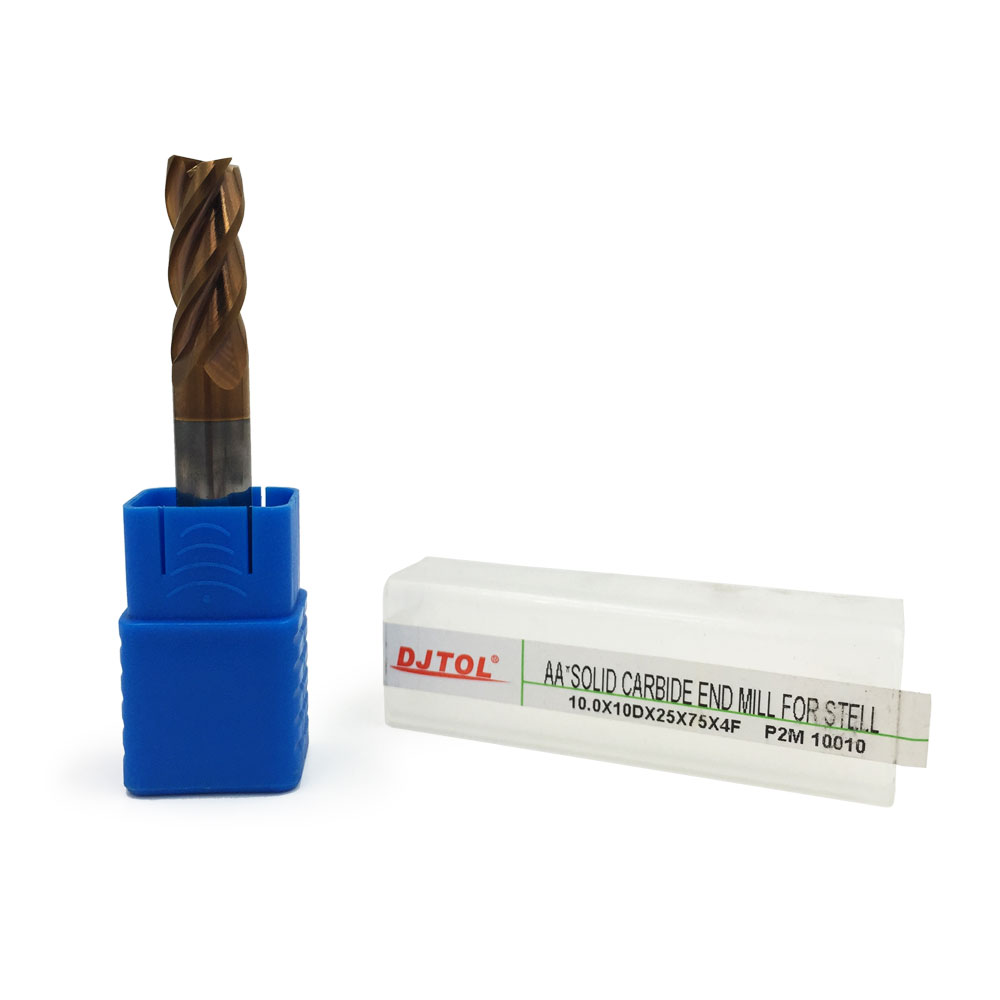

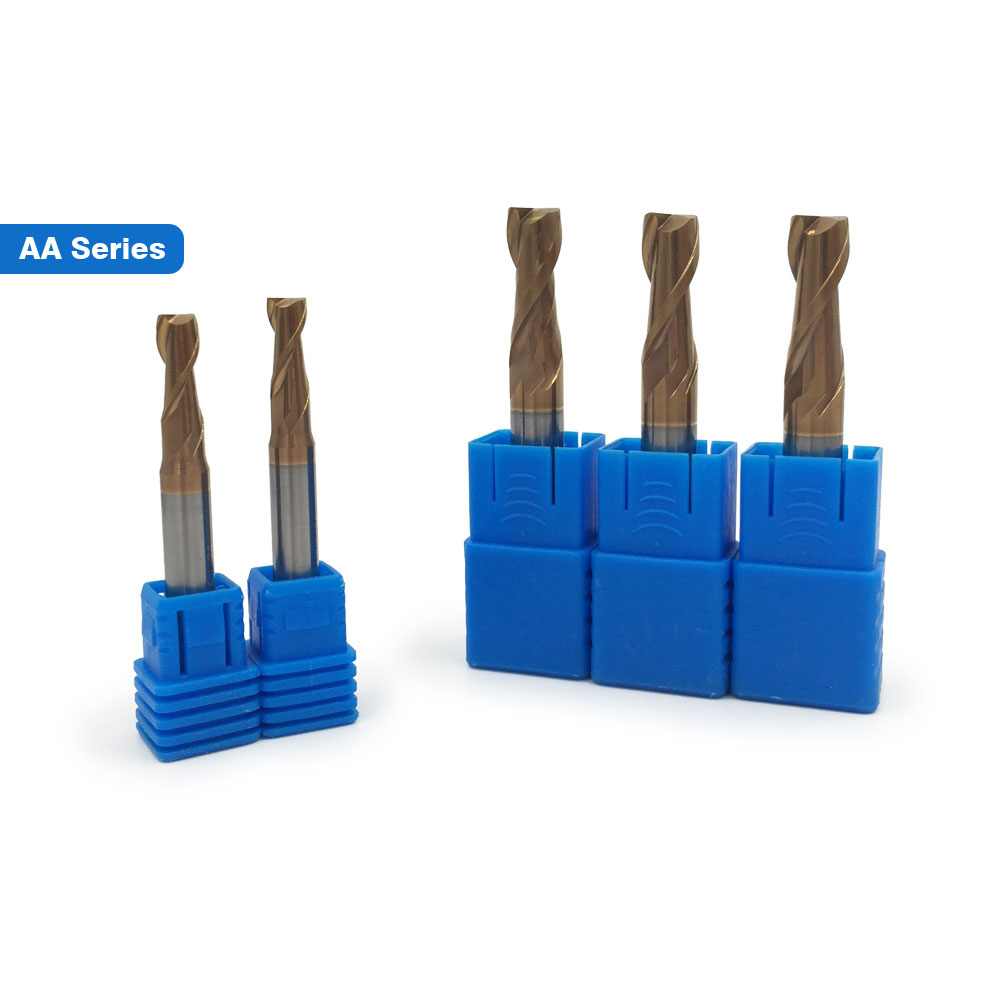

· The AA series cnc Router Bits stand for German ultrafine tungsten steel and rigidity is at 93-94HRA, HRC of material to be processed is 50.

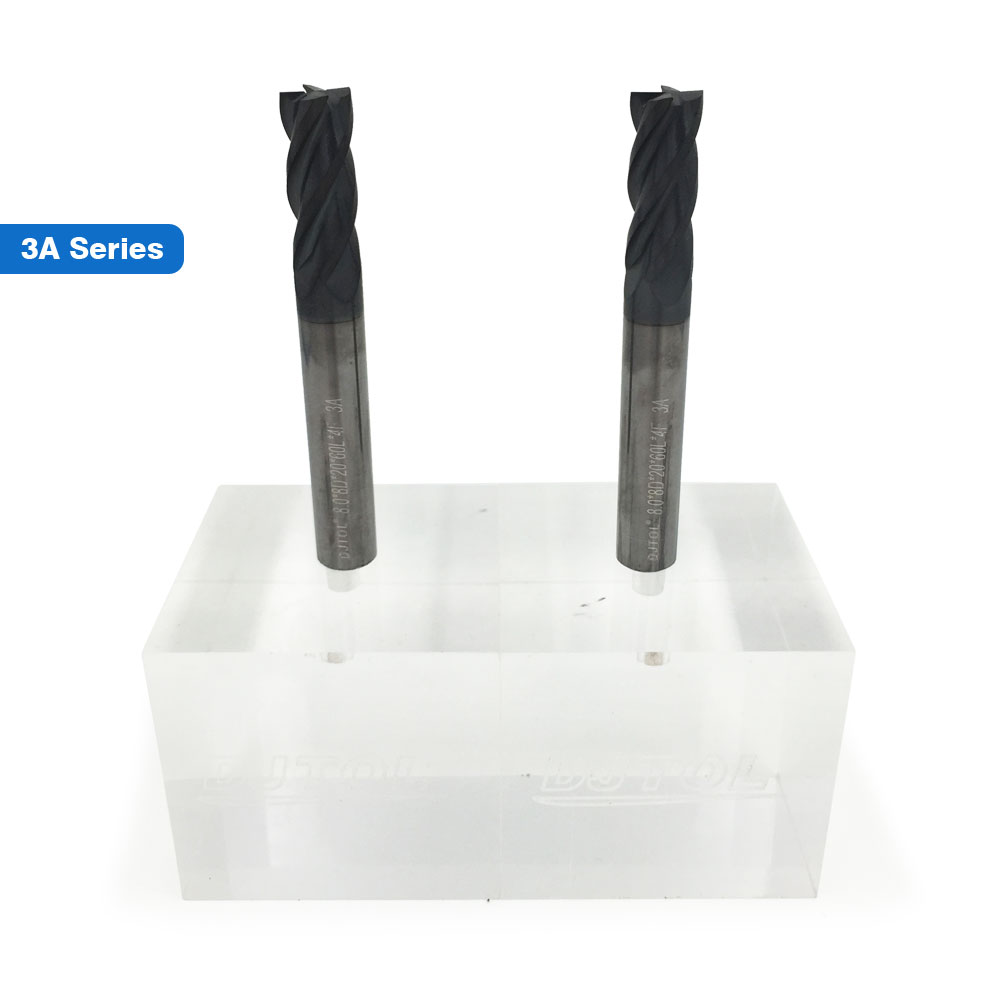

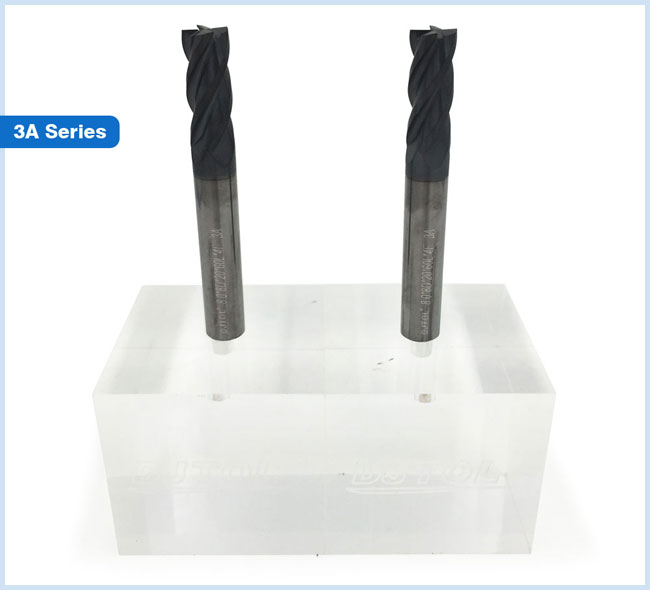

· The 3A series cnc router bits stand for German best quality ultrafine tungsten steel and rigidity is at around 96HRA. HRC of material to be processed is 60.
Tips:
The better quality of material is, the higher rigidity and durability as well as materially longer lifespan.
The stronger rigidity it is, the bits won’t distort during process and give better processing effect.
And the more fine tungsten steel’s particle is, the sharp bits of the blade polished as a result for better processing effect.
Specification:
CED: Cutting Edge Diameter;
CEL: Cutting Edge Length;
OVL: Overall Length;
SHK: Shank Diameter
| Model | CED(mm) | CEL(mm) | SHK(mm) | OVL(mm) |
| EC-S2LX01 | 1 | 3 | 4 | 50 |
| EC-S2LX015 | 1.5 | 4 | 4 | 50 |
| EC-S2LX02 | 2 | 6 | 4 | 50 |
| EC-S2LX025 | 2.5 | 8 | 4 | 50 |
| EC-S2LX03 | 3 | 8 | 4 | 50 |
| EC-S2LX035 | 3.5 | 10 | 4 | 50 |
| EC-S2LX04 | 4 | 10 | 4 | 50 |
| ECS-2LX05 | 5 | 13 | 6 | 50 |
| EC-S2LX06 | 6 | 15 | 6 | 50 |
| EC-S2LX08 | 8 | 20 | 8 | 60 |
| EC-S2LX10 | 10 | 25 | 10 | 75 |
| EC-S2LX12 | 12 | 30 | 12 | 75 |
| EC-S2LX14 | 14 | 80 | 14 | 100 |
| EC-S2LX16 | 16 | 45 | 16 | 100 |
| EC-S2LX18 | 18 | 45 | 18 | 100 |
| EC-S2LX20 | 20 | 45 | 20 | 100 |
Details:
| Applicational materials | N and A series are good for processing rigidity up to 45HRC,AA series are good for processing rigidity up to 50HRC,3A are good for processing rigidity up to HRC60. |
| Material | Solid Carbide |
