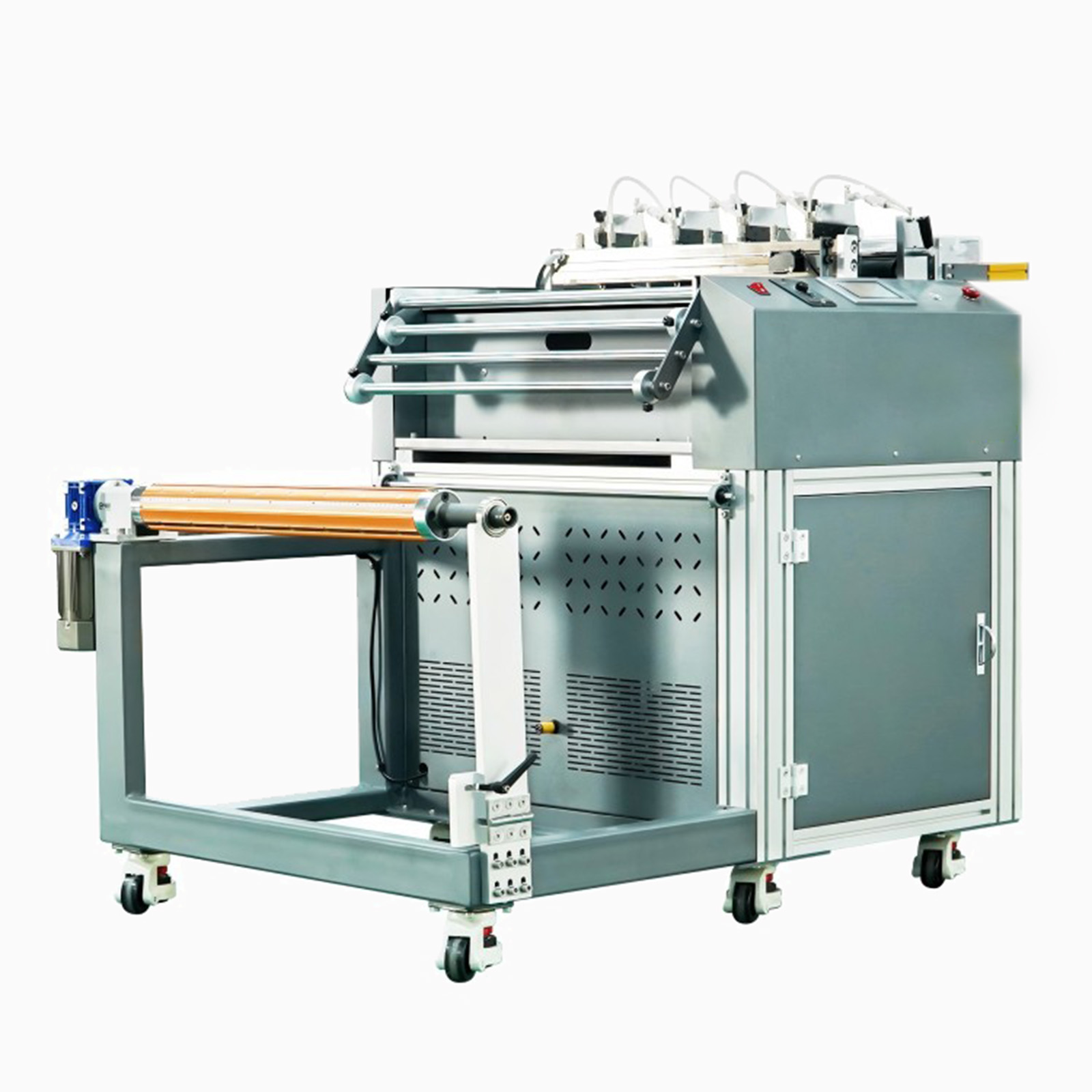

Fully Automatic Film Paper Cutting Machine
Specifications:
Machine Type: Auto Paper Cutter
Cutting Width: 30-35CM / 30-60CM / 30-95CM / 30-135CM/ 30-165CM
Blade Thickness 76MM
Speed: 1.7-3.3m/min (Customizable) (KP-650)
Controller: PLC controller
Voltage: 110V / 220V
Cutting Thickness: 0.09~0.12mm
Speed level: 0-60
Frequency: 50Hz
Power: 400W/600W
| Specification | ||
| Model | LPC-DTFC-6090F | |
| Power Input | AC 110/220V, 50/60Hz | |
| Power Consumption | 2.2kw | |
| Max. Media Width | 810mm(31.9") | |
| X axis working size | 710mm(30") | |
| Y-axis working size | 910mm(35.8") | |
| Material Thick | 0.05-1.5mm | |
| Max Cutting Speed | 800mm/s | |
| Cutting pressure | 600g | |
| Software resolution | 0.025mm | |
| Mechanical resolution | 0.0125mm | |
| Cutting pressure setting | Adjustable per 1 gram | |
| Minimum character size | English Arabic characters are about 1-2MM | |
| Interfaces | USB2.0 U Disk | |
| Method to Fix Media | Vacuum Table | |
| Cutting Force Setup | Adjustable in Every 1G | |
| Cutter Blade Diameters | Φ2.0mm | |
| Cutter Blade Angles | 30°, 45°, 60° | |
| Dotted Lines Cutting | Included | |
| Drive | AC Servo | |
| IOS | Win10 / 8 / 7 / XP | |
| Memory Buffer | 2MB | |
| CAD/CAM Software | Windows Driver, SignWorkPro, CADtoPlotpro | |
| File Format | DXF, PLT, PDF, HPGL | |
| Port in Standard | USB, RS-232 | |
| Registration Marks Recognition | CCD Camera | |
| Cutter Holder | 1 | |
| Roll Media Bracket | Included | |
Average Rating: 0
| Packing List | |
| Machine Dimension | 1800mm x 1240mm x 1030mm(71" x 48.8" x 41") |
| Net Weight | 260kg(573.2lb) |
| Package | Standard Wooden case for export |
| Package Size | 1600mm x 1400mm x 1250mm(63" x 55" x 49") |
| Gross weight | 305kg(612.4lb) |
CALCA 24" x 35" Auto Fed Flatbed Digital Cutter Roll Cutter for DTF Printing Film
Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
seller assumes all responsibility for this listing
Quantity: Country:
| Handling time |
|---|
| Will usually ship within 3 business days of receiving cleared payment. |
 |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
 |
Purchases can be returned under the following conditions: 1) There are quality problems after opening the package. 2) Products are different than on the order list. 3) Products are irreparably damaged during transportation. |
| Payment method | |
|---|---|
 |
1.Paypal (online payment) 2.Creidit card 3.Bank Transfer (T/T) 4.Western Union online/offline payment |
