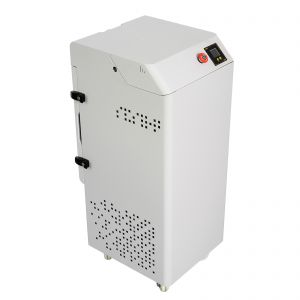

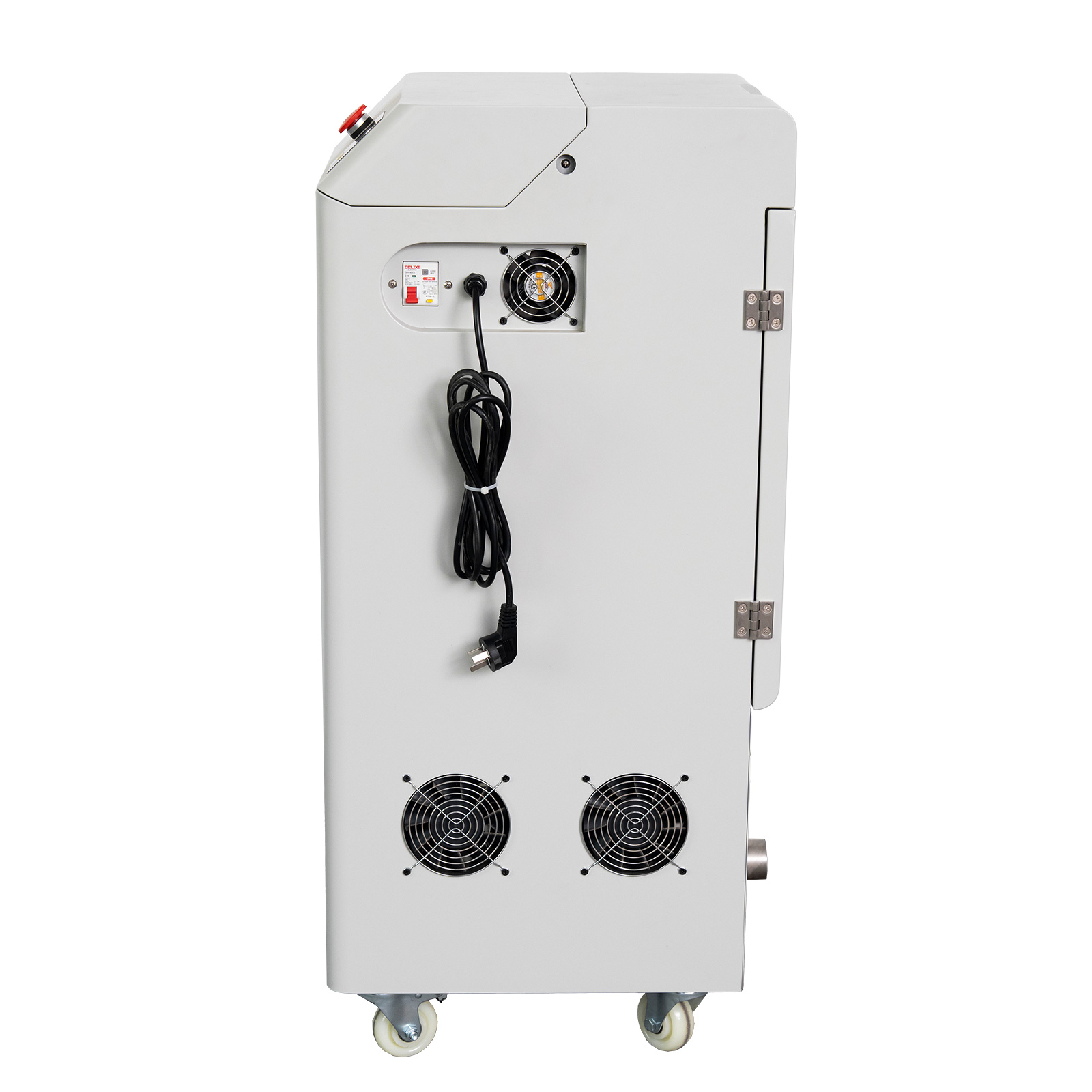

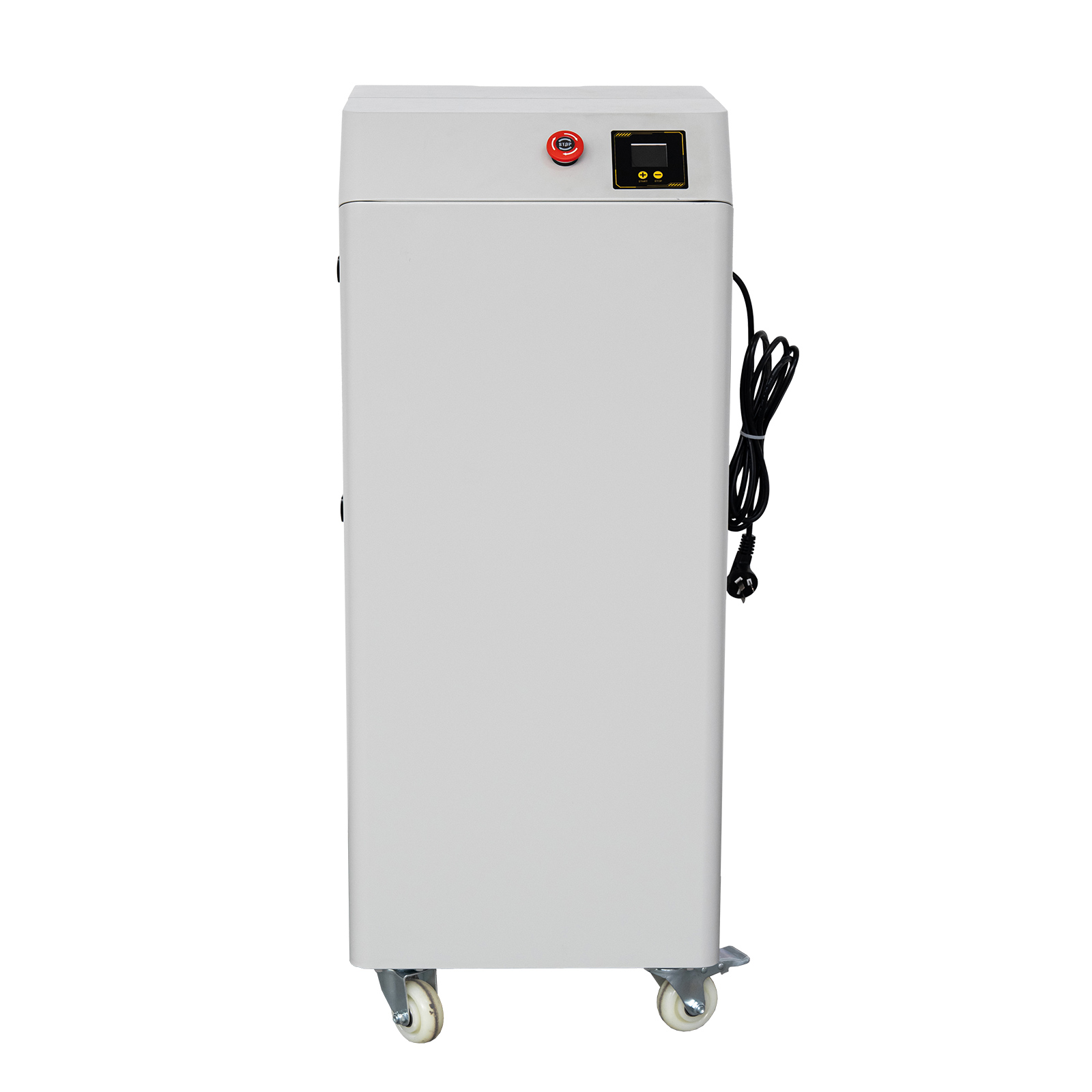

CALCA 176W Universal Oil Fume Purifier Air Volume 43m³/h-202m³/h for DTF Powder Shakers
CALCA JS100 smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.
Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.
Specifications:
Rated Voltage: AC 110V / 220V ± 5%
Rated Current: 1.6A / 0.8A
Rated Power: 176W
Max air amount: 202m³/h
Noise: ≤ 65db
Machine Size: 17.8in x 19.3in x 41.6in (451mm x 490mm x 1056mm)
Machine Weight: 108lbs (49kg)
Package Size: 23.8in x 21.5in x 48.5in (605mm x 545mm x 1231mm)
Gross Weight: 159lbs (72kg)
Package Includes:
• 1 x Fume Extractor
• 2 x Extraction pipes
• 2 x keys
• 3 x Clamps
• 1 x Activated carbon filter (Installed in the machine)
• 1 x Filter element (Installed in the machine)
• 1 x Power cord
• 1 x User manual
Remarks: In order to achieve better smoke removal effect, it is recommended that the activated carbon be replaced every 3months and the filter element be replaced every 6 months. Drain the oil at the drain port once every 3 days.
WARNING: WORK IN A WELL VENTILATED AREA and use Protective Equipment when working with DTF products and processes as fumes may be hazardous.
Features:
1. Smaller size, save shipping cosis
2. Digital display
3. Low energy consumption
4. Air volume adjustable
5. The CALCA fume extractor achieves the separation of oil fume. Compared with the common fume extractor on the market, which only uses the filter element to forcefully absorb the oil pollution, the filtering will be cleaner and the effect will be better.
The oil here refers to glycerin. At present, DTF PET film and DTF TPU powder contains glycerin. Therefore, a good shaker will dry the glycerin, otherwise the glycerin contained in the hot stamping on the clothes is not washable and easy to fall off. Moreover, the filter element of the general filter element is not resistant to oil and the filter element will fail soon. Our filter is specially for dtf dust, the filter life is 3-5 times longer. Recommended for customers to use.
Average Rating: 0
Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
