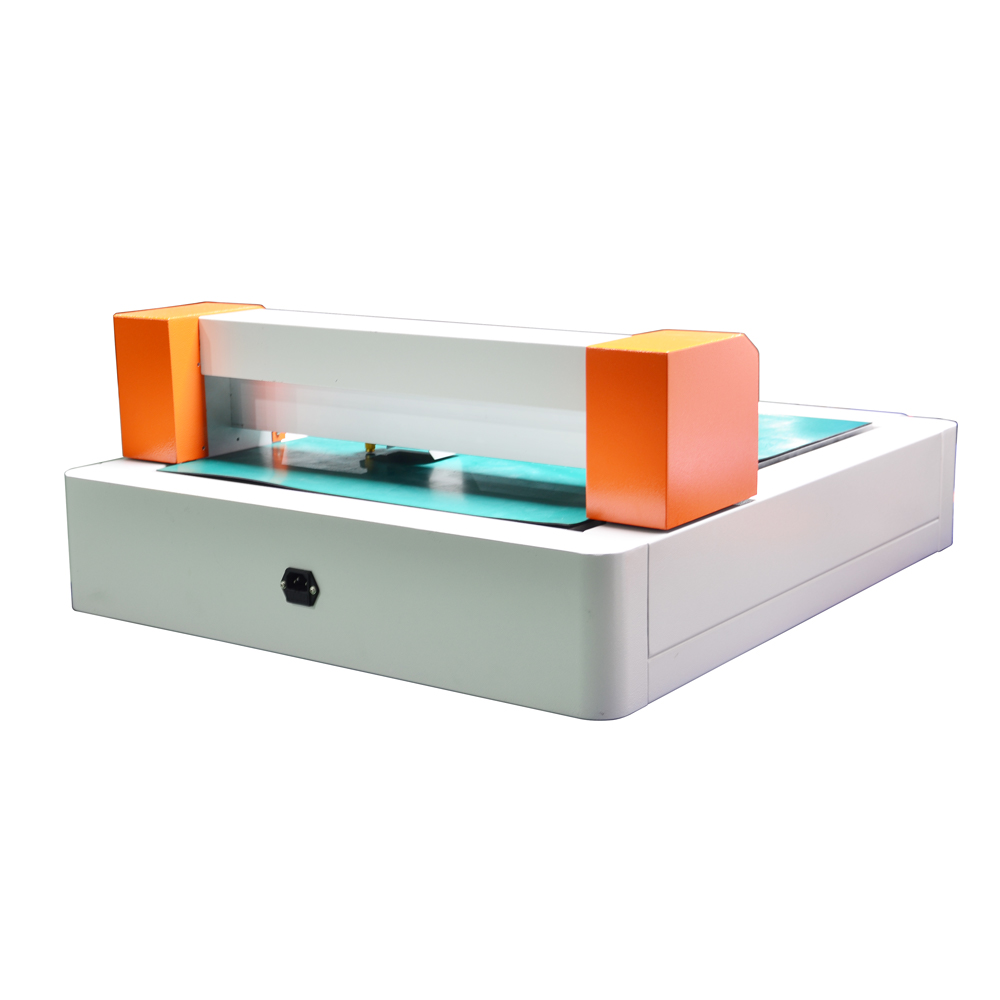

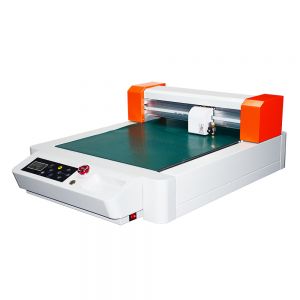

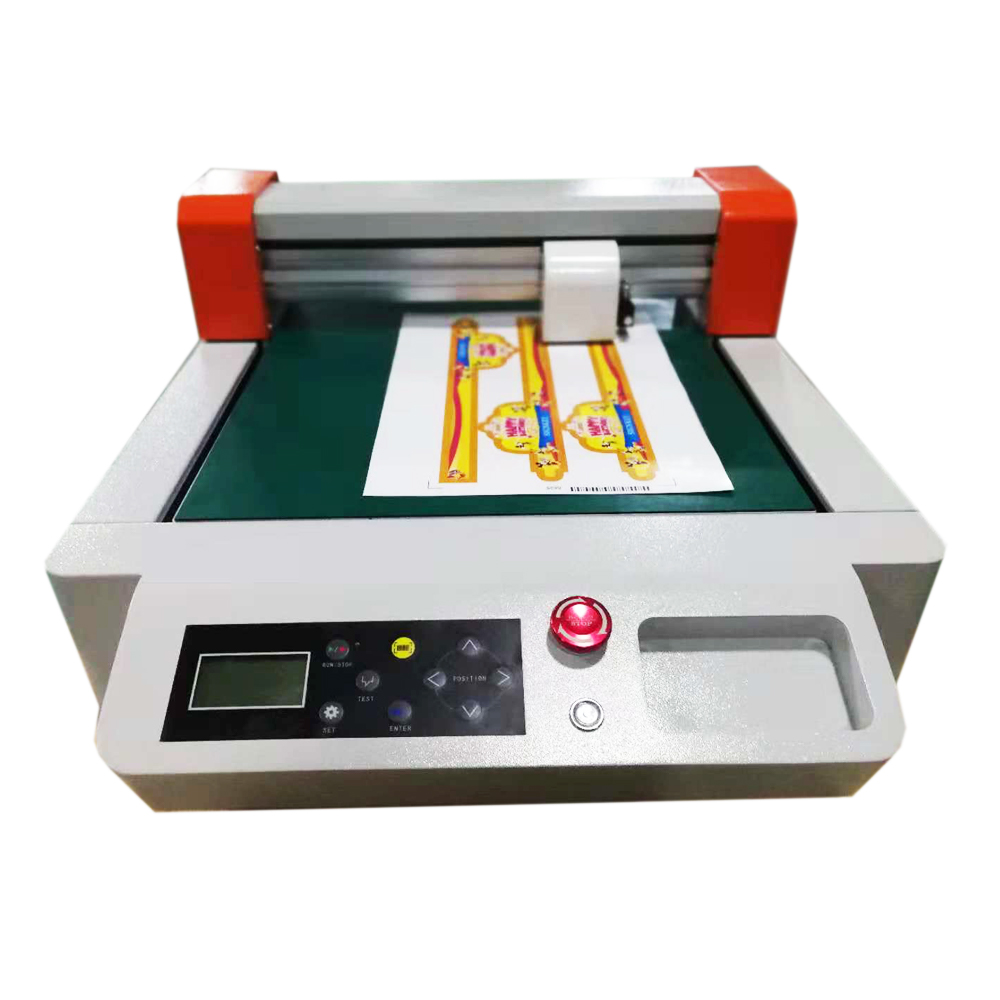

CALCA A3 Flatbed Digital Cutter for DTF Printing Film
The flatbed cutter using advanced digital contour cutting technology, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. it is a A3 sized desk top CNC flatbed cutter，it offers intergrated solution for printing,signage,packaging proofing, pattern making,prototyping and small production runs of rigid packaging media and other sheet fed materials. It can handle full cutting, half cutting, creasing and even drawing. Precision cutting and Succinct operation interface makes the cutter out of the ordinary.
Features:
SCANNING BAR-CODE WHEN OFFLINE
One-click to recognize the cutting job from those saved in the USB memory by scanning the Bar-code which is pre-printed, while not requiring to connect to computer. This function is especially helpful to increase the productivity when there are many files stored in the USB memory.
USB memory / offline function is able to send same cutting job repeatedly.
Half Cut / Perforation Cut
Half cut / Perforation cut are available, every time you may carry out either one or both.
Dotted Lines Cutting
Dotted line cutting is available for medias with 2 layers typically and also kinds of paper.
DXF Direct Output
Flatbed cutter is compatible with DXF file directly while no need any format transition.
Compatible with AutoCAD, AI, Coreldraw and Flexisign
Leading the same industry, we make software by our-self, we are able to adapt our system to the latest version of popular CAD / CAM software, such as AutoCAD, Adobe Illustrator, Coreldraw and Flexisign.
Application:
Flatbed Digital Cutter are well received in Electronic industry, Digital Printing & cutting, Packaging, Die cutting, Handicraft, Signage graphics.
Flatbed cutters are carefully designed for cutting high-precision and medium-heavy material crafting jobs and suitable for cutting intricate designs on cardboard,photo paper,vinyl sticker,photo-masking films,oil-board ,sandblast resist rubber,PET (polyethylene terephthalate), PVC,polyamide, stiff paper, microflute board or industrial materials.
| Cutting Data Reference Values | |
| PVC | <0.4mm |
| reflective film | All types |
| Sandblast, Hard paper | <500gsm |
| Magnetic Media | <0.5mm |
| PET | <0.3mm |
| Specification | |
| Model | LPC-DTFC-A3F |
| Power Input | AC 110/220V, 50/60Hz |
| Power Consumption | 620W |
| Max Cutting Size | 350 x 450mm |
| Applicable Media Thickness | 0.03-1mm |
| Max Cutting Speed | 600mm/s |
| Cutting Pressure | 600g / 5.8N in 8 steps |
| Mechanical Resolution | 0.0125mm |
| Method to Fix Media | Vacuum Table |
| Cutting Force Setup | Adjustable in Every 1G |
| Cutter Blade Diameters | Φ2.0mm/0.9mm/1.5mm |
| Cutter Blade Angles | 30°, 45°, 60° |
| Dotted Lines Cutting | Yes |
| Drivet | AC Servo |
| IOS | Win10 / 8 / 7 / XP |
| Memory Buffer | 2MB |
| CAD/CAM Software | Windows Driver, SignWorkPro, CADtoPlotpro File Format DXF, PLT, PDF, HPGL |
| Port in Standard | USB, RS-232 |
| Registration Marks Recognition | GARMS with Red laser sensor |
| Cutter Holder / Pen Holder | 1 for each |
Average Rating: 0
| Machine Dimension | 660mm x 960mm x 330mm (26" x 37.8" x 13") |
| Machine Weight | 44kg(97lb) |
| Package | Wooden Carton |
| Packing Size | 760mm x 1050mm x 600mm (30" x 41.3" x 23.6") |
| Gross Weight | 84kg(185.2lb) |
Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
