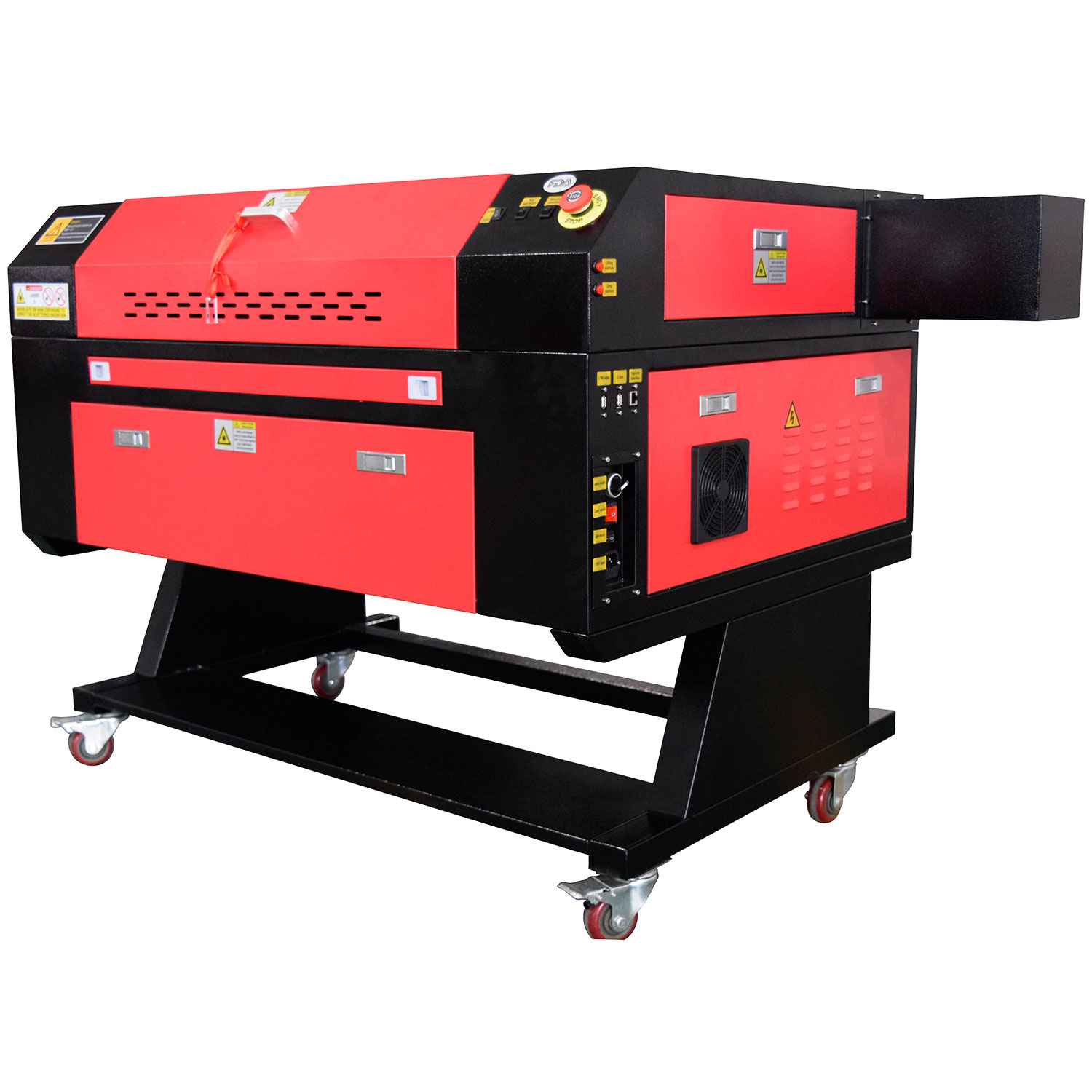

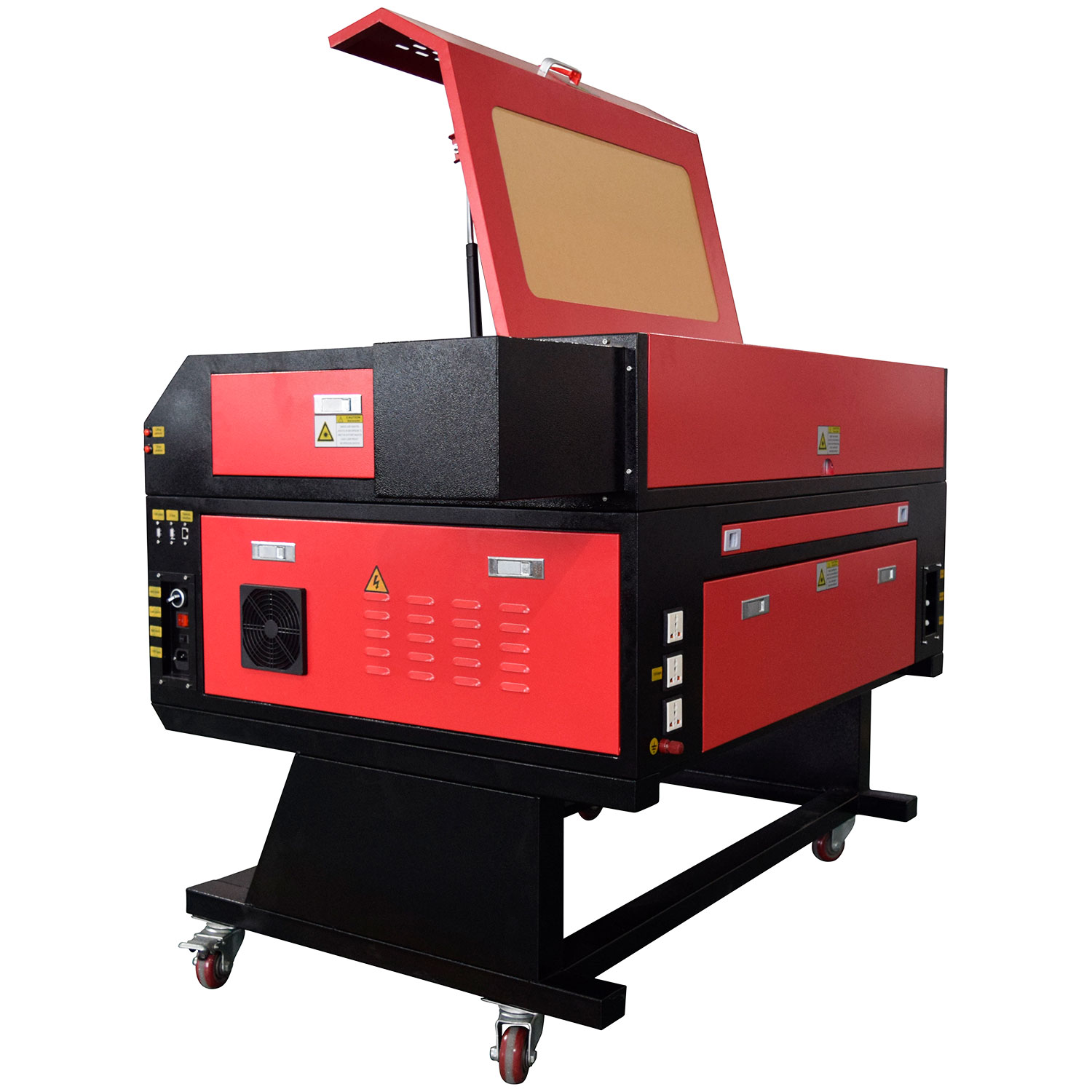

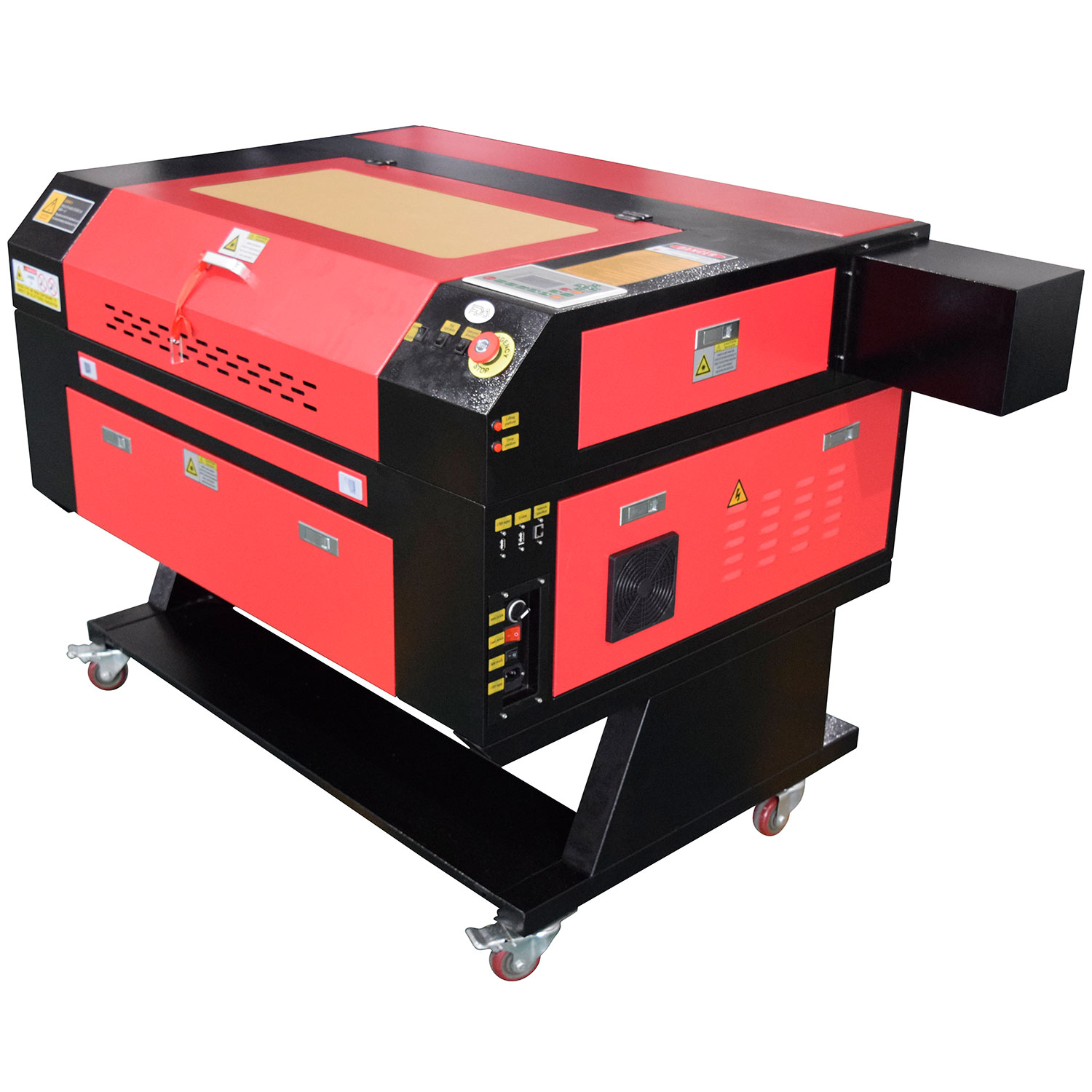

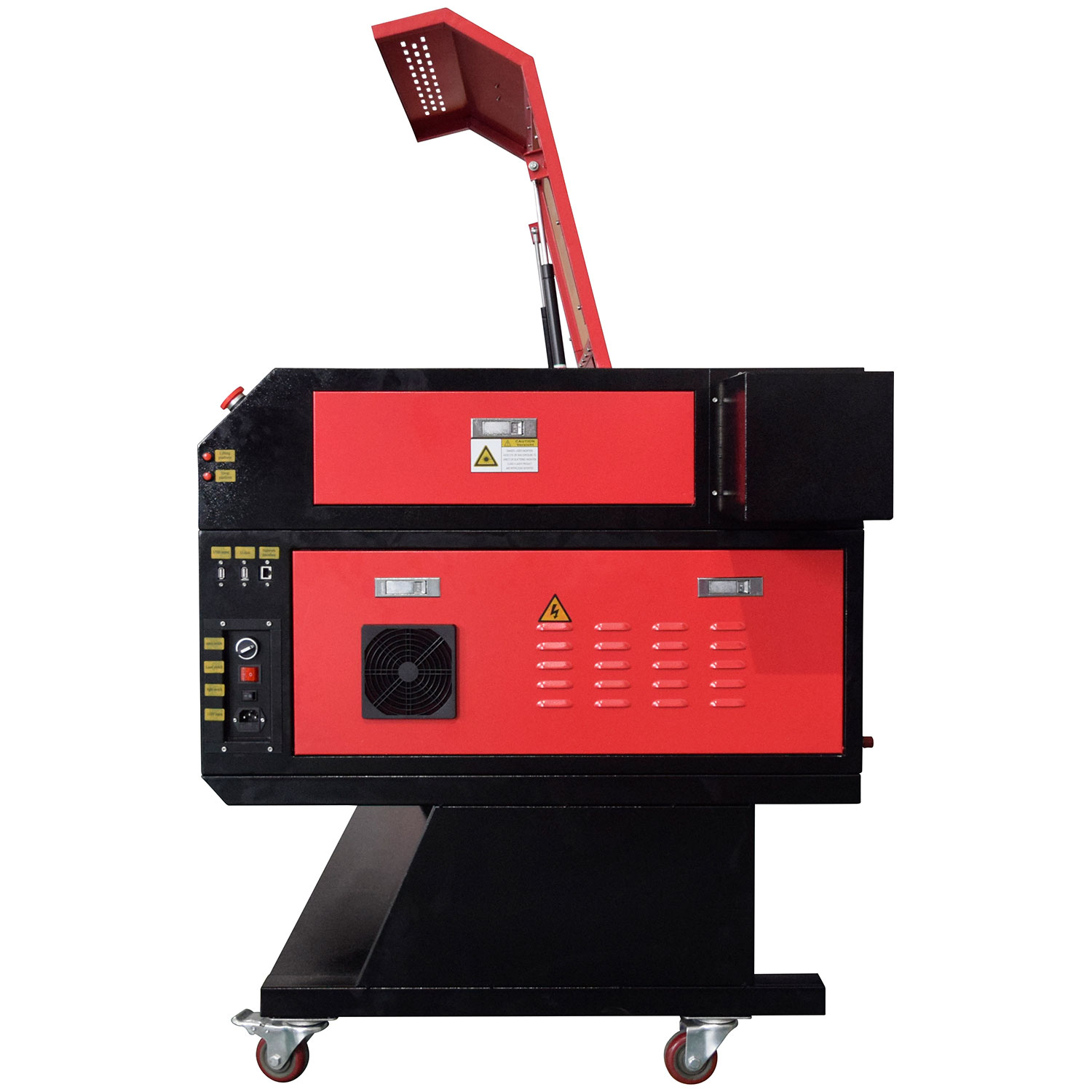

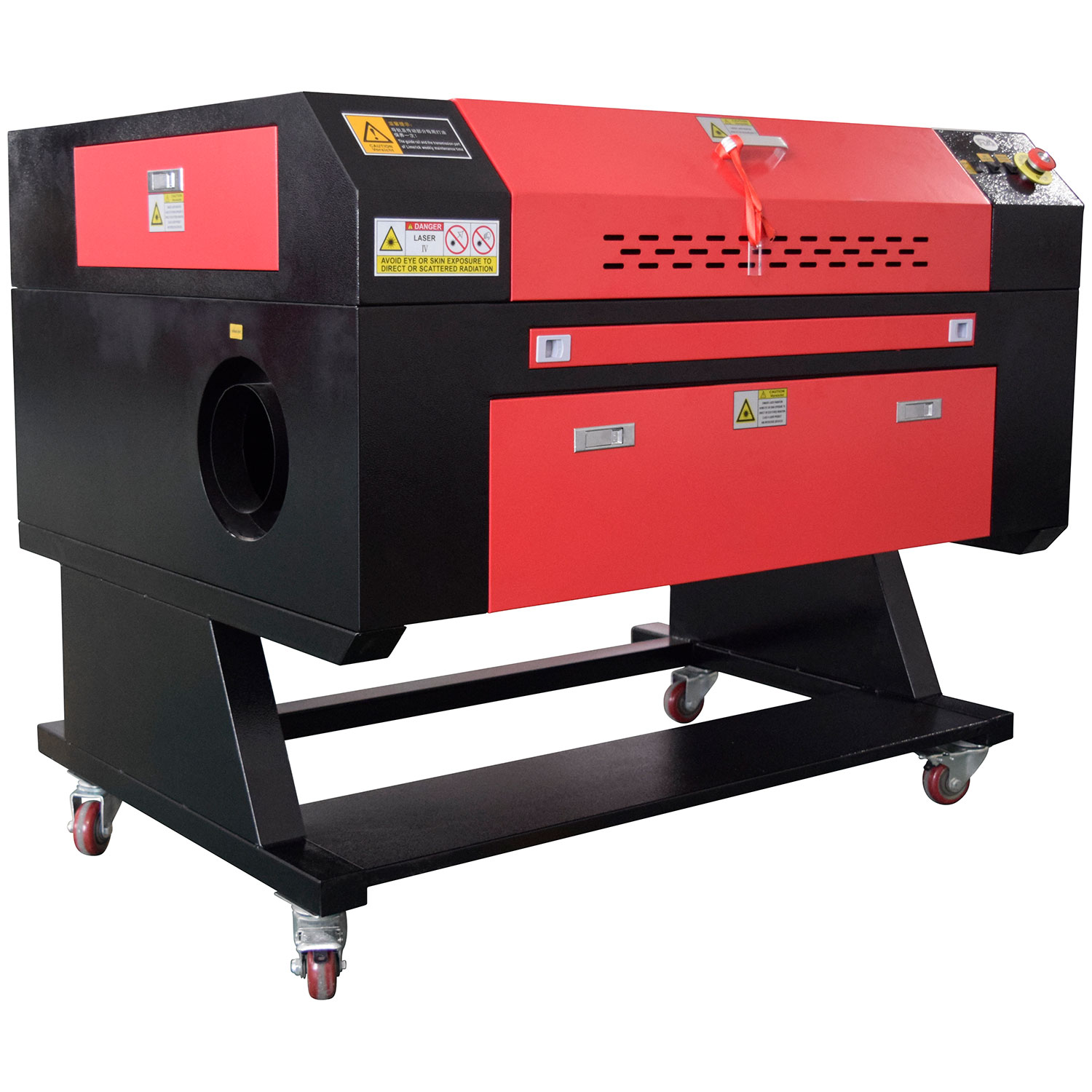

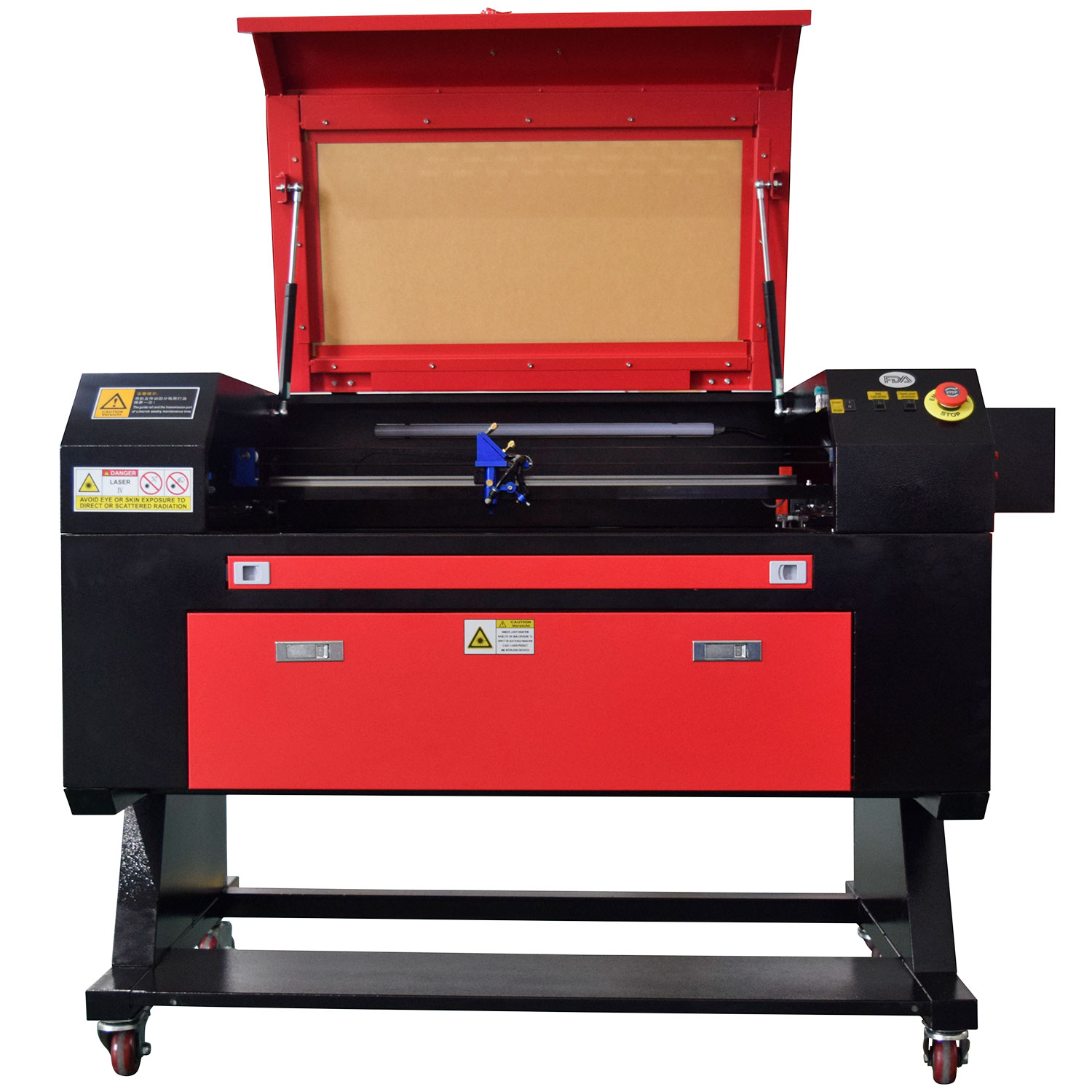

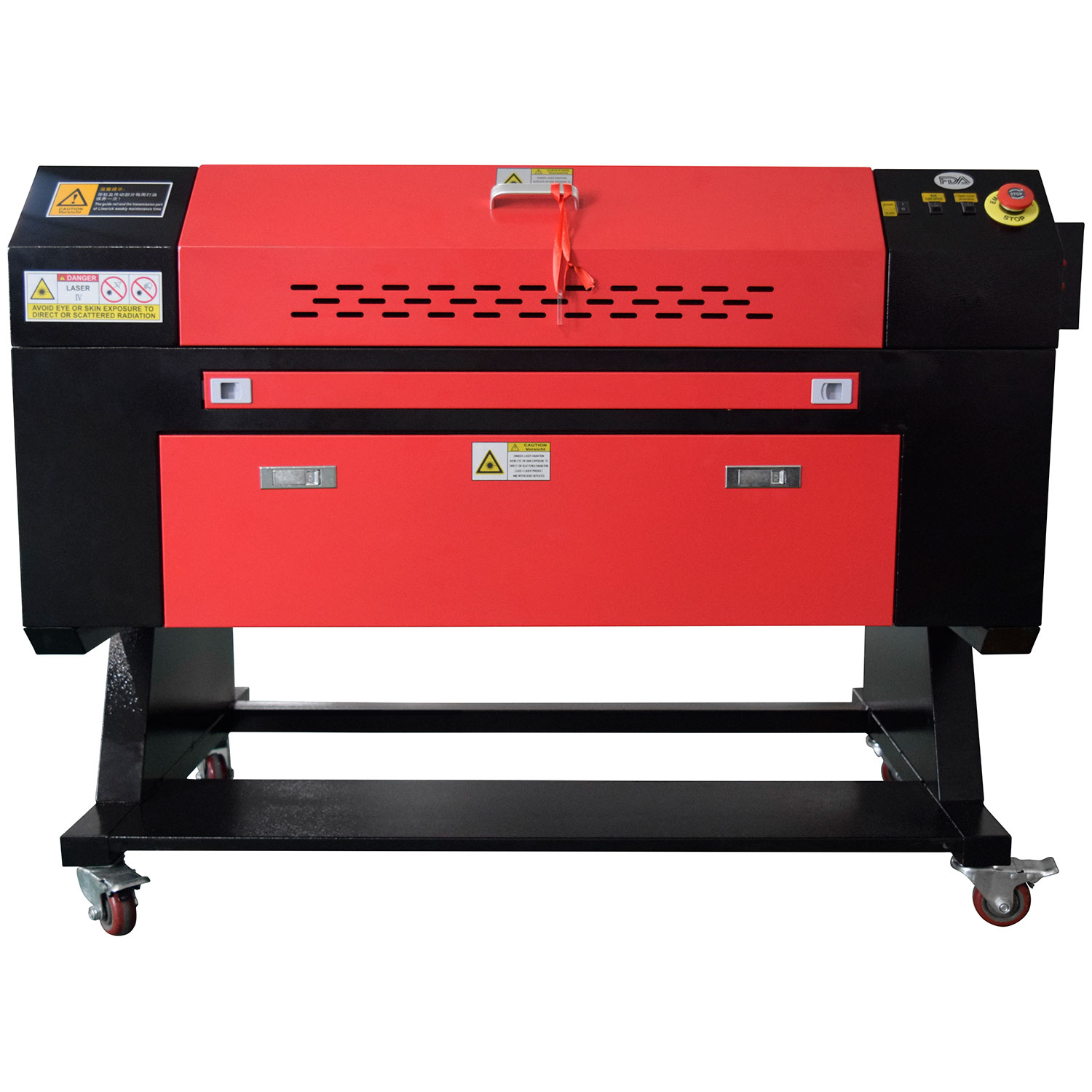

CALCA 80W 20" x 28" CO2 laser engraver and Cutter Machines with Ruida DSP RDWorks V8, Compatible with LightBurn Software
This Laser Engraver is equipped with 80W CO2 Laser Tube. It is used to engrave on wood, bamboo, crystal, leather, rubber, marble, ceramics and glass and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST. It features DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software.
This product is widely used in industries including arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.
Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver to a computer
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified
Product details:

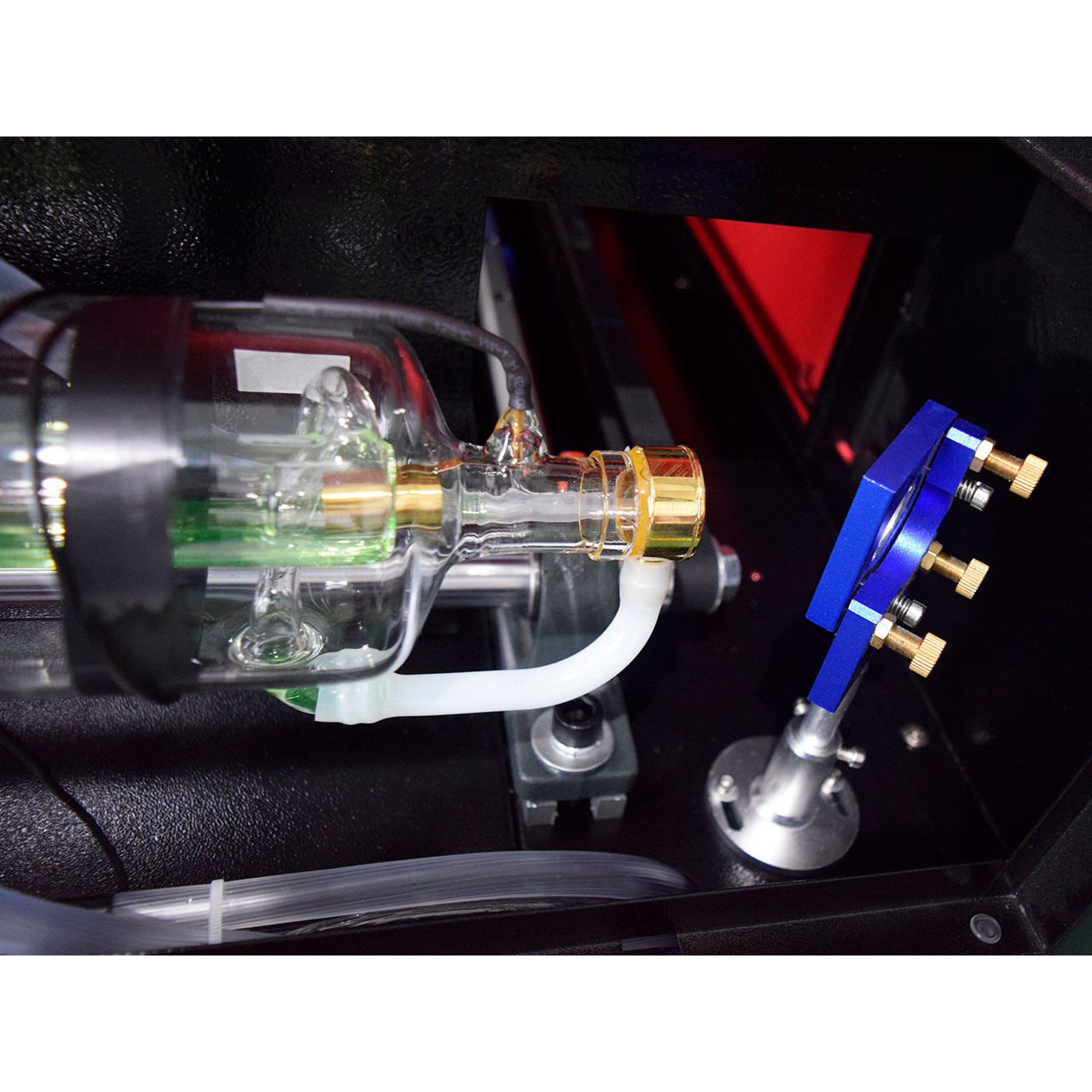

CO2 Laser Tube
Classic model upgraded, catalyst coating on Germany discharge tube, working life is up to 6000 hours. When compare to the same length tube, the power of EFR F2 co2 laser tube is 30% much higher.

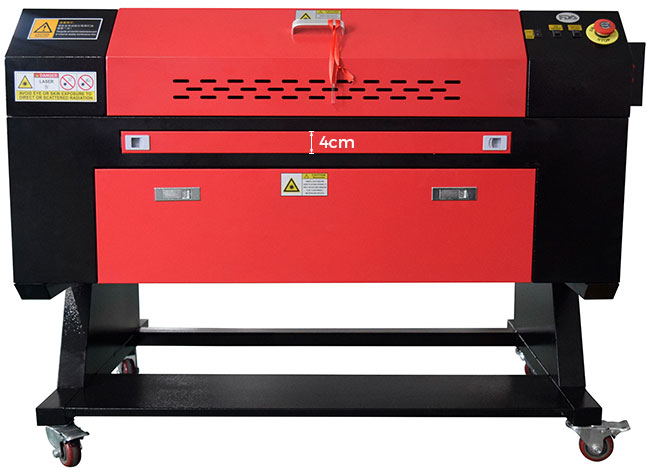

Pass-Through Capability: 4cm (1.57inches) high

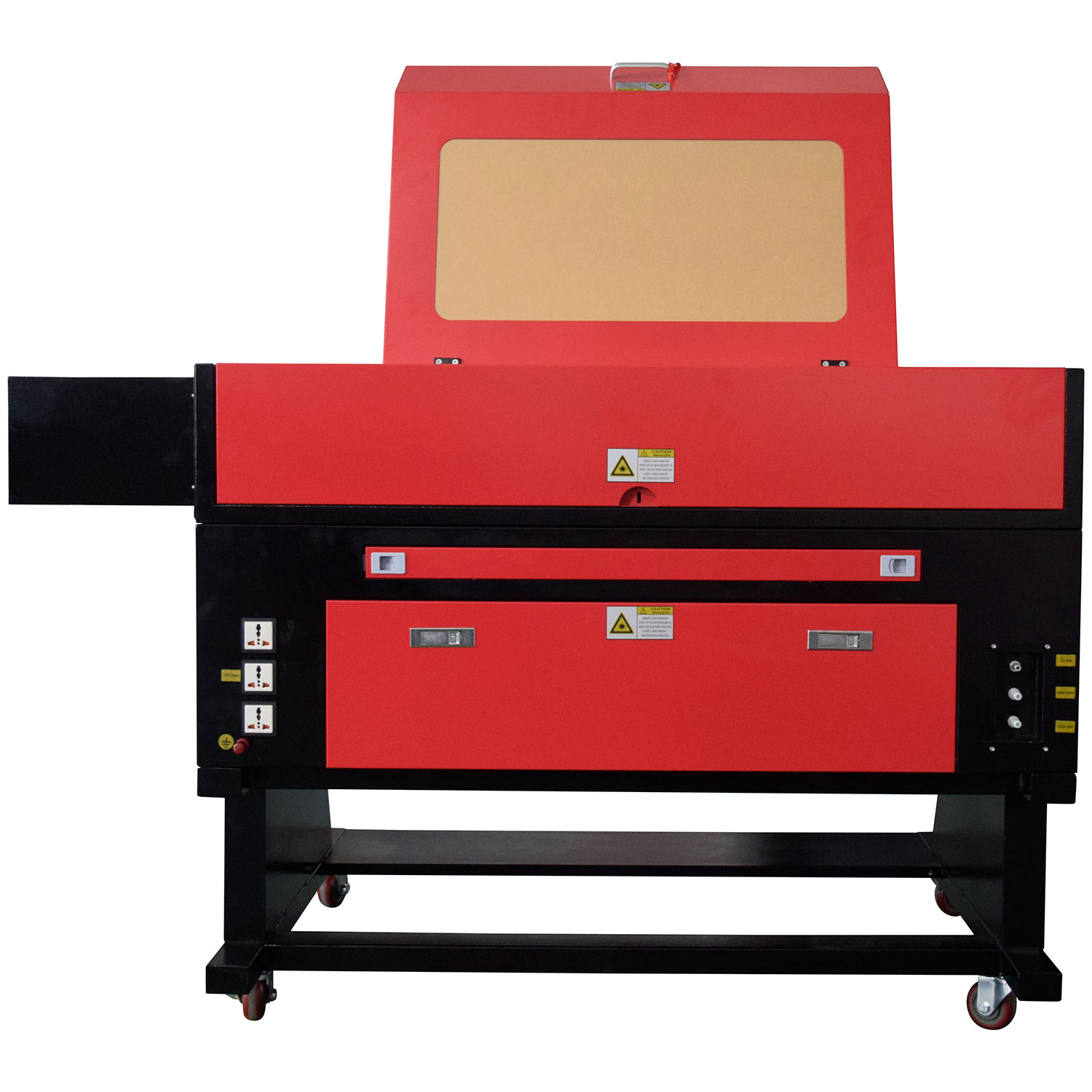

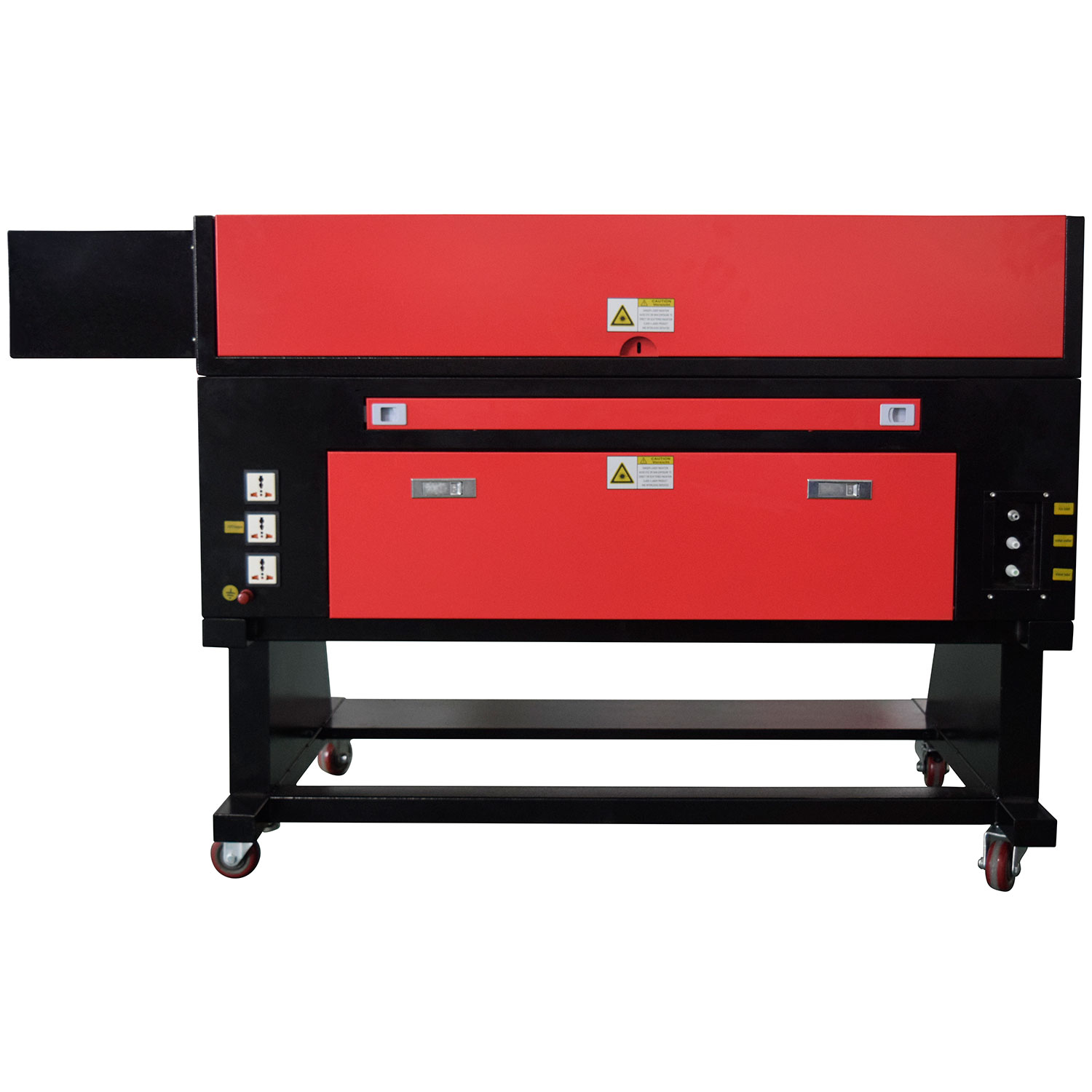

The front door and back panel give the 750 CO2 laser engraving and cutting machine pass-through capability, allowing you to work with uncut sheets, process long work pieces, or use continuous roll material.

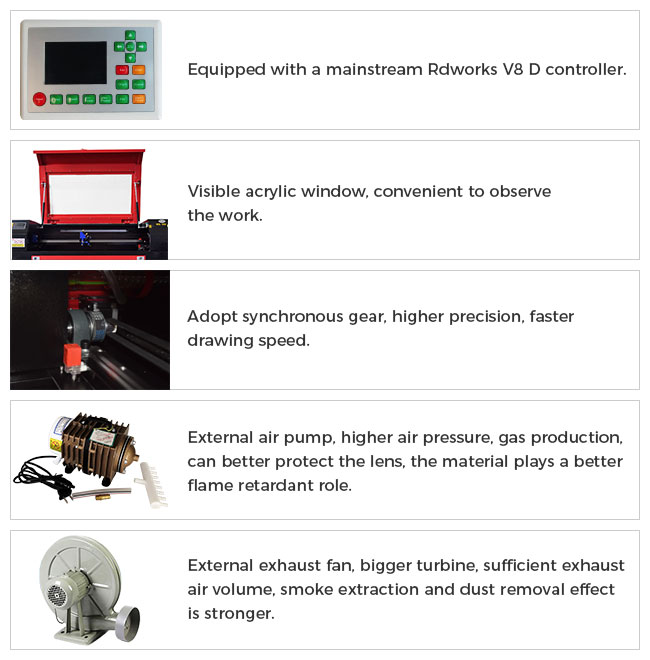

Digital Operation Panel
It features DSP Control System for RDdraw directly, with multi-language (English, French, German, Italian, Spanish, and more languages updating) available, which is more intuitive, simple and more convenient.
Large Working Area

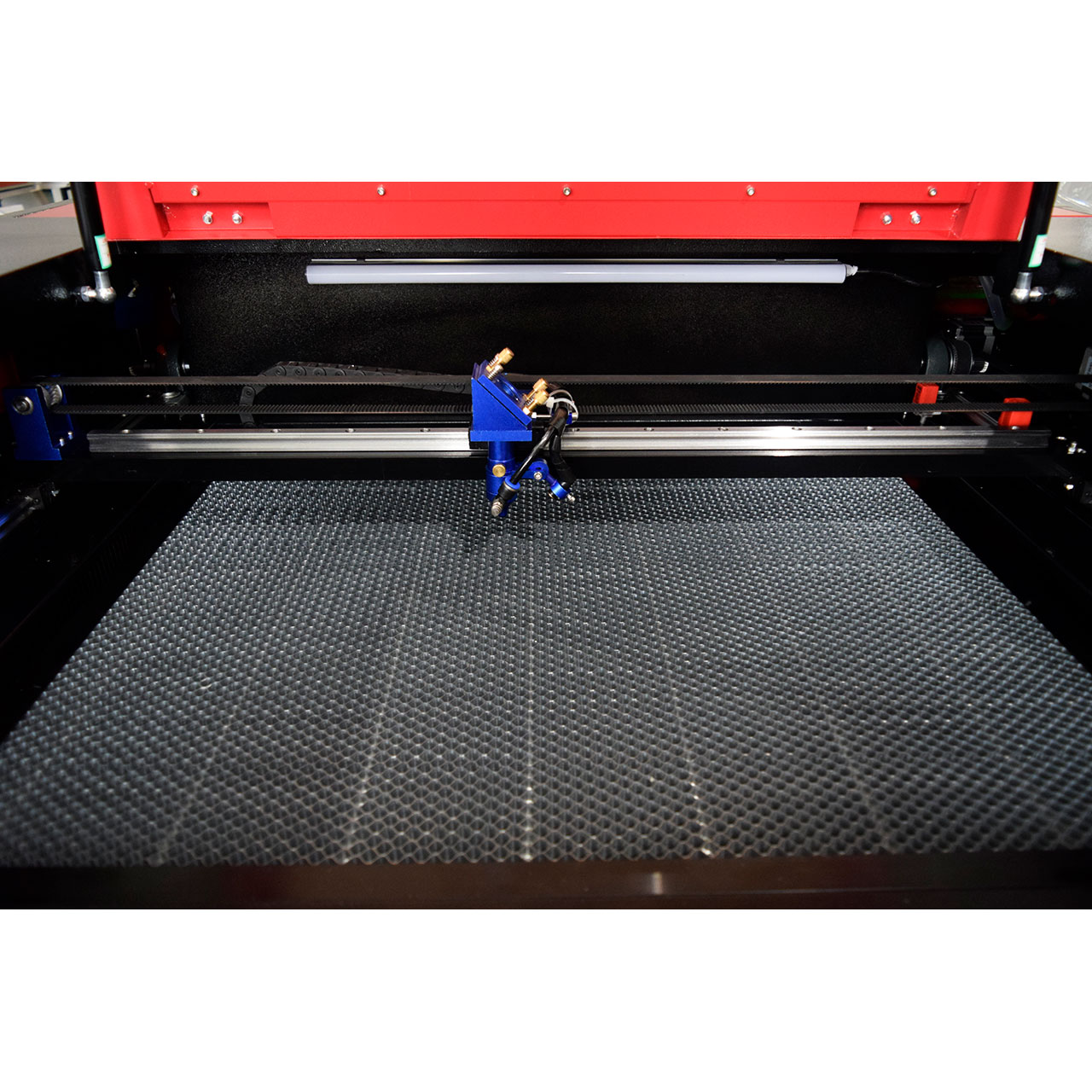

With large working area of 28"x20" (70x50cm), featuring bending table, which adopts honeycomb structure, with high strength, anti-deformation, sound absorption and heat insulation.
Belts and rails
The machine is of high quality Belts and rails, It is characterized with long service life with high speed, high accuracy and smooth linear motion.
The color of the Laser Head is random, you may receive black or blue.
Premium Laser Head
Industrial grade 80W laser head, with high quality, reliable performance and durability, improves the engraving precision and performance.
Using high quality aluminum profile, machine engraving more stable, firm.
Accessories such as power supply and driver in the chassis are neatly connected and easy to maintain.
The machine can pass through the door two-way and you can carve larger materials.
Well-Designed Details

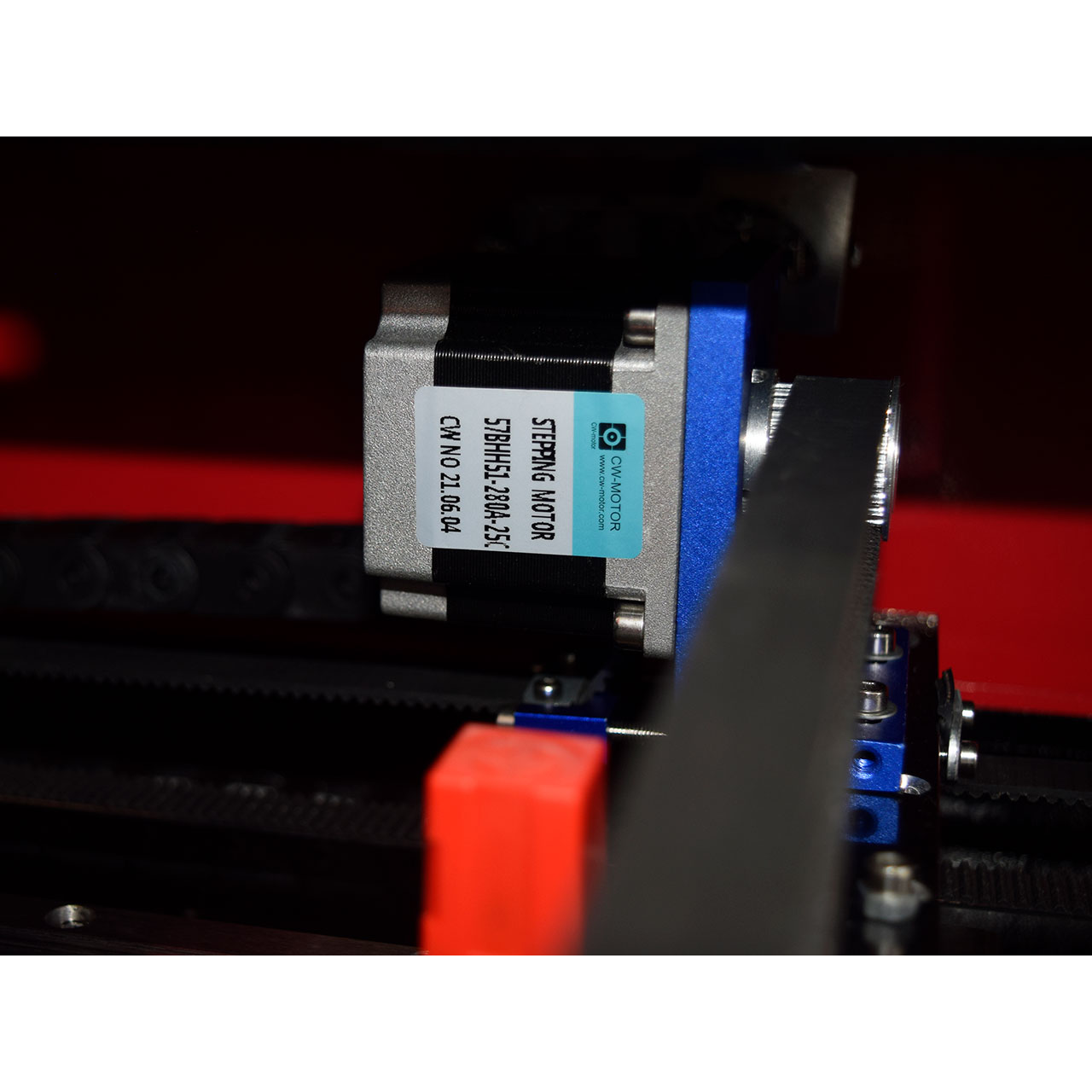

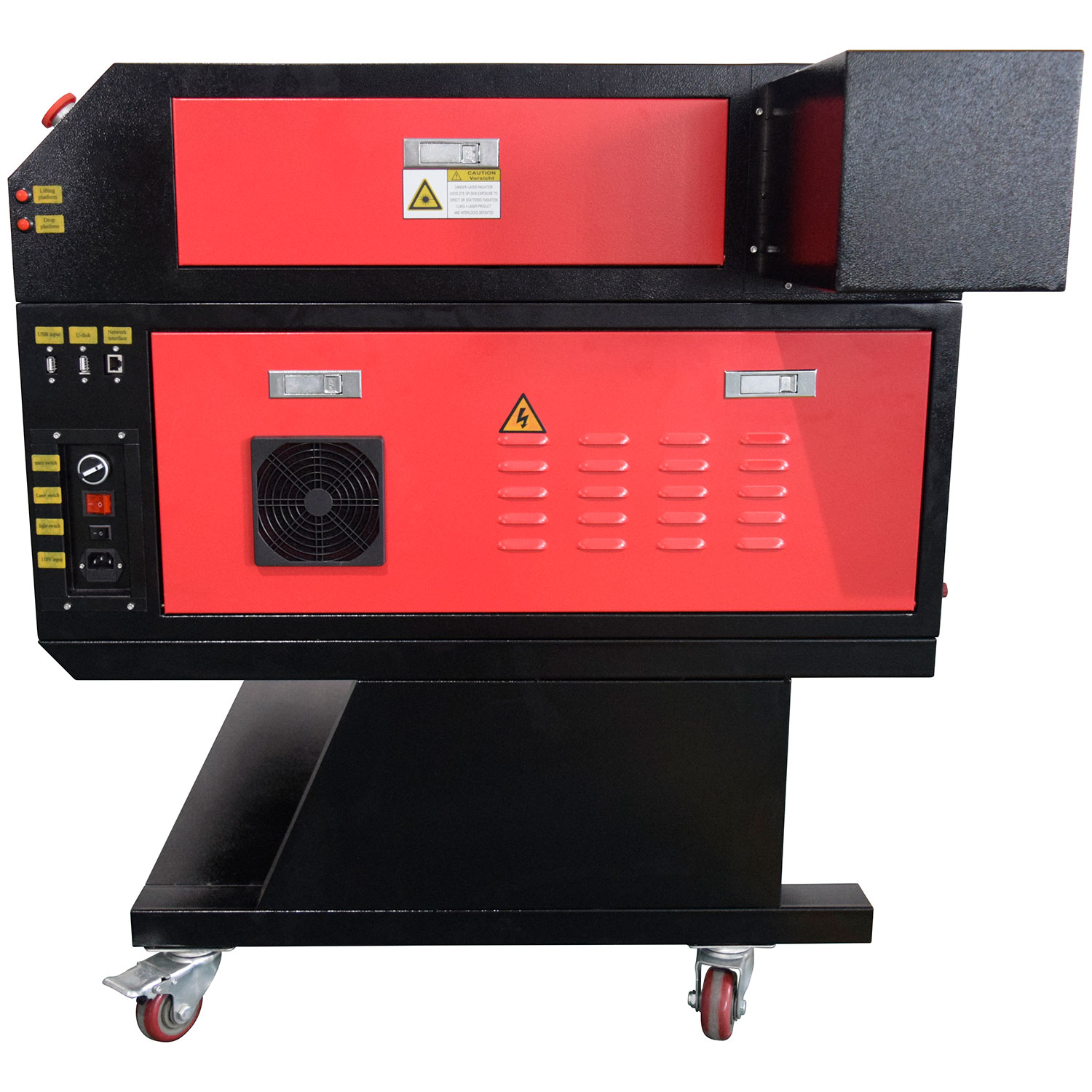

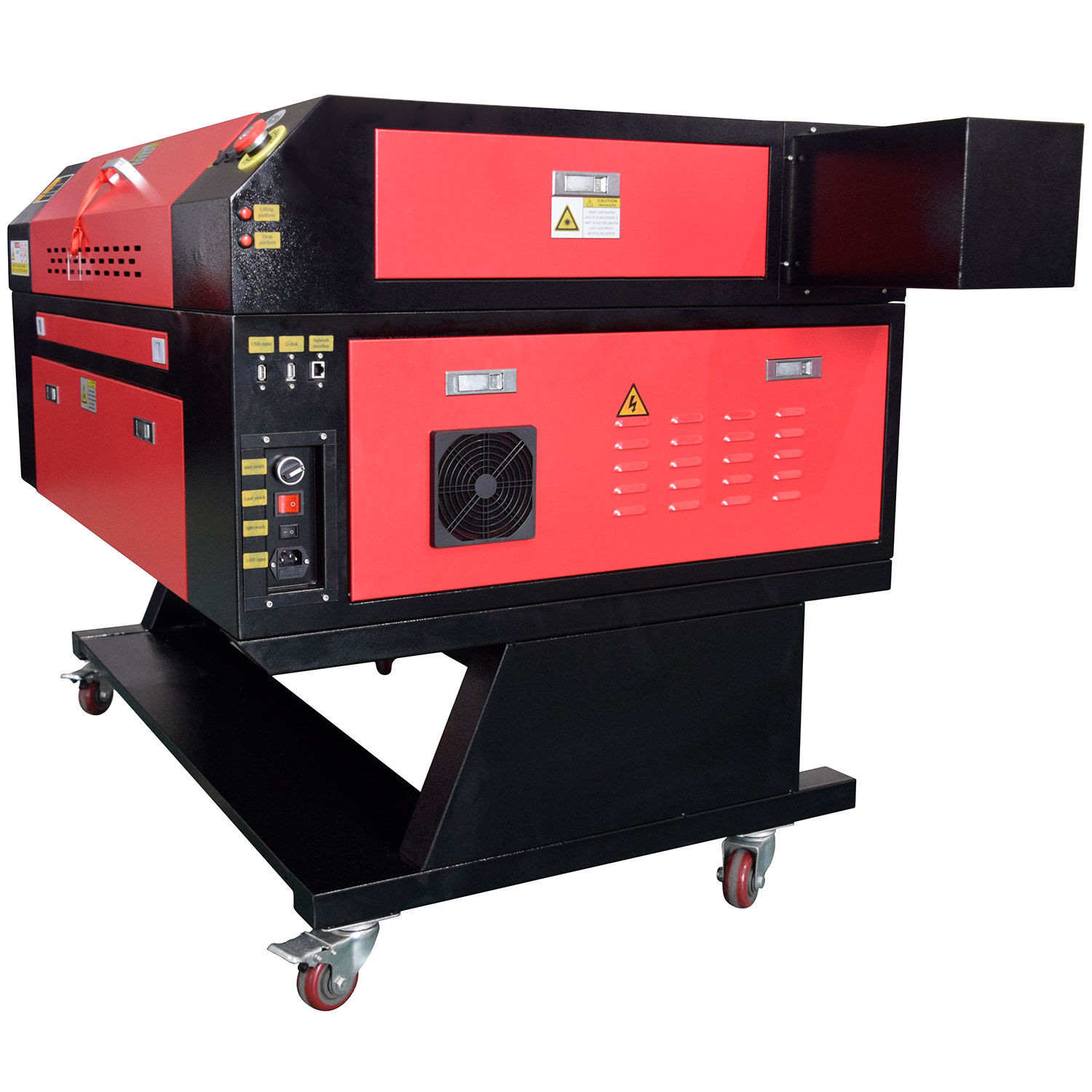

With high precision stepping motor and high-quality reflector for strong performance. Switches and emergency button for better control. The built-in cooling fan reduces temperature of all components. With 4 casters, easy to move.
Accessories:
Features and advantages:
Application:
Used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc.
For example: Countertop Sneeze Guard, Mask Storage Box, clocks, plaques, crafts, toys so on.
Sample:
| Working Size | 500mm x 700mm |
| Specification | |
| Laser Power | 80W |
| Voltage | AC110V ± 10%, 60HZ |
| Gross Power | ≤1300W 12A |
| Laser Type | CO2 Sealed Glass 10.64 um |
| Working Area | 27-1/2" × 20" (700 mm × 500 mm) |
| Z table | Motorized Z (8" vertical adjust) |
| Focus Lens | Dia. 18mm FL2" |
| Driver type | Stepping Motor |
| Max. Engraving Speed | 23-5/8"/s (600 mm/s) |
| Max. Cutting Speed | 3/8”/s (10 mm/s) |
| Engraving Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
| Cutting Thickness | 0 - 3/8" (0 - 10 mm) depends on material |
| Locating Precision | ± 0.01 mm |
| Resolution Ratio | ≤ 1,000 dpi |
| Min. Character Size | 1 mm × 1 mm |
| Min. Character Letter | 2 mm × 2 mm |
| Operating Temperature | 41 ℉ - 122 ℉ (5 ℃- 50 ℃) |
| Laser / PC Connectivity | USB, Ethernet connection |
| OS Compatibility | Windows 10, 8, 7 (64/32 bit) |
| Support Software | LightBURN, CorelDraw, AutoCAD, Photoshop, etc. |
| Control System | RDC6442G controller |
| Graphic Format Supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
| Cooling Type | Circulating Water Cooling and Protection System |
Average Rating: 0
Packing List
| Packaging Method | Wooden Crate |
| Machine Dimension | 1410 mm × 870 mm × 950 mm (55-1/2" × 34-1/4" × 37-3/8") |
| Machine Weight | 102 kg (225lbs) |
| Package Dimension | 1480 mm × 960 mm × 1145 mm (58-1/4" × 37-3/4" × 45") |
| Package Weight | 220 kg (485lbs) |
Package Included:
1 x CO2 Laser Engraver
1 x Air Pump
1 x Water Pump
1 x Set of Inner Hexagon Spanner
2 x Venting Tube
1 x Water Tube
1 x Screwdriver
1 x Power Cord
3 x Clamp
1 x Operation Manual
1 x USB Cable
1 x Ground Wire
1 x Screwdriver
1 x Glue
1 x Adhesive Tape
1 x Network Line
1 x Exhausting Fan
