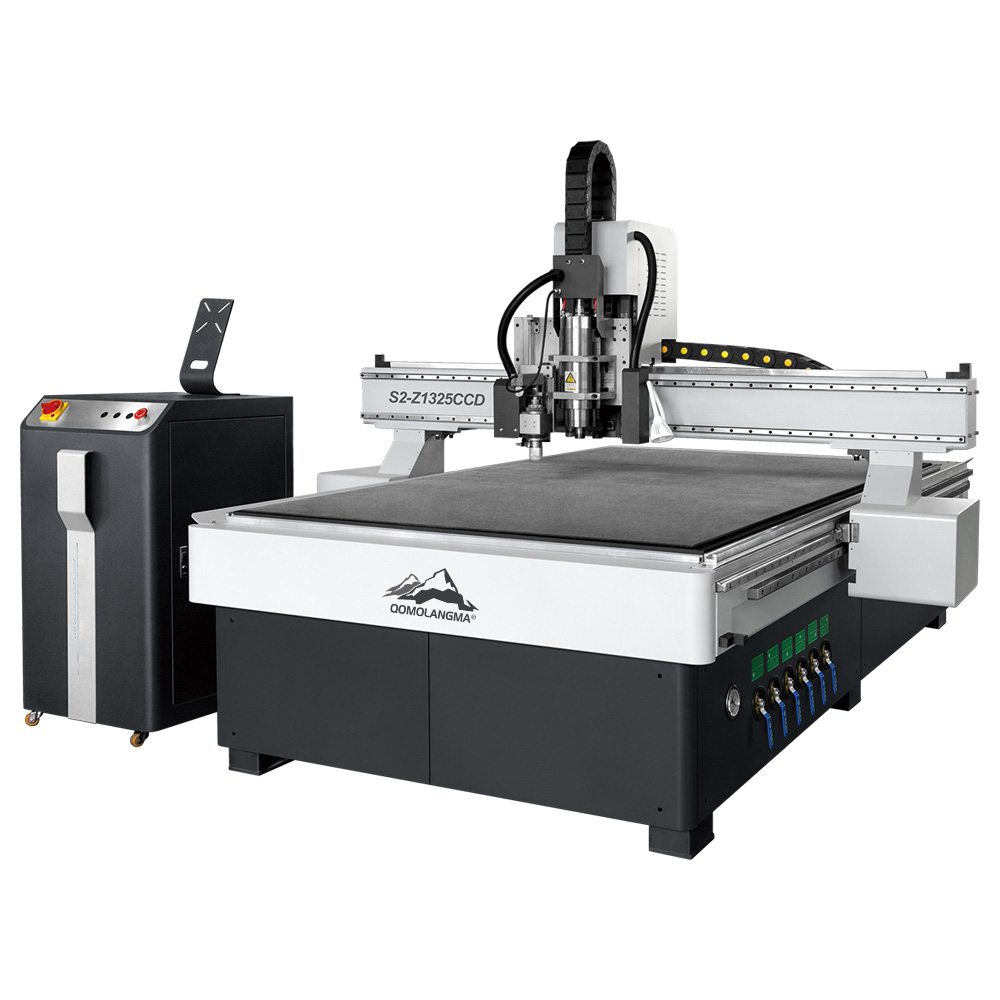

Qomolangma 51" x 98" 1325 cnc router Flatbed Cutter with CCD Camera, PVC / KT /Acrylic / Wood Cutting Experts
This cnc contour cutting system machine is high precision and low noise, highly reliable and efficient. it is a CNC router + knife combination with CCD cutting system for digital finishing.
Features:
1. Generate contour automatically, save user’s time
2. Industrial steel pipe frame, with stable moving, low noise and high precision.
3. XY helical rack pinion, plus linear rail, ensure the high precision.
4. Intelligent servo drive, stable and efficient.
5. It can position by camera intelligently and contour cutting, and also can 3D engraving.
Specification:
| Model | S2-Z1325CCD |
| Working Size | 1300x2500x170mm(51.2" x 98.4" x 6.7") |
| Max.Material Height | 150mm(5.9") |
| Spindle Power | Water Cooling 3.0kw spindle + oscillating knife |
| Speed RPM | 0-24000rpm |
| Tool Diameter | Ø3.175, Ø4, Ø6, Ø8, Ø12.7 |
| Driver | Hybrid Servo, Z AC servo 750w, A AC servo 200w |
| Control System | SIGNKEY CCD control systerm |
| Media mounting mode | Vacuun bed+T-slot 2in1 |
| Mechanical Structure | Industrial Square Steel Pipe |
| Transmission | Ball Screw for Z, Belt and Rack & Pinion for X,Y |
| Guide Ways | Linear rails |
| Repositioning Accuracy | <0.03mm/300mm |
| MAX.Engraving Speed | 20000 mm/min |
| File Transfer | USB |
| File Format | G Code or HPGL |
| Power Supply | AC220V or 380V,50-60Hz |
| Working Table | Vacuum table, with T slot |
| Vacuum Pump | 7.5kw air cooling pump |
| Dust Collect System | High-power intelligent dust collection system |
| External Form Size | 2000x3100x1650mm(78.7" x 122" x 65") |
| Packing Size | 2150x3250x2000mm(84.6" x 128" x 78.7") |
| Net/Gross Weight | 800/1000kg(1764lb/2205lb) |
Application:
Spindle: Acrylic, wood, thick PVC, soft metal like aluminum and copper
Oscillating knife: KT board, PVC, leather, single layer cloth
| Specification | |
| Model | CNCR-N1-Z1325CCD-US |
| Table Size | 1440mm x 2630mm (56.7in x 103.5in) |
| Working Size | 1300mm x 2500mm x 200mm (51.2in x 98.4in x 78.74in) |
| Max. Material Height | 200mm (78.74in) |
| Spindle Power | Water Cooling 3.0kw / 4HP |
| Speed RPM | 0-24000rpm |
| Mark Recognition | CCD Camera |
| Driver | Leadshine AC Servo |
| Control System | LEYU control system |
| Tool Diameter | Ø3.175, Ø4, Ø6, Ø12.7 |
| Mechanical Structure | Square Steel Pipe |
| Transmission | Synchronous Belt Drive; Ball Screw for Z; Rack & Pinion for X, Y |
| Guide Ways | Linear Guide Ways |
| Repositioning Accuracy | <0.03mm / 300mm (11.8inches) |
| MAX. Engraving Speed | 20m / min |
| Traverlling Speed | 60m / min |
| Table Top | PVC Vacuum Table + Blanket |
| File Transfer | USB |
| File Format | G Code / HPGL / DXP |
| Software | Ucancam V10 |
| Power Supply |
CNC router machine: AC220V single phase, 50hz - 60Hz, 15A |
| External Form Size | 2050mm x 3060mm x 1650mm (80.7in x 120in x 65in) |
| Packing Size | 3150mm x 2200mm x 1850mm (122in x 82.7in x 67in) |
| Net/Gross Weight | 1000KG (2200ibs) / 1300KG (2860ibs) |
| Optional Models | N1-1313, N1-1318, N1-1325, And N1-1530 |
| Linear Square Guide | 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. |
Average Rating: 0
There are total one box.
| External Form Size | 2050mm x 3060mm x 1650mm (80.7in x 120in x 65in) |
| Packing Size | 3150mm x 2200mm x 1850mm (122in x 82.7in x 67in) |
| Net/Gross Weight | 1000KG (2200ibs) / 1300KG (2860ibs) |
