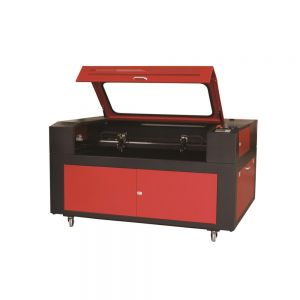

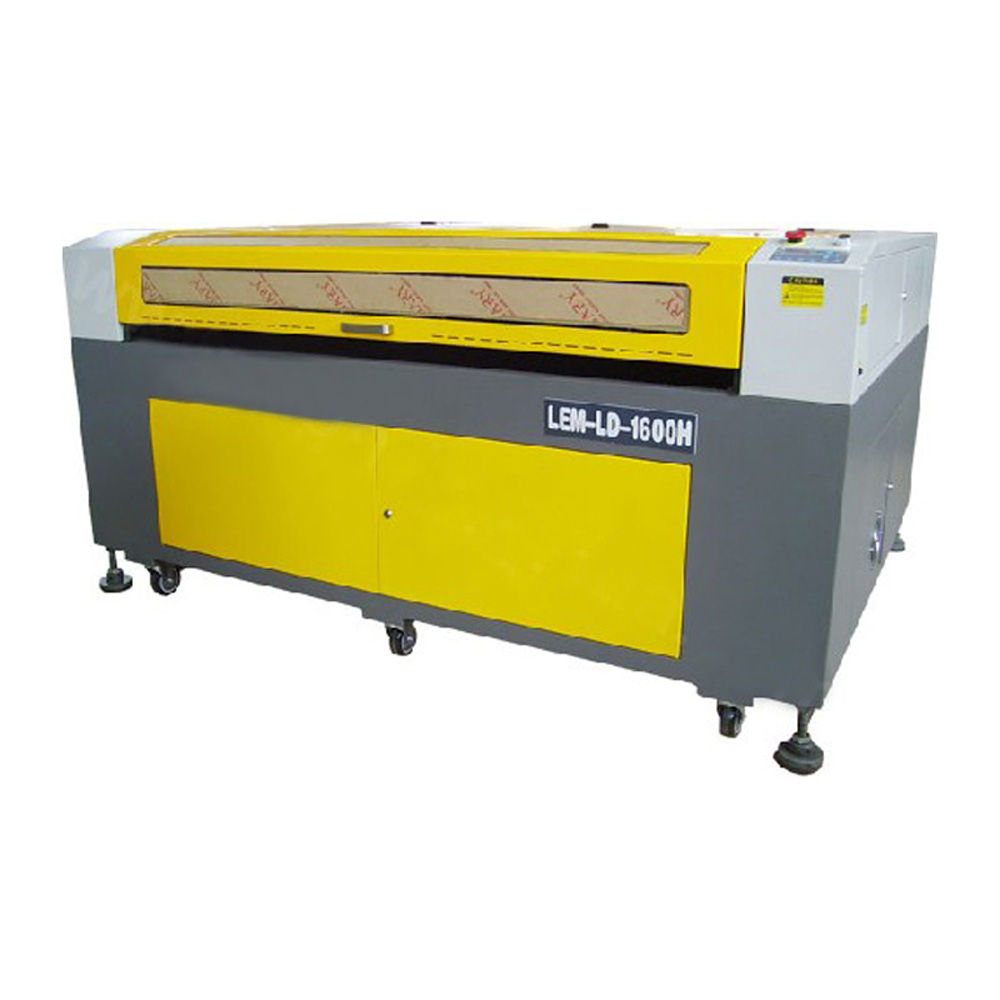

63" x 39.37" (1600mm x 1000mm) Electric Up - down Lifting laser engraver and Cutter Machine, 80W
Main Function: Scan / engrave / cut
Application
This laser engraving and cutting machine is equipped with a standard knife shape aluminum rib working table and a standby honeycomb working table, so it can be used in more industries, such as music instrument, art gift, advertising decoration, toy, electronic industry, cutting of template, paper product, costume products and so on.
Materials that can be engraved
They can engrave on all kinds of nonmetal materials and parts of coated metals, such as bamboo, putamina of coconut, paper, plexiglass, acrylic, marble, jade, crystal. It also features a cutting function. With the rotating unit, it can engrave on a cylinder objects, such as cup, pencil vase and so on. It breaks through the limitation of the planar engraving and augments the range of the working.
Main Configuration
Max. Working Area: 63" x 39.37" (1600mm x 1000mm)
Max. Cutting Speed: 6" (160mm) / s
Max. Engraving Speed: 51" (1300mm) / s
Laser Power: CO2 glass laser tube 80W (1.6m)
Max. Cutting Thickness (Acrylic): ≤1.2" (30mm)
Min. Shaping Character: Letter: 0.04" x 0.04" (1mm x 1mm)
Location Precision: < 0.01mm
Power Supply: AC110 - AC220V ± 10%, 50Hz / 60Hz
Product Highlights
High speed and fine engraving effect + Electrical lift worktable + Support CorelDraw output directly
Multi - function, equipped with a standard knife shape aluminum rib working table.
• They can engrave on most kinds of nonmetal materials and parts of coated metals; it also features a cutting function.
• Luxurious outlook design, unique door for the limitless engraved materials through.
• Professional DSP controlling system, compatible with AutoCAD, CorelDraw, Photoshop, and other kinds of graph disposal software.
• Adopt step subdivision driver, numeral timing, simulation quantum control laser power, little error, high repeat precision engrave 3mm little character perfectly.
• Equipped with electrical up - down lift working platform, its maximum lifting height can reach to 300mm (12"), which greatly broaden the scope of processing objects.
• Importing high precision beeline slide - ways, importing professional optical system, improve the engraving quality.
• Professional laser electrical power and laser tube with high quality makes the laser engravings run stably.
• LED Control Panel makes the laser engraving and cutting machine easy operation.

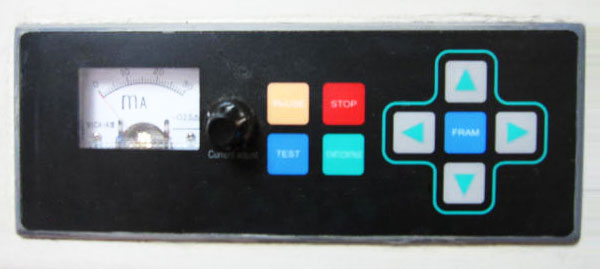

Focus lens LED control panel

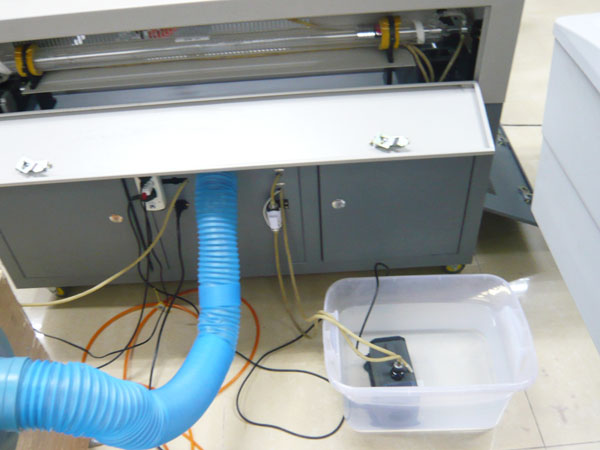

Machine Connection

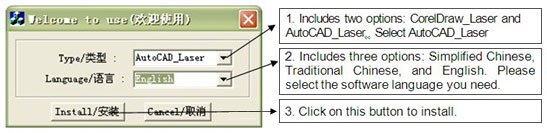

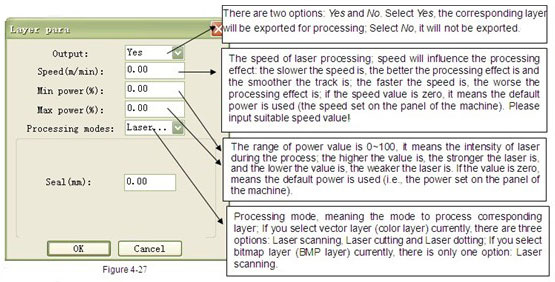

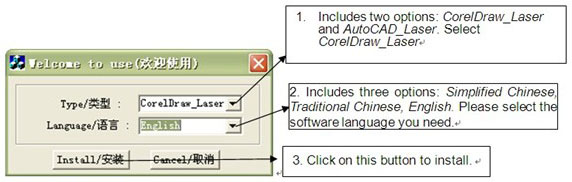

Instructions of Laser Engraving Cutting Software

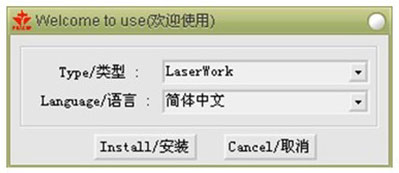

There are three kinds of RD laser cutting software. One is the direct output software based on CorelDraw (hereinafter referred to as CorelDraw_Laser); the other is based on the direct output software based on AutoCAD (hereinafter referred to as AutoCAD_Laser). In addition, there is another kind of independent software (hereinafter referred to as LaserWork), which is more simple to use in the first stage of using laser cutting machines.
With the following optional parts, the laser engraver can have more functions (Extra payment is needed):
 |
 |

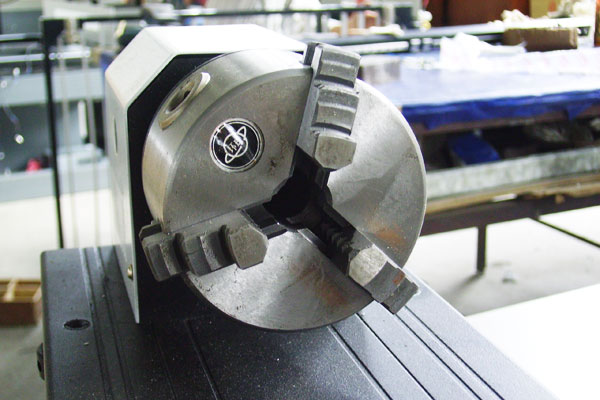

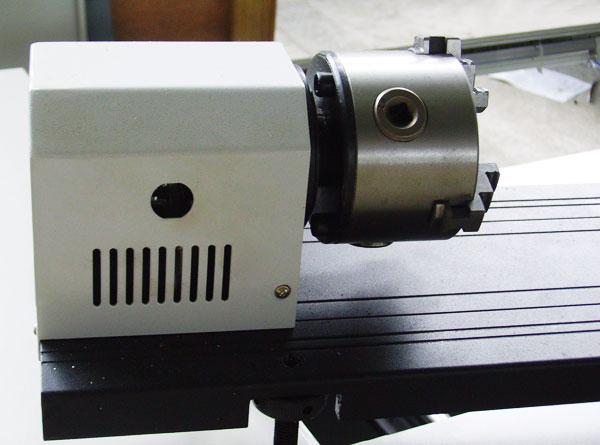

| CO2 glass laser tube: 100W (1.6m) / 130W (1.6m) | Rotary Fixture: Used for engraving on the surface of column of Φ80-100mm |

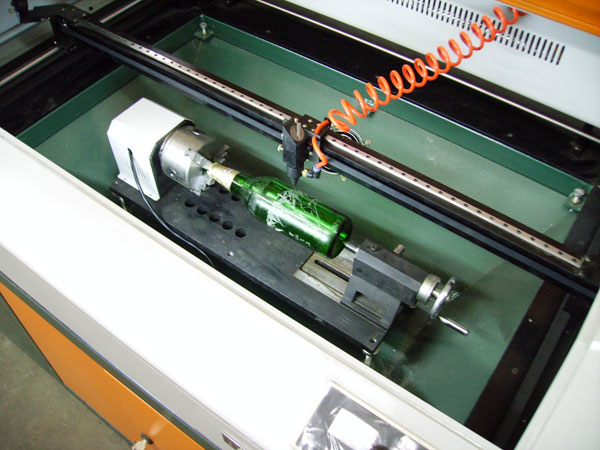

PS: With the rotary fixture, you can engrave on a cylinder object, such as cup, pencil vase and so on. It breaks through the limitation of the planar engraving and augments the range of the working.
Spare Parts

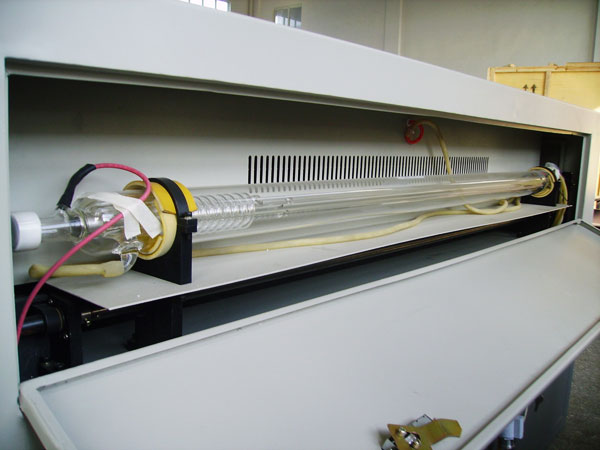

Glass laser tube 80W (1.6m)
Reflective mirror (F30)

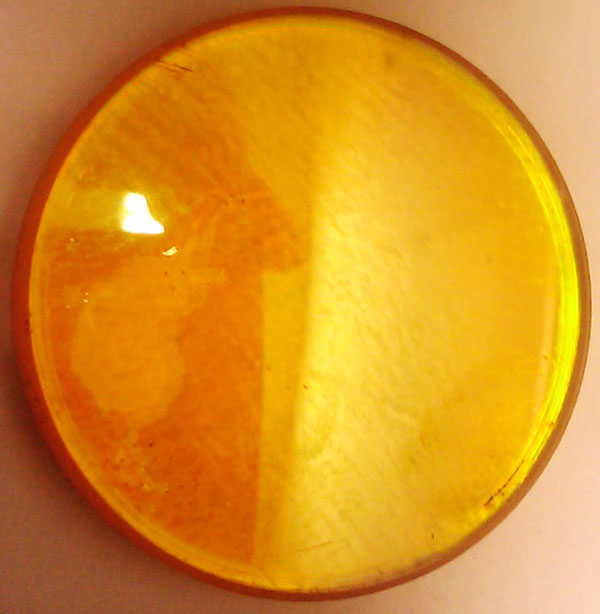

Focus lens (50.8mm or 63.5mm)
PS: The spare parts are consumables; you’d better buy one set when you order the machine.
Samples:
| Effective Engraving Area | 63" x 39.37" (1600mm x 1000mm) |
| Max. Engraving Speed | 3150" (80000mm)/min (speed adjustable) |
| Engraving Precision | Chinese characters: 0.14" x 0.14" (3.5 x 3.5mm), English letters: 0.059" x 0.059" (1.5 x 1.5mm) |
| Support Image Format | AI, BMP, PLT, DXF and DST |
| Laser Power | CO2 glass laser tube 80W |
| Working Size | Large Format |
| Model | LEM-LD-1600H |
| Maximum Cutting Area | 63" x 39.37" (1600mm x 1000mm) |
| Laser Power | CO2 glass tube 80W (Normal lifespan: about 1000 working hours) |
| Maximum Cutting Speed | 6" (160mm) / s (Adjustable) |
| Max. Engraving Speed | 51" (1300mm) / s |
| Maximum Cutting Thickness | 1.2" (30mm) (Acrylic) |
| Resolution Ratio | 0.0064mm |
| Positioning Precision | 0.0009" (0.025mm) |
| Repeat Precision | 0.0003" (0.01mm) |
| Resolution | ≤1000dpi (1000dpi is the best) |
| Power of the Water Pump, Air Blower, Air Pump | (100+250+105) W |
| Whole Power | 500-2000W |
| Gradient Carving | Yes |
| Lift Worktable | Electric adjust |
| Cooling Method | Water cooling and protection system |
| Supported Image Formats | BMP, PLT, compatible with many file formats for Windows OS, such as AI, CorelDraw, Photoshop, AutoCAD, etc. |
| Cutting Software | Lasercut 5.3 engraving software |
| Interface | U disk,enternet |
| Voltage | AC110V - 240V, 50Hz |
| Spare Parts | Reflective mirror, lens, and laser tube |
| Optional Device | Rotating clamp, Chinese CO2 laser tube 60W |
Average Rating: 0
Lead Time: After receiving customer's deposit, within 3-7 days.
Wooden Box: There is total one wooden box.
| Machine Dimension | 80.8" x 48.8" x 35.4" (2053mm x 1240mm x 900mm) |
| Machine Weight | 881.9Lb (400kg) |
| Package | Fumigation free package |
| Packing Size | 89.8" x 76.8" x 55.5" (2280mm x 1950mm x 1410mm) |
| Gross Weight | 1234.6Lb (560kg) |
Standard Accessories
Exhaust fan, exhaust pipe, CW-5000, air pump, water box, knife shape aluminum rib working table, and a standby honeycomb working table.
Packing List
| Article | Unit | Quantity |
| Laser engraving machine | set | 1 |
| Air pump | set | 1 |
| Bellows | unit | 2 |
| Certificate / Warranty card | Pc | 1 |
| CW-5000 | set | 1 |
| Dryer | unit | 1 |
| Focus module | unit | 1 |
| Hose clamps | unit | 1 |
| Kit | unit | 1 |
| Laser tube | pc | 1 |
| Mirror and lens | set | Each has one |
| Power line | piece | 1 |
| Software | Copy | 1 |
| Trachea / Water | set | 1 |
| User Manual | Copy | 1 |
Comprehensive guarantee for two years except the wearing parts
24 - hour technical support by email or calling
User - friendly English manual for machine using and maintaining
The guarantee period of the laser machine is two years, since the goods' arrival at Destination Port.
