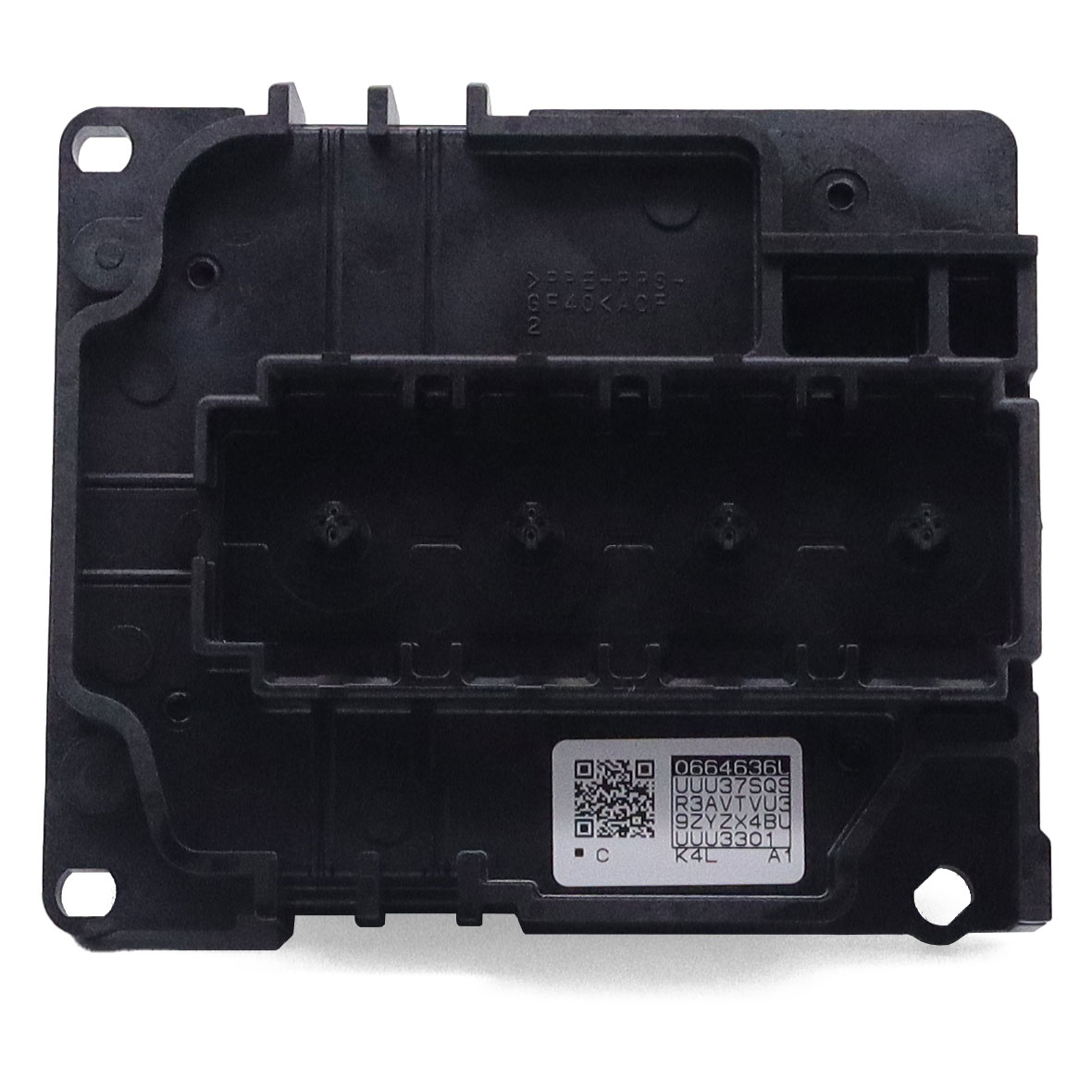

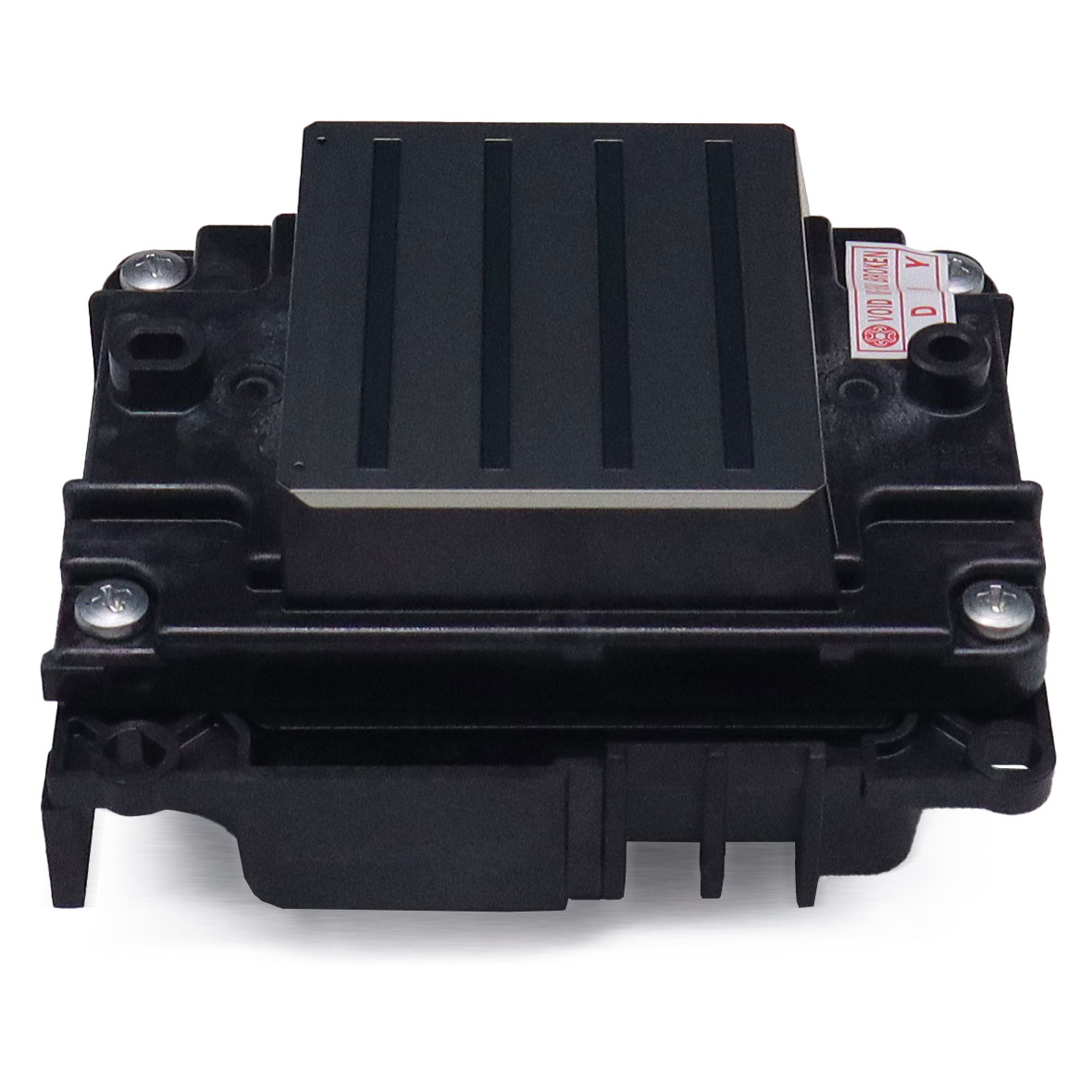

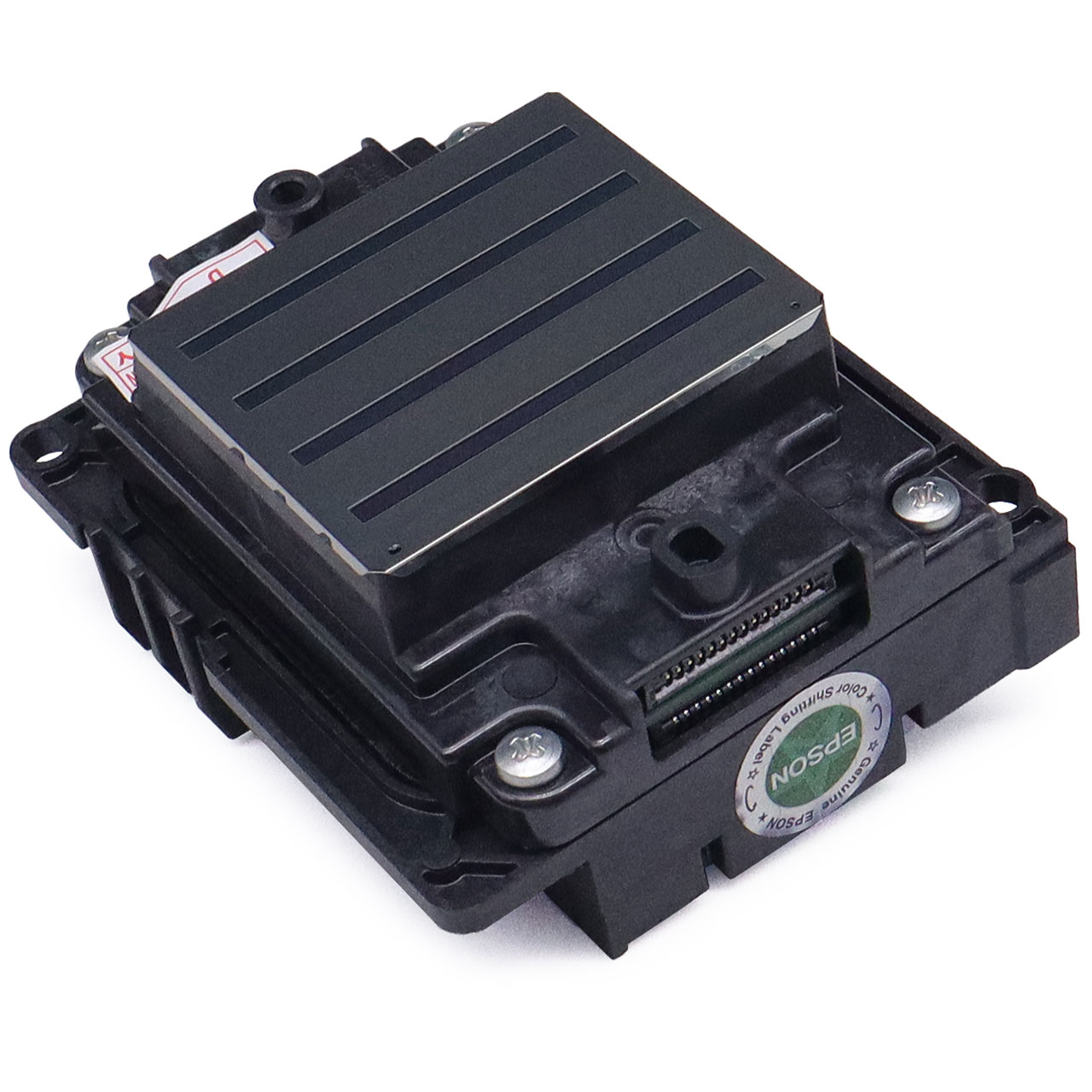

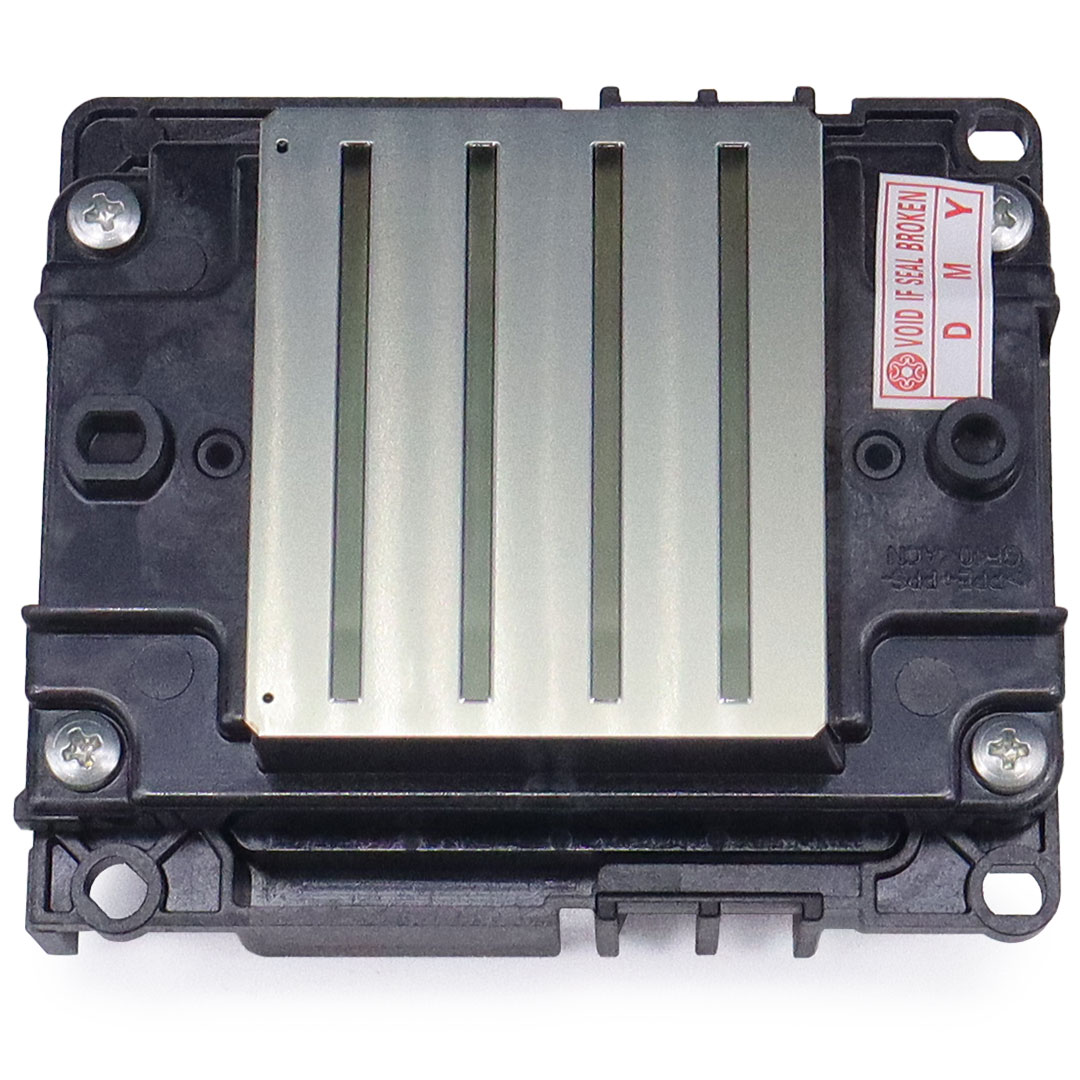

Epson I3200-A1 (4) Series Printhead for DTF Printers
Description:
Epson i3200-A1 is an economical Print Head with excellent quality and fast and stable printing speed. The i3200-A1 printhead has 3,200 nozzles (up to 600 dpi/2 lines), supports 4 water-based ink channels, and variable droplet technology for grayscale printing. With a high-density resolution of 600 dpi, it is specifically designed for DTF inks and is compatible with most large-format DTF printers, DTG printers, sublimation printing, and cardboard printing.
Warranty: due to the nature of DTF inks, we cannot accept returns, exchanges or refunds once the printhead has been installed. All sales are final.
To be used with:
Coldesi 24H2 DTF / 24H4 DTF
Fedar FD5193E / FD60 DTF / FD65-2 DTF / FD70 DTF
Oric A-6202 / 6203 / 6204
Oric OR-620 pro / 6202 /6203 / 6204 DTF / 7602 / 7604HT DTF / A3 Mini330 DTF
Potry BC-0302X-HTO1 / HT-0604IA-01
Sinocolor DTF-400A / WJ-240S
Yuxunda DTF-300 Pro Max / 300plus / 400 Pro Max / 400plus / 600 Pro Max
Remarks: Original
Specifications
Product name |
I3200-A1 |
Ink type |
Aqueous |
Type |
PrecisionCore MicroTFP printhead |
Width x Depth x Height |
69.1 x 59.4 x 35.6 mm |
Weight |
82 g |
Number of nozzle |
3200 |
Nozzle pitch/nozzle row |
1/300 inch |
Nozzle Resolution |
300 npi /row 600 npi/2 rows |
Max. number of colour inks |
4 colours |
Effective print width |
33.8 mm (1.33 inches) |
Droplet
ejection
performance |
Binary |
6 pl at 43.2 kHz |
3 levels grey scale |
6.3, 12.3 pl at 21.6 kHz |
4 levels grey scale |
3.8, 6.1, 9.4 pl at 21.6 kHz |
Viscosity range |
3-4 mPa·s |
Positioning Mechanism |
Reference hole |
