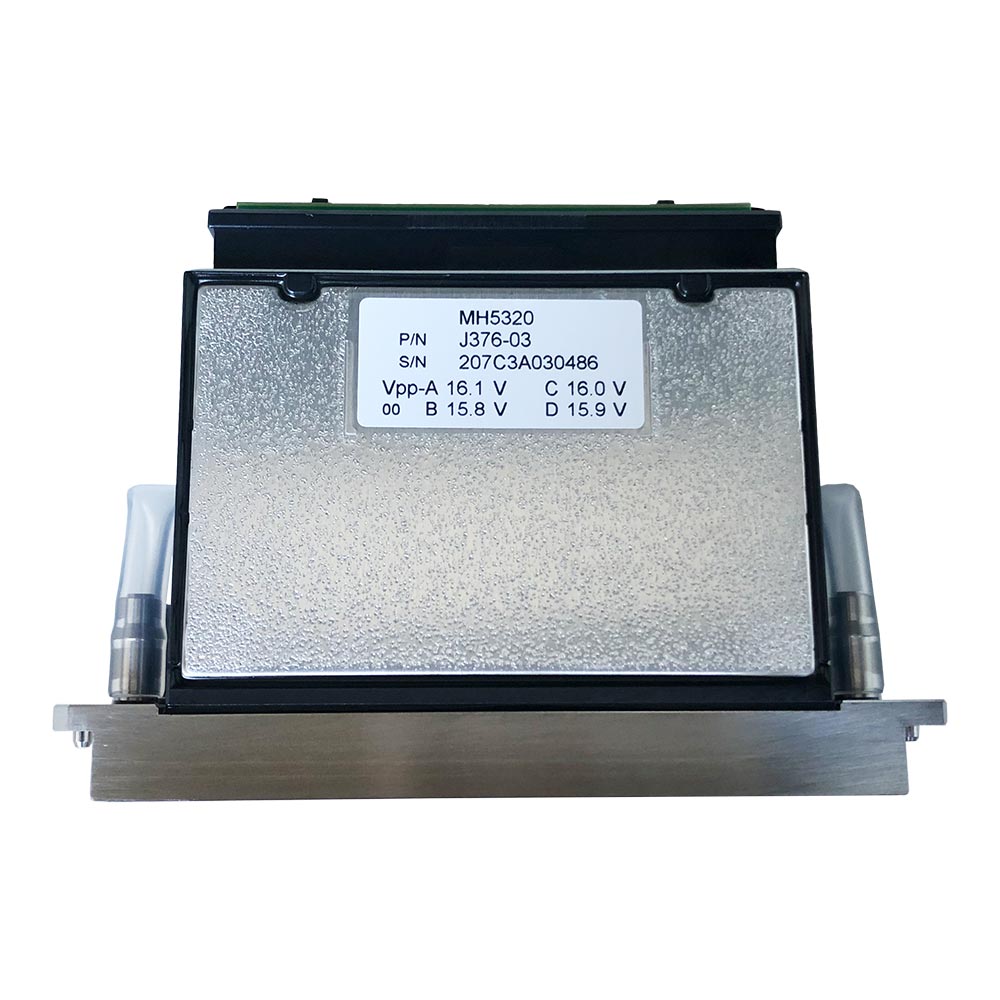

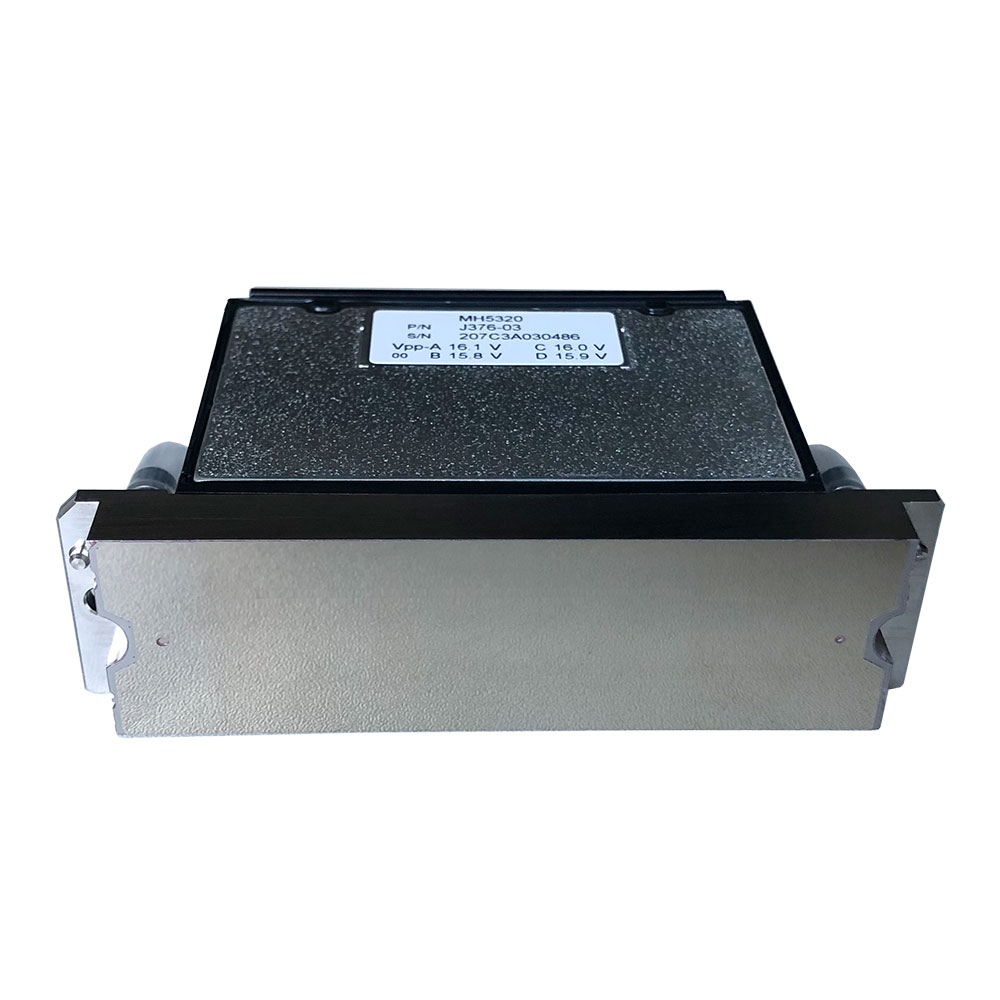

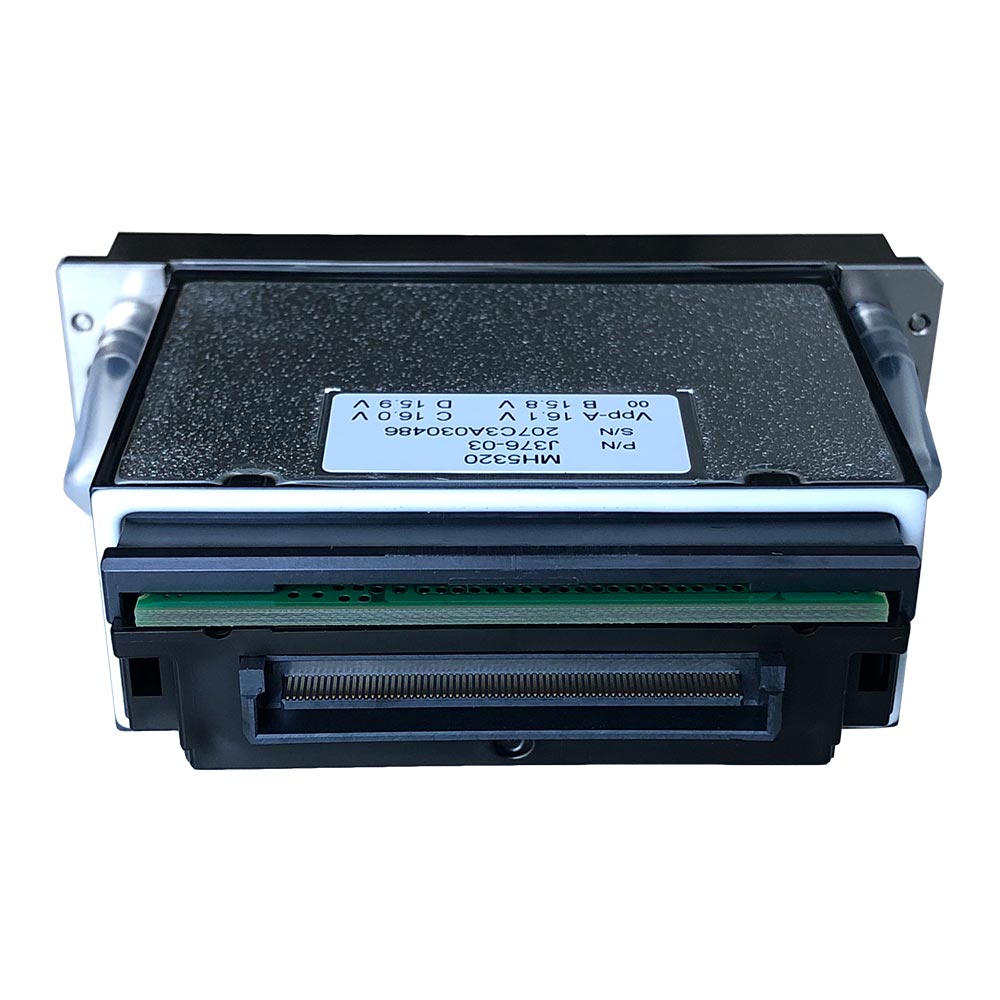

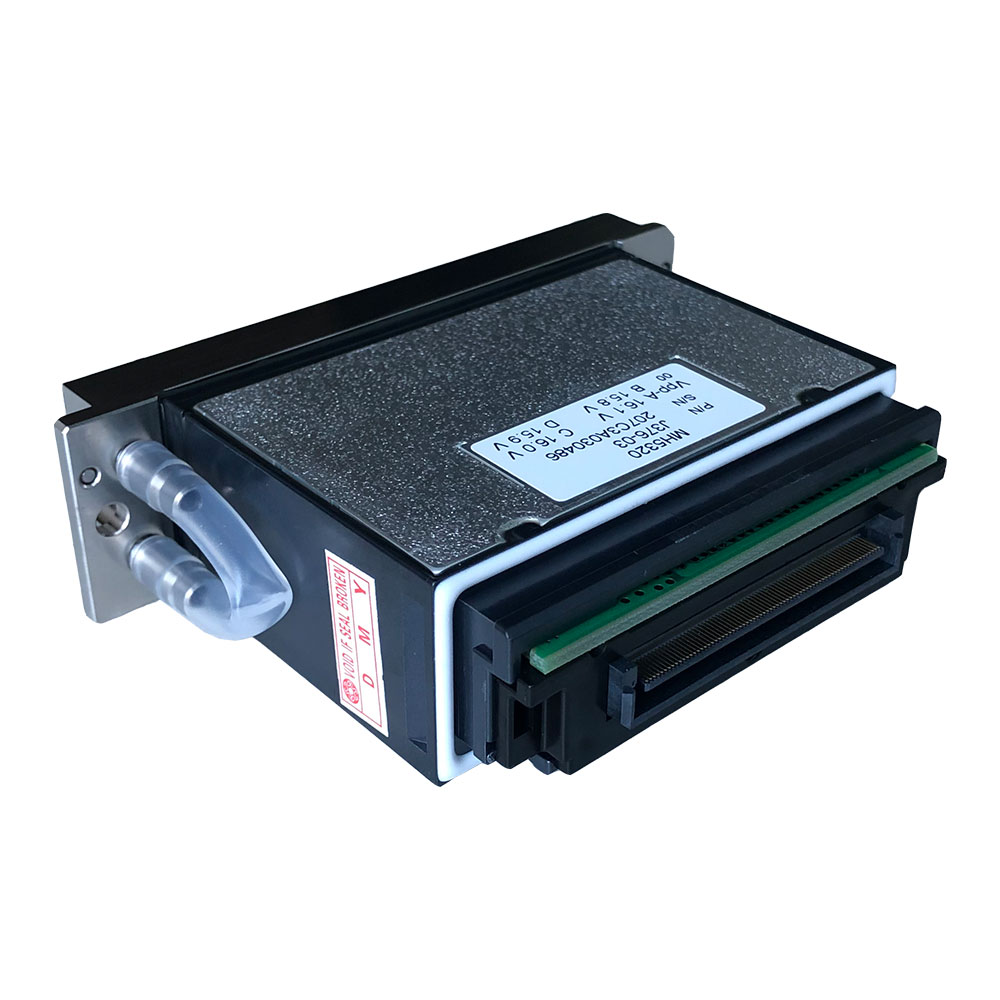

Ricoh MH5320 Printhead, (Two Colors, 5PL) - J376-03
Manufacture: Ricoh
In addition to high durability by stainless steel housing, ink compatibility are enhanced.
This Inkjet head is use for various application by high-definition and high-productivity. And this head is compatible with UV, Solvent and Aqueous based inks.
Description:
The service life of the MH5320 is more than double that of the MH5421 that preceded it. This is the 2 colour head.
A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
This printhead has a cable of 447mm and a total length including the printhead of 500mm.

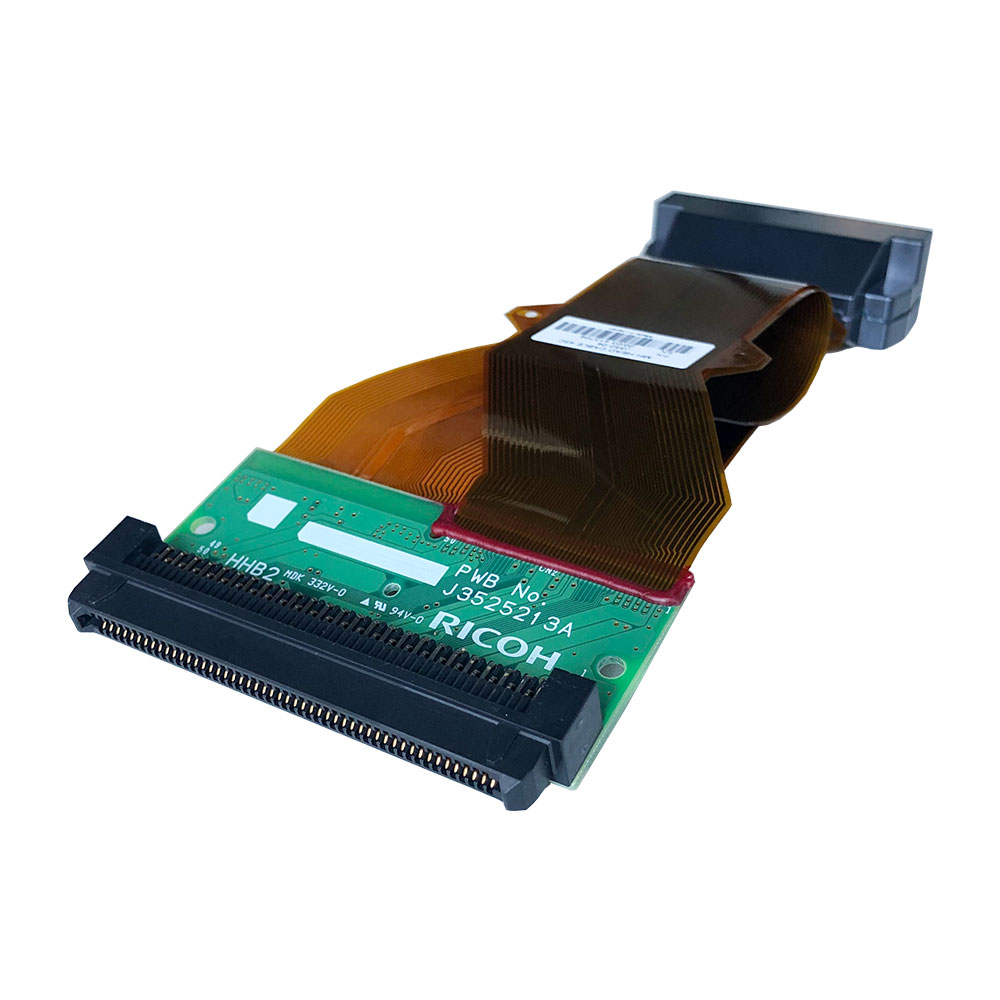

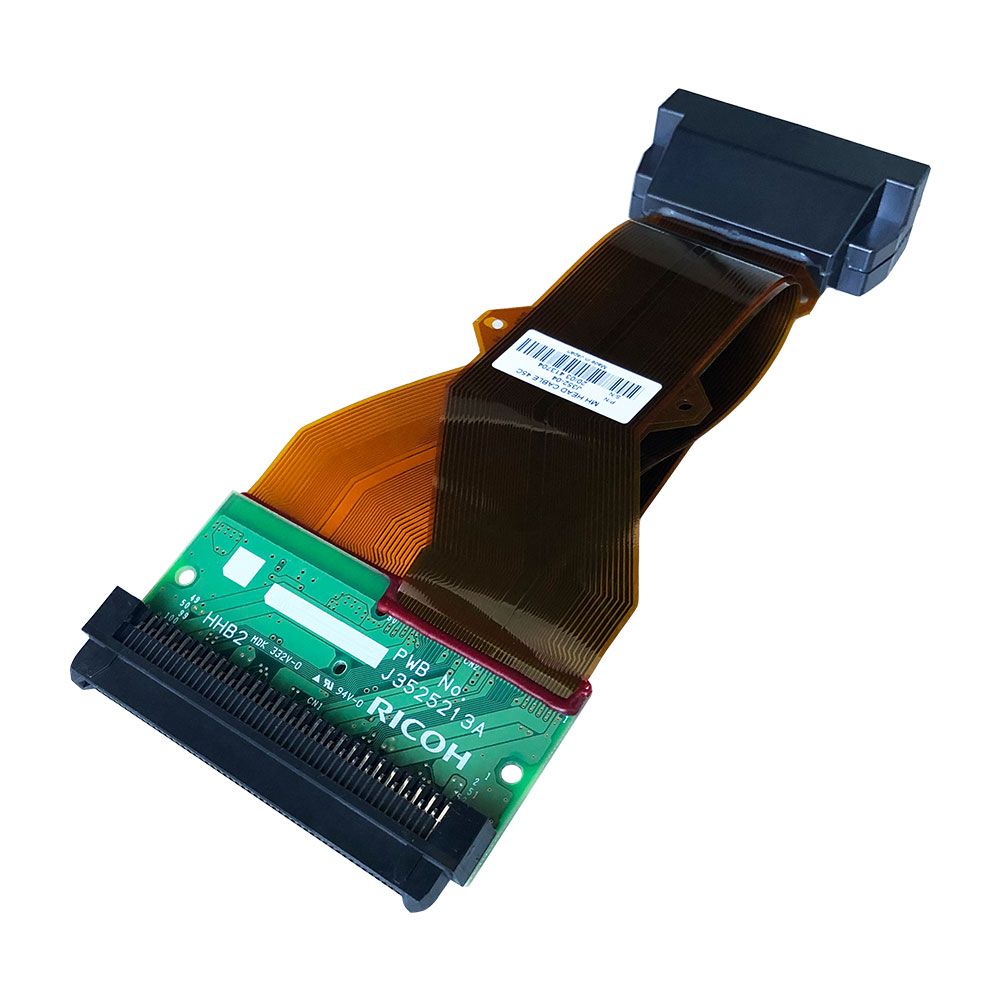

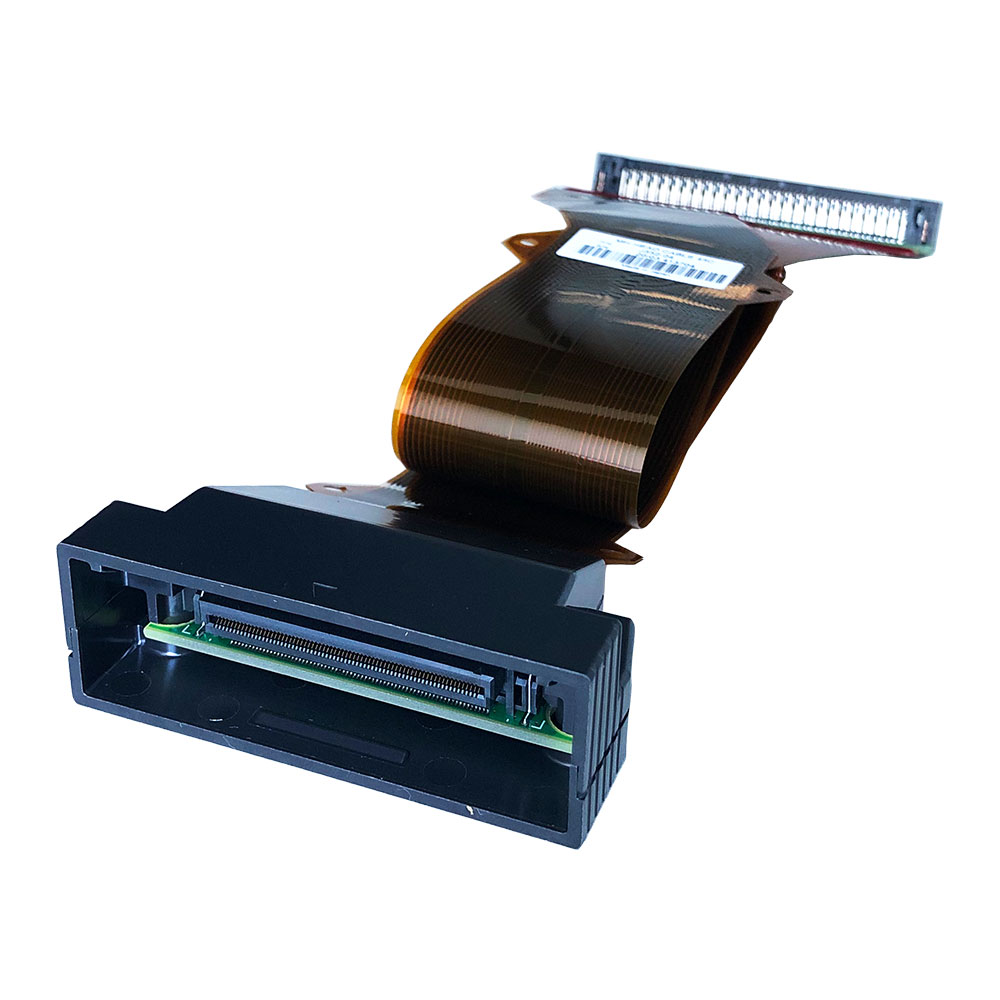

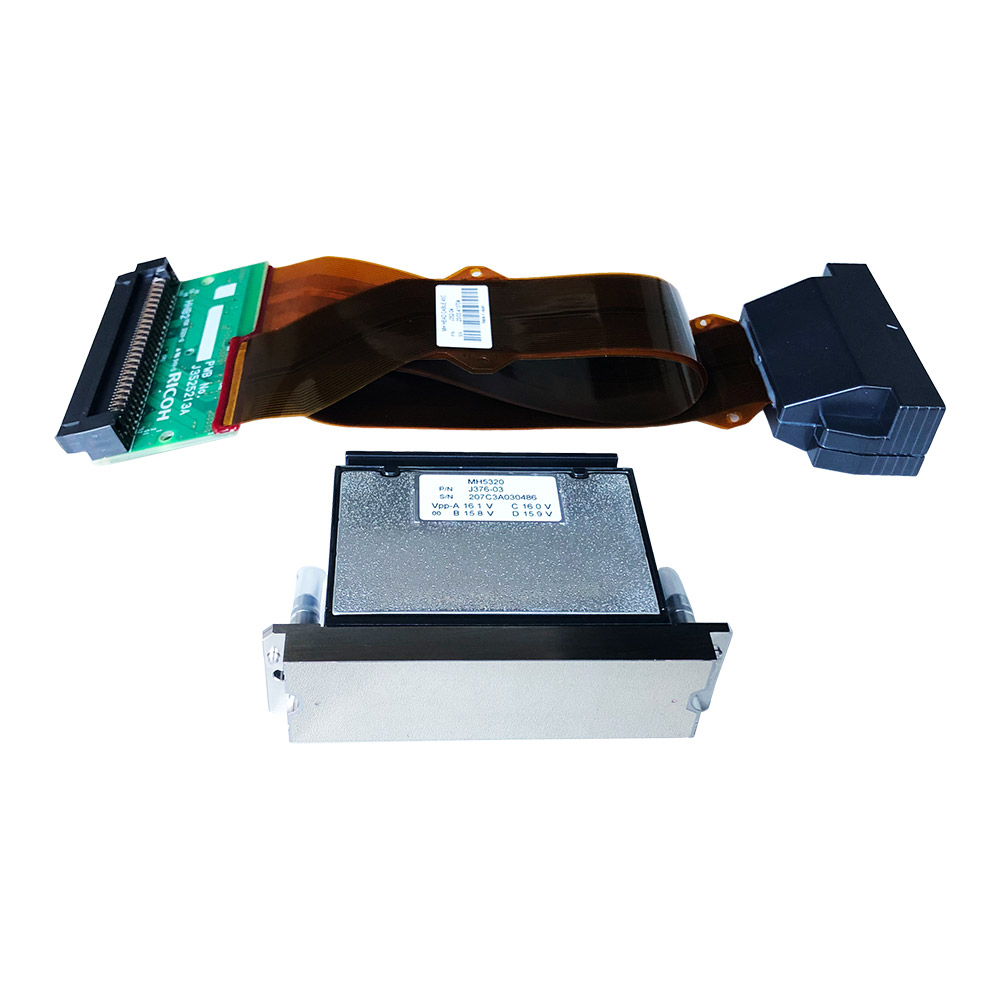

This printhead is made of the two skus: J376-03 (head) and J352-04 (cable 445mm).
Specifications:
Method: Piston pusher with metallic diaphragm plate
Print Width: 54.1 mm (2.1")
Dimensions: 89(W) x 66.3 (D) x 24.51 mm (H)
Weight: 228g (including 45C cable)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
Compatible ink (UV, Solvent, Asueous, Others.
Nozzle density: up to 600 npi
Max.number of color inks: 2 colors
Temperature control: Integrated Heater and Thermistor
Operator temperature range: 60° C
Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
Grey-scale: 4 levels
Viscosity ranfe: 10~12mPa・s
Surface tension: 28~35mN/m
Ink Port: Yes
We recommend to change the head cables when installing a new printhead.
Printer Compatibility:
M5000
SG6 2030
MC2512RV
Hollanders Colorbooster 320
PrintJet HYB2000
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer s responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don t accept any return and refund once the printhead is installed on the machine.
| Brand | ricoh |
| Part Number | J376-00 |
