Specofication:
Display Function: Video
Is_customized: Yes
Brand Name: LED Solution
Tube Chip Color: Full Color
Model Number: Hub08
Pixels: all pixels
Usage: all led screens

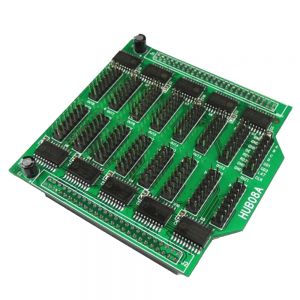

Name: Hub08 Adapter, hub card for led screens
Color: full color
Work with sending card:linsn sending card TS801 TS802,Nova card MSD
Working with receiving card: linsn RV801, RV901, RV908, Nova card
Description:
Hub08 card, hub card for LED displays, stable good quality adapter.
1. All pin gold-plated with copper (plating thickness of 0.8u)
2. Driver chip (74HC245) with SM or NXP
3. PCB using FR4-V0-level glass plate
4. Output interface for the 2.54mm-2 x 8P
5. interface specification:
| Model | LED-KZK-HD-HUB08-16 | ||
| NO. | Definition | NO. | Definition |
| 1 | GND | 2 | A |
| 3 | GND | 4 | B |
| 5 | GND | 6 | C |
| 7 | OE | 8 | D |
| 9 | DR1 | 10 | DG1 |
| 11 | DR2 | 12 | DG2 |
| 13 | GND | 14 | LAT |
| 15 | GND | 16 | CLK |
