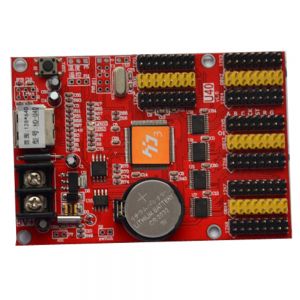

U63 is a U-disk series control card, through the USB port to update the program. Cost-effective, simplesoftware to operate, better and richdisplay effect, supported variety of monochrome display.
Specification:
Flash Capacity: 2M Byte(Can be expand 8M)
Communication Port: U-Disk to edit and updated programs
Signal Port: 8 OF HUB12 , 4 OF HUB08
Program Quantity: 1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)
Area Quantity: 8 areas with separate zone, and separated special effects and border
Display Showing: Text, Hypertext (GIF, Picture, Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program Modes: Playing by Sequence or by Remoter or by Button
Display effects:
1. Support all languages(Software :HD2016)
2. Support 7 color effects and 64 colors Gray level (HD-U62/U63/U64)
3. Border functions of Program border, area border and Custom design border.
4. Add Countdown /Count up, Button Countdown / Count up
5. Add Text Rotation of 90°,180°, 270° for display; Text function of Hollow,Stroke etc
6. Add payment collection function
7. Updated program by U-disk
8. More than 200 types showing effects
9. Support Second develop SDK
10. More high brightness, more moving speed ,more refresh
Time / Clock /Count Function:
1. Support Digital Clock/ Dial Clock / Lunar Time/
2. Countdown /Count up, Button Countdown / Count up
3. The font,size,color and position can be set freely
4. Support multiple time zones
Digit Function:
1. Used in Parking place,Scoring device,Calculate by piece.
2. From Minimum to Maximum, from Maximum to Minimum
Expand function: Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs
Brightness Control: Brightness setting by Custom,Automatic(weld sensor) ,by time period regulation
Automatic close /open display: Support close /open display by time automatically
| Model Number | LED-KZK-HD-U63 |
| Support module | Single color, Various conventional scanning methods |
| Control range | Single color: 512W*128H |
| Resolution | Dual color: 256W*128H |
| FLASH Capacity | 4M Byte |
| Communication Port | U-Disk |
| HUB signal | 8HUB12,4HUB08 |
| Program Quantity | 1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs) |
| Area Quantity | 20 areas with separate zone, separated special effects and border |
| Display Showing | Text, Hypertext (GIF, Picture, Animation Character, SWF, Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc |
| Display effects | 1, Support all languages(Software :HD2018, HD2020) |
| 2, Border functions of Program border, area border and Custom design border. | |
| 3, Add Countdown /Count up, Button Countdown / Count up | |
| 4, Add Text Rotation of 90°, 180°, 270° for display | |
| Text function of Hollow, Stroke etc | |
| 5, Add payment collection function | |
| 6, Updated program by U-disk | |
| 7, More than 200 types showing effects | |
| Clock function | 1, Support calendar, analog clock, lunar calendar |
| 2, Is timing, countdown display | |
| 3, Display font, size, location, etc. can be arbitrarily set | |
| 4, Support for multiple time zone display | |
| Extended Equipment | Brightness setting by Custom, Automatic(weld sensor), by time period regulation |
| Automatic switch Screen | Support on /off display automatically by time |
| Dimming | Support two brightness adjustment mode |
