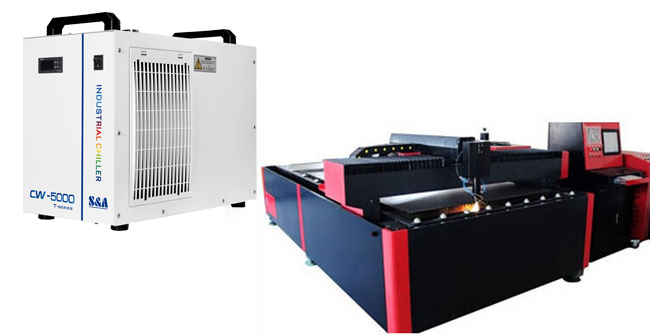

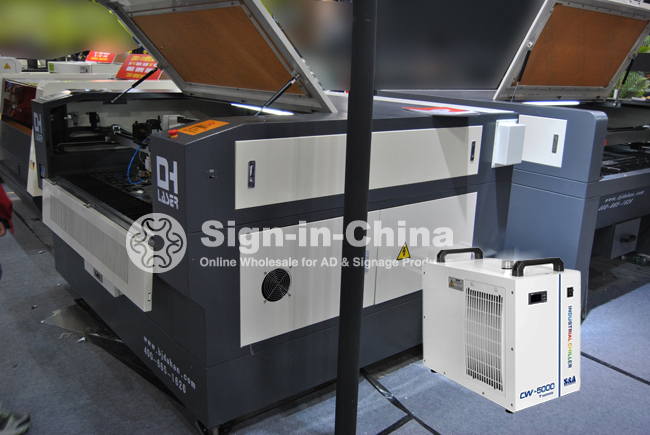

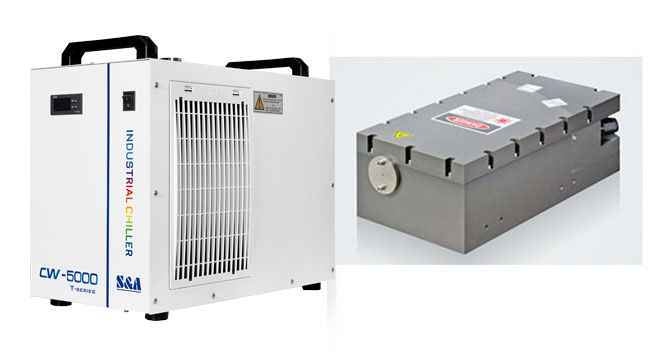

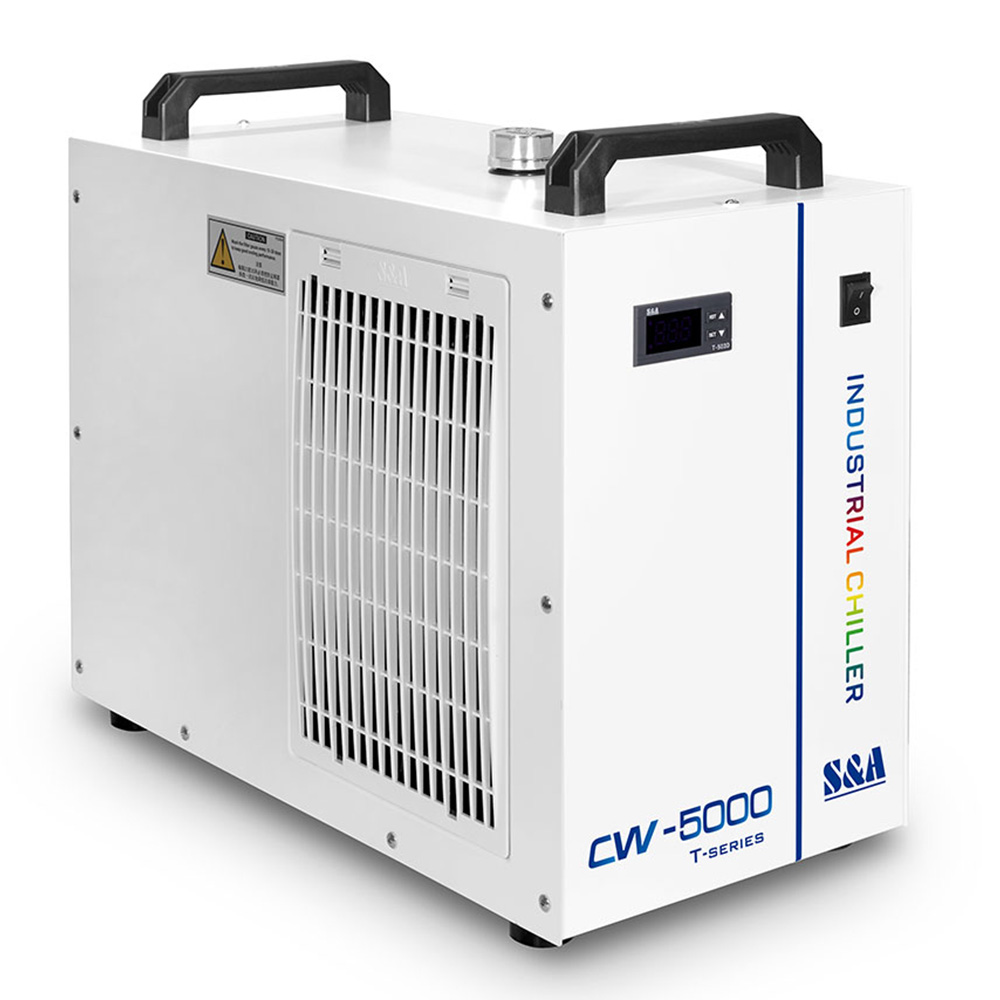

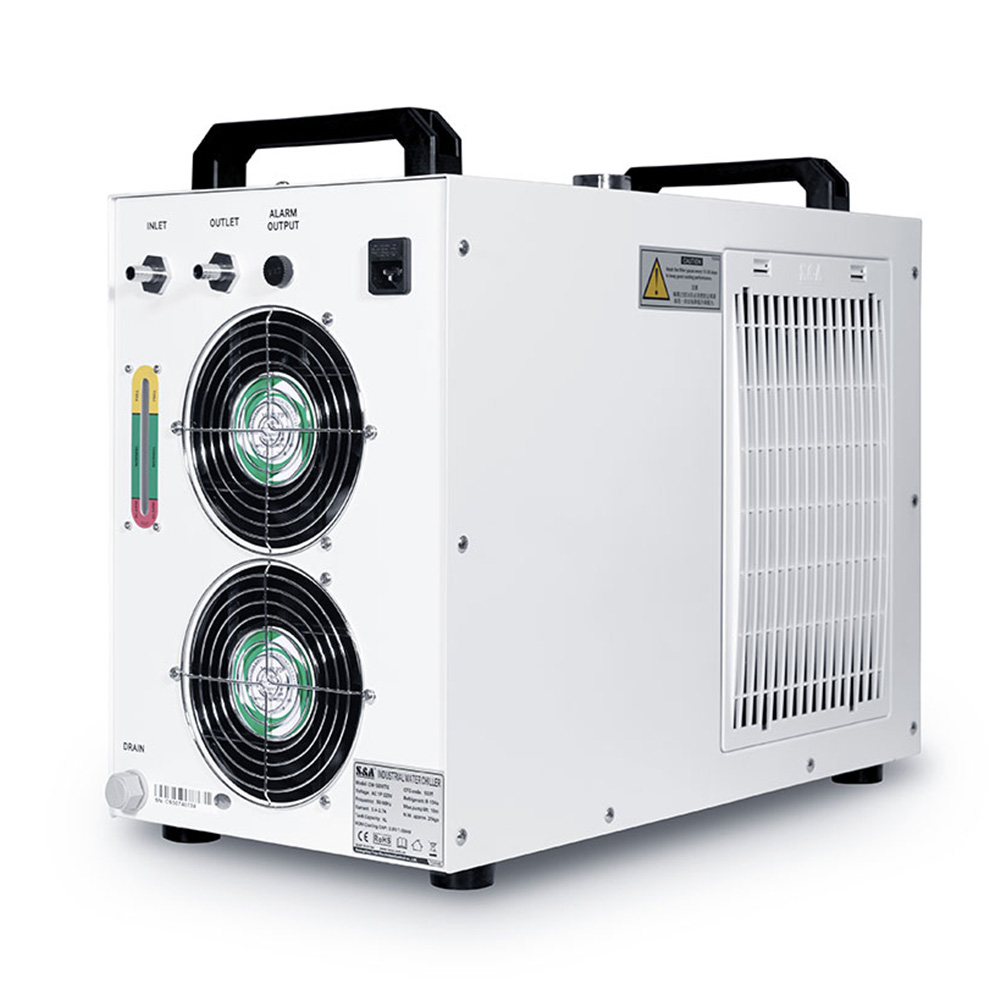

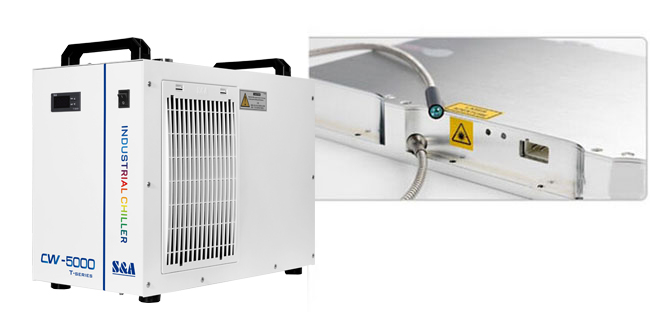

It is designed for cooling the one CO2 glass laser tube under 150W of the laser engraving and cutting machine. (Its emitting rate is higher than 60 %.)

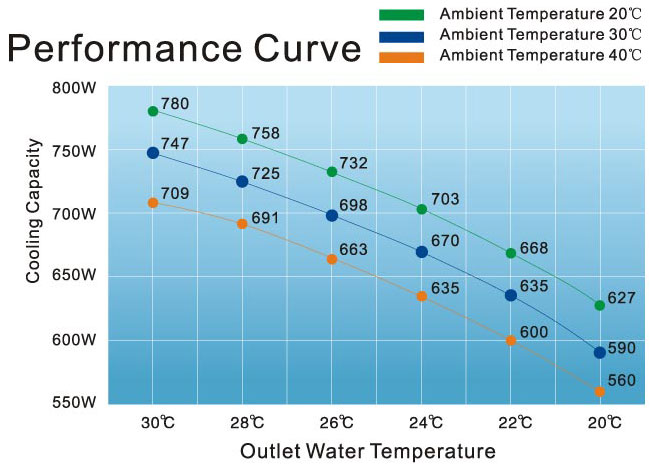

Cooling capacity is 800W.
Have design patent Certificate, CE and RoHS Certificate.
This Water Chiller has been sold largely to Europe, South America, Asia and other markets.
Economic cooling equipment, easy to install and operate, compact and easily movable.
Features:
• It is suitable for cooling the laser tube under 150W, and the temperature can be adjusted precisely.
• You can choose different models according to local voltage and frequency.
• It can extend the using life of laser tube and ensure the engraving effect better.
• With completed water flow and over high temperature alarm functions
• It can control the water temperature, precision is ±0.3℃, which provide stable working conditions for laser devices.
• Multiple alarm function: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
• This series of water chillers adopt intelligent controller, which need not adjust the control parameters under normal
circumstances, it will automatically adjust control parameters according to room temperature changes, to meet the cooling requirement.
• CW-5000 water chiller has unique low flow alarm protection function, which ensures the cooling water cycle working safely.
• Specific disconnection alarm securing protection.
• Enclosed water tanks, water used for a long time.
• Equipped with alarm output port, can quickly protect sensitive components.
• High cost performance, low failure rate.
• Multiple power specifications; CE approval; RoHS approval.
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the Accessories box before running the chiller.

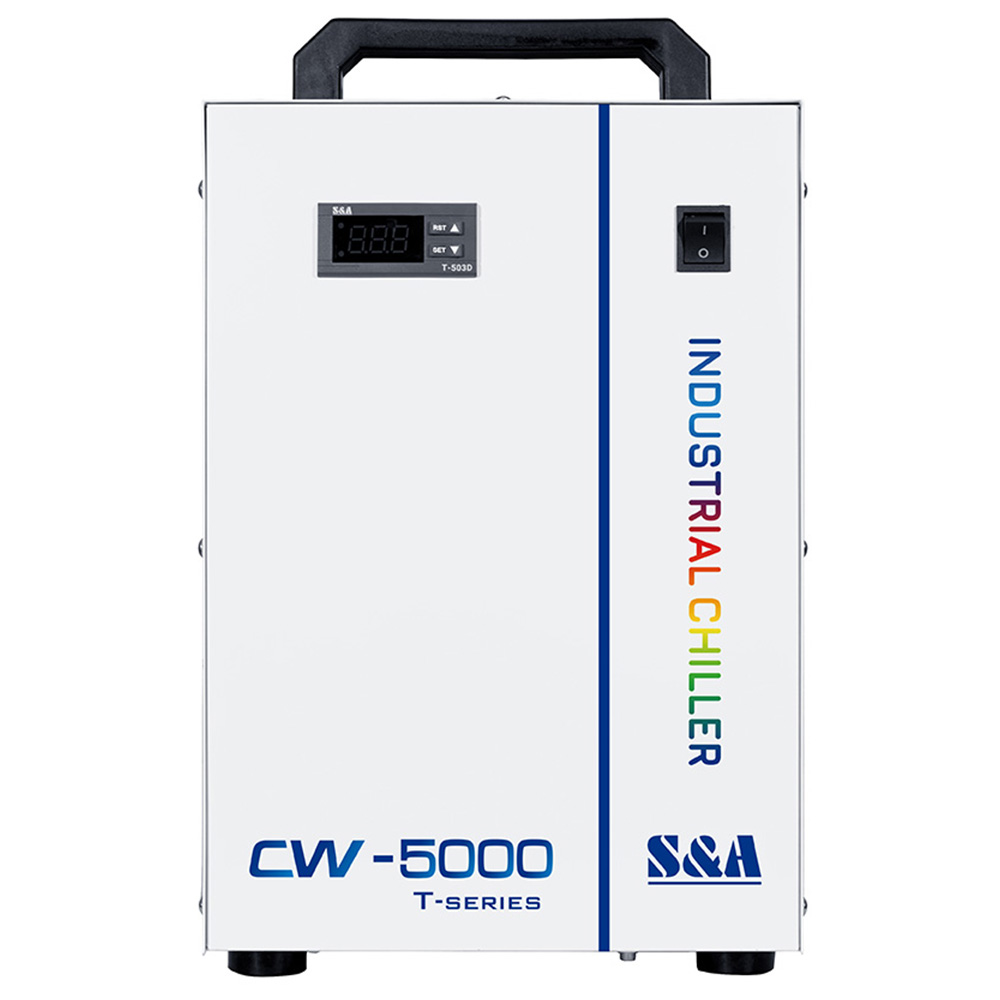

User-friendly control panel
The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

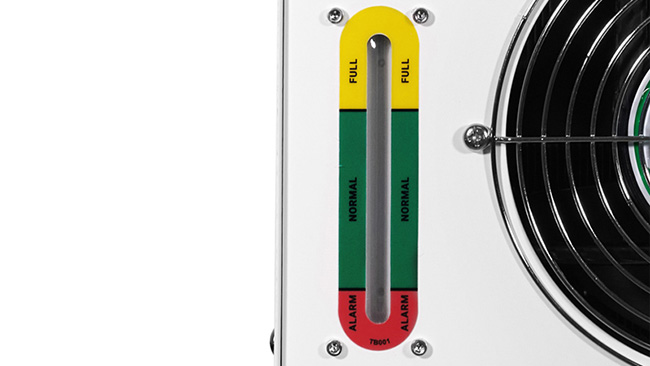

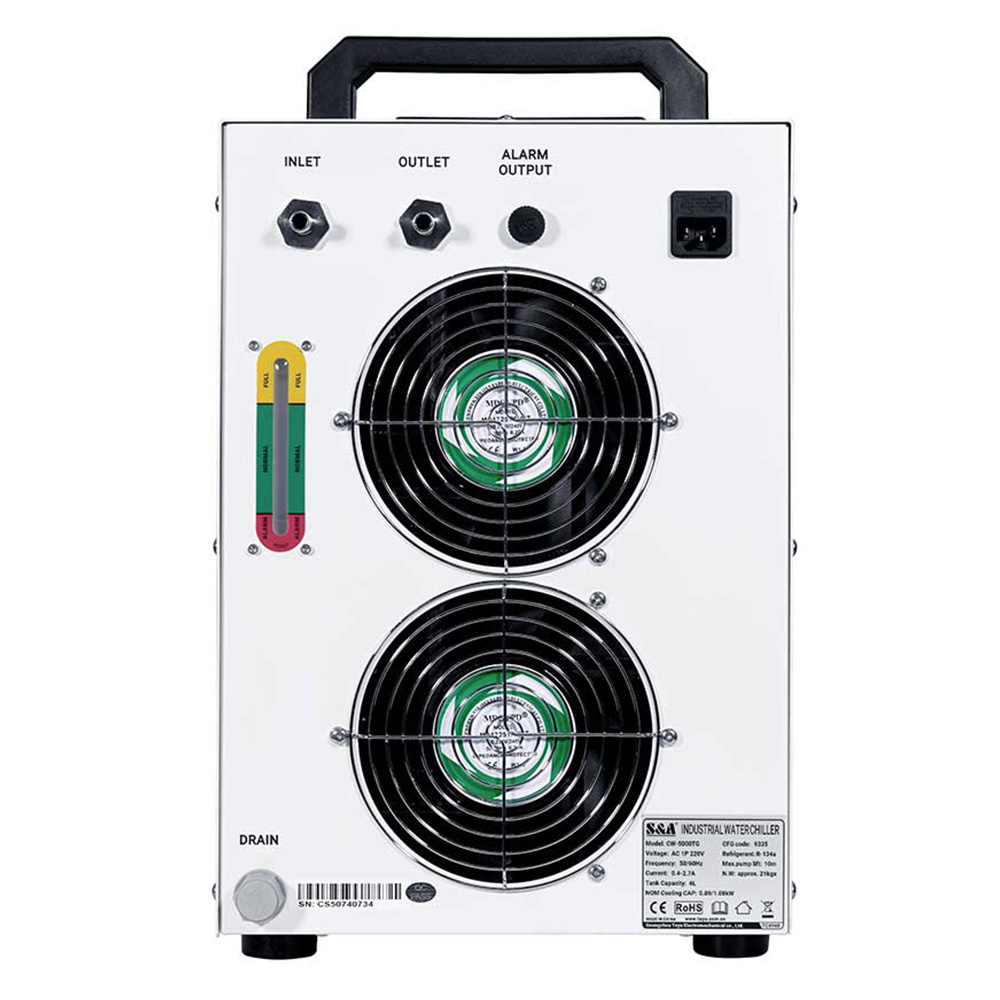

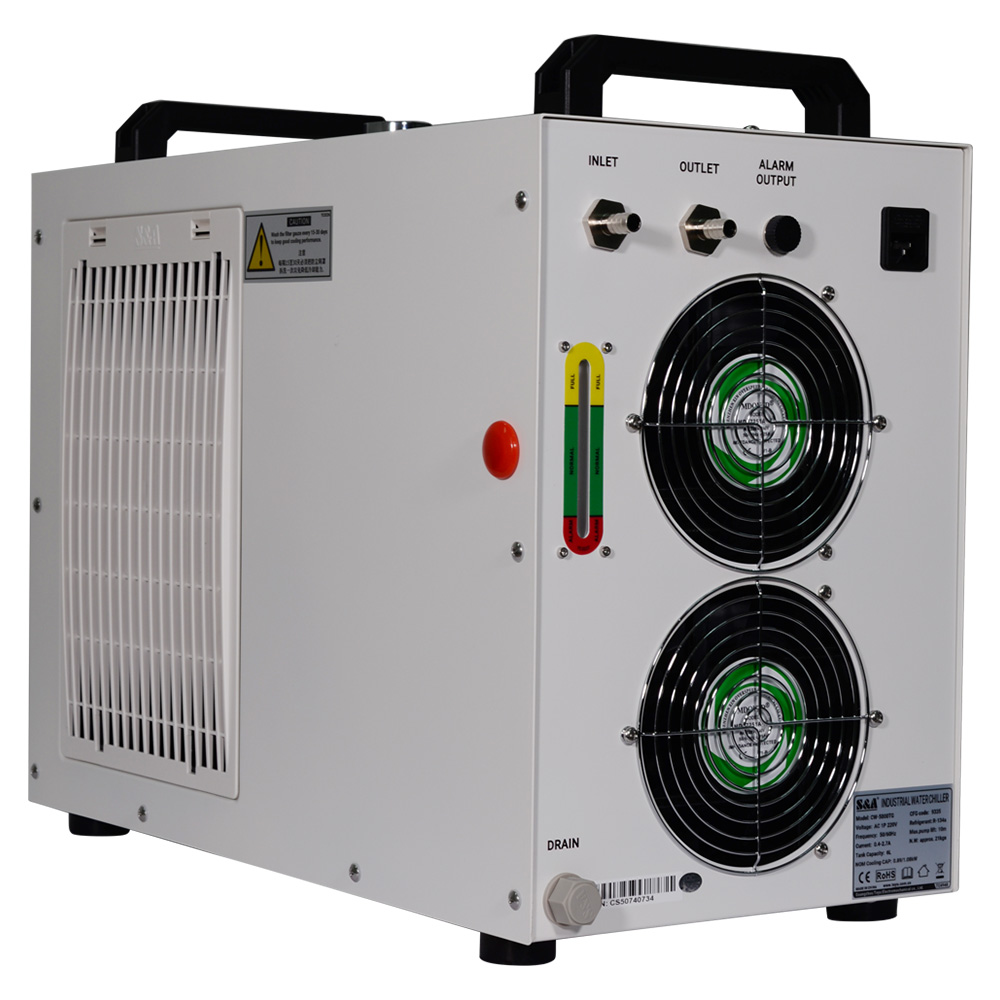

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

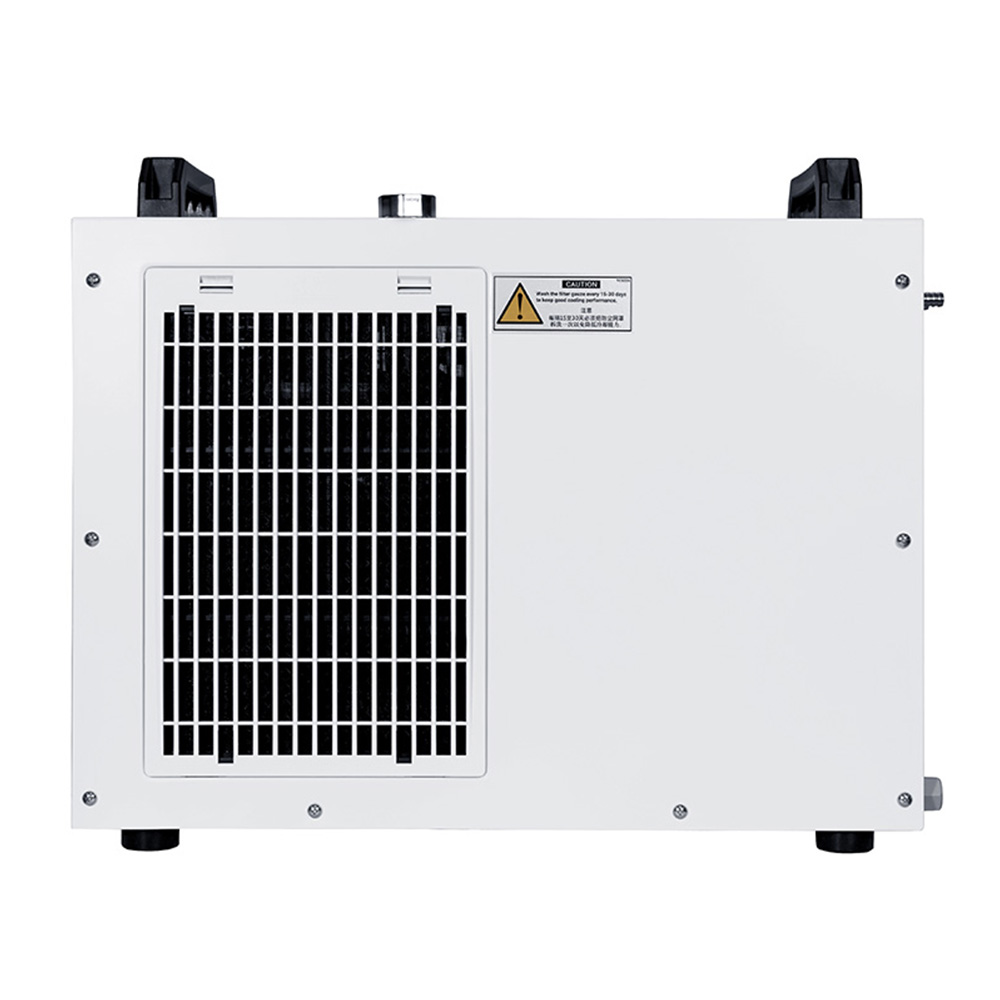

Dust-proof filter
Integrated with the grill of the side panels, easy mounting and removal.
Ease of moving and water filling
The firm handle can help move the water chillers easily.
Ventilation Distance
Alarm Function’s Description:

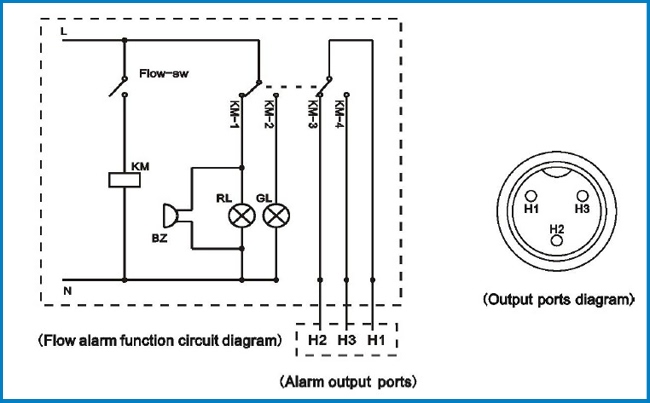

Flow alarm and output ports:
In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-5000series chillers possesses an unique low flow alarm protection.
The cooling water circulation loop alarm causes and the work of the state table
Normal Flow
Indicator
Flow Alarm
Indicator
Buzzer
Output Ports
Hi, H2
Output Ports
H1, H3
Circulating pump works properly
ON
OFF
NOT RING
DISCONNECTION
BREAKOVER
Blocked cooling water circulation loop
OFF
ON
RING
BREAKOVER
DISCONNECTION
Alarm of water shortage
OFF
ON
RING
BREAKOVER
DISCONNECTION
Faulted circulating pump
OFF
ON
RING
BREAKOVER
DISCONNECTION
Power interruption
/
/
/
BREAKOVER
DISCONNECTION
Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.

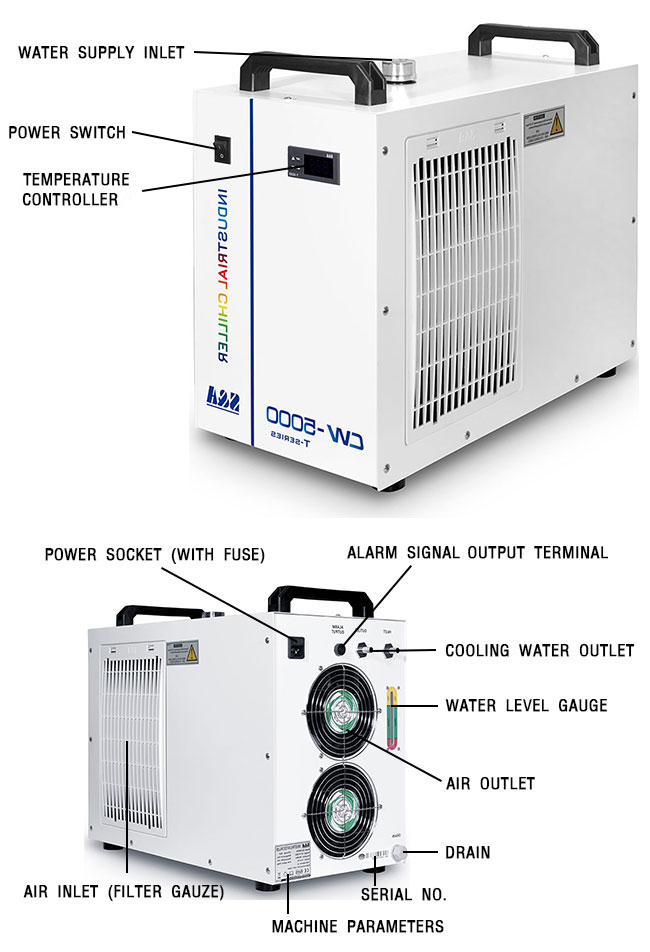

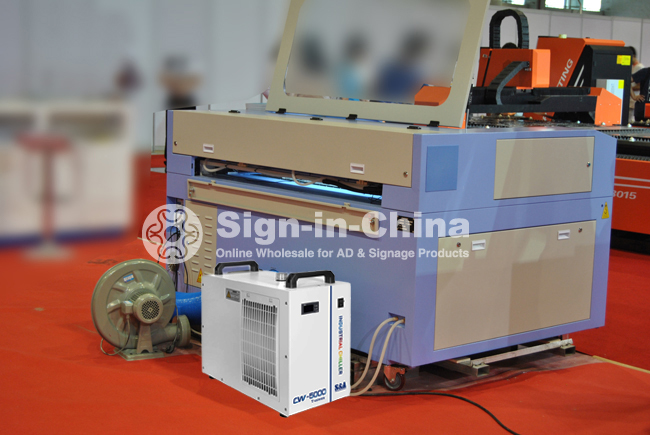

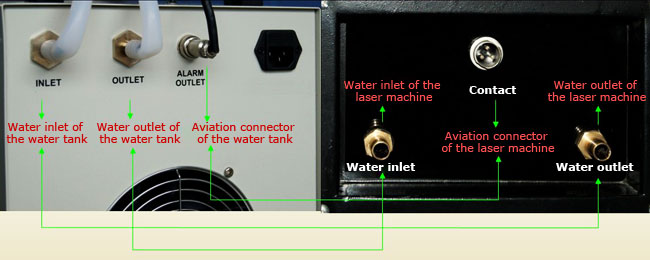

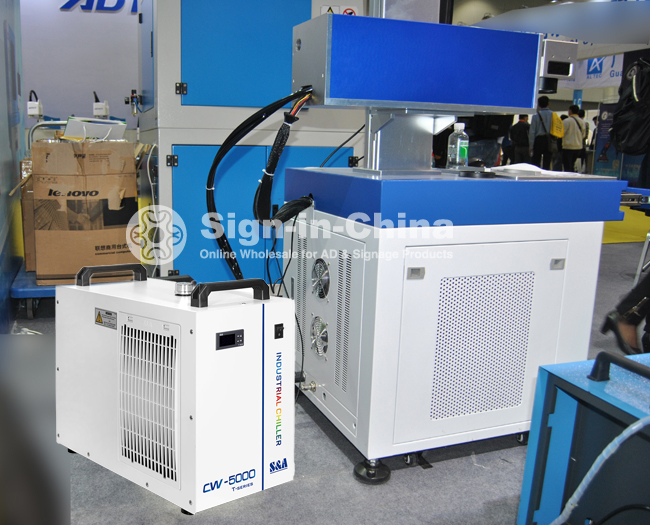

Fill the water tank with purified water. Connect the water inlet of the water tank to the water outlet of the laser machine and connect the water outlet of the water tank to the water inlet of the laser machine. Connect the signal line of the water tank with that of the laser machine. Please see pictures below.

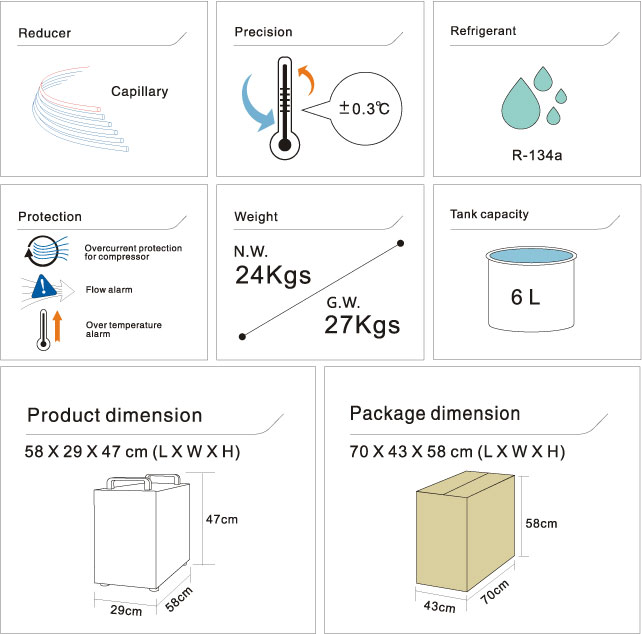

Quality Report:
| Temperature Control Range | 5~35℃ |
| Temperature Precision | ±0.3℃ |
| Flow Rate | 10L / min |
| Pressure | 10M |
| Cooling Capacity | 0.84KW |
|
Model |
CW-5000DGTY |
|
Power Supply |
AC 1P 110V, 60Hz |
|
Current |
0.4~5.2 A |
|
Machine power |
0.47kW |
|
Compressor Power |
0.36kW |
|
0.48HP |
|
|
Refrigerating Capacity |
3514Btu/h |
|
1.03kW |
|
|
885Kcal/h |
|
|
Refrigerant |
R – 134a |
|
Refrigerant Charge |
280g |
|
Precision |
±0.3℃ |
|
Tank Capacity |
6L |
|
Reducer |
Capillary |
|
Protection |
Over current protection for compressor, flow alarm, over temperature alarm |
|
Pump Power |
0.03KW |
|
Maximum Flow |
10L / min |
|
Pump pressure |
1bar |
|
Inlet and Outlet |
OD 10mm Narbed connector |
Alarm function:
|
E1
|
E2
|
E3
|
E4
|
E5
|
|
Over high room temperature
|
Over high water temperature
|
Over low water temperature
|
Room temperature sensor failure
|
Water temperature sensor failure
|
|
Order
|
Code
|
Project Setting
|
Range
|
Factory
Setting
|
Notes
|
|
1
|
F0
|
Temperature setting
|
F9 – F8
|
25
|
Constant temperature control effecting
|
|
2
|
F1
|
Temperature difference values
|
-15 - +5
|
-2
|
Intelligent control effecting
|
|
3
|
F2
|
Cooling hysteresis
|
0.1 – 3.0
|
0.8
|
|
|
4
|
F3
|
Way of control
|
0 - 1
|
1
|
1: intelligent
0: constant temperature
|
|
5
|
F4
|
Alarm for over high water temperature
|
1 - 20
|
10
|
|
|
6
|
F5
|
Alarm for over low water temperature
|
1 - 20
|
15
|
|
|
7
|
F6
|
Alarm for over high room temperature
|
40 - 50
|
45
|
|
|
8
|
F7
|
Password
|
00 - 99
|
8
|
|
|
9
|
F8
|
The allowed highest water temperature
|
F0 - 40
|
30
|
|
|
10
|
F9
|
The allowed lowest water temperature
|
1 – F0
|
20
|
|
Average Rating: 0
|
Machine Dimension
|
580mm x 290mm x 470mm (22.8" x 11.4" x 18.5")
|
|
Machine Weight
|
18kg (39.7lb)
|
|
Package
|
Carton box
|
|
Packing Size
|
650mm x 360mm x 510mm (25.6" x 14.2" x 20")
|
|
Gross Weight
|
20kg (44.1lb)
|
P.S.: cooling water additive is forbidden by express company, so we could not put it into the package. You can buy it from local.
Caution: The appliance is not to be used by children or persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction,
children supervised not to play with the appliance!
Package:
1.How to change the temperature controller-Water Chiller CW5000
2.CW 5000 water chiller
Comprehensive guarantee for one year except the wearing parts
24 - hour technical support by email or calling
English user manual for machine using and maintaining
Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
