Specifications:

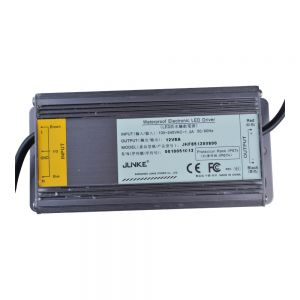

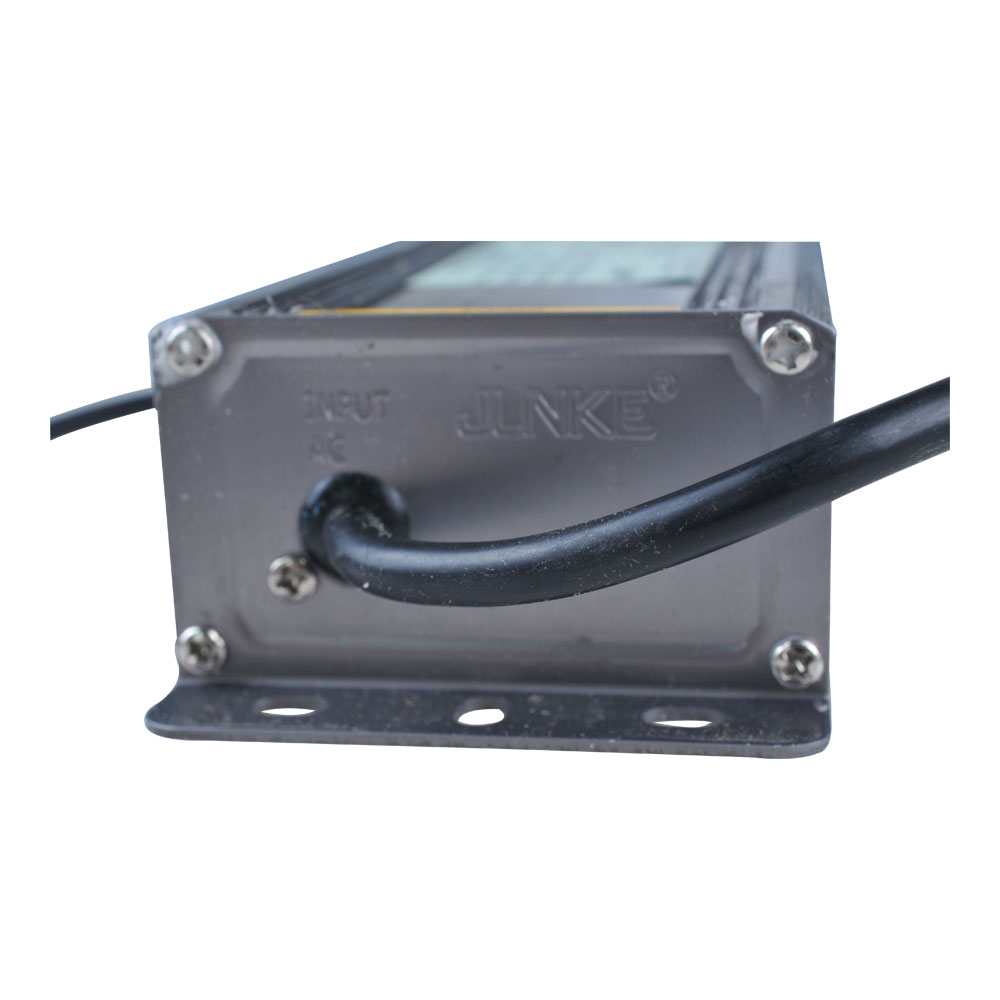

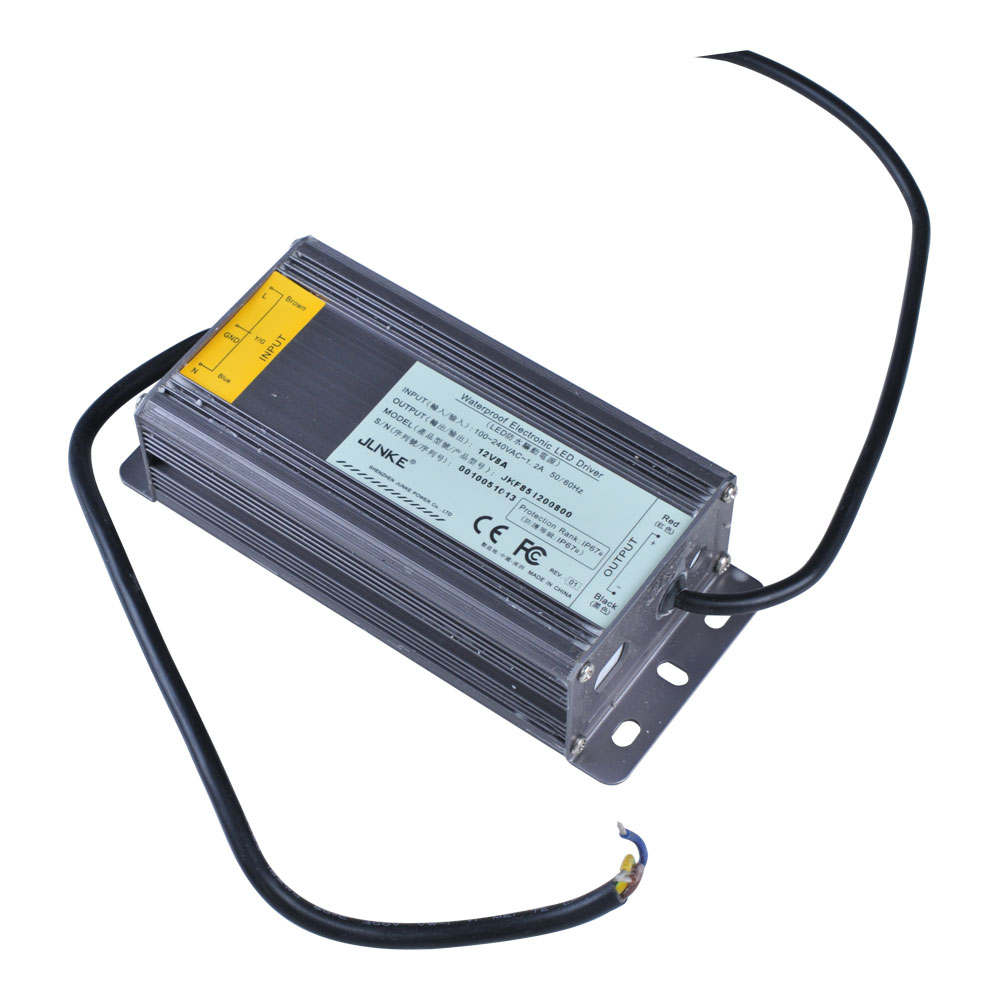

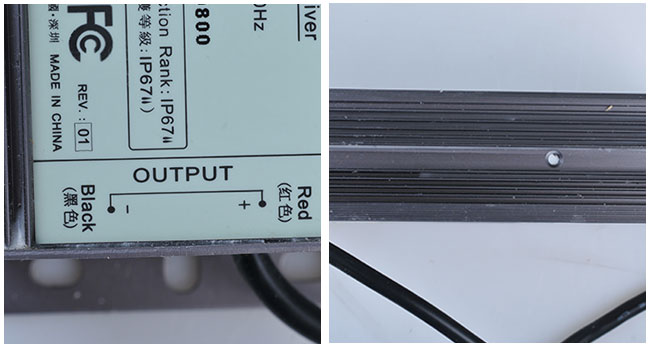

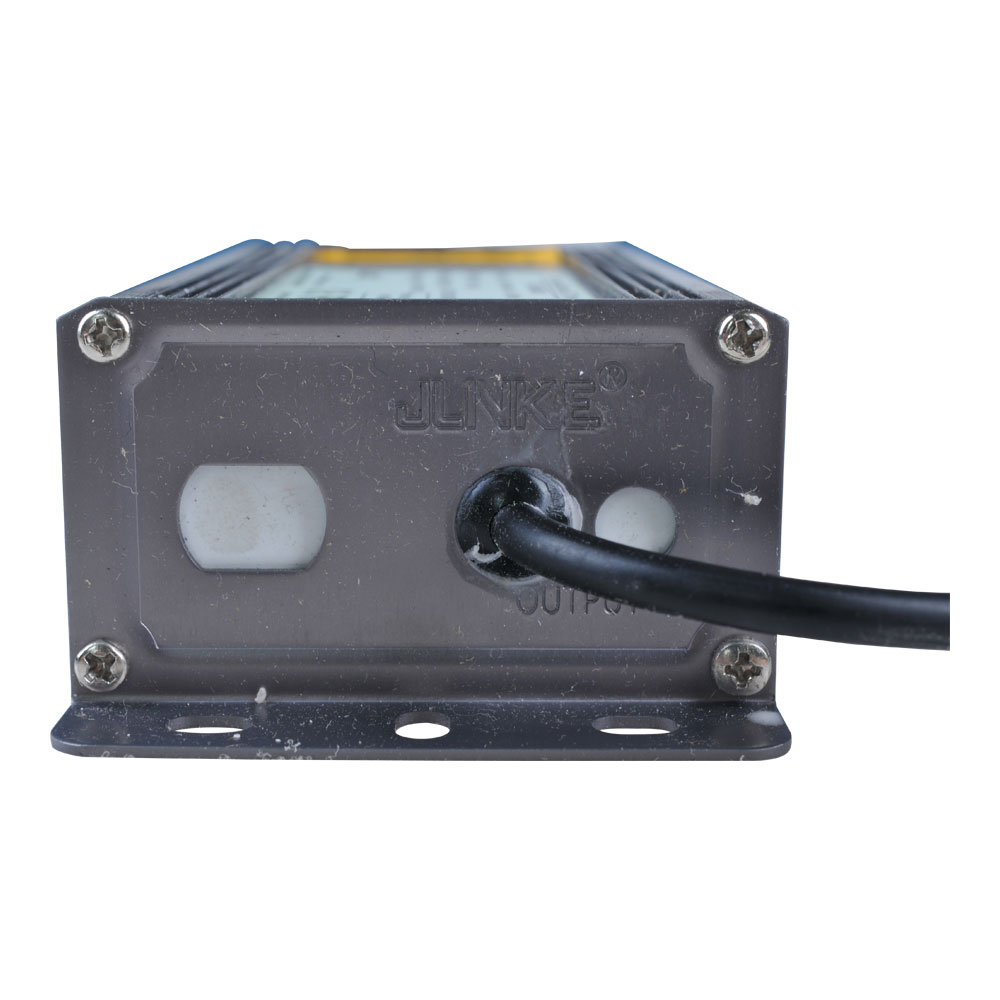

• Waterproof IP67 LED Driver Transformer 100 Watt 12V 8A Power Supply
• Available Constant Voltage
• white paper box
• Input: AC110V-230V
• Output: 12V 8A Power Supply
• Product Size: 155 x 68 x 40mm
Feature:
• Universal AC input/Full range (up to 305VAC)
• Protections: Short circuit/Over current/Over voltage/Over temperature
• Cooling by free air convection
• OCP point adjustable through output cable or internal potentiometer
• IP67 design for indoor or outdoor installations
• Three in one dimming function (1~10Vdc or PWM signal or resistance)

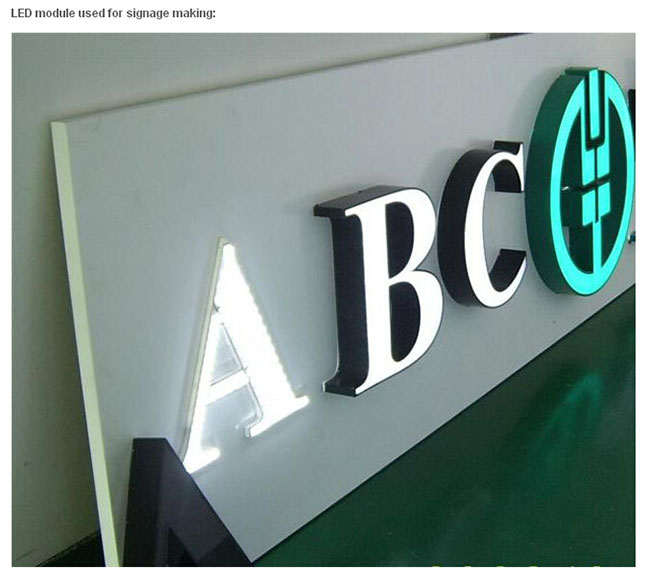

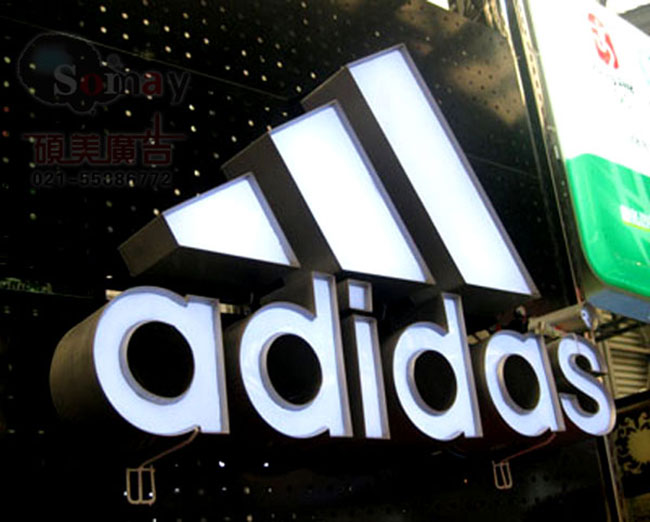

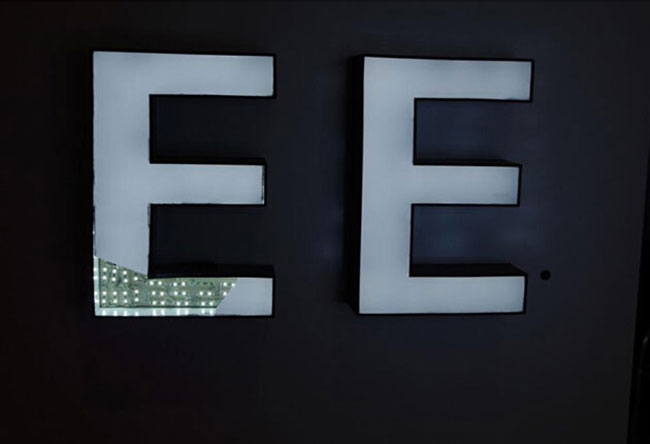

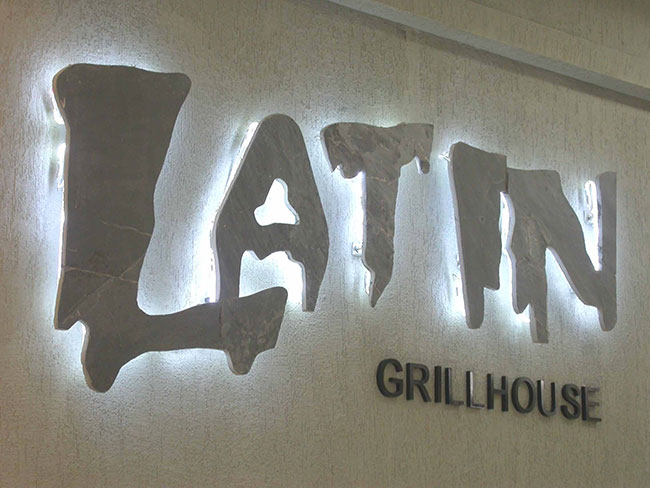

• Suitable for LED lighting and street lighting applications
• Compliance to worldwide safety regulations for lighting
• Suitable for dry/damp/wet locations
Quality Report:
| Model | SIC-PW-JK96WWF | |
| Output |
DC voltage |
12v |
|
Rated current |
8a |
|
|
Rated power |
96w |
|
|
Ripple & noise (max) |
150mvp |
|
|
Current range |
can be adjusted by internal potential meter or through output cable |
|
|
8~16a |
||
|
Voltage tolerance |
±2.5% |
|
|
Line regulation |
±0.5% |
|
|
Load regulation |
±2.0% |
|
|
Setup, rise time |
2500ms,80ms at full load 230vac /115vac |
|
|
Hold up time (typ) |
15ms at full load 230vac /115vac |
|
| Input |
Voltage range |
90 ~ 264VAC /127 ~ 373VDC |
|
Frequency range |
47~63Hz |
|
|
Power factor |
PF>0.95/230VAC PF>0.98/115VAC at full load and rated output voltage PF > 0.9 at 65 ~100% load | |
|
Efficiency(typ) |
90% |
|
|
Ac current |
4A /115VAC 2A / 230VAC |
|
|
Inrushcurrent(typ) |
COLD START 75A/230VAC |
|
|
Leakage current |
<0.75mA /240VAC |
|
| Protection |
Over current |
95 ~ 108% |
|
protection type: constant current limiting,recovers automatically after fault condition is removed. |
||
|
Short circuit |
hiccup mode,recovers automatically after fault condition is removed. |
|
|
Over voltage |
13.5 ~ 16v |
|
|
protection type:shut down and latch off o/p voltage, re-power on to recover |
||
|
Over temperature |
105°c ±5 (tsw1) |
|
|
protection type:shut down o/p voltage, recovers automatically after temperature goes down. |
||
| Environment |
Working temp |
-30 ~ +60°C at full load;+70c at 60% load (refer to derating curve. |
|
Working humidity |
20 ~ 95% rh (non-condensing) |
|
|
Storage temp, humidity |
-40~+80°c,10~95% rh |
|
|
Temp coefficient |
±0.03%/ (0 ~ 50°C ) |
|
|
Vibration |
10 ~ 500hz, 5g 12min/1cycle, period for 72min.each along x, y,z axes |
|
