Note: Ideal for non-metal board materials, of 2000×3000mm (79"×118")
Main Function: Cut
Applications: This series large format laser engraving machine is convenient for advertisement decoration, art, cutting of template, toys and other industries. This machine is specialized in cutting boards.
If this machine is equipped with honeycomb working table, material conveyer belt and automatically roller, it is very fit for cutting rolling cloth and leather.
Materials that can be engraved:
Cutting: Acrylic, board, wood model, textile, and leather. Engraving: fur.
Product Highlights:

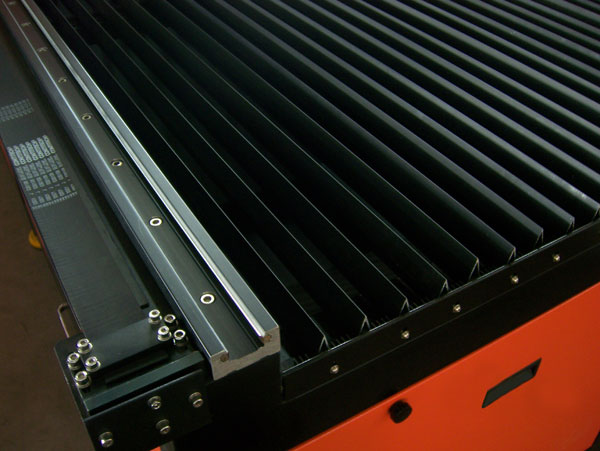

- This laser cutting machine is equipped with knife shape aluminum rib working table, which can avoid producing defective products due to the reflection of rib pieces when cutting acrylic and wood, it also makes the finished products fall below the drawer. This equipment is more suitable for cutting board.
- This laser cutting machine have the function of cutting, engraving and scanning on large scale.
- The exhaust system can satisfy multiple cutting request.

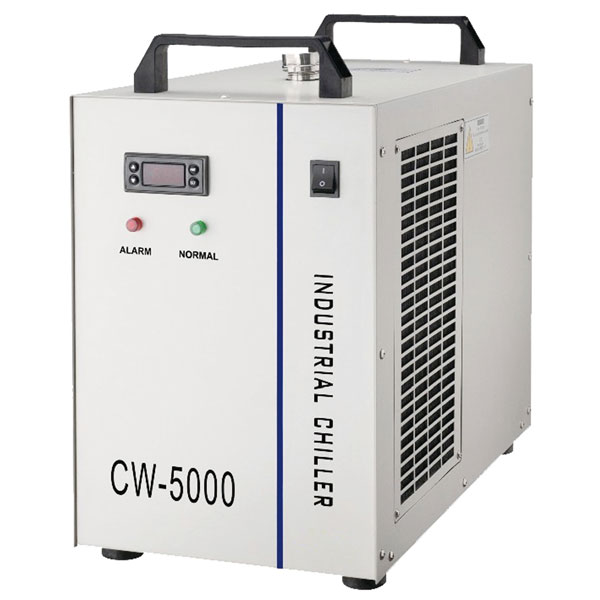

- Equipped with high quality Water Chiller, which can assure the efficiency of cutting and more convenient to maintain.

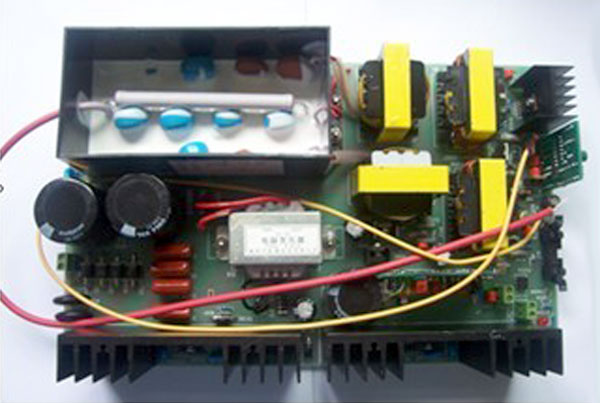

- Power Source is the core technology, this laser engraver adopts original alterable internal resistance mode instead of traditional PWM pulse width modulation mode. The new power source mode has more powerful internal resistance, higher stability and higher reliability, which can raise good ballast effect.

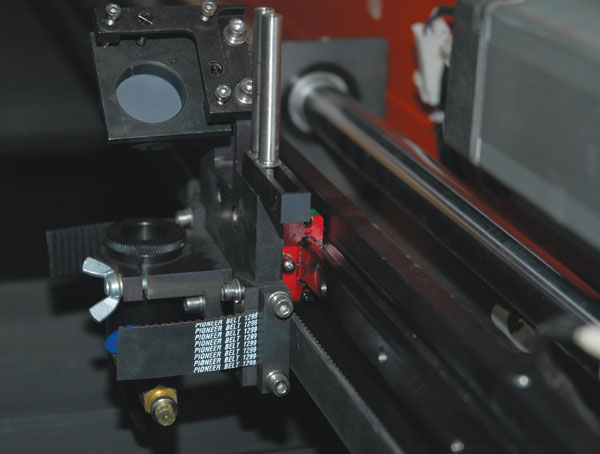

- Pen type laser head, it is easy to adjust the focus, and it is also installed with gas blow device, which assures the laser head keep on doing working.

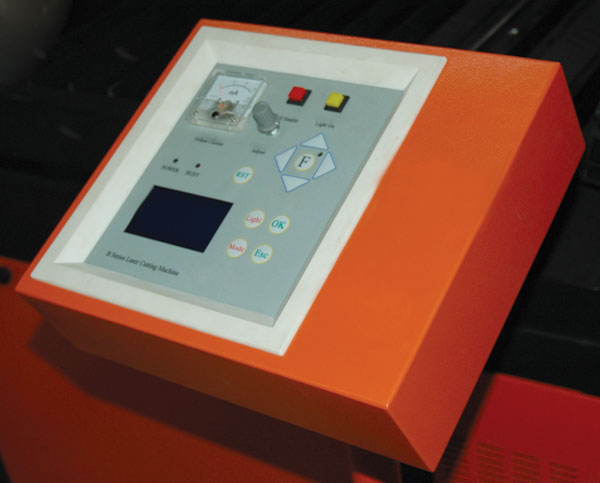

- The LCD display control panel makes easy to operate and ensure your safety.
- The laser cutting machine uses a light beam as the engraving or cutting tool, so no part of the machinery actually touches the material when is being cut. There is no need of a special system to hold down your engraving and cutting material.
 |
 |
 |

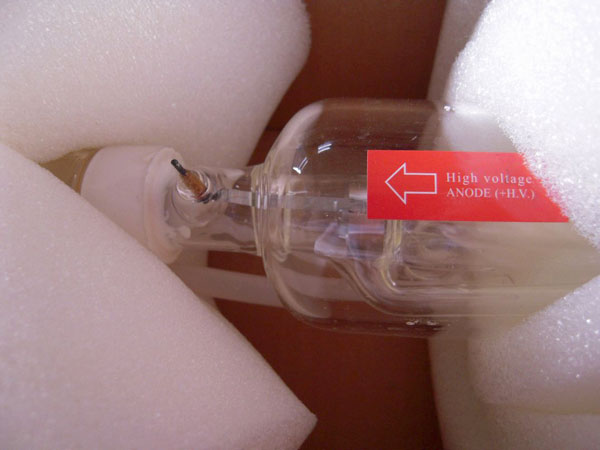

| Glass tube | Water chiller | knife shape aluminum rib worktable |
 |
 |
 |
| Power Source | Pen type laser head | Controller |
Spare Parts:
Glass laser tube 80W (length: 1.6m) (add an extra USD $529 to the price)
Reflective mirror (Dia.: 30mm) (add an extra USD $35 to the price)
Focus lens (Focus length: 63.5mm) (add an extra USD $98 to the price)
Warranty and Aftersales Service:
One year warranty except for spare parts.
24-hour technical service support by email or calling.
User-friendly English manual for machine using and maintenance.
Samples:
.jpg)
| Support Image Format | BMP, PLT, compatible with many file format in Windows system, like AI, CorelDraw, Photoshop, AutoCAD, etc. |
| Engraving Precision | 0.0009" (0.025mm) |
| Max. Engraving Speed | 0-787.4" (20000mm)/min (adjustable) |
| Laser Power | CO2 glass tube 80W (Nomal using life: about 1000 hours) |
| Effective Engraving Area | 51.2" x 98.4" (1300 x 2500mm) |
| Working Size | Large Format |
| Product Model | LCM-FB-1325 |
| Maximum Cutting Area | 51.2" x 98.4" (1300 x 2500mm) |
| Laser Power | CO2 glass tube 80W (Normal lifespan: about 1000 hours) |
| Maximum Cutting Speed | 0-787.4" (20000mm)/min (adjustable) |
| Maximum Cutting Thickness | 30mm for acrylic |
| Resolution | ≤4000dpi (4000dpi is the best) |
| Positioning Precision | 0.0009'' (0.025mm) |
| Motor | Servo motor |
| Power | 1100-5000W |
| Cooling method | Water cooling and protection system |
| Supported Image Formats | BMP, PLT, compatible with many file format in Windows OS, such as AI, CorelDraw, Photoshop, AutoCAD, etc. |
| Cutting Software | CSACE and print driver |
| Interface | LPT |
| Voltage | AC 220V/50Hz |
| Standard Equipment | Knife-shaped aluminum rib working table, exhaust fan, exhaust pipe, water pump, air pump, water chiller. |
| Spare Parts | Reflective mirror, lens, laser tube |
| Optional Devices | R.F. tube 50/100W (recyclable), CO2 glass tube 100W, honeycomb working table. |
| Machine Dimension | 70.9" x 114.2" x 42.5"(1800 x 2900 x 1080mm) |
| Machine Weight | 1543.2lb (700kg) |
| Packaging | Fumigation free wooden case package |
| Packing Size | 80.7" x 131.9" x 57.1" (2050 x 3350 x 1450mm) |
| Packing Weight | 3086.5 (1400kg) |
