Description:
This kind of Grommet Machine is composed of upper-lower auto feeding part, electromagnetic punching part and laser guiding part, etc. Different types of machines could be offered according to different voltages in different countries and areas.
•Automatically controlled by microcomputer.
•With four wheels carrying the machine.
•Adopting laser ray.
•Adopting electromagnetic force directly punching and finish the task, it only uses electricity in 1% second per punching.
•Time-saving and labor-saving.
•Very convenient, it can move by hand pushing. It also can be fixed on the worktop if the wheels are taking off.
•Laser ray can guide operation on precise position.
•This machine is environmental protection and energy saving.

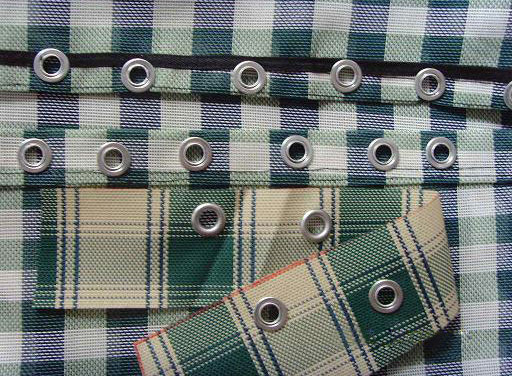

The grommet machine punches grommets on advertising materials, such as flex banner, mesh, etc. It's necessary equipment for printing industry.
• Available eyelet sizes: ID=10.4mm, OD=18.5mm.
| Model | CS-GM-ST104 |
| Max input power | Less than 150VA |
| Voltage | 110V 50HZ |
| Air requirement | 8 bar |
| Grommet speed | 1800 pcs/hour |
| Gross Weight | 55kg |
| Packing size | 15.8" x 19.7" x 23.6"(400x500x600mm) |
Note:
There are two groups of dictate button with same functions: One is on the handle; the other is on the shell of microcomputer. Every group is composed of red button, yellow button and green button. Green button is for sending grommets, red button is for operating, while yellow one is resetting. The laser light will turn on when power is on; two hoppers will operate and send to the feed canal. It will automatically stop sending until the canal is full.
| Operation Type | Semi Automatic |
| Moving Type | Moving Available |
| Model | CS-GM-ST104 |
| Max input power | Less than 150VA |
| Voltage | 110 50HZ |
| Air requirement | 8 bar |
| Grommet speed | 1800 pcs/hour |
| Gross Weight | 55kg |
| Packing size | 15.8" x 19.7" x 23.6"(400x500x600mm) |
Average Rating: 0
The Operation of Flex Banner Automatic Grommet Machine:
