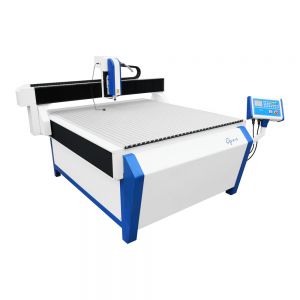

47" x 47" (1200mm x 1200mm) High Precision AD CNC Engraver

Unit Price:$4,153.00 - 4,615.00/set(Discount Notice)

Buy More, Save More!

Qty (sets) Discount Amount/set
    1 0% $4,615.00
    2 - 3 7% $4,291.00
    4 - 5 10% $4,153.00

Need more quantities, please submit a Bulk Order inquiry

Quantity:
set(s) Total Cost: USD $4,615.00

Shipping Weight: 3284.7lb (1493.05kg) freightFreight

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $4,153.00 - 4,615.00/set Order Now
Cart 0 item(s) Back to Top

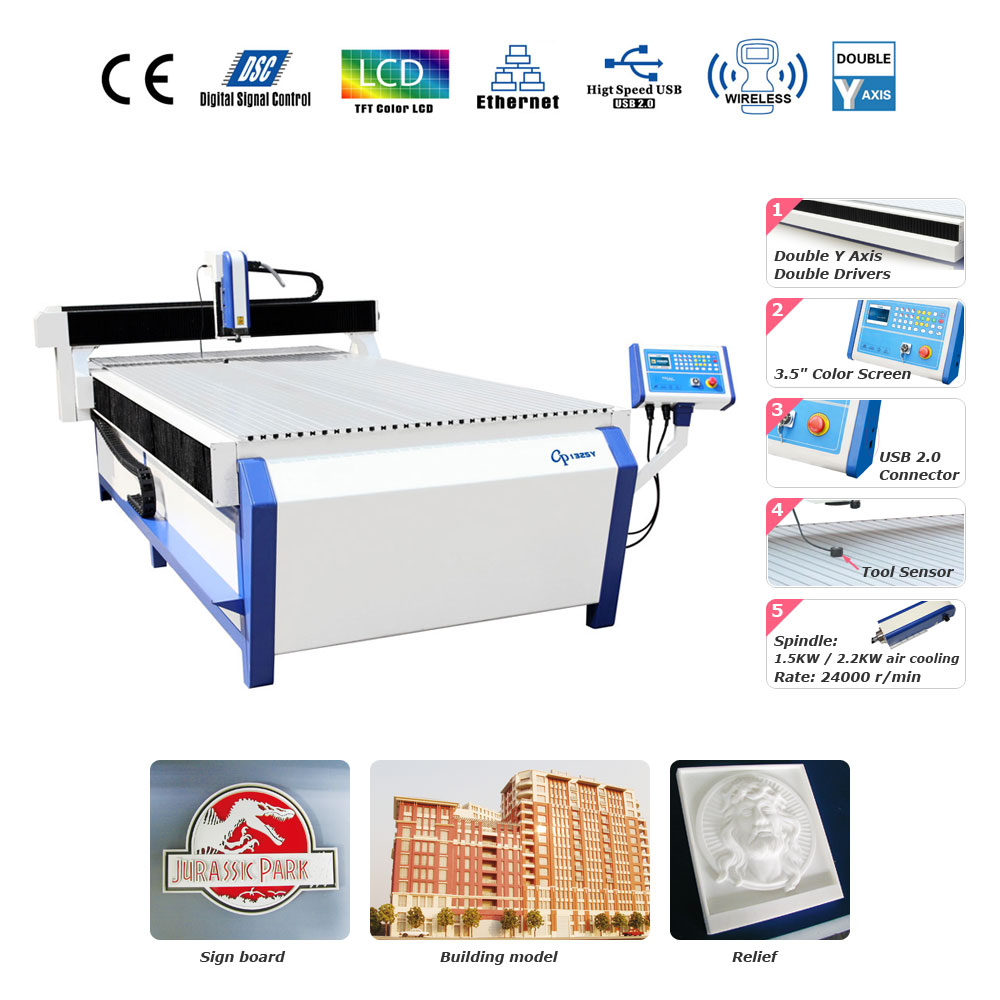

CNCR-CP-Y series engraving machine, is released for the sign advertising industry with a high performance / cost ratio. It has a new look, fast speed and high precision. It comes with DSC control system, HD LCD screen, and friendly interface.
Main Configuration Information:
Engraving Area: 1200mm x 1200mm (47" x 47")
Height of Gantry Lifting: 110mm (4.3")
Maximum Travel Speed: 7200mm (283") / min
Spindle: 1.5KW Chinese air cooled
10 pcs engraving tools
Aluminum alloy working table, circular guideway, Leadshine drivers
3.5" DSC-931 Color screen controller, stepper motor

3.5'' DSC-931 Color screen controller
With digital-to-analog conversion technology and DSC control system, data processing is much faster.
There is USB 2.0 and Ethernet port, also large flash memory inside. Document transmission and download will be easy with them.
Remote control handle
Chinese air cooled spindle, 24000rpm rate Tool sensor is guaranteed working accuracy and engraving quality.

• This series engraving machine has “Cutting at angle” function with DSC control system. “Cutting at angle” can make less chance of work piece coming loose and no trace marks. (When the tool comes to the corner, but not to the bottom, workpiese come loose quite often). More details of “Cutting at angle” function operation, please see software manual.

Applications
Billboards, dual color abs boards, miniature models, Plexiglas, wood articles, etc.

Instruction

Tool sensor is guaranteed working accuracy and engraving quality.
First confirm 0 point of engraving file (make center of engraving material as 0 point or the lower right corner as 0 point), and then decide how to put the engraving material on the working table. Next fix the engraving material up and put sensor on the it, then move X, Y, Z axis by keyboard or remote to sensor, once touched, the tool will rise automatically, at the same time the machine will remember the height as default to keep precision of process. (More details please check the manual of machine control software)


The nut and the clamp are used to fixing cutting tools on the spindle. The diameter of cutting tools should be corresponding to clamp's diameter. The clamps have Φ3.175, Φ4, Φ6, Φ8 models, except for special cutting tools.

Installation of tool


Engraving material clamping

Different tools have different engraving effect.

Drilling tool: Mainly used for carving characters, tiny material

Milling tool: Mainly used for face milling, cutting and rough processing

Knurling tool: Mainly used for special shape processing, like 3D modeling character, and special texture.

Remark: Here just some types for reference, others are based on actual items.


The machine must be installed on a flat ground. Pay attention to following tips:
• Working temperature environment 0-40℃
• Working humidity 30-75%
• Power voltage 220V + / - 10%
• Machine ground wire must be installed properly to avoid short circuit and / or damage.
• Machine should be installed in a roomy environment with plenty of space. It should not be installed near other machine, which may cause interference. The machine may not work correctly in such instances.
• Machine should be stable on all legs.
Make sure there is enough room around the machine, especially around the gantry and the controller.
1. Machine Installation - Main parts installation
Includes:
Z axis parts installation, controller installation, spindle installation, connection of all cable, and tool sensor installation, etc
More information, please refer to the User Manual.
2. Engraving Software installation, edit the image you want to process

3. Fix the workpieces onto the working table, start to process

4. Finishing work!

 Product Highlights
• It can work offline. New look, fast speed and high precision
• It uses a high speed USB 2.0 connector and can transfer at speeds up to 12MB / second.
• There is an Ethernet connector and a large internal memory, making it easy to download data.
• The new digital analog converter makes it much easier to change the speed of the spindle via the controller. The controller uses DSC technology, enhancing data processing speed.
• When the job mixes straight lines and arcs, it will make the output very smooth.
• The new controller has the same previous functions such as cutting at an angle for smoother cuts, power failure memory of the last point, restarting the job at any line, etc.
• The system has many advanced functions like ramp entry, power-off memory, restarting at any line. And also many processing modes like professional modes including Constant speed cutting, 2D mode, 3D mode, Duplicate Mode, Mirror Image Mode, Scanning Mode Drilling Mode and custom mode.


Quality report:





1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
Engraving Software Ucancam V10, Type3, Router 8, and Type3, etc.(Optional)
Type Of Worktable Aluminum slot
Repetition Precision ± 0.02mm
Interface USB / Ethernet
Spindle Power 1.5KW Chinese air cooled
Maximum Engraving Speed 7200mm (283") / min
Maximum Engraving Area 1200mm x 1200mm (47" x 47")

Essential parameter

Model CNCR-CP-1212
Repetition Precision ±0.02mm
Maximum
Engraving Area
1200mm x 1200mm (47" x 47")
Spindle Power 1.5 KW Chinese air cooled
Spindle Rate 24000r/min
Cutting Tool Diameter Ø3.175, Ø4, Ø6, Ø8
Travel of Z Axis 110mm (4.3")
Maximum Movement Speed 7200mm (283") / min
Working Table Size (X, Y) 1360mm x 1650mm (53.5" x 65")
Voltage AC220V ± 10%, 50Hz
Consumption 2.5KW
Engraving Software Type3
Interface USB / Ethernet
Type Of Worktable Aluminum slot

Note: Parameters are subject to change. Use the company technical standards as the basis.




Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Lead Time: After receiving customer's deposit, within 10 - 25 days.

Wooden Box: There is total one wooden box or pallet.

CNCR-CP-1212

Machine Dimension
1790mm x 1970mm x 1400mm (70" x 78" x 55")
Machine Weight
946lb (430kg)
Package Wooden box, Fumigation free package
Packing Size 2170mm x 2060mm x 1670mm (85" x 81" x 66")
Gross Weight 1320lb (600kg)

Main Parts List

Z axis parts pictures Description Screw and Plug Size Type of Screw and Plug Quantity
Spindle Holder M6X25 Hexagon screw 4
Spindle M6X25 Hexagon screw 4
  Spindle Dust Cover M5X10 Round head stainless steel screw 4
Spindle Power Cable 7 pin Male type plug (Positive) 1
Tool Sensor 4 pin Female type plug (Negative) 1
  Fixed Plate for the Tank Chain M4X10 Round head stainless steel screw 1
Controller parts Controller M4X15 Round head stainless steel screw 4
Single Cable 26 pin Male type plug (Positive) 1
Power Cable 12 pin Female type plug (Negative) 1
Remote 26 pin Male type plug (Positive) 1
Controller accessories Controller Support Beam M10X65 Hexagon screw 1
CD 26 pin   1
Ethernet Cable 1.5 - 3m RJ-45 1

Toolbox list
Each machine will have its own toolbox list located in the machine. The list may not have the same parts listed below as each machine has different tools.

Description Specification Quantity Remark
Toolbox 13" 1
Clamps ER16, Ø3.175mm 1 Installed on the spindle
Clamping nuts ER16 1 Installed on the spindle
Clamps ER16, Ø6mm 1
Single - head open - end wrenches H25 1
Double-head open-end wrenches 22-24 1
Inner hexagon wrenches 5mm 1
Flat tip screw drivers 6 x 100 1
Cross tip screw drivers 6 x 100 1
Flat bottom engraving bits 3.175 x 20 x 0.2 x 33 1
Flat bottom engraving bits 3.175 x 20 x 0.3 x 33 1
Flat bottom engraving bits 3.175 x 30 x 0.2 x 33 2
Flat bottom engraving bits 3.175 x 30 x 0.3 x 33 1
Half straight bits 3.175 x 1.0 x 3 x 33 1
Half straight bits 3.175 x 2.0 x 6 x 33 1
Two spiral flute bits 3.175 x 12 x 38 1
Two spiral flute bits 3.175 x 22 x 45 1
One spiral flute bits for acrylic 3.175 x 12 x 38 1
Workpiece pressing plates 1# 6 Ø8 nut, washer, T screw 8 x 45, flat pressing plate
Paint brushes 2" 1
Controller keys   2

Note: There may have some changes to the toolbox list because of updates. Please consult your toolbox list for the tools included in your toolbox.
