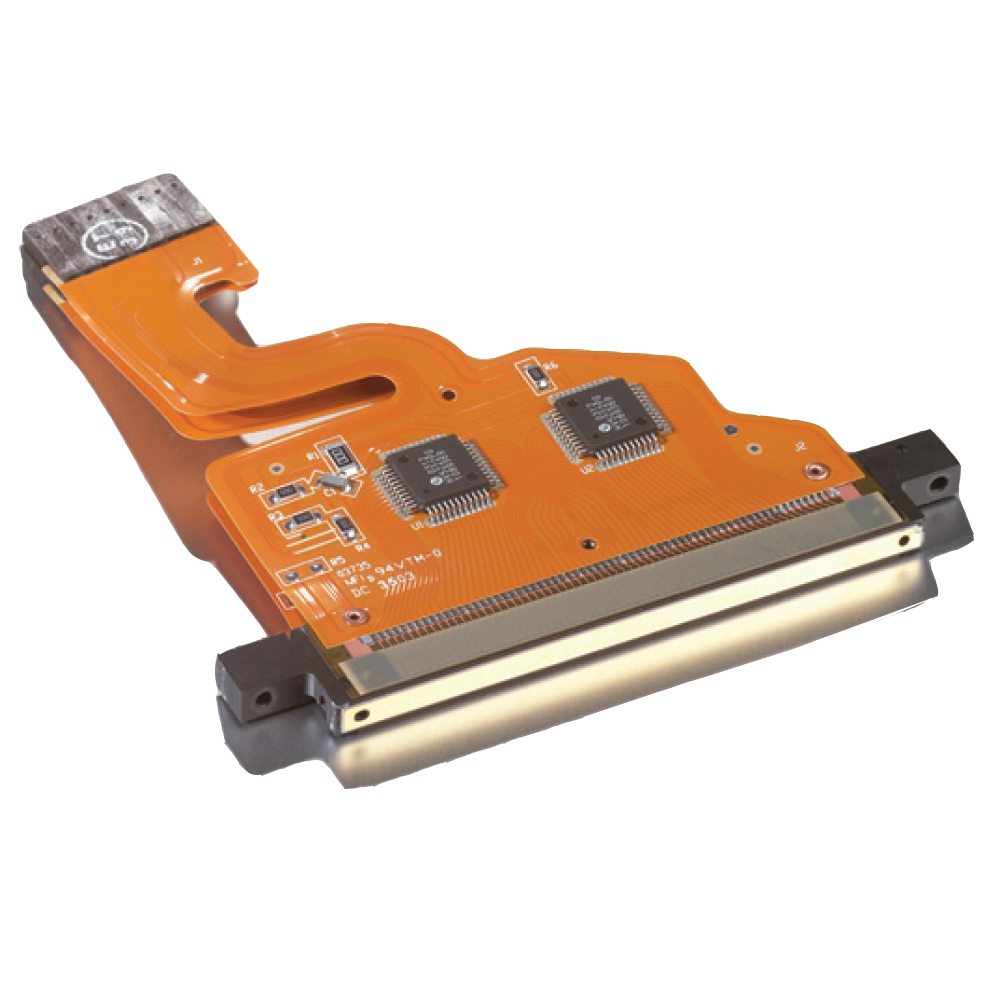

Spectra S-Class SE-128 AA Printhead
To be used with:
Agfa Columbia Turbo
Agfa Jeti 1224 UV HDC FTR / 2030 X-2 UV Flatbed / 3150 X-2 UV Flatbed / 3312 Solvent RTR / 3324 AquaJet RTR / 3324 Solvent RTR / 3324 UV RTR / 3348 Solvent HSS RTR / 3348 UV Galaxy RTR / 3348 UV Jetspeed RTR / 5024 Solvent RTR / 5024 UV JetSpeed RTR / 5048 UV XL JetSpeed
Agfa Onset S20 / S70
Agfa Spyder 320 / 320Q / V
Dilli Neo UV-LED GlassTech
Durst Rho 320R / Rhopac 160
Graphics One Fuzion UV
Luscher JetPrint 3530 UV
Spühl Virtu RS 25 / 35 / 36 / 50
Remarks: original
Description:
• The SE-128 AA is compact and light-weight 30 pL jetting assembly designed specifically for ink jet applications requiring multiple printheads packed tightly together.
• These modules are ideal for fast moving, high performance printer carriage designs.
• Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128 jets. The nozzles are arranged in a single line, at a 0.020 inch distance between nozzles. Resolutions up to 900
dpi are possible.
• These Spectra SE-128 AA heads are manufactured in the US and passed Dimatix Spectra US quality control tests to ensure the best durability.
Features:
• 30 picoliter calibrated drop size;
• Resolutions up to 900 dpi;
• 128 individually addressable, inline nozzles;
• Lightweight and highly stackable;
• Orientation independent;
• Supports solvent and UV-curable based inks;
• Dual ported for ease of flushing;
• Optional temperature control.
Specifications
- Technology: Piezo Electric
- Max. Resolution: 900 dpi
- Calibrated Drop Size: 30 picolitres
- Adj. Range for Droplet Size: 25-30 picolitres
- Number of Addressable Jets: 128
- Nominal drop velocity: 10 m/sec
- Nozzle Spacing: 508 microns
- Nozzle Diameter: 35 microns
- Firing Frequency: 40 kHz
- Operating Temperature: up to 90°C
- Ink Compatibility: Solvent and UV Inks
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
| Brand | spectra |
| Remark | Original |
