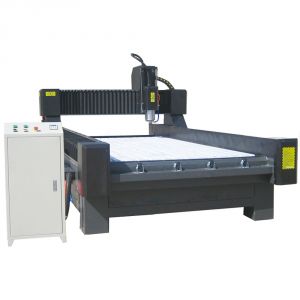

51" x 98" (1300mm x 2500mm) Heavy-Duty Stone/Glass Carving CNC Router

Unit Price:$9,289.00 - 9,289.00/set(Discount Notice)

Buy More, Save More!

Qty (sets) Discount Amount/set
    1 0% $9,289.00

Need more quantities, please submit a Bulk Order inquiry

Quantity:
set(s) Total Cost: USD $9,289.00

Shipping Weight: 6215.6lb (2825.28kg) freightFreight

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $9,289.00 - 9,289.00/set Order Now
Cart 0 item(s) Back to Top

Applications
This series of CNC engravers are mainly used for processing many kinds of hard materials such as: marble, granite, glass, floor tiles, and soft metals.

Main Configuration Information

Engraving Area: 1300 x 2500mm
Gantry elevation height: 300mm
Maximum traveling speed: 20m/min (NcStudio controling system)
Spindle Power: 5.5KW water cooled
Machine Body: One-piece cast iron, water cooling circulation system+spray nozzle+front and back of machine with pulley gear and water tank.
Pulley gear installed in the front of the working table to load stone more easily, it is very convenient for moving stone. Water tank installed at the back of the working table to store water.
X and Y axis adopt helical rack gear wheel transmissions, which increase the machine’s intensity and lifespan. Z axis adopts ball screw transmission to ensure precision in the process.
X, Y, Z axis adopt round rods guide structure, both resistant and anticorrosive. High quality fittings make the machine drive smoothly.

NcStudio control system.
15 pcs engraving tools for stone engraving.

Pulley gear Water tank

Standard Accessories

Clamp and screws engraving bits collets and nuts PCI Control card Power cable and date cable
Ucancam V8 engraving software Shirk tube User Manual Water pump

Spare Parts
Engraving Tools. Please visit /catalogs/136/Engraving_bits.html to find suitable tools.

Samples:



1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
Interface USB
Engraving Software Ucancam V8
Type Of Worktable Water coolling circulation system+spray nozzle
Repetition Precision 0.01mm
Engraving Precision mm/Pulse 0.001
Rotational Speed Of Spindle 2,4000rpm/min
Spindle Power 5.5KW
Maximum Engraving Speed 20m(787")/min
Maximum Engraving Area 1300*2500mm

Specification
Operating System
Windows98/2000/XP
Maximum Engraving Area
51" x 98" (1300 x 2500mm)
Spindle Power
5.5KW water-cooled
Worktable Size
59" x 122" (1500 x 3110mm)
Working Voltage
AC380V, 50Hz
Transducer
5.5KW
Maximum Carving Height
11.8" (300mm)
Maximum Carving Speed
<20m(787")/min
Command
G code, u00 *.plt
Resolution
(mm/Pulse 0.001)
Repetition Precision
0.01mm
Rotational of Spindle
2,4000rpm/min
Engraving Tool Diameter
12, 6, 4, 3.175mm
Z Axis Driver
Stepper motor
Clamping Unit
8 sets
Engraving Software
Ucancam V8
Control System
Ncstudio system
Machine Dimensions
67" x 128" x 65" (1710 x 3240 x 1650mm)
Machine Weight
960kg
Packaging
Wooden case
Packaging Size
142" x 86" x 71" (3600 x 2180 x 1800mm)
Gross Weight
1240kg
