Description:

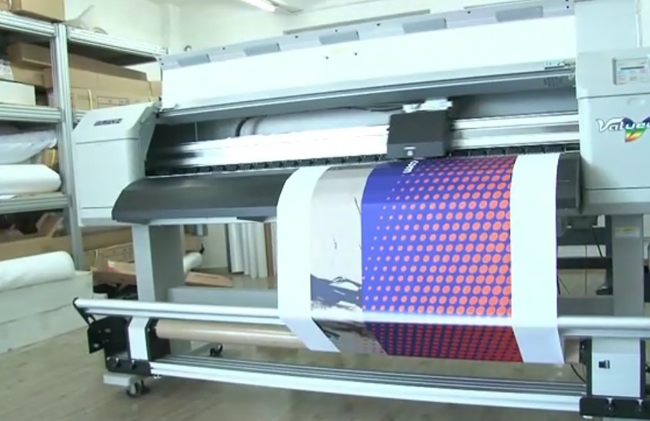

The take up system allows you to leave production unattended, with the completed job securely wound, and it is particularly useful for long print runs and large graphics. In print then laminate workflows, the take-up system enables an easy and precise workflow from completion of printing to loading and feeding through roll-to-roll lamination units.
The take up unit also reduces media waste and maximizes quality of output by automatically tensioning the vinyl, keeping it tightly wound on the reel to help avoid nicks, creases and scratches in the media. All roll-to-roll materials are automatically wound onto the unit to help you maintain a clean and safe workspace while providing an easy storage.

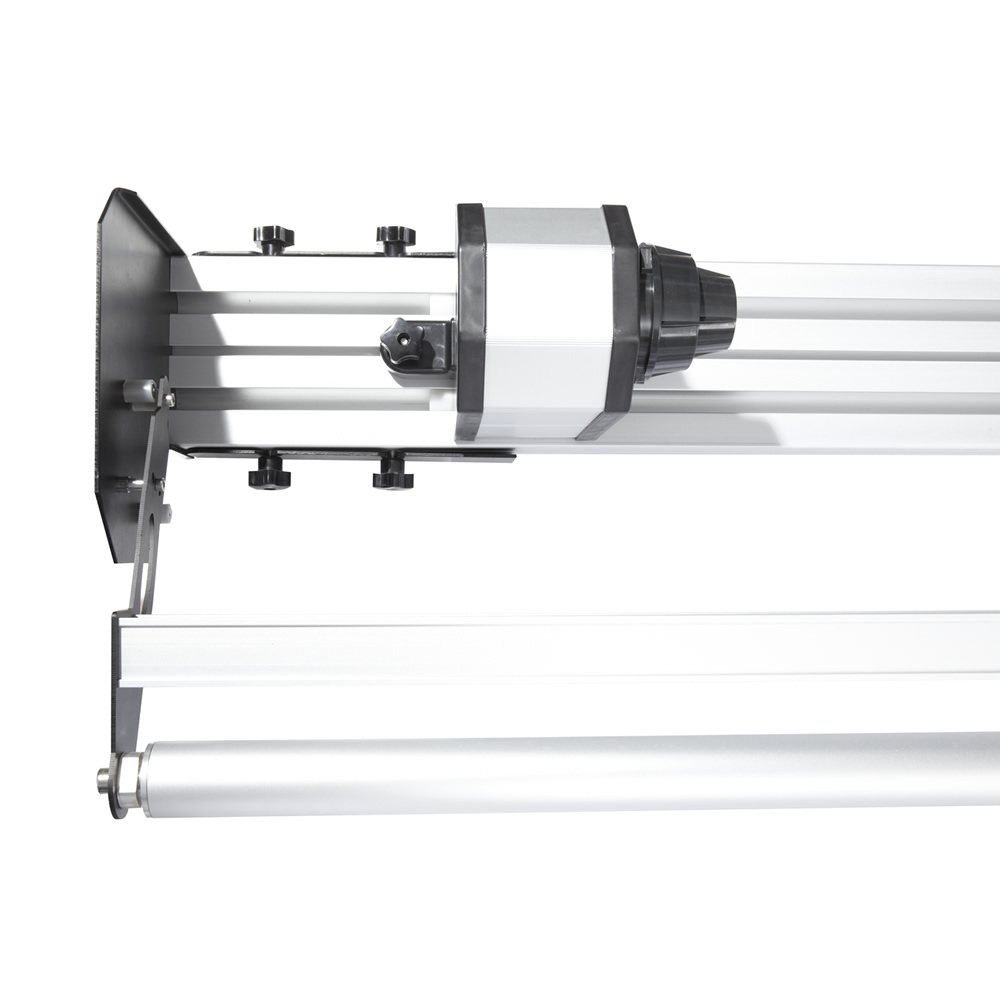

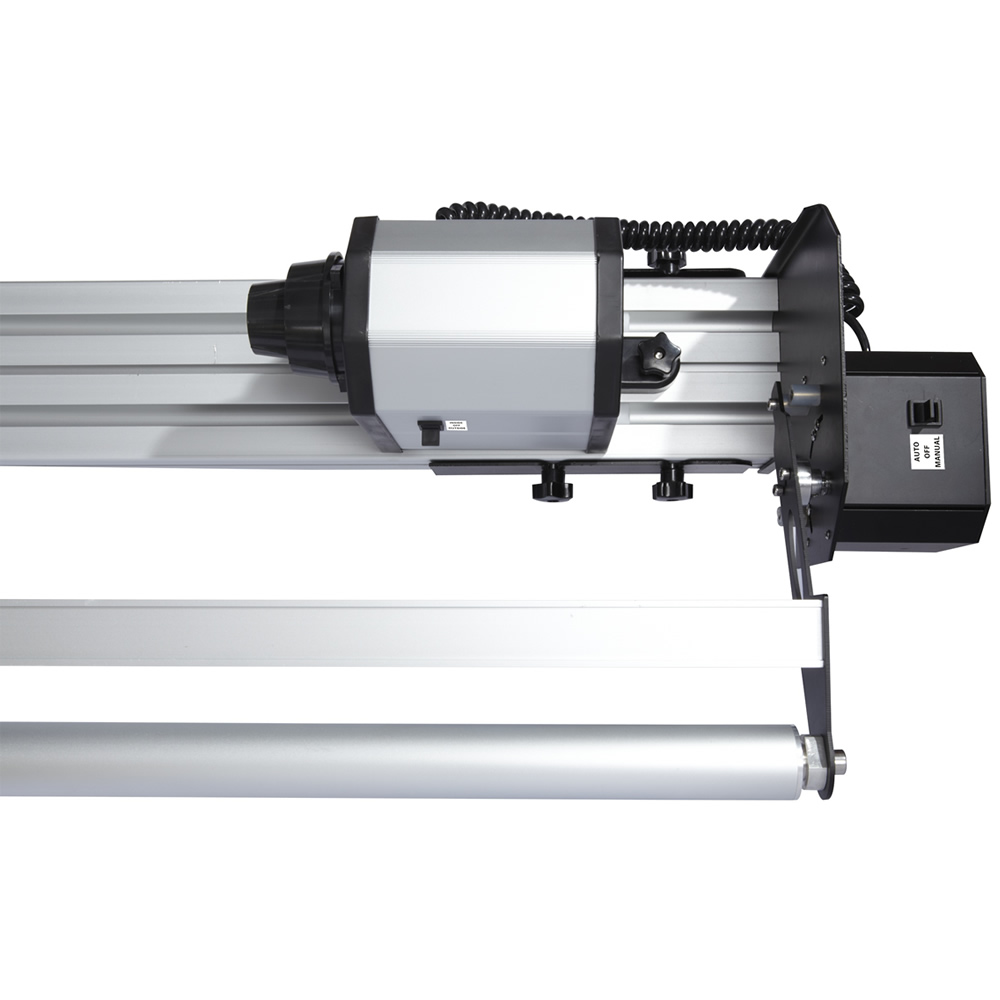

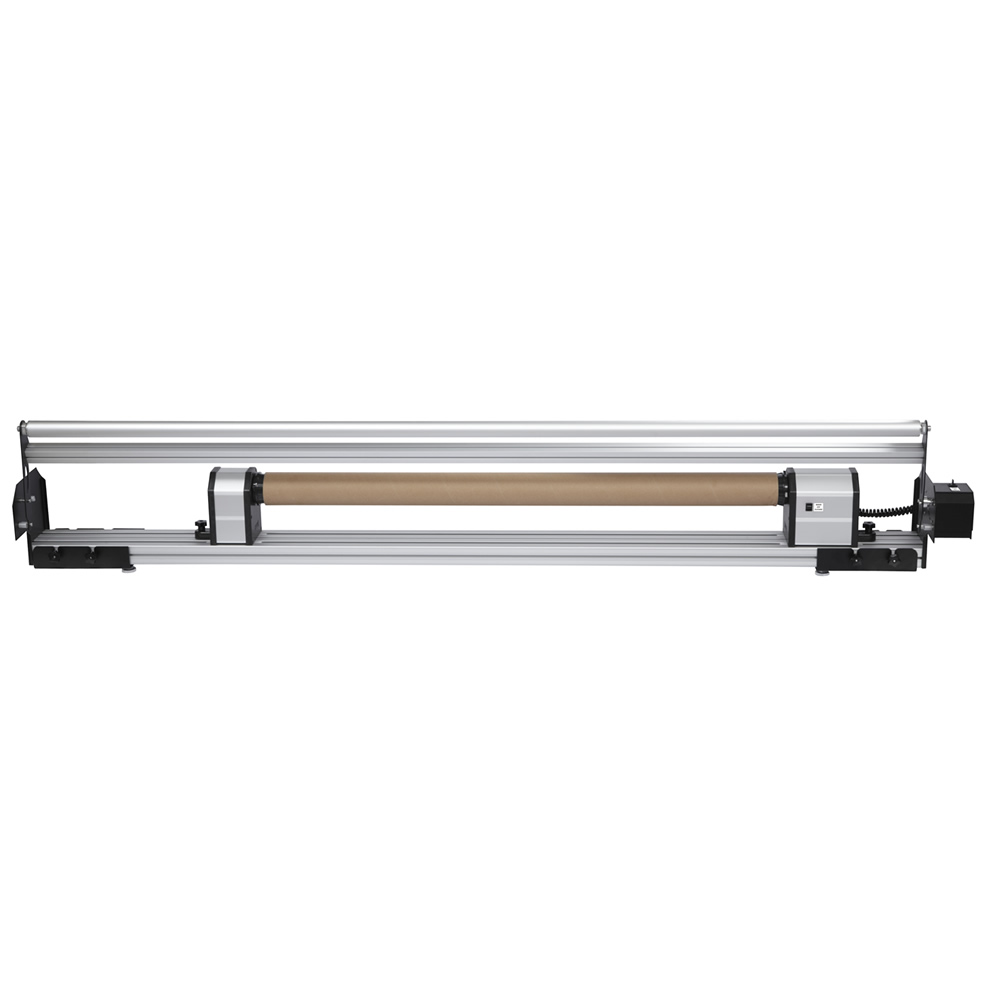

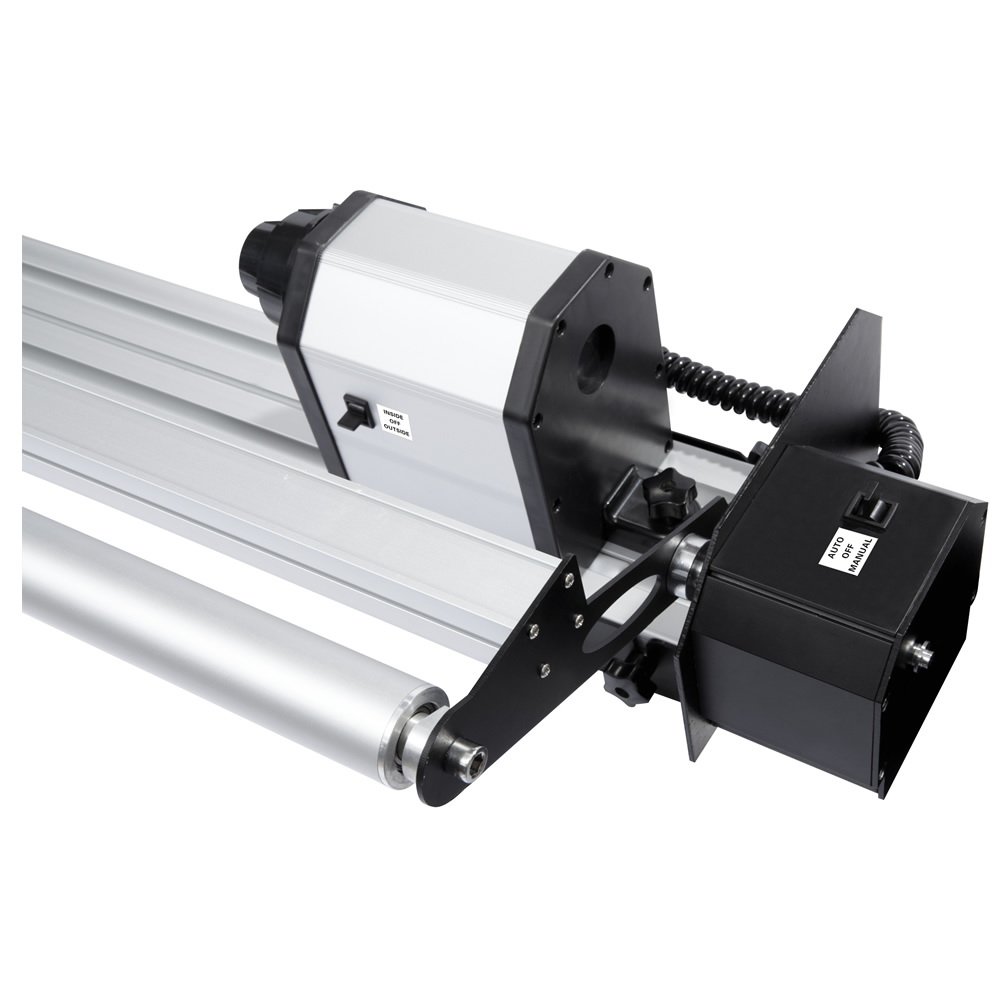

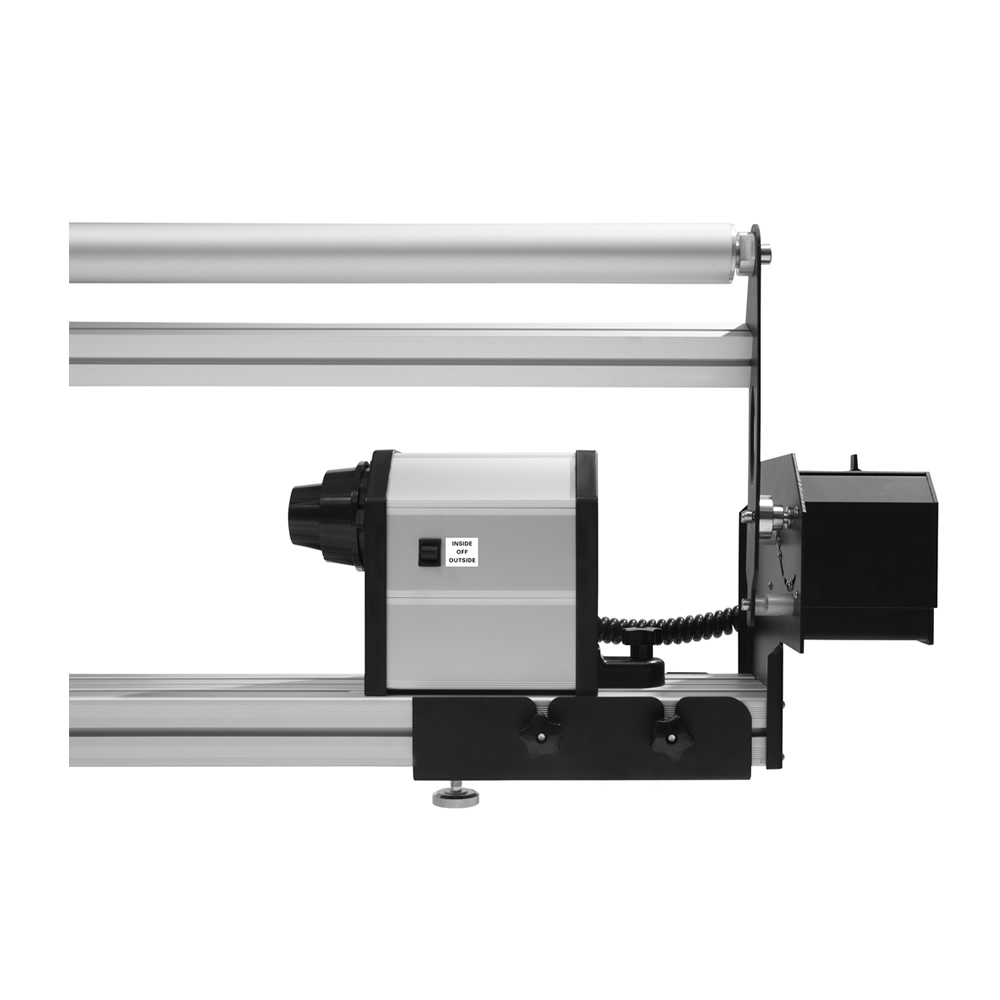

• Automated take-up system
• Inductive tension system
• Novel double-track structure
• Automatic seitch: Automatic rolling according to induction of the tension bar.
• Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
• Specialized universal linking slab, apply to any printers.

• Automatic rewinding, unattended production
• Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
• Bear the weight of 40-50KG
• Fixed directly without drilling holes in the machine
• Extend lifespan of motors

• Automatic system without workman that help you save cost, save space
• More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.

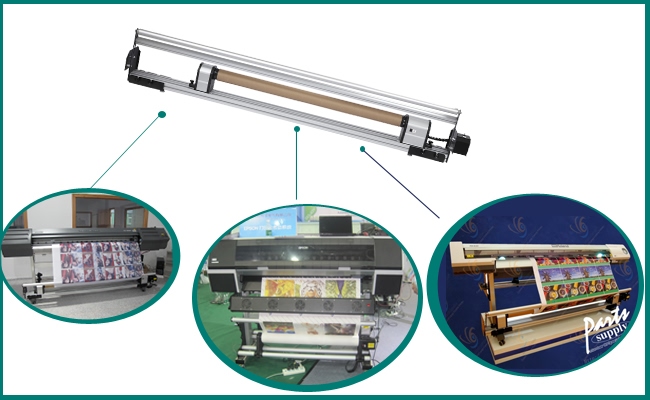

To be used with: Roland RS-640 / VS-640 / RA-640 / RE-640, Mimaki jv22 / JV3 / JV4 / JV33, Mutoh RH2 / RJ8000 / RJ8100 / VJ-1604 / VJ-1618 / VJ-1624 / VJ-1638, EPSON GS-6000. If your printer is other 64 inch wide format printers, please contact us before placing the order.
Note: It cannot be used in HP printers.

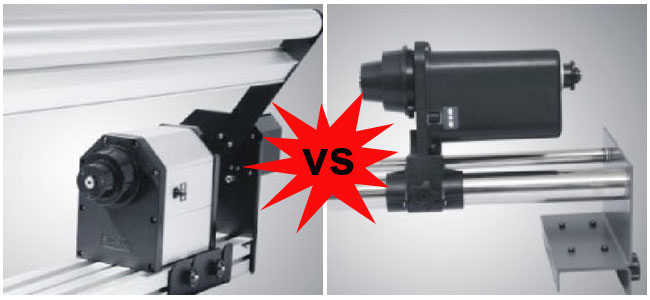

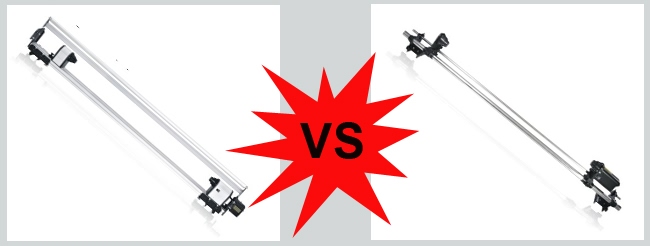

Our take-up system works rolls on tension induction and ensures neat take-up. Motor life becomes longer. |
|
Ordinary take-up system works based on passive padiator,And motor life is always short. |

Our take-up system can bear a maximum
weight of 40-50 kg. |
|
Ordinary take-up system bears a maximum
weight of 30 kg for rolling materials. |

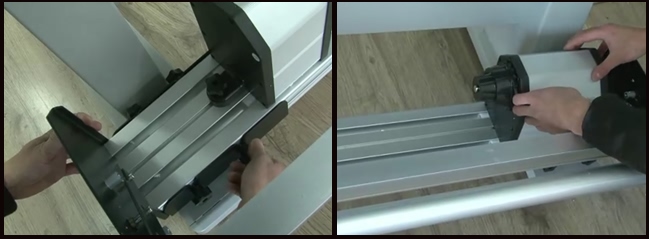

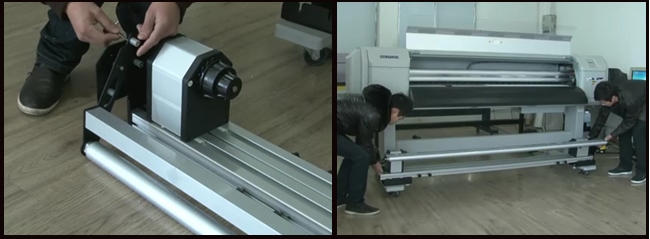

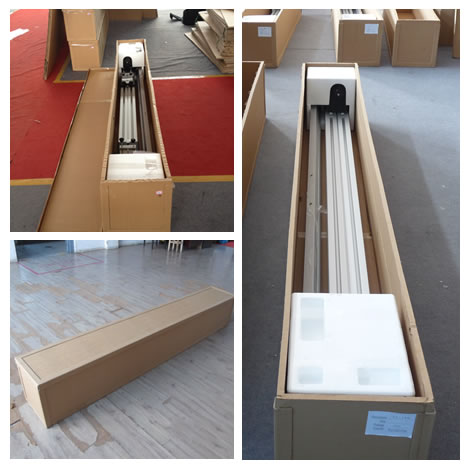

1.Open box, and separate the connecting
plate and the take-up system. |

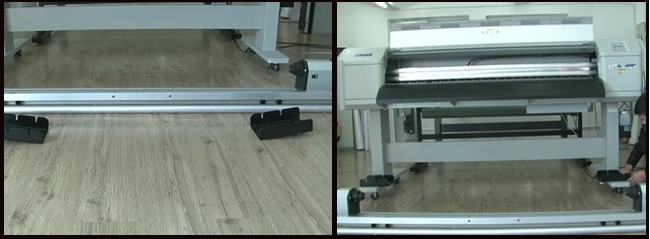

2. Mount the connecting plate. |

3. Loosen tension bar and set screws. |
4. Put the take-up system on the connecting platete. |

5. Tighten the screws to settle take-up system. |
6. Adjust the position of dynamic roll axis on
take-up system and fasten the axis |

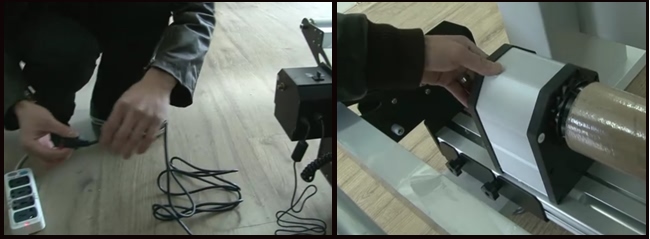

7. Connect the power transformer (12V) to power supply. |

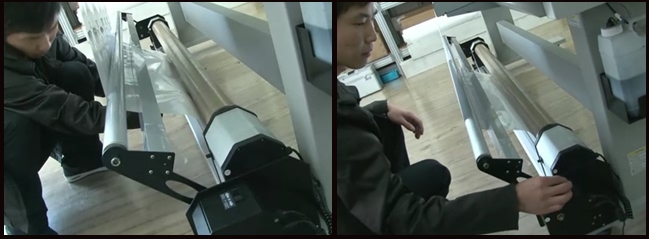

8. Load the paper roll. |

9. Attach take-up system to the printed material. |
10. Adjust the tension and the switch. |

11. Installations complete.
