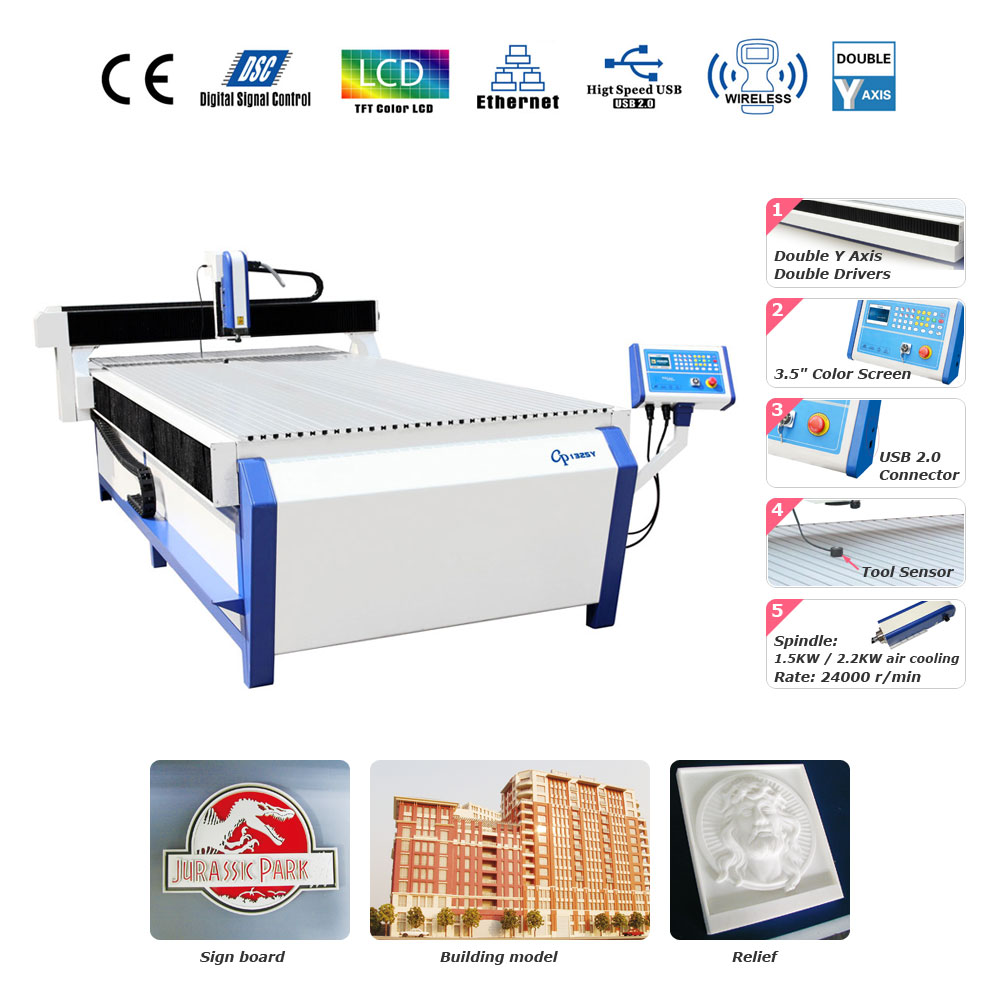

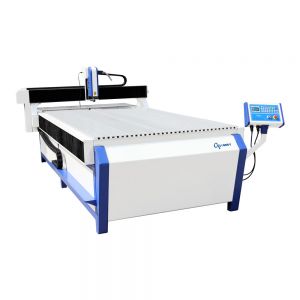

CNCR-CP-Y series engraving machine, is released for the sign advertising industry with a high performance / cost ratio. It has a new look, fast speed and high precision. It comes with DSC control system, HD LCD screen, and friendly interface. Double Y axis engraving machine, the latest model, is accurate as screw machines and fast as rack and pinion engraving machines.

Main Configuration Information:
Engraving Area: 1300mm x 2500mm (51" x 98")
Height of Gantry Lifting: 110mm (4.3")
Maximum Travel Speed: 25000mm (984") / min
Spindle: 2.2KW Chinese air cooled
10 pcs engraving tools
Aluminum alloy working table, circular guideway, Leadshine drivers
3.5" DSC-931 Color screen controller, double Y axis, stepper motor
 |
 |
3.5'' DSC-931 Color screen controller
With digital-to-analog conversion technology and DSC control system, data processing is much faster. |
There is USB 2.0 and Ethernet port, also large flash memory inside. Document transmission and download will be easy with them. |
 |
 |
Remote control handle |
Chinese air cooled spindle, 24000rpm rate |
 |
 |
Double Y axis, double driving engraving machine, is accurate as screw machines and fast as rack and pinion engraving machines. |
Tool sensor is guaranteed working accuracy and engraving quality. |
 |
Electrical cabinet adopts high quality Accessories, long using life. |
• This series engraving machine has “Cutting at angle” function with DSC control system. “Cutting at angle” can make less chance of work piece coming loose and no trace marks. (When the tool comes to the corner, but not to the bottom, workpiese come loose quite often). More details of “Cutting at angle” function operation, please see software manual.

Applications
Billboards, dual color abs boards, miniature models, Plexiglas, wood articles, etc.
Instruction


Tool sensor is guaranteed working accuracy and engraving quality.
First confirm 0 point of engraving file (make center of engraving material as 0 point or the lower right corner as 0 point), and then decide how to put the engraving material on the working table. Next fix the engraving material up and put sensor on the it, then move X, Y, Z axis by keyboard or remote to sensor, once touched, the tool will rise automatically, at the same time the machine will remember the height as default to keep precision of process. (More details please check the manual of machine control software)


The nut and the clamp are used to fixing cutting tools on the spindle. The diameter of cutting tools should be corresponding to clamp's diameter. The clamps have Φ3.175, Φ4, Φ6, Φ8 models, except for special cutting tools.


Installation of tool


Engraving material clamping

Different tools have different engraving effect.
Drilling tool: Mainly used for carving characters, tiny material
Milling tool: Mainly used for face milling, cutting and rough processing
Knurling tool: Mainly used for special shape processing, like 3D modeling character, and special texture.
Remark: Here just some types for reference, others are based on actual items.


The machine must be installed on a flat ground. Pay attention to following tips:
• Working temperature environment 0-40℃
• Working humidity 30-75%
• Power voltage 220V + / - 10%
• Machine ground wire must be installed properly to avoid short circuit and / or damage.
• Machine should be installed in a roomy environment with plenty of space. It should not be installed near other machine, which may cause interference. The machine may not work correctly in such instances.
• Machine should be stable on all legs.
Make sure there is enough room around the machine, especially around the gantry and the controller.
1. Machine Installation - Main parts installation
Includes: Z axis parts installation, controller installation, spindle installation, connection of all cable, and tool sensor installation, etc
More information, please refer to the User Manual.
2. Engraving Software installation, edit the image you want to process

3. Fix the workpieces onto the working table, start to process

4. Finishing work!

Product Highlights
• It can work offline. New look, fast speed and high precision
• It uses a high speed USB 2.0 connector and can transfer at speeds up to 12MB / second.
• There is an Ethernet connector and a large internal memory, making it easy to download data.
• The new digital analog converter makes it much easier to change the speed of the spindle via the controller. The controller uses DSC technology, enhancing data processing speed.
• When the job mixes straight lines and arcs, it will make the output very smooth.
• The new controller has the same previous functions such as cutting at an angle for smoother cuts, power failure memory of the last point, restarting the job at any line, etc.
• The system has many advanced functions like ramp entry, power-off memory, restarting at any line. And also many processing modes like professional modes including Constant speed cutting, 2D mode, 3D mode, Duplicate Mode, Mirror Image Mode, Scanning Mode Drilling Mode and custom mode.


Quality report:
