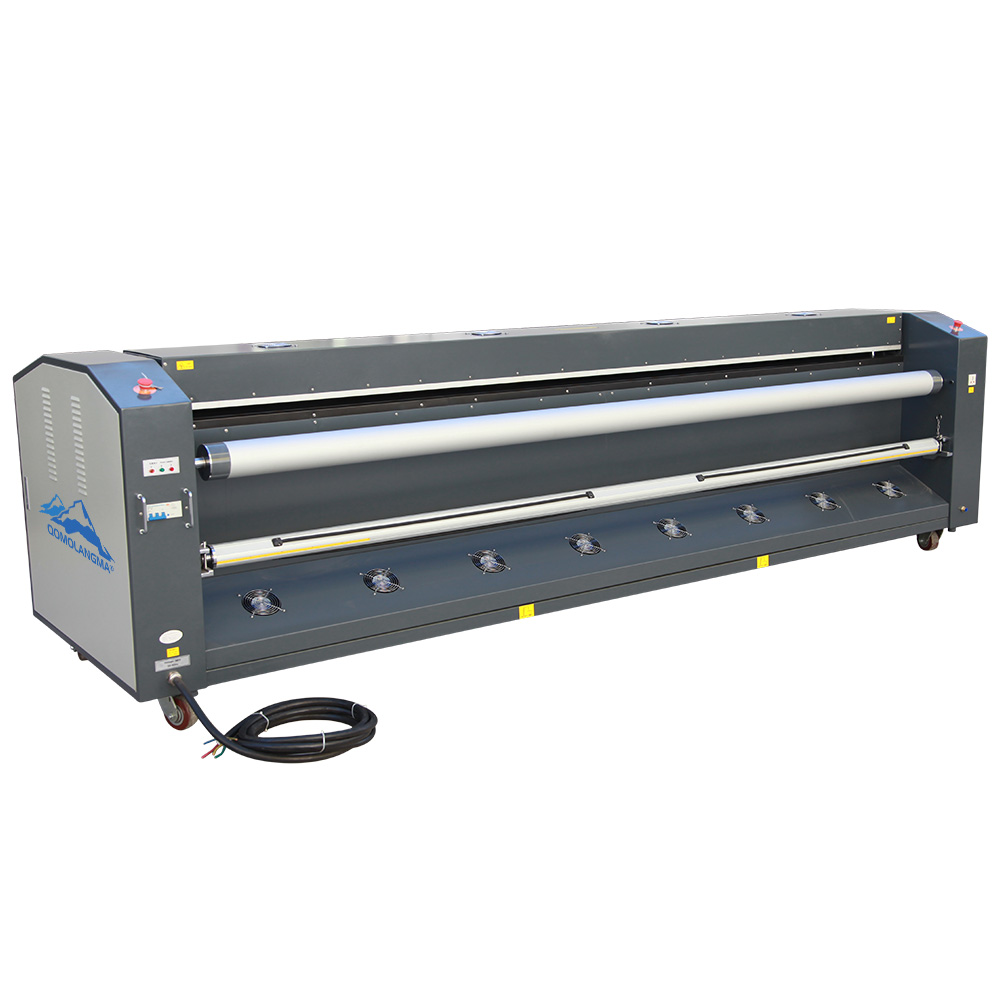

Qomolangma 130" Full-auto Wide Format Liquid laminator Aqueous Liquid Coater
Liquid laminates provide UV protection and image enhancement for a wide variety of graphic applications.
Liquid laminates are often a great alternative to film laminates and can be an effective way to protect billboards, prints, fine art, signs, banners, awnings and other products from the elements.
Liquid laminates come in many formulas and offer a number of advantages over rolled film coatings. They are extremely economical and don’t produce much waste when machine applied. Vinyl that has been treated with a liquid laminate is weldable (hot air and radio frequency) and the coating offers as much or more UV and abrasion protection as film laminates. They will also stretch and conform to uneven surfaces better than a hard coat film product.
The super wide coater 3.3m is particularly beneficial and essential for wider formats and specialist applications like Super wide flex face Signage, Truck tarpaulin printed curtains, fabric and wider adhesive films including PVC vehicle grades. In some cases you can also double up your production by running two rolls together.
Join the eco-friendly revolution today! cancel all film laminates and convert to water based coating technologies!
Description:
Support Roll To Roll Operation.
FMJ-3300-WL liquid laminating width could reach 126.0" (3200mm), mainly used for roll to roll coating of vinyl, banner, canvas etc.
Especially fit for the wide-breadth advertisement picture.
 |
 |

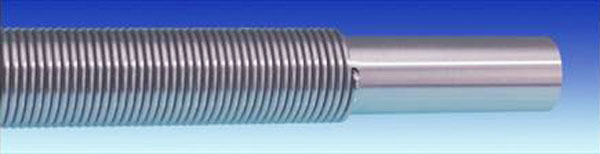

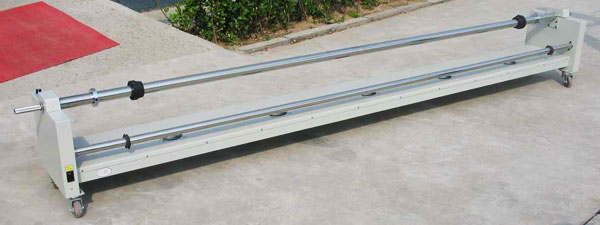

| Mayer bar | Taking up machine |
Products Highlights:
• This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.
• Easy operation panel:
Dryer, fan, motor, pump button
Various speed and temperature adjustment
Temperature indication
Emergency Stop Button
• In order to save energy, you may use right part of the heating box to reduce the power (50%) when the picture width is less than 63.0" (1600mm).
• Works simply and safely with low noise, the liquid laminator uses liquid water-soluble film, which is innocuous and flavorless, also be clean out without pollution. It is good for protecting environment very well.
• Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.
• Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.
• The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.
• Easy to operate and clean, requires minimal operator training.
• Due to the price of liquid film is lower than cold laminating film, this make output rate is very high. Using liquid laminator can reduce the film laminating cost much more than ever before. You can get back your investment in a short time.
• The picture laminated will show more bright-color and beautiful, with the function of waterproof, sun proof, and anti-ultraviolet radiation, hence prolong its lifetime much more, of course the liquid film quality, which you select, is vital to the picture.

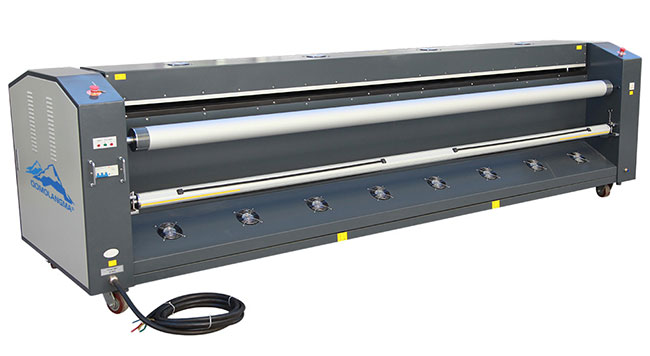

Front of 3m liquid laminator

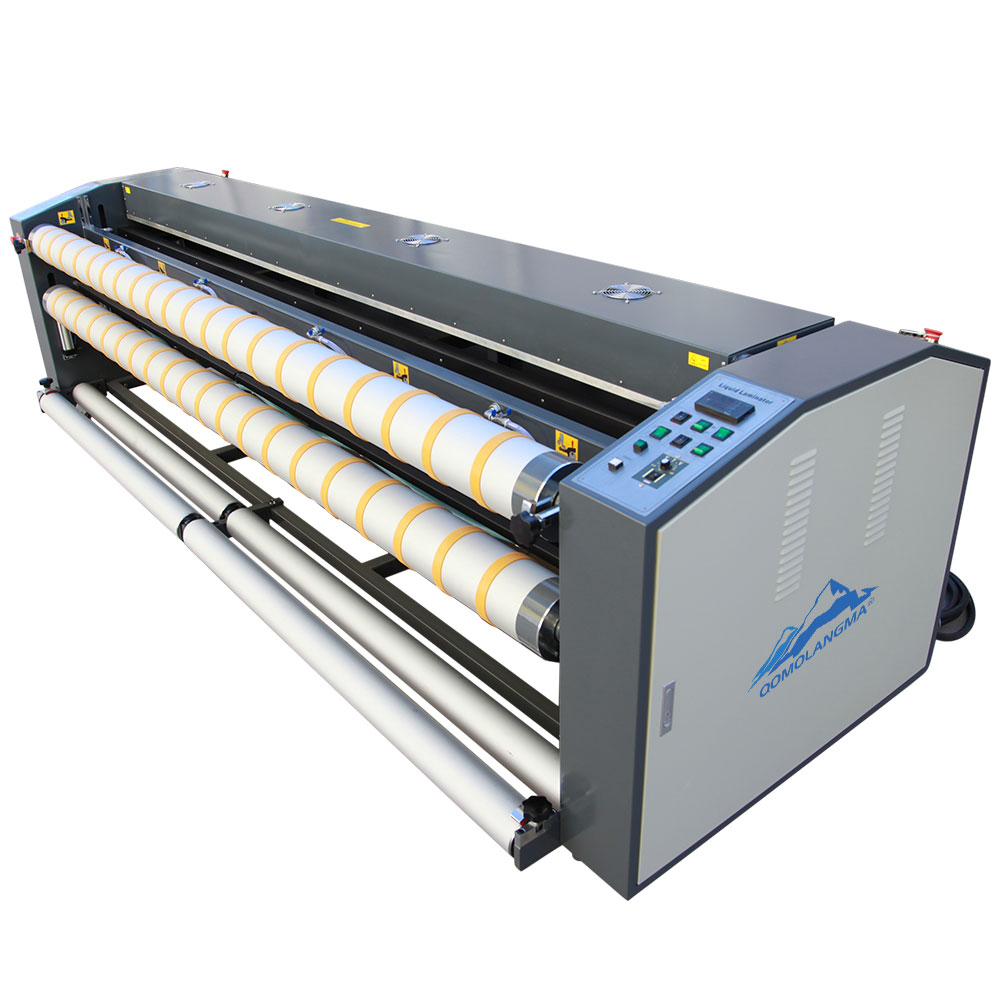

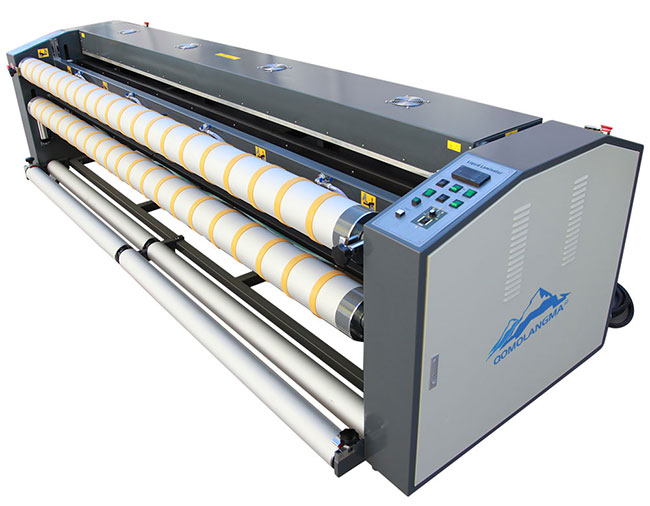

Back of 3m liquid laminator

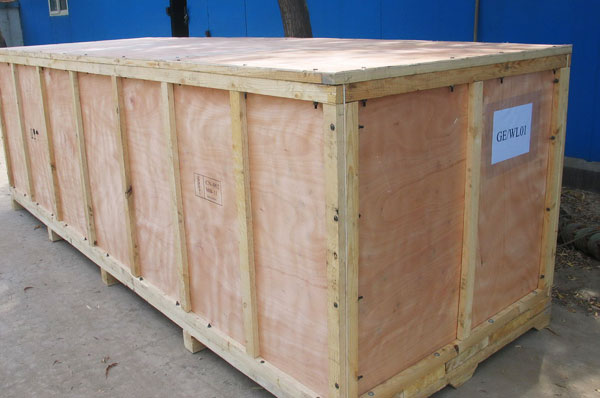

Fumigation free package
Typical applications:
| Maximum Laminating Width | 130" (3300mm) |
| Maximum Laminating Thickness | 0.007-0.01mm (Thickness adjustable) |
| Maximum Laminating Speed | 39"-59" (1-1.5m)/min |
| Profile | This full-auto (Automatic take-up roll for both printed images and back paper by one person) liquid laminator has both drying system and cooling system, which make the coating film from liquid state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc. It is compatible with most roll-to-roll solvent, eco-solvent inkjet printers, and it is mainly used for roll to roll coating of vinyl, banner, canvas etc. |
| Model | FMJ-3300-WL |
| Max. Coating Width |
126.0" (3200mm) |
| Max. Laminating Thickness | 0.007-0.01mm |
| Max. Laminating Speed | 39.4"-59.1" (1-1.5m)/min |
| Laminating Temperature | 100-130 degree |
| Max. Heating Temperature | 150 degree |
| Forward / Reverse | Yes |
| Emergency Stops | Yes |
| After Laminating Pickup | Yes |
| Heating Power | 6KW+6KW |
| Film Supply Mode | Magnetic suspension liquid pump, circulation supply |
| Heating Method | Infrard heating lamp |
| Motor Power |
100W |
| Power Supply | AC 380V; 50Hz or 60Hz |
| Machine Weight | 1543.2lb (700kg) |
| Machine Dimension | 150"*43.3"*42.7" (3810*1100*1084mm) |
| Package | Fumigation free package |
| Packing Size | 156.7"*52.4"*51.6" (3980*1330*1310mm) |
| Gross Weight | 2116.4lb (960kg) |
