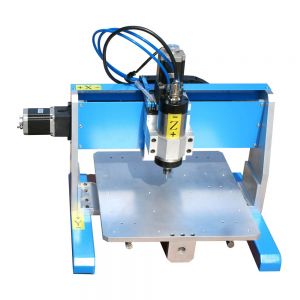

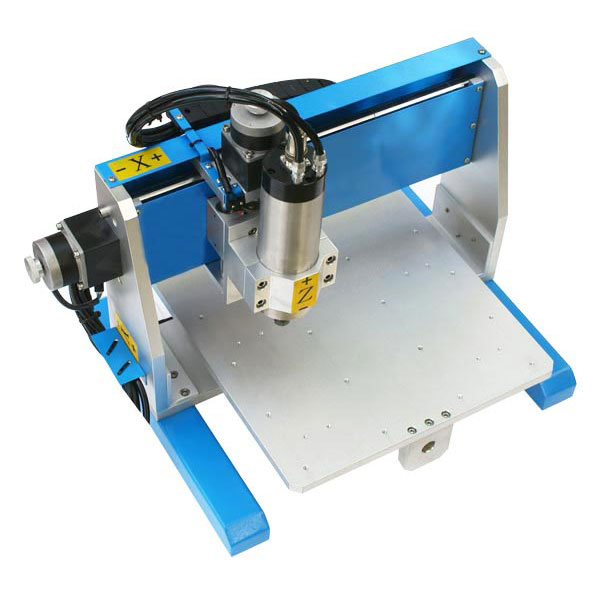

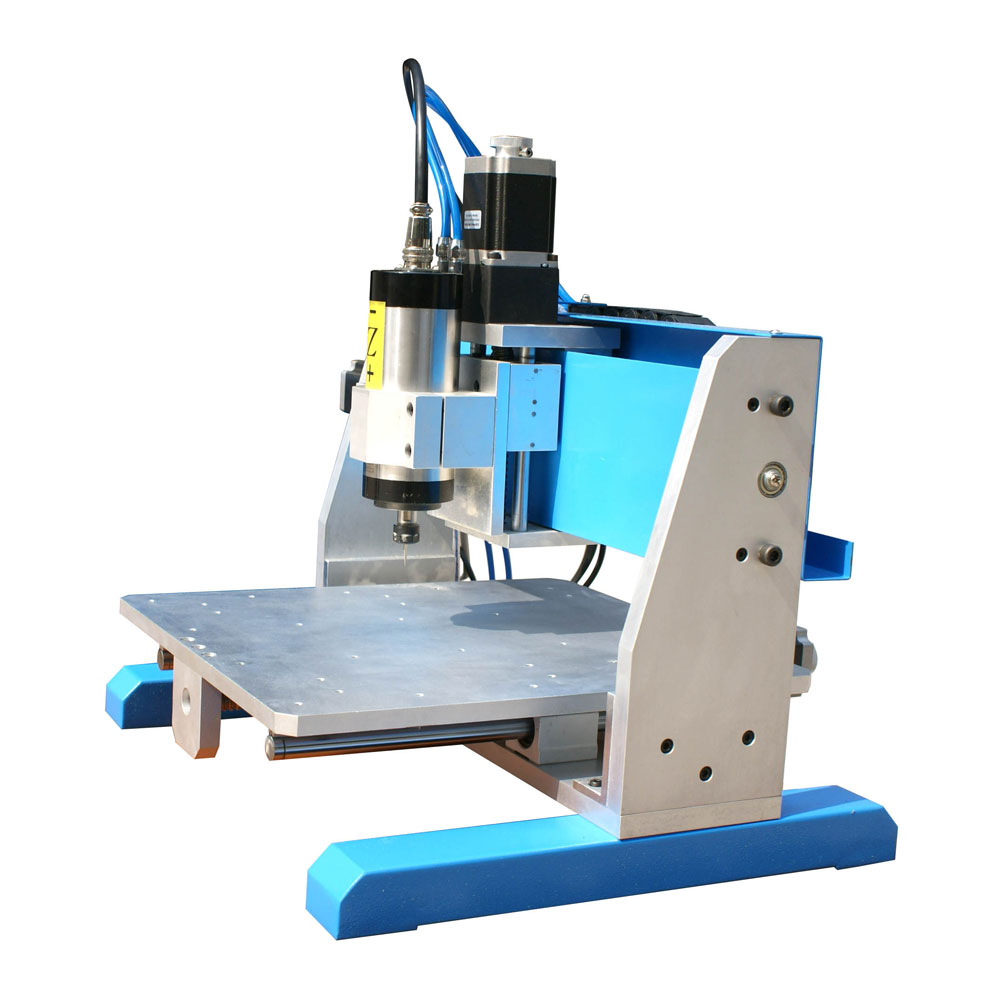

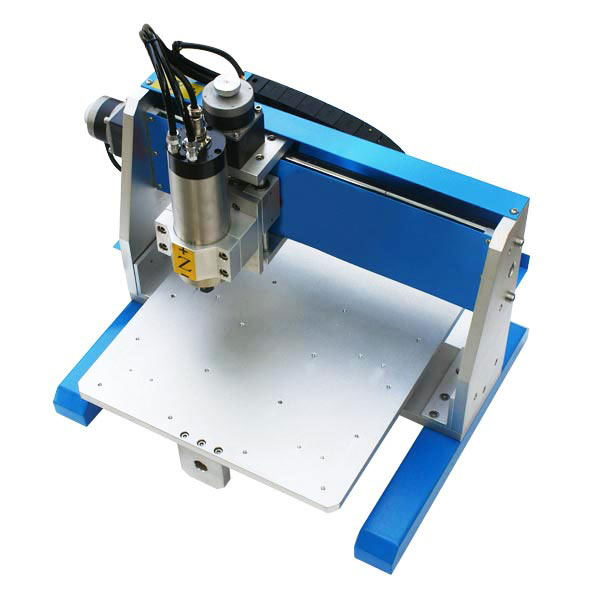

300 x 200mm Desktop CNC Engraving Router Drilling Milling Machine With DSP Handle

Unit Price:$1,205.00 - 1,296.00/set(Discount Notice)

Buy More, Save More!

Qty (sets) Discount Amount/set
    1 0% $1,296.00
    2 - 3 7% $1,205.00

Need more quantities, please submit a Bulk Order inquiry

Quantity:
set(s) Total Cost: USD $1,296.00

Shipping Weight: 149.6lb (68kg) freightFreight

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $1,205.00 - 1,296.00/set Order Now
Cart 0 item(s) Back to Top

Description:
The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.

Feature:

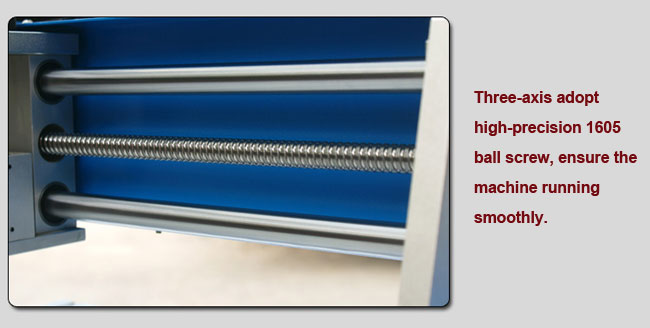

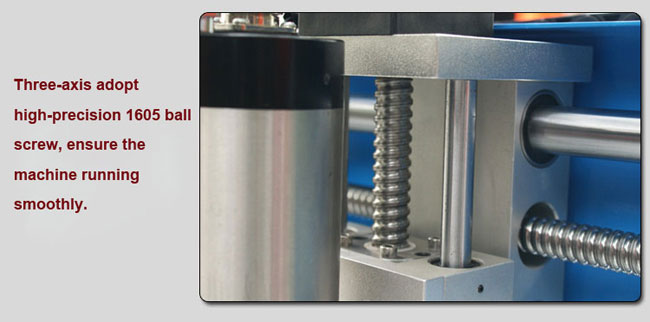

• Adopt imported double-nut auto eliminating clearance ball screw.
• High subdivision drive.
• With CE certification.

Details:









Applicable Materials:
Acrylic, double layer plastic, ABS, PVC board, wood, MDF, oxhorn, crystal, marble, jade, aluminium-plastic panel and many other materials.

Application Industry:
Artwork,advertising scutcheon, name plate, stamp, indication board, architectural model, decoration, industry mould, meter panel, millwork, relief sculpture, industry element, ctc.




1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
This product has no attributes!
Model CNCR-RS3020
X.Y.Z Guide Rolling ball screw

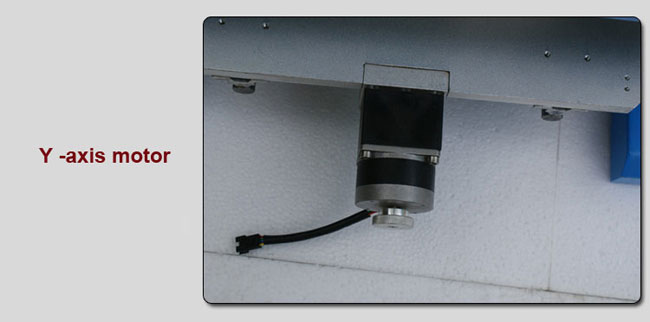

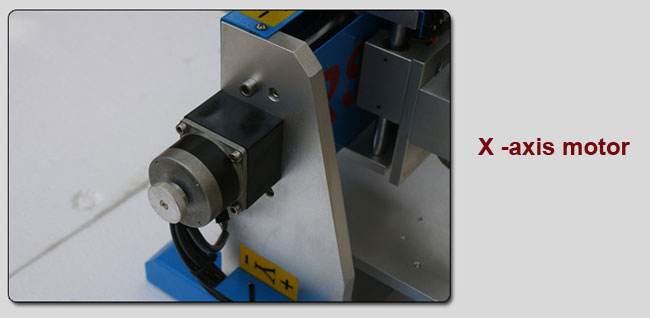

Drive Type Micro-step Stepper Motor
X,Y area(mm) 320 x 230 x 55mm
Z area(mm) 90

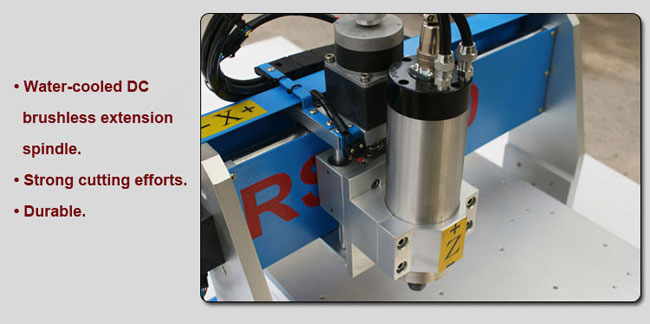

Spindle 800W-1.5KW 24000RPM
Resolution(mm) ≤0.05
Repeatability(mm) ≤0.05
Max Speed (mm/min) 6000
Software Ucancam V10, Type3, Router 8, and Type3, etc.(Optional)
Interface NCstudio
Command code HPGL, G-code
Collets 3.175mm / 6mm
Power AC220V±10% / 50~60Hz
Machine dimension 550mm x 650mm x 550mm (22" x 26" x 22")
Packing dimension 700mm x 690mm x 640mm (27.5" x 27" x 25")
Net weight 39kg
Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Packing List:


Configuration

Data cable

D macro card

Wrench

Power Cable

Toolholder

Straight Knife

Cutter blades knife

CD

Auxiliary tool
