Description:

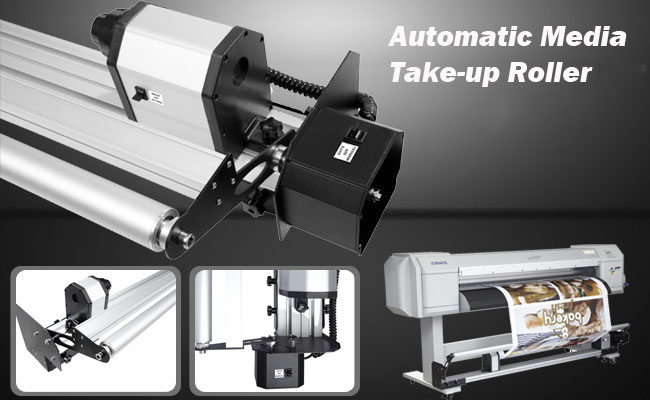

Automated take-up system equipped with inductive tension and double-track structure . Automatic rewinding，unattended production and reduce cost. With tension control take-up system not only extends life span of motors, but also expands its application range for outdoor and indoor printing material, fabric and fiber material.
1.Automated take-up system
2.Inductive tension system
3.Novel double-track structure
4.Automatic seitch: Automatic rolling according to induction of hte tension bar.
5.Regarding the medium core, 2 inches(Φ48mm-Φ53mm)and 3inches(Φ75mm-Φ80mm) are available.
6.Specialized universal linking slab, apply to any printers.
1.Automatic rewinding, unattended production
2.Tension control system could expands its application range for outdoor and indoor printing material,fabric with no elasticity and fiber material
3.Bear the weight of 40-50KG
4.Fixed directly without drilling holes in the machine
5.Extend lifespan of motors
1.Automatic system without workman that help you save cost, save space
2.More widely applicable range, Aqueous & Eco solvent & Sublimation printing materials.
There is no trouble of taking up no elasticity fabric materials such as format canvas and cloth banners.
To be used with: Roland VP-540 / SP-540 / VP-540I / SP-540I / VS-540 / FJ-540 / SJ-640, If your printer is other 54 inch wide format printers, please contact us before placing the order.

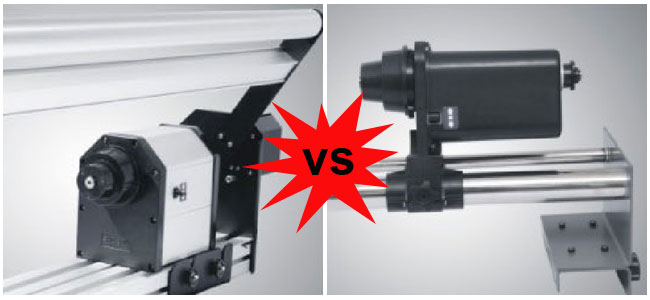

| Our take-up system works rolls on tension induction and ensures neat take-up. Motor life becomes longer. | Ordinary take-up system works based on passive padiator,And motor life is always short. |
| Our take-up system can bear a maximum weight of 40-50 kg. |
Ordinary take-up system bears a maximum weight of 30 kg for rolling materials. |
| 1.Open box, and separate the connecting plate and the take-up system. |
2. Mount the connecting plate. |
| 3. Loosen tension bar and set screws. | 4. Put the take-up system on the connecting platete. |
| 5. Tighten the screws to settle take-up system. | 6. Adjust the position of dynamic roll axis on take-up system and fasten the axis |
| 7. Connect the power transformer (12V) to power supply. | 8. Load the paper roll. |
| 9. Attach take-up system to the printed material. | 10. Adjust the tension and the switch. |
11. Installations complete.
Remarks:
Quality report:
| Model | SZQ-JX-T3 |
| Working Width | 1300mm |
| Voltage | 24V |
| Motor Power | 36W |
| Maximum Diameter Of Hosting Media | Ø260mm |
| Bearing Weight | 40kg |
| Packing Size | 2350x410x440mm |
| Gross Weight | 32kg |
Average Rating: 5 (3)
Packing List:
 |
Take up system
|
1set
|
 |
Power Cable and 24V DC Power Supply
|
1set
|
 |
Hexagon wrench
|
1pc
|
 |
User Manual
|
1pc
|
Package:
Automatic Media Take up
