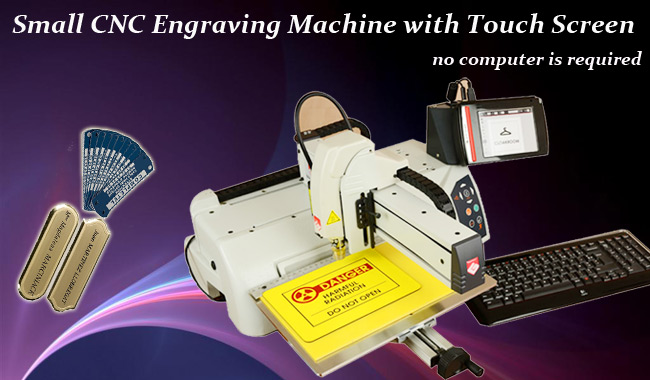

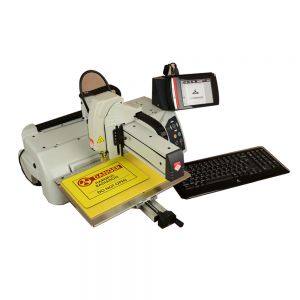

This small cnc engraving machine, as simple as ABC, 123.
A complete plug and start engraving equipment.
Easy to use standalone engraving solution.
For production of technical plates and safety signs.
Multi - purpose, the engraving machine engraves on plastic and metallic material up to sizes 305mm x 210mm (12" x 8.3").
This reliable and robust equipment includes everything that is necessary to start engraving: Machine, design software, cutters.
A tactile interface, simple and intuitive.
The user interface is included in the solution, no computer is required. The cnc engraving machine’s software is supported by a tactile screen allowing the design of plates with lines of text, logos and drawings. The files are saved on a SD card.
An affordable solution to diversify your services.
Very compact, the M40ABC can be set up in any professional environment, simple and fast on - site engraving widens the scope of services to offer without having to subcontract.


Maximum Engraving Area: 305mm x 210mm (12" x 8.3")

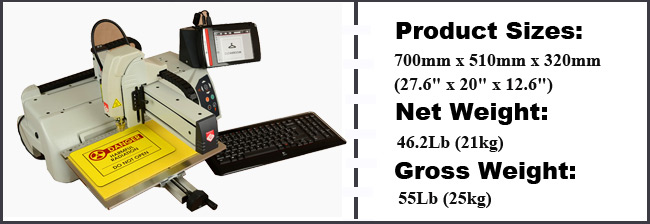

Machine Overall Size: 700mm x 510mm x 320mm (27.6" x 20" x 12.6"), with integrated Touch Pad
Machine Weight: 21kg
5.7" Touch pad with ABC software.

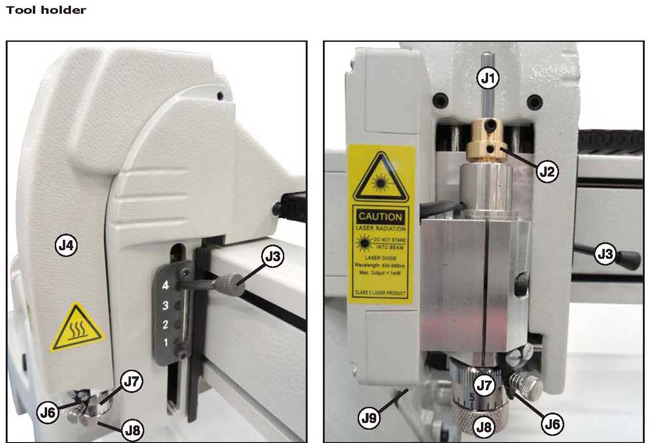

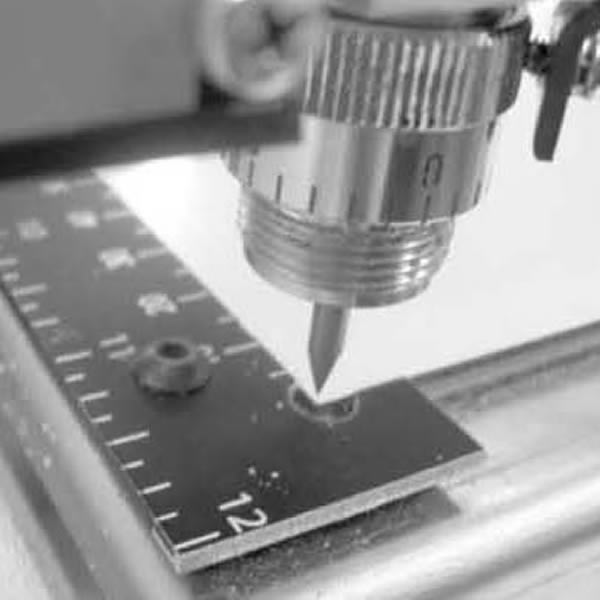

J1. Cutter
J2. Cutter button
J3. Pressure knurl on spindle (four positions)
J4. Housing |
J6. Index finger
J7. Scaled knob
J8. Nose nut
J9. Laser diode |
 |
 |
(a) Engraving machine with vice (Standard device)
Maximum size of items to engrave in the vice:
330mm x 200mm x 40mm (13" x 7.9" x 1.6") |
(b) Large plate support (Optical device)
Maximum size of items to engrave on the table:
330mm x 260mm x 20mm (13" x 10" x 0.8") |

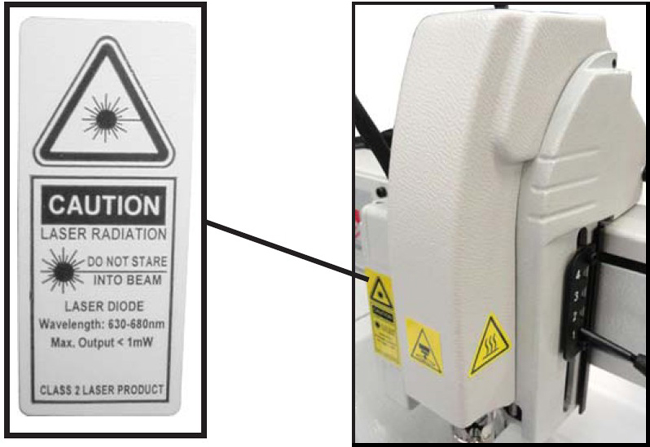

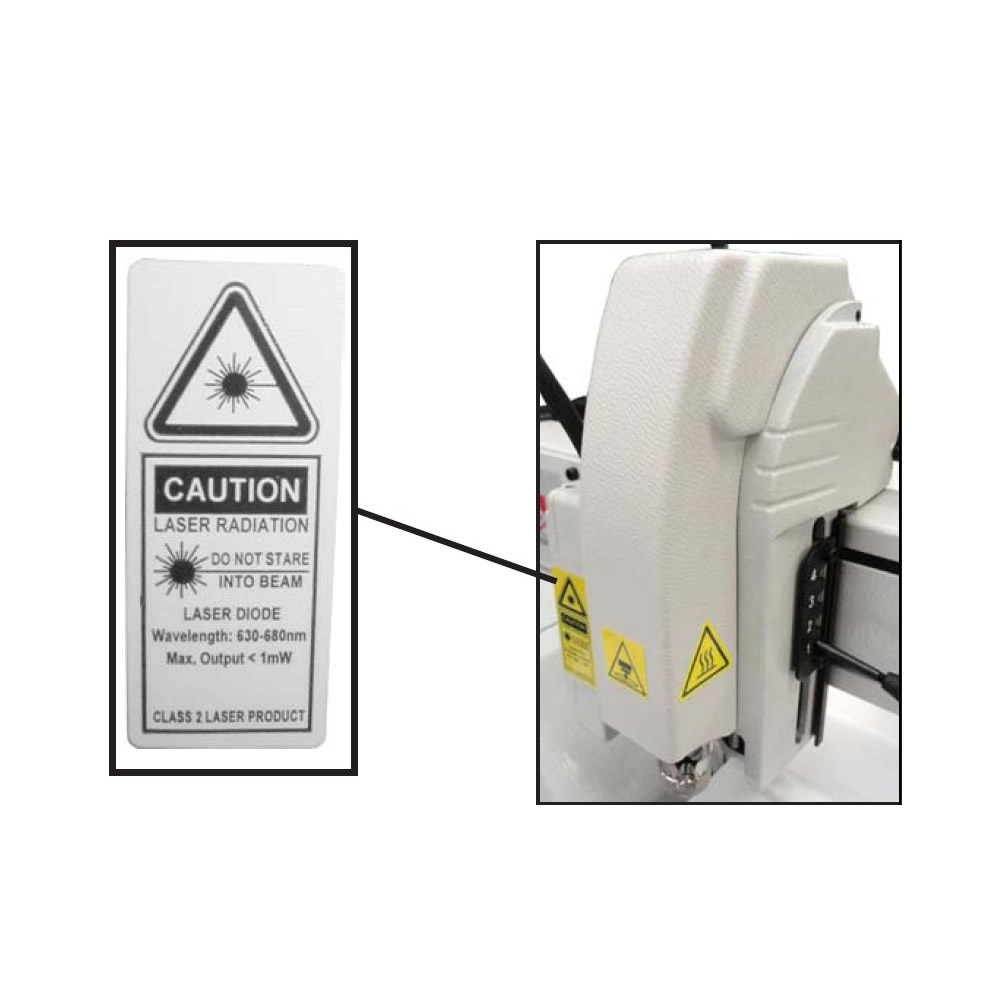

Red laser pointer simulates the engraving job - no measuring required. |
 |

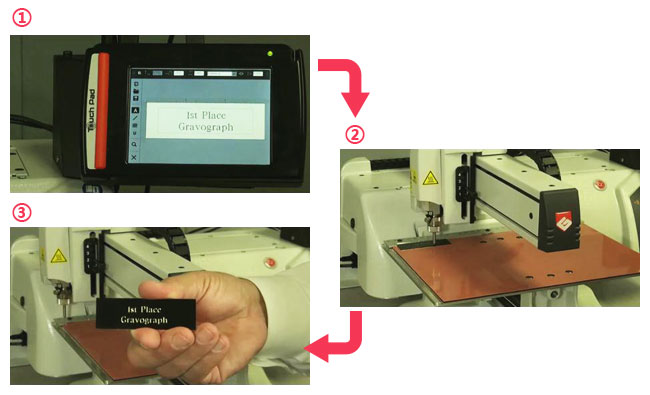

Easy to use standalone engraving solution, two-step operation.
1. Design these pictures
Edit your pictures, logo or letter in our engraving program on Touchpad.
2. Output edited logos or letters and engrave
Place the materials on the worktable of cnc engraver and start to engrave.

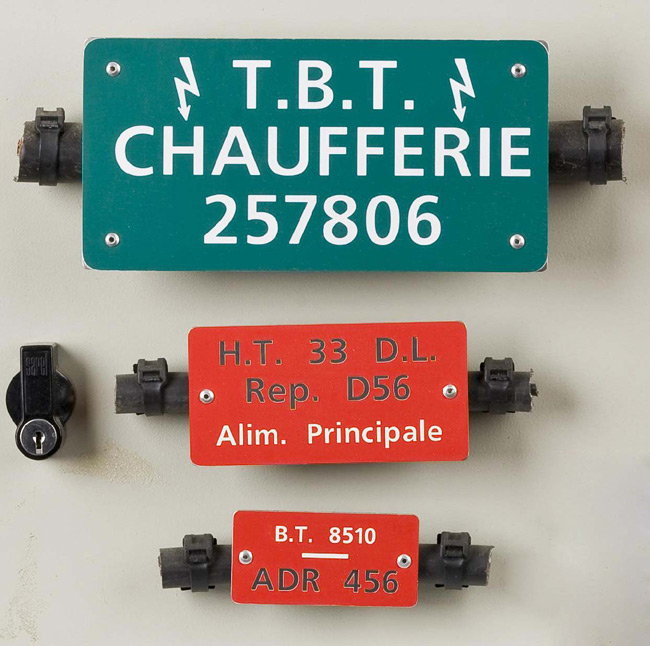

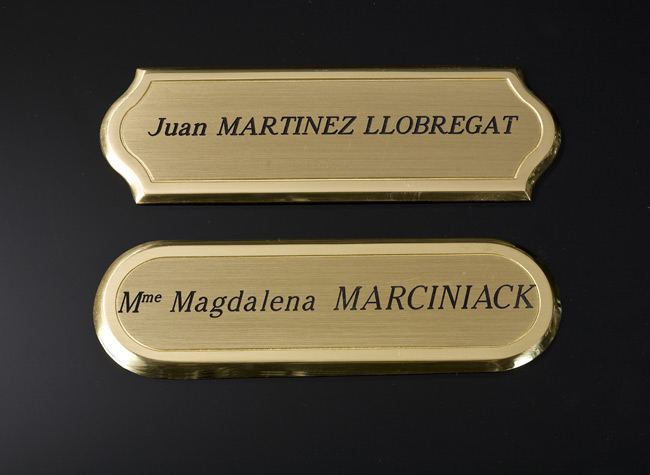

3. Perfect finished products
The engraving machine engraves on plastic and metallic material up to sizes 305mm x 210mm (12" x 8.3").

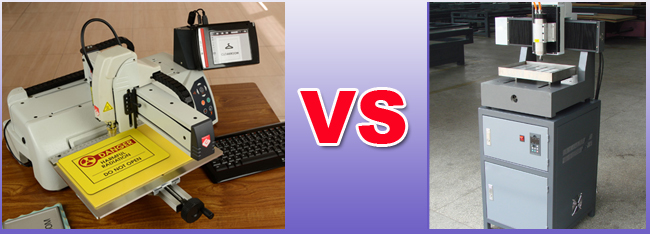

(a) M40 ABC is very compact and it is suitable for express transportation. Its weight is 21kg, so it can be set up in any professional environment.
(b) This cnc router can engrave on plastic and metallic material. And it has high engraving precision. |
(a) This is common cnc router, which engraving area is same
as M40 ABC, but it is very heavy and not suitable for delivery.
(b) This small cnc engraving machine is mainly used for
engraving non - metal and soft metal materials, not good
for hard metal like steel and SS. |

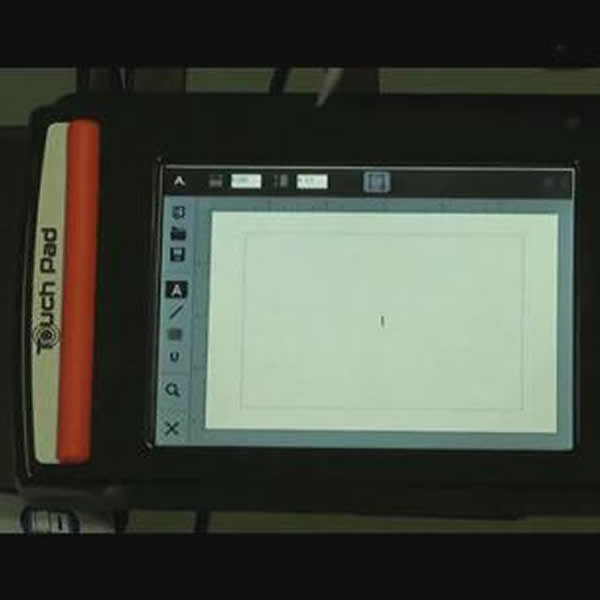

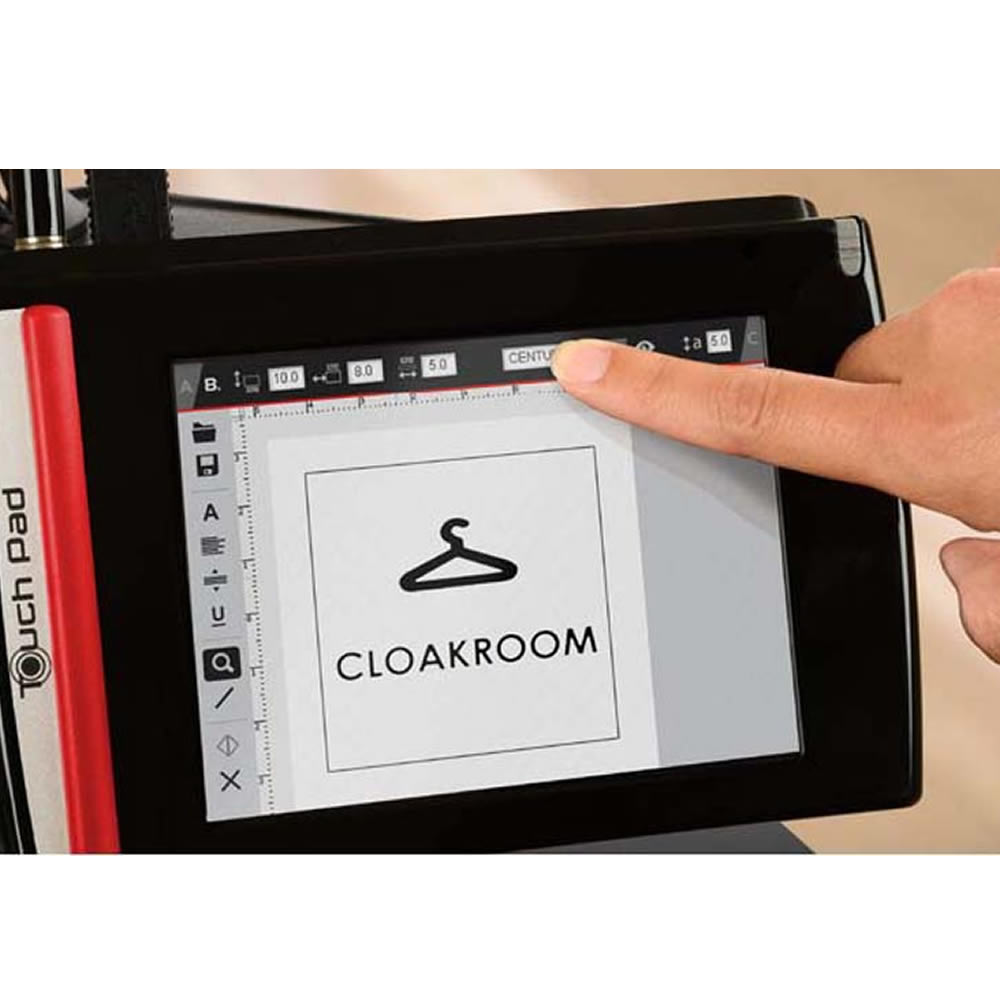

No computer is required, the cnc engraving machine’s software
is supported by a tactile screen allowing the design of plates with
lines of text, logos and drawings. The files are saved on a SD card. |
Common cnc routers need computer to edit and output the design image, text. |

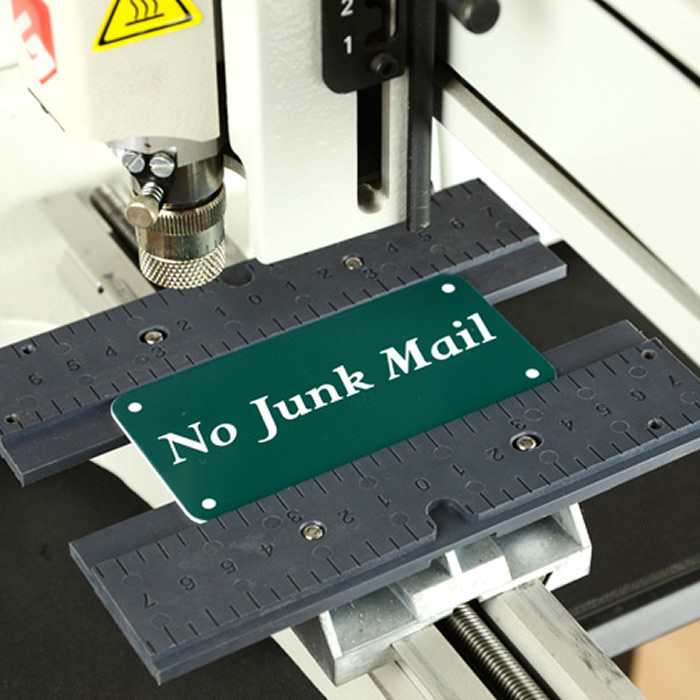

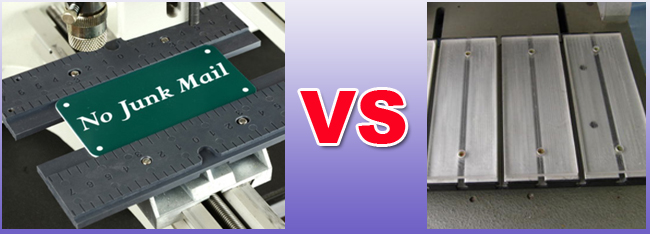

M40 ABC Engraving machine is equipped with vice,
desktop with scale. It also can fix the materials well. |
Common cnc router’s table is T - slots shape, you need clamps to fix the materials by hands. |

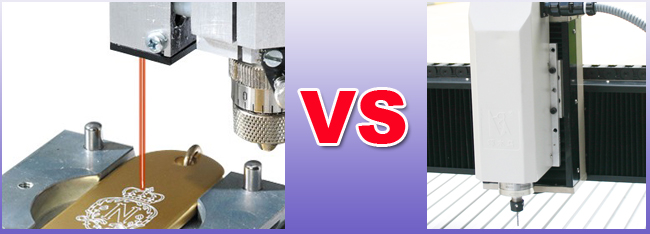

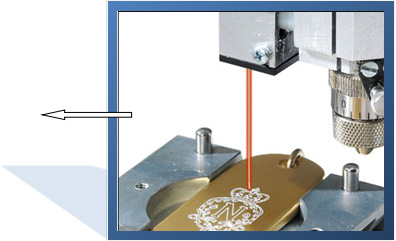

M40 ABC with Laser Pointer which simulates the
engraving job - no measuring required. |
Common cnc routers have not laser point; you need to fix position through computer or by hand. |
- 1. I don’t know this website well, how can I trust you?
-
Sign-in-Global.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. Not clear about the Price Policy of Sign-in-Global.com?
-
a) The Stepped Price
According to the different procurement quantities of customers, Sign-in-Global.com formulates different price levels for commodity. Hence, your purchase price will be ultimately attributed to the procurement quantity.
The Stepped Prices shown on the product page is as following:
b) Trial Order Price / Sample Price
We offer free samples or some lower priced products(the product price plus shipping cost only)for our customers easily to experience our products and services from purchasing.
For details, please click:
https://www.sign-in-global.com/product/sampleproduct.html
c) Limited Time Offers
Every Tuesday Sign-in-Global.com releases the latest products for Limited Time Offer, and after one week, the original price will be recovered. We sincerely expect your timely attention to the discount activities of Limited Time Offers on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/discount.html
d) Flash Wholesale
Every Monday Sign-in-Global.com and cooperation factory jointly campaigns the Flash Wholesale products for bulk purchase customers, and after a week, the original price will be receovered. We sincerely expect your timely attention to the preferential activities on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/hotproduct.html
e) You decide the prices for Bulk Orders
If the commodity quality you choose beyonds the quantity of fourth step price on Sign-in-Global.com, or if you think the website stepped prices don’t meet your bulk purchase demand, you can use our "Make Offer" service on Sign-in-Global.com to fill out your planned purchase quantity and target price then submit as a Bulk Order, for which we will review and endeavor to realize the deal with you.
If you need bulk order , please enter here to Make Offer:
- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.
For details, please refer to the following:
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce.
For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.
- 8. How to receive my order ? Is it safe during shipping?
- For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 10. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 11. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
- 12. How to change my shipping address?
- You can change your shipping address on the confirmation page of your purchase order.




- 1. I don’t know this website well, how can I trust you?
- Sign-in-Global.com has launched online business for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. How to calculate shipping cost.
-
Please click here to get the shipping cost, you can choose to ship by express or by sea, Shipping cost is an estimation, if has surplus, we will send back to you or offset in your next order, if not enough, we will ask you to add. For exactly shipping cost, please send to this email: inquiry@sign-in-global.com.



- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, Bank Transfer (T/T) payment, Western Union Payment.
For details, please refer to the following:
a) Bank Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-Global.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
b) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online
c) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments
d) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
e) Bank transfer (through PayPal gateway)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
f) Western Union Payment
Receiver’s First name: Zifei
Receiver’s Last name: Li
Address: 4th Floor., Building No.8, Community No.12. Advanced Business Park, No.188 Western Road of the 4th Ring, Fengtai, Beijing.
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
If you failed to make payment via PayPal, please choose Bank Transfer(T/T) or Western Union Payment.
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment. If you use check or Bank Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. Ship from where?
- We have 4 overseas warehouses all over the world including: Russia, USA, Brazil and Mexico. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.
- 8. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The shipping time by express is about 3-6 business days, and if you choose to ship by sea, generally the shipping time is Between 10 and 30 days, depending on the consignee address.
- 10. How to receive my order? Is it safe during shipping?
-
We will ship your order by Express or by sea and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 11. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 12. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 13. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
Model
|
CNCR-M40-ABC
|
Maximum Engraving Area
|
305mmx210mm(12"x8.3")
|
Table Surface (Table in option)
|
330mmx260mm(13"x10.2")
|
Maximum Flatness (Vice)
|
0.3mm(0.01")
|
Z Maximum Clearance (Table spindle)
|
35mm(1.4")
|
Z Maximum Clearance (Vice spindle)
|
50mm(2")
|
Z Spindle Travel
|
40mm(1.57")
|
Automatic Z Ref.
|
Yes
|
Maximum Vice Opening
|
225mm(8.9")
|
Maximum X. Y Working Speed
|
25mm/s(0.98"/s)
|
Maximum X. Y off–load Speed
|
40mm/s(1.57"/s)
|
X. Y Engraving Precision
|
﹤0.1mm(0.004")
|
Engraving Repeatability
|
﹤0.05mm(0.002")
|
Kind of Spindle
|
Rotating/toploading
|
Cutter Diameter
|
4.36mm(11/64")
|
Maximum Rotation Speed
|
20000rev/min
|
Speed Regulation
|
No
|
Output
|
50W
|
Depth Regulating Nose
|
Compatible with all the depth regulating noses
|
Operation Temperature
|
Min.+5℃;Max.+40℃
|
Storage Temperature
|
Min.-5℃;Max.+45℃
|
Degree of Relative Moisture When in use
|
20 to 80%
|
Power Supply
|
AC100–240V,50/60Hz
|
Point & Shoot
Kind |
Laser diode |
Wavelength |
630–680nm |
Max.Output / Class |
1mW/Class2 |
Connections - Control panel - Links
Connection with the computer
|
USB
|
Cylinderattachmentconnection
|
Mini DIN female 8-pin
|
Control panel
|
Membrane with raised tactile points
|
Number of keys
|
9
|
Display
|
Touch screen of the Touch Pad
|
Inputs/Outputs connection
|
Sub–D female 15-pin
|
Engraving Software
Engraving Software
|
ABC software
|
Firmware
|
Version x.xx and more
|
Operating System (for the engraving software)
|
Windows CE5.0
|
Language
|
French,English
|
Lead Time: After receiving customer's deposit, within 2-4 weeks.
Wooden Box: There is total one carton box.
Machine Dimension |
700mm x 510mm x 320mm (27.6" x 20" x 12.6") |
Machine Weight |
21kg |
Package |
Carton box with wood pallet |
Packing Size |
780mm x 580mm x 510mm (30.7" x 22.8" x 20.1") |
Gross Weight |
26kg |
Packing List:
|
M40 ABC engraving Machine
|
1 set
|
|
Touch pad (PC with touch screen) with stylus
|
1 pc
|
|
Touch Pad support with:
F. USB cable H. Main cable
|
1 set
|
|
Keyboard
|
1set
|
|
Engraving machine with vice
|
1 set
|
|
Toolbox
|
1 set
|
|
User instructions (in CD)
|
1 pc
|
|
Power cable
|
1 pc
|
Contents of the toolbox
D1. One wrench(5-L160)
D2. One screwdriver(∮3,5mm)
D3. One short allen key(2)
D4. One round allen key(3-L88)
D5. One brush
D6. One wrench(1,5)
D7. One wrench(2,5)
D8. One wrench(3,5)
D9. Two T2AH-250V*fuses
Package:

seller assumes all responsibility for this listing
Ship from where?
 |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
Return policy
 |
Purchases can be returned under the following conditions:
1) There are quality problems after opening the package.
2) Products are different than on the order list.
3) Products are irreparably damaged during transportation.
|
Payment details
Payment method |
 |
1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment
|

CNCR-M40 ABC

M40ABC User Manual
