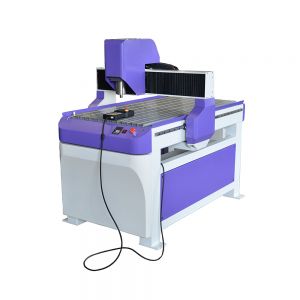

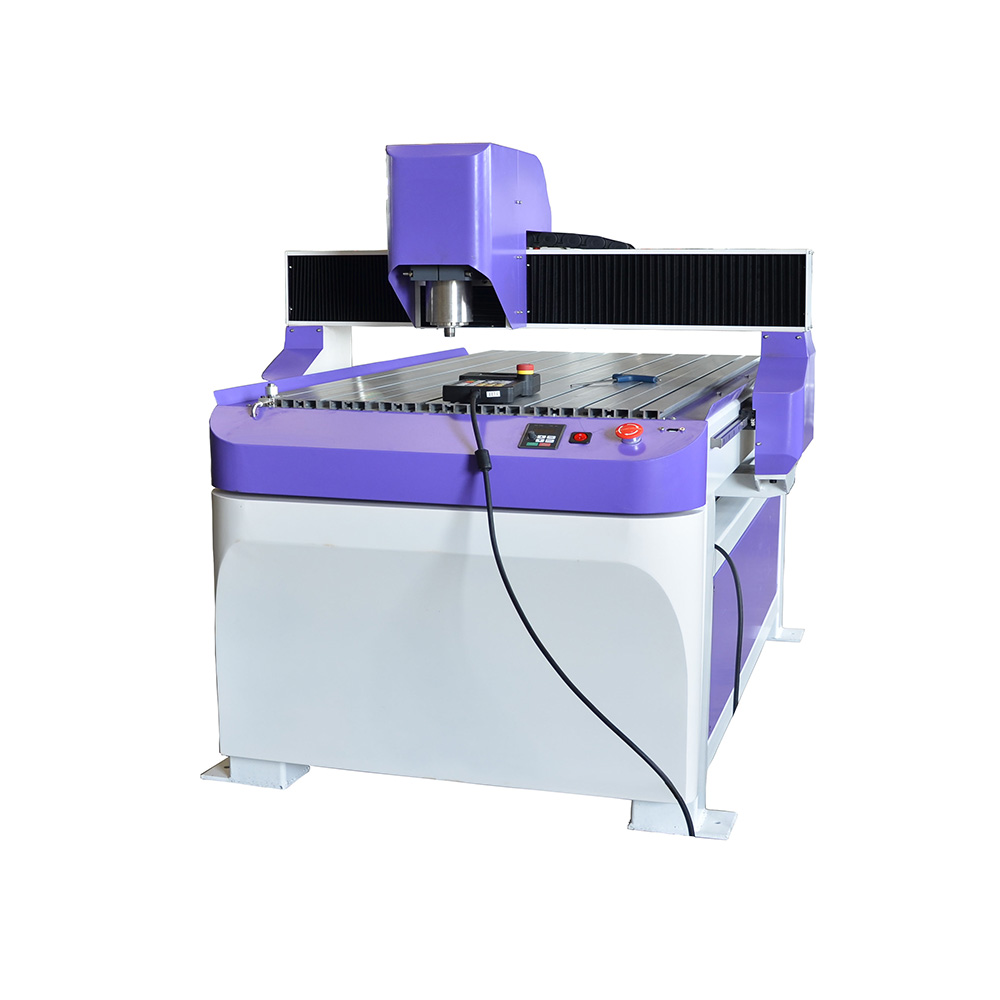

35" x 25" 9060 CNC Engraver cnc router
Application:
Wide range of applications make it possible to process any wooden products like: advertising sign plates and acrylic cutting. Any metal or non-metal material can be processed, for example, iron, copper, aluminum, plastic plate, wood, etc. (different working tables are available depending on the materials you want to process). It’s easy to operate, multi-functional, and sturdy at an accessible price.
Product Highlights:
• DSP system control.
• Optimization of mechanical and electrical design to ensure good performance.
• High quality inverter-driven spindle motor cooled by water. The spindle with high power and frequency conversion enables to cut of 20mm thick plexiglass. Used for advertising, molds, gifts, carpentry, construction processes and model production.
• Unique intelligent calculation fully develops the potential of the engine and leads to high processing speed, the synchronization of curves and straight lines, smoother curves.
• Quick data transmitting: Connection with the computer via USB interface enables data to be transmitted in a second. Supports hot plug and play with Window98/NT/2000/XP OS.
• Compatible with :Ucancam V10, Type3, Router 8, and Type3, etc.(Optional)
• Convenient operation: restoring function, enables the machine to stop running automatically when powered off, and automatically resume work when powered on. Break point storage is also available, so next time, the machine can resume the operation from `this` point on. Working time anticipation function and user-friendly auto-feeding blades are available.
• Unique and dynamic renewal of the system enables the customer (according to different processing requirements) to change the controlling ability of the system, and effectively improves the processing efficiency (start operation with the instructions of the technician from `factory` or agent)
Product Features
 |

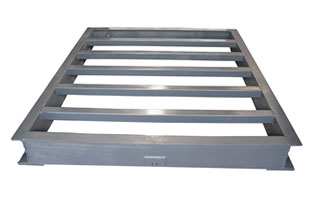

Base Frame: it is an iron casting base being precisely processed by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine. | |
 |

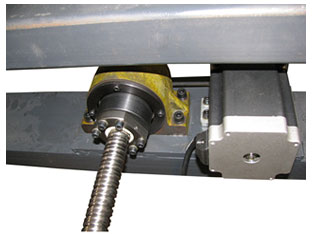

Bolt Pole: bearing run along the bolt pole to eliminate its’ shaking,which offers much smooth motion. | |
 |

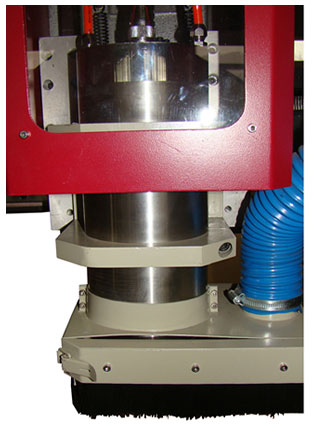

Spindle: Quality 1.5kw water cooling spindle with better performance of cost-effectiveness,various spindle options available for different requirements. | |
 |

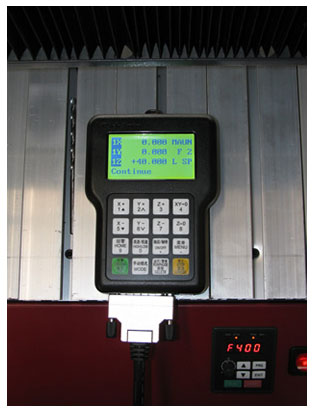

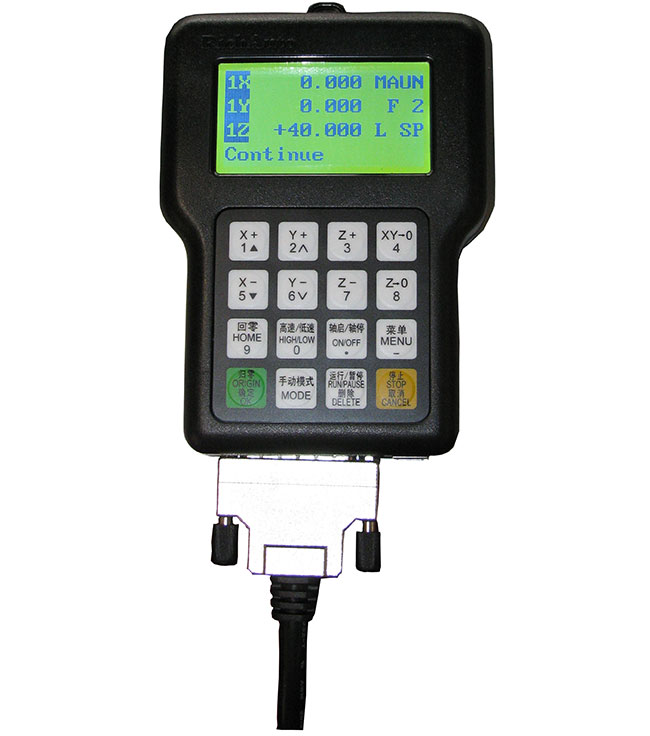

Controller: A compact and durable DSP with 128M internal memory,it supports U flash memory as well as online file communication.It is available with standard G code or HPGL,and has practical functions like faster calculation, stronger processing ability,breakpoint memory and power failure protection function,etc. | |
 |

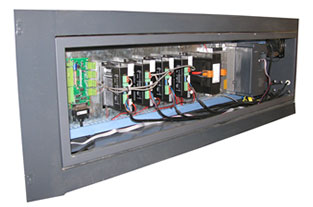

Electric Cabinet:All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet. | |
 |

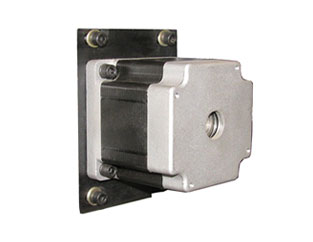

Stepper Motor: Industrial sub-divided stepper motor centered drive has outstanding wearability and it offers long-term maintenance-free solution,as to the FEYU 1325C model,its’ Y axis is driven by double stepper motor associating with gear rack,this machine is much faster and more powerful then the rest of the FEYU series. | |
 |

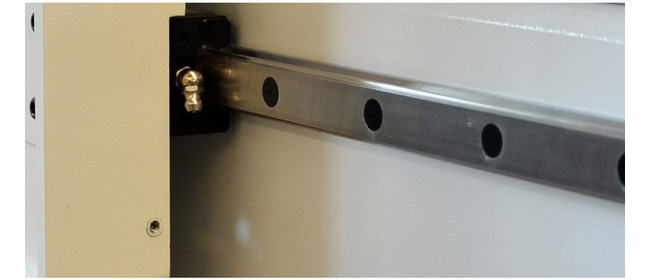

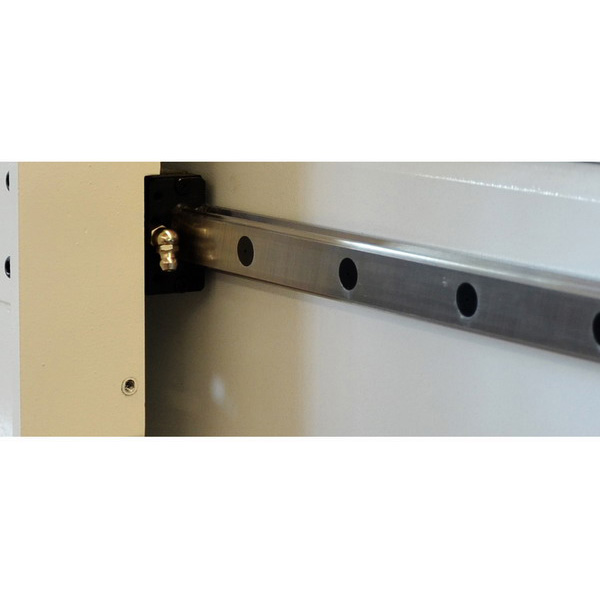

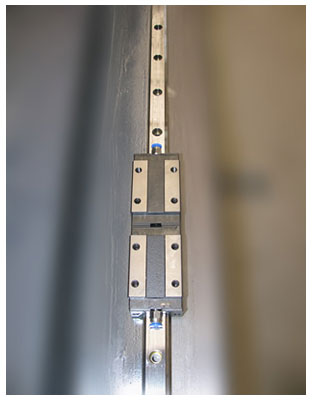

Linear Guide: 25MM Linear Guide with double bearings,an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools. | |
 |

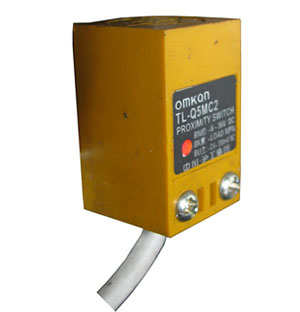

Photoelectric Limit Switch: Un-touching ,more sensitive and durable than traditional mechanical switch,maintenance-free for long term use. | |
 |

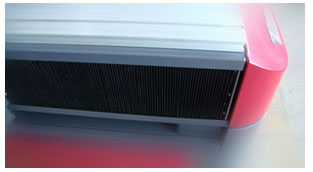

Durable and flexible covers on X,Y axis offers dust-proof to every corner needed. |
Samples:
| Interface | USB |
| Type Of Worktable | Aluminum-alloy table |
| Engraving Software | Ucancam V10, Type3, Router 8, and Type3, etc.(Optional) |
| Repetition Precision | 0.1mm |
| Engraving Precision | 0.00039" (0.01mm) |
| Rotational Speed Of Spindle | 6000-24000rpm |
| Maximum Engraving Speed | 236" (6000mm)/min |
| Spindle Power | 1.5KW invertor-driven spindle motor cooled by water |
| Maximum Engraving Area | 35.4" x 23.6" (900mm x 600mm) |
| Model | CNCR-LD-9065H |
| Maximum Engraving Area | 35.4" x 23.6" (900mm x 600mm) |
| Maximum Feeding Height | 105mm |
| Table Size | 34.6" x 52" (880mm x 1320mm) |
| Spindle Power | 1.5KW invertor-driven spindle motor cooled by water. |
| Transmission | All Screw for X, Y, Z axis** Linear Square Guide for Y axis, Round Guide for X, Z axis |
| Traveling Speed (X, Y, Z tri-axial move together) | 236" (6000mm)/min |
| Instruction Resolution | 0.00039" (0.01mm) |
| Rotational Speed of Spindle | 6000-24000rpm |
| Height From `Gantry` to Worktable | 2.8" (70mm) |
| CNC Controller | DSP |
| Engraving Software | Ucancam V10, Type3, Router 8, and Type3, etc.(Optional) |
| Type of Driving Motor | Step motor |
| Interface | USB |
| Instruction Formats | G code or HPGL |
| Power Consumption | 400W |
| Cooling Method | Water-cooling (you can choose air-cooling) |
| Power Supply | AC 220V, 50Hz / 60Hz. (Confirm your country before placing an order) |
| Machine Dimensions | 52" x 34" x 43" (1320 x 880 x 1100mm) |
| Machine Weight | 616lb (280kg) |
| Packaging | Fumigation free package |
| Packaging Size | 65" x 58" x 47"(1650mm x 1490mm x 1200mm) |
| Gross Weight | 704lb (320kg) |
