Features

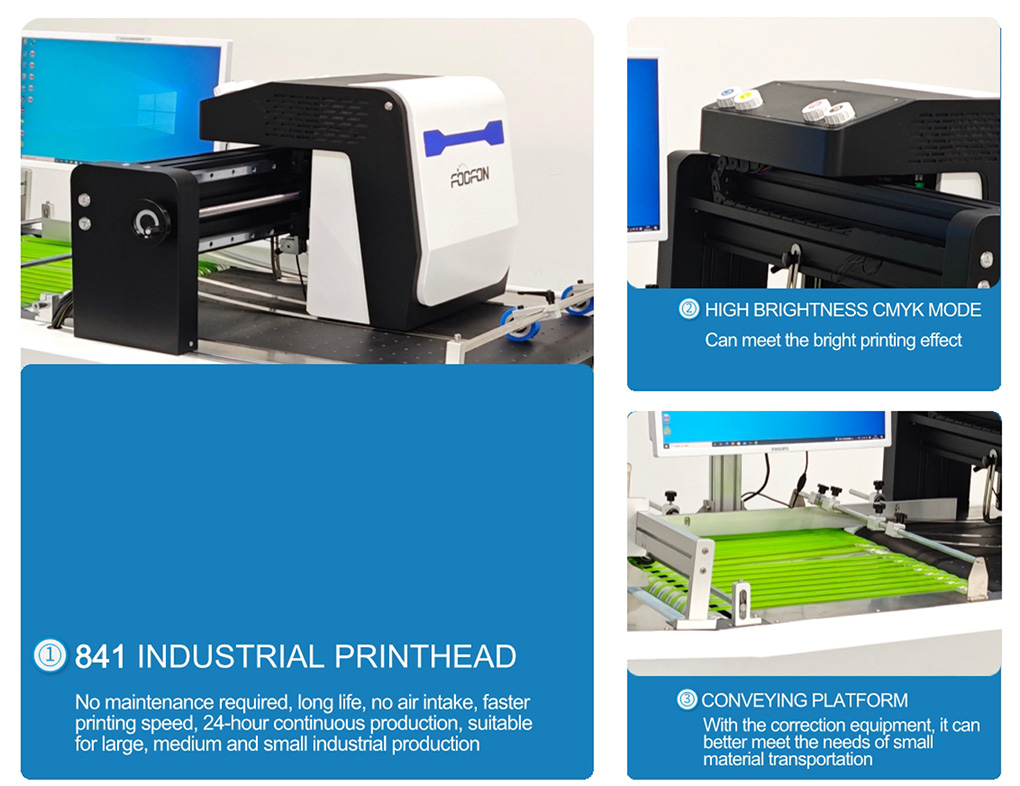

1. Premium Printing Performance
Optional 841 industrial printheads (25.8cm width). Single-pass printing up to 40m/min, max 1200×1200 DPI CMYK output, compatible with dye & Pigment Ink.
2. Smart Ink Management
Continuous ink supply with ultrasonic liquid level detection. One-touch auto nozzle cleaning; only 8ml ink consumption per square meter to cut running costs.
3. Robust & Precise Mechanics
Integrated cast iron frame + all-aluminum beam. Infrared photoelectric positioning, customizable suction belt conveyor. Supports materials 0.1–100mm thick with adjustable 1–3mm print gap.
4. Broad Material Compatibility
Works on corrugated paper, writing paper, rice paper, sponge paper and inkjet-coated plastic absorbent substrates.
5. Flexible Control & Connection
Self-developed software for Win7/10. Supports BMP/JPG/PDF/TIFF files via Ethernet, USB3.0 or RS232.
6. Global & Customizable Design
110V/220V dual power supply for worldwide use. Feeder head and conveyor can be fully customized. Stable operation at 15–35°C, 20%–80% humidity.
7. Compact Unit

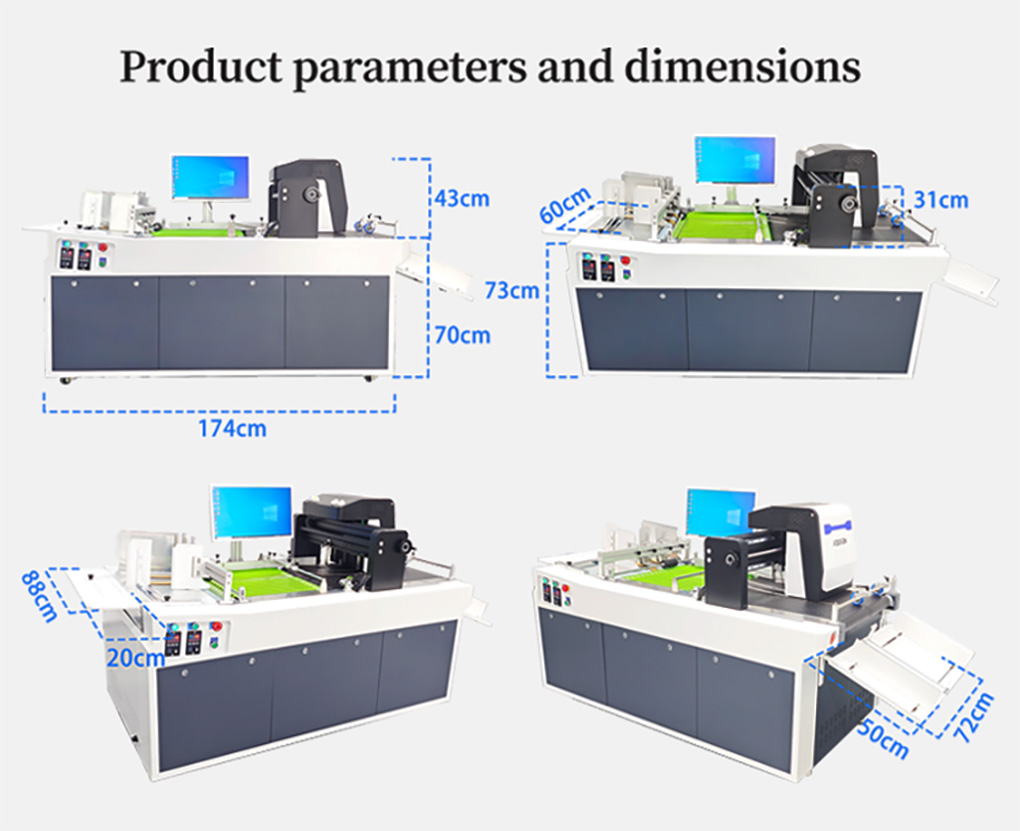

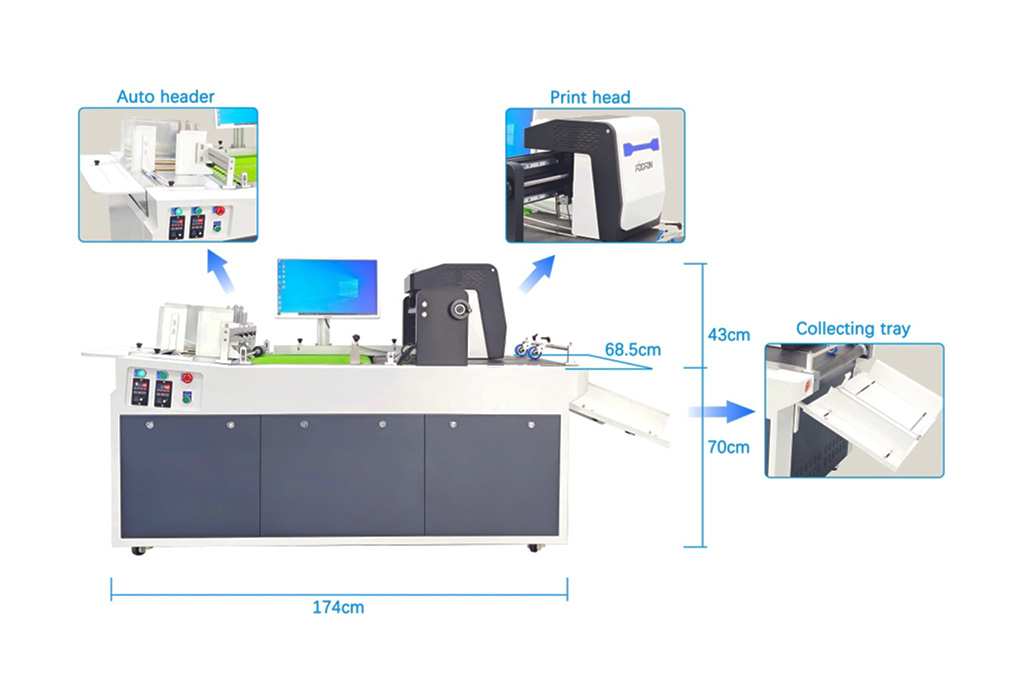

Machine size 174 x 96 x 123cm, weight 110kg with low 0.9kw power draw, equipped with auto feeder and finished collecting tray.
| Item | Parameter | Item | Parameter |
| Printhead Model | 841 Industrial printhead | Ink detection | Ultrasonic Liquid-level Measuring System |
| Number of printheads | 2 | Cleaning nozzle method | One-button control for automatic cleaning |
| Printing width | 25.8 cm (10.16 in) | Ink supply mode | Continuous ink supply |
| Feeding Width | 60 cm (23.62 in) | Feeder head | Optional and customized |
| Power | 0.9kw | Conveyor | Optional and customized (Suction guide belt type) |
| Inkjet Technology | Thermal foaming/piezoelectric technology | Fuselage structure | One-piece cast iron welded frame |
| Printing type | one pass | Beam structure | All aluminum |
| Printing resolution | 1200 x 1200DPI/600 x 1200DPI /300 x 1200DPI | Regulator | Adjustable mechanical baffle / software data positioning |
| Print Speed | 10-40 m/min | Positioning method | Infrared photoelectric induction positioning |
| Core board | Self-Development | Environmental requirements | Normal temperature 15-35 ℃ humidity 20% - 80% |
| Operating Software | kois2.0 | Input power supply | 220V/110V 50HZ/60HZ |
| Operating System | win7 win10(Computer operation) | Customized service | YES |
| Image format | BMP/JPG/PDF/TIFF | Thickness of printing material | 0.1 – 100 mm (0.004 – 3.94 in) |
| Data transfer | Ethernet/USB3.0/R232 | Nozzle to printing Material | 1 – 3 mm (0.039 – 0.118 in) |
| Ink type | Dye ink, pigment ink | Ink consumption | 1 square meter consumes about 8 ml of ink. |
| Colors | C/M/Y/K | Weight | 110 kg (242.51 lbs) |
| Application | Corrugated kraft paper, sponge paper, writing paper ,rice paper and other surface absorbent materials or plastics containing inkjet layer | Product size | 174 x 96 x 123 cm (68.50 x 37.80 x 48.43 in) |
Average Rating: 0
| Machine Size | 174 x 96 x 123 cm (68.50 x 37.80 x 48.43 in) |
| Machine Weight | 110 kg (242 lbs) |
| Package | Wooden box |
| Packing Size | 185 x 123 x 82cm (72.8 x 48.4 x 32.3 in) |
| Gross Weight | 210 kg (462 lbs) |
Warranty
Lifetime Technical Support
Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
