Features
All-aluminum alloy metal shell, extremely high structural strength, painted or sandblasted, optional black, silver, white;
Cold forged blades and air cooling technology keep the chip cool at all times, maximize the chip illumination, and greatly extend the chip life;
Ultra-high power LED chip;
2-piece linear lens, clear and sharp imaging, bright enough, long enough, and widely used.
Lens parameters:
140mm focal length 55° lens: imaging length ratio is 1:1, that is, 1 meter projection line length 1 meter 1.2cm width, 3 meters projection line length 3 meters 3.6cm width, 10 meters line length 12cm width and so on.
75 degree imaging length ratio is 1:1.5, 90 degree imaging length ratio is 1:2.0,
Suitable places:
Factory production safety warning-guidance and other places.
Installation method:
It can be placed on the table or floor, or installed on the ceiling, screwed to the ceiling or tied to the keel with cable ties and wires.
| Item Code | LED-TYD-DS-100LL | Lens focal length | 140mm, 55°/75°/90° |
| Name | 100W LED line projector Power | Supply type | Waterproof power supply |
| Projection distance | 3-9m(dark environment)) | Rated voltage | 100-240VAC |
| Light source type | Ultra-high power LED | Machine power | 100W |
| Light source power | 100W | Protection level | IP42 |

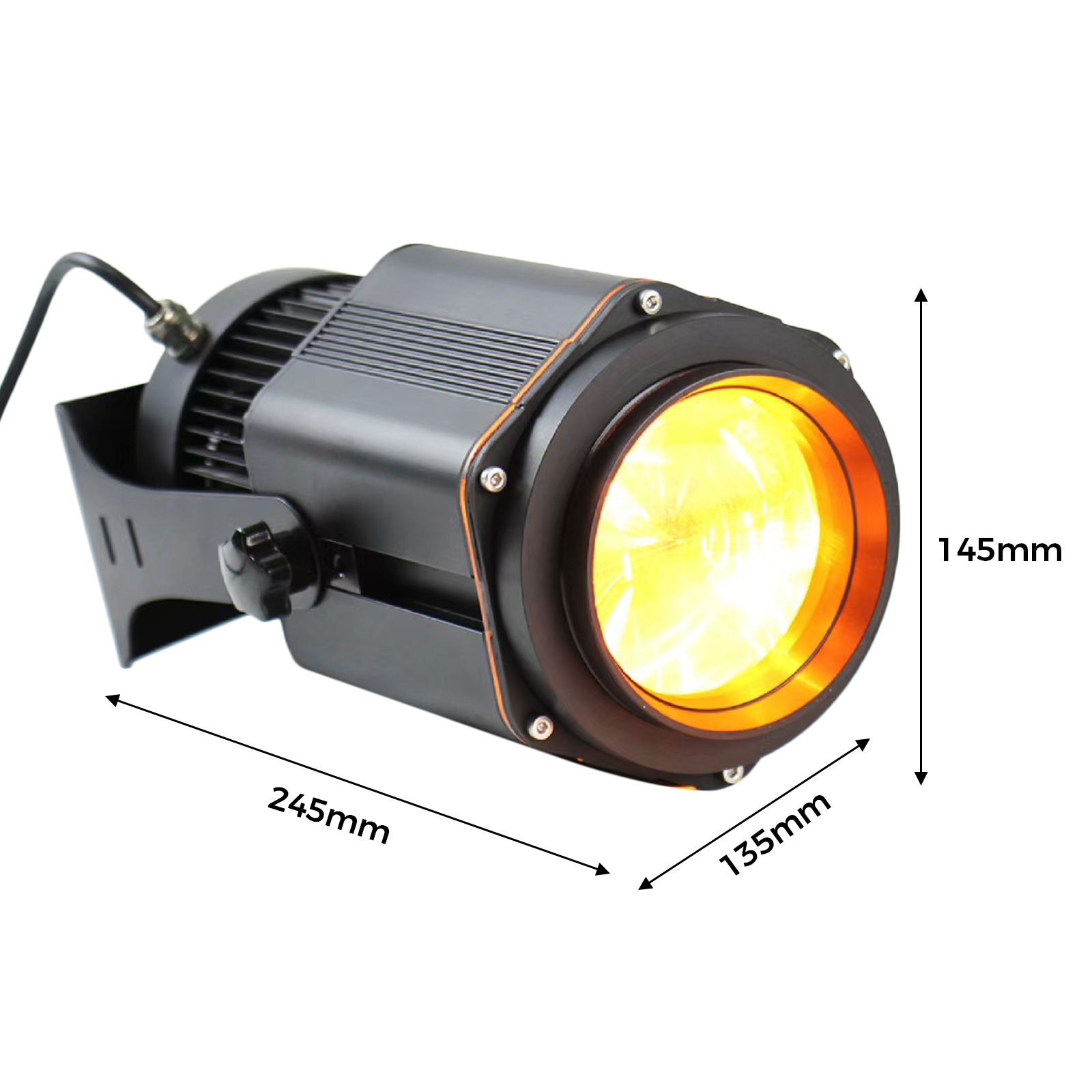

| Light source life | 30000h | Light Size | 24.5*13.5*14.5cm |
| Luminous flux | 9000Lm | Machine weight | 4.0kg |
| Color temperature and color | 3000/6500K/Yellow/Red, Blue/Green | Packing size | 38*25*20cm |
| Film size | 78mm | Outer box size | 61*51*40cm |
Average Rating: 0
| Item Code | LED-TYD-DS-100LL |
| Light Size | 9.6*5.3*5.7in(24.5*13.5*14.5cm) |
| Machine weight | 8.8lbs(4.0kg) |
| Packing size | 15*9.8*7.9in(38*25*20cm) |
| Outer box size | 24*20*15.7in(61*51*40cm) |
