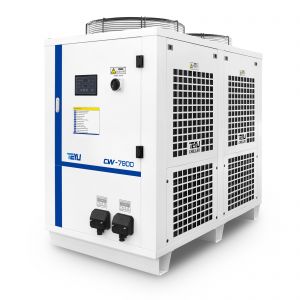

TEYU AC 3P 380V 60HZ CW-7900FN industrial water chiller for 1000W CO2 Laser Tube
DESCRIPTION
industrial chiller CW-7900 has a cooling capacity of up to 33kW, The high capacity closed loop chiller offers exceptional cooling performance for up to 1000W sealed tube CO2 laser. Comes with a 170L stainless steel reservoir, chiller CW-7900 has been specifically designed for laser process cooling applications. It allows high water flow rates with low pressure drops and ensures a reliable operation even in demanding applications. Supports RS-485 communication function, making a higher level connection between the chiller and your CO2 laser equipment.
FEATURES
1. Cooling Capacity: 33kW
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410A
6. Intelligent temperature controller
7. Multiple alarm functions
8. High reliability, energy efficiency and durability
9. Easy maintenance and mobility
10. Available in 380V, 415V or 460V
SPECIFICATION
| Model |
CW-7900FN |
| Voltage |
AC 3P 380V 60Hz |
| Current |
2.1~28.7A |
| Machine power |
15.94kW |
| Compressor power |
10.24kW, 13.73HP |
| Refrigerating Capacity |
112596Btu/h, 33kW, 28373Kcal/h |
| Refrigerant |
R-410a |
| Refrigerant Charge |
7100g |
| Precision |
±1℃ |
| Reducer |
Capillary |
| Pump Power |
1KW |
| Tank capacity |
170L |
| Max.flow |
130L/min |
| Pump pressure |
5.9bar |
| Inlet and Outlet |
Rp1" |
| Net Weight |
277Kgs(610.7lb) |
| Gross Weight |
317Kgs(698.7lb) |
| Dimension |
61" x 31.5" x 53" (1550 x 800 x 1350mm) |
| Package Dimension |
67" x 36.6" x 60" (1700 x 930 x 1520mm) |
| Note |
the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product. |
PRODUCT INTRODUCTION

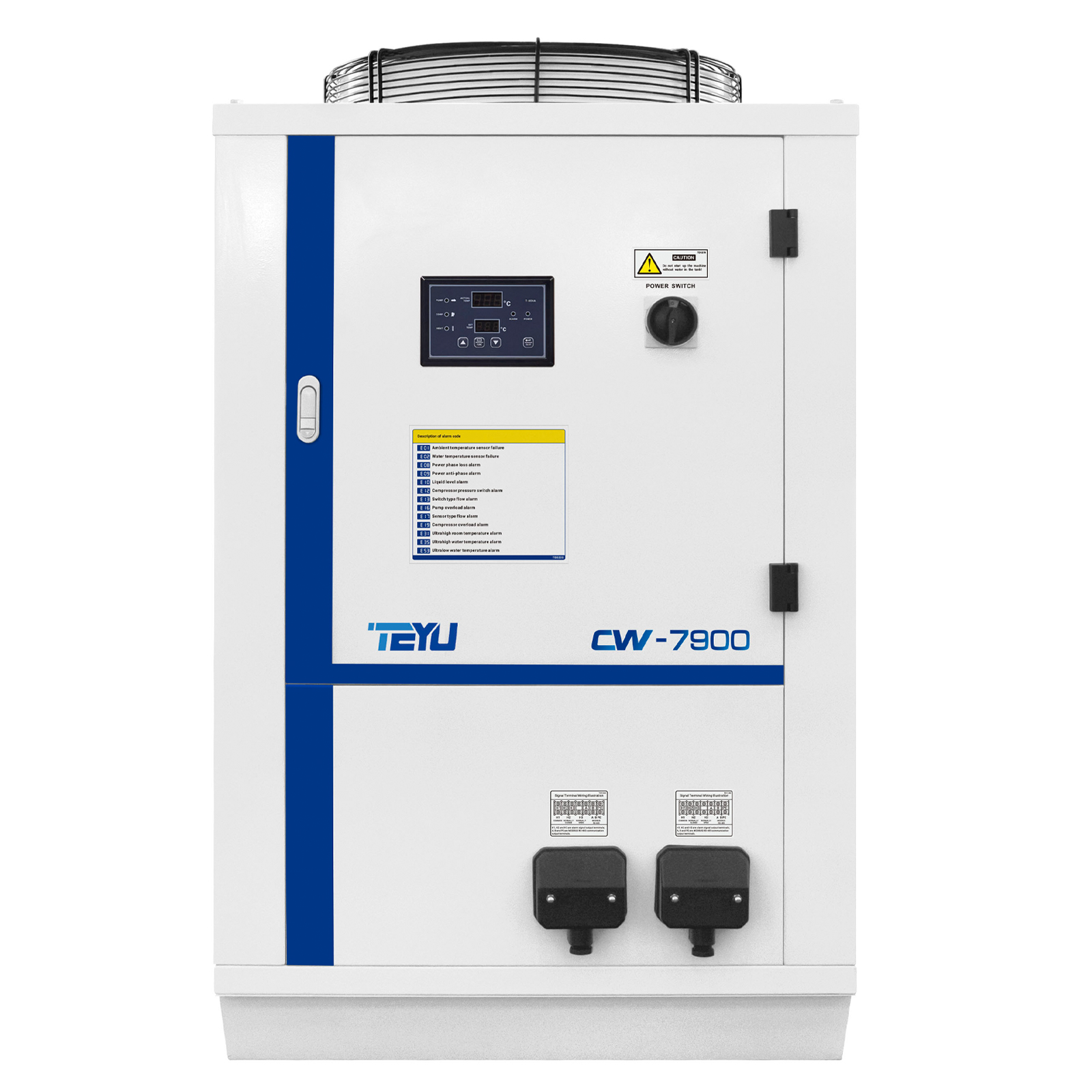

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

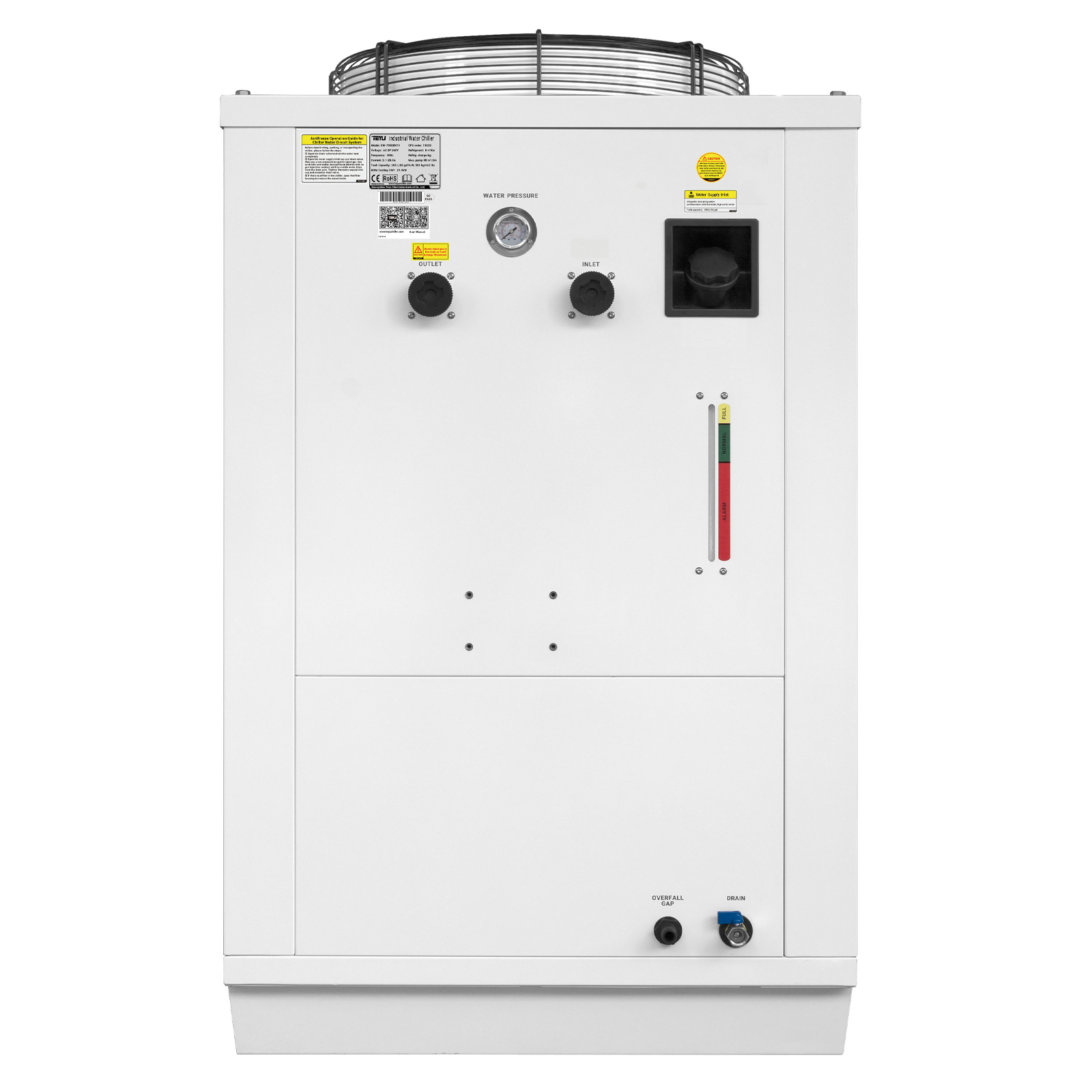

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.
Junction Box
S&A engineers' professional design, easy and stable wiring.

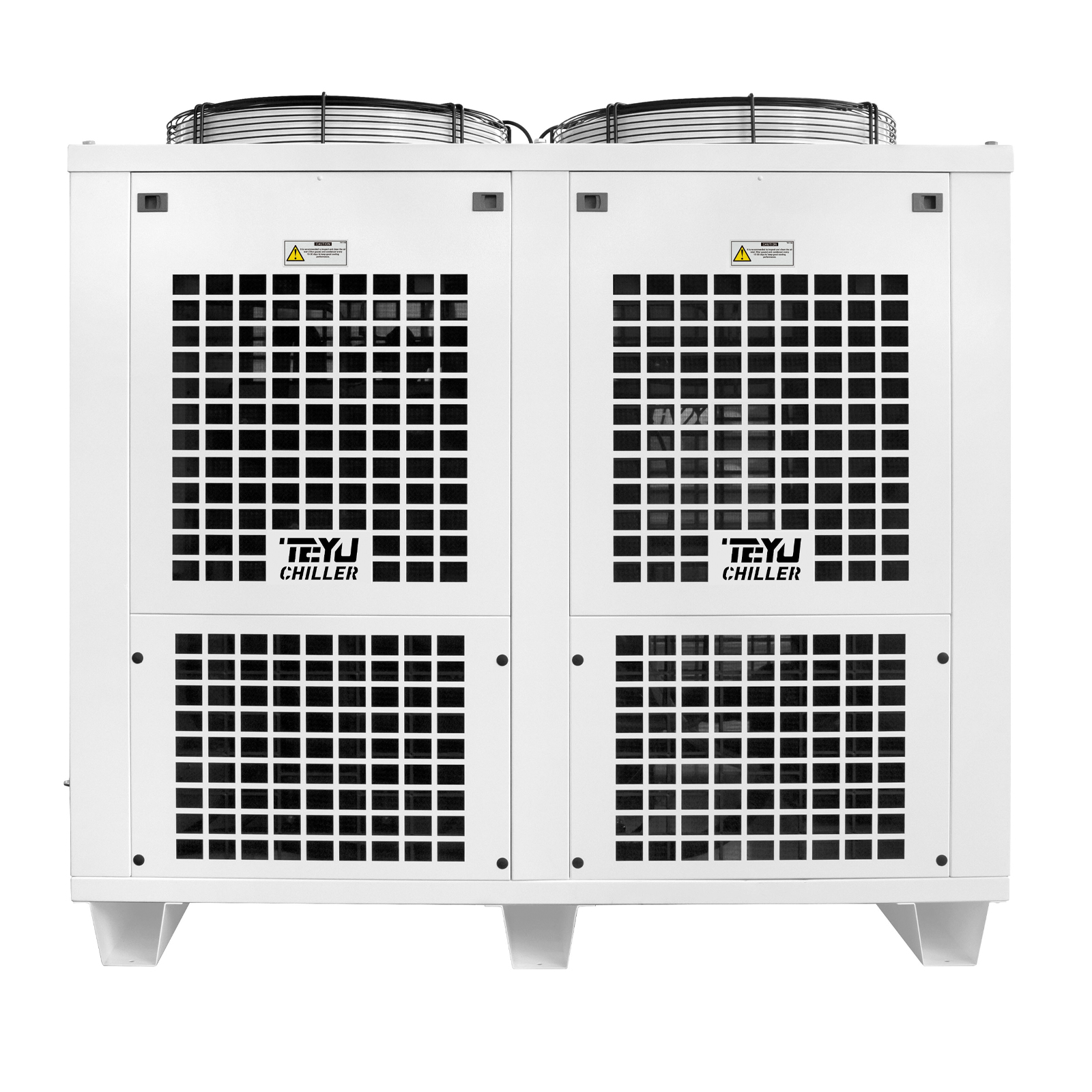

Cooling fan of famous brand installed.
With high quality and low failure rate.
Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.
VENTILATION DISTANCE
CERTIFICATE
PRODUCT WORKING PRINCIPLE
