Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better
Advantage:

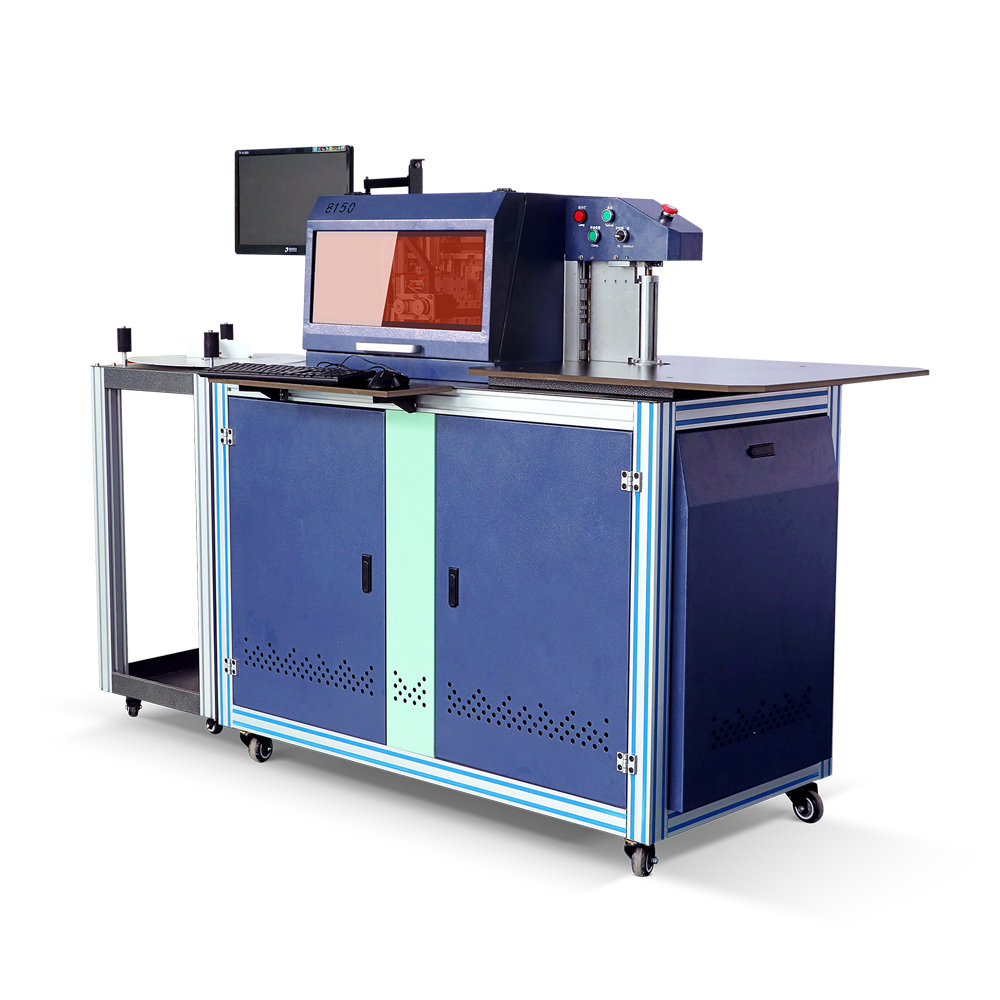

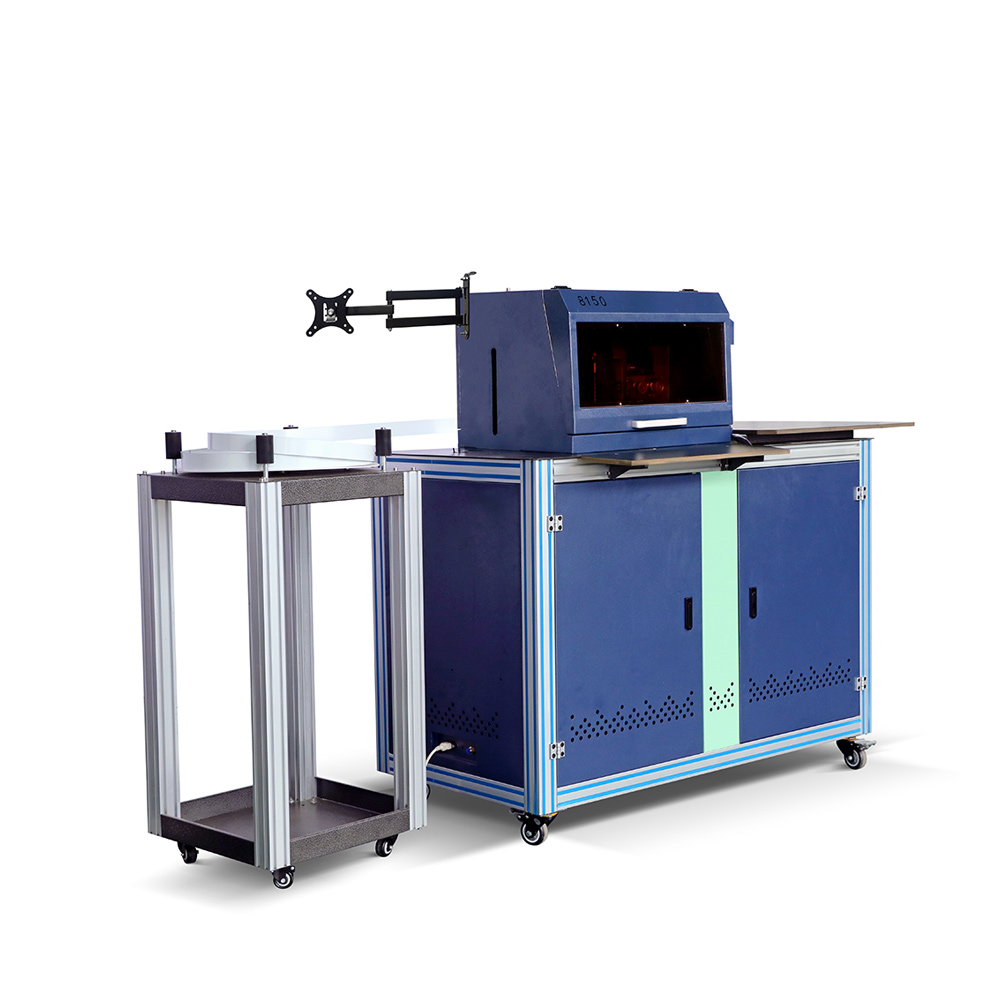

New type of three-in-one CNC bending machine, there are two working systems and different bending axis, one for stainless steel and iron, another for aluminum. When we need to slot and bend different materials, Don’t need exchange the cutter .we just need to convert into another system. and it is convenient for us to change the bending axis, just three to two minutes. Therefore, this new machine can save time and improve efficiency.
Features:
1 Cut angle from 45 to 135 and it can control depth precision, by using the CNC axis. the processing of various types of profile bending angle precision.
2 Intelligent control of the software, intelligent inspection to avoid collision in character bending process.
3 Telescopic bilaterally symmetrical bending mode of the unique, the greatest degree of bending process to avoid interference, and greatly improve the bending strength
4 Stainless steel gouging unique, single slotted mode profile milling groove ,according to different characteristics of arbitrary switching material, the operation is simple and convenient.
5 Can read muti-vector file like the format such as AI,DXF matching with the engraving file perfectly.
6 Use rotary type handwheel to adjust the feed depth ,the operation is simple and convenient
7 Intelligent imported square guide rail and a high precision ball screw can adjust the depth of grooves.
8 Special specification and equipment is available
Product Details:
Main Parts:
1)Two Cutters: One is for Stainless Steel and the other is for Aluminum. While working, these two are always on the machine together, just no need to change. When making Stainless Steel, just use the Stainless Steel cutter; when making aluminum, just use the aluminum one.

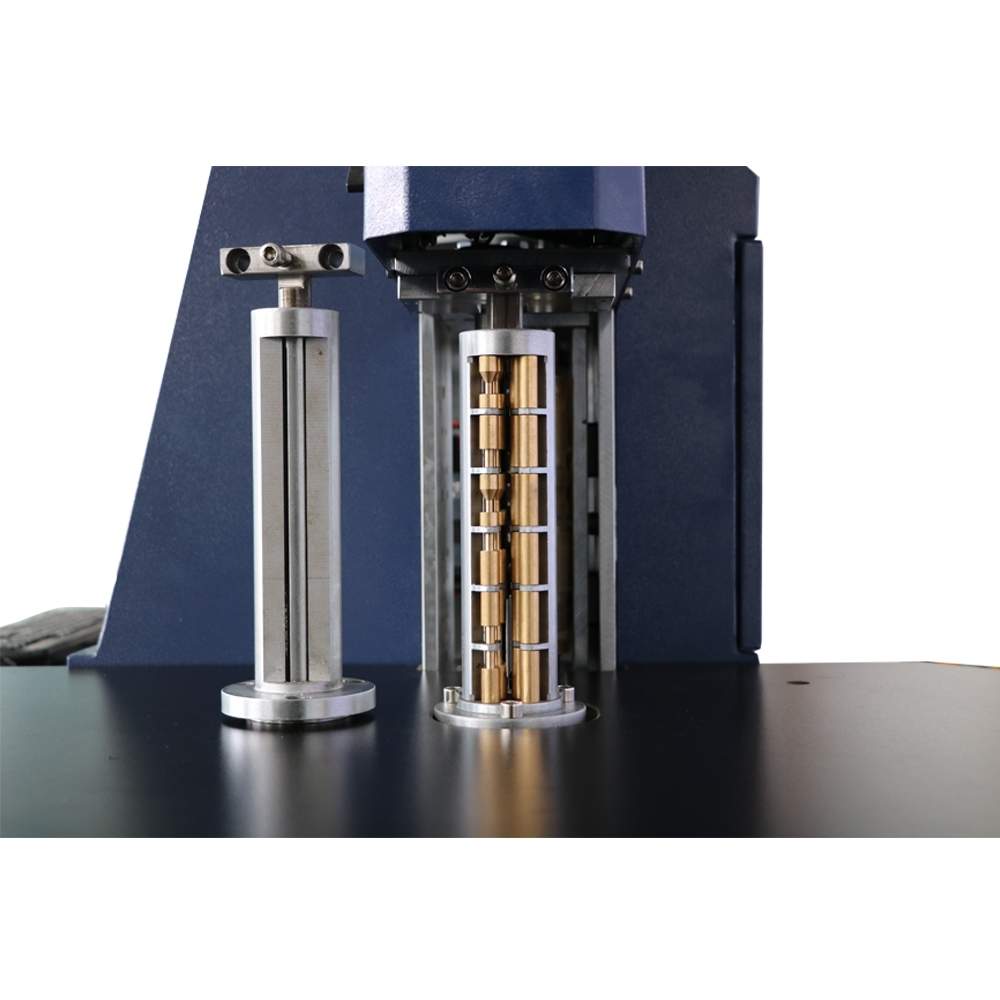

2)Two Benders: Just like the two cutters above, One is for Stainless Steel and the other is for Aluminum. The difference is these two benders are separate on the machine. When we make different materials, we need to change, just 2-3 minutes will be ok.
3) Software: Easy to study and operate.
1. Encoder control feeding length, Auto-Compensation on slipping.
2. Adjust cutting depth automatically by software.
3. The whole machine is adjusted by software, no any working part adjusted by hand anymore.
4. Easy to Adjust. With more functional software, one software setting could work on different materials.

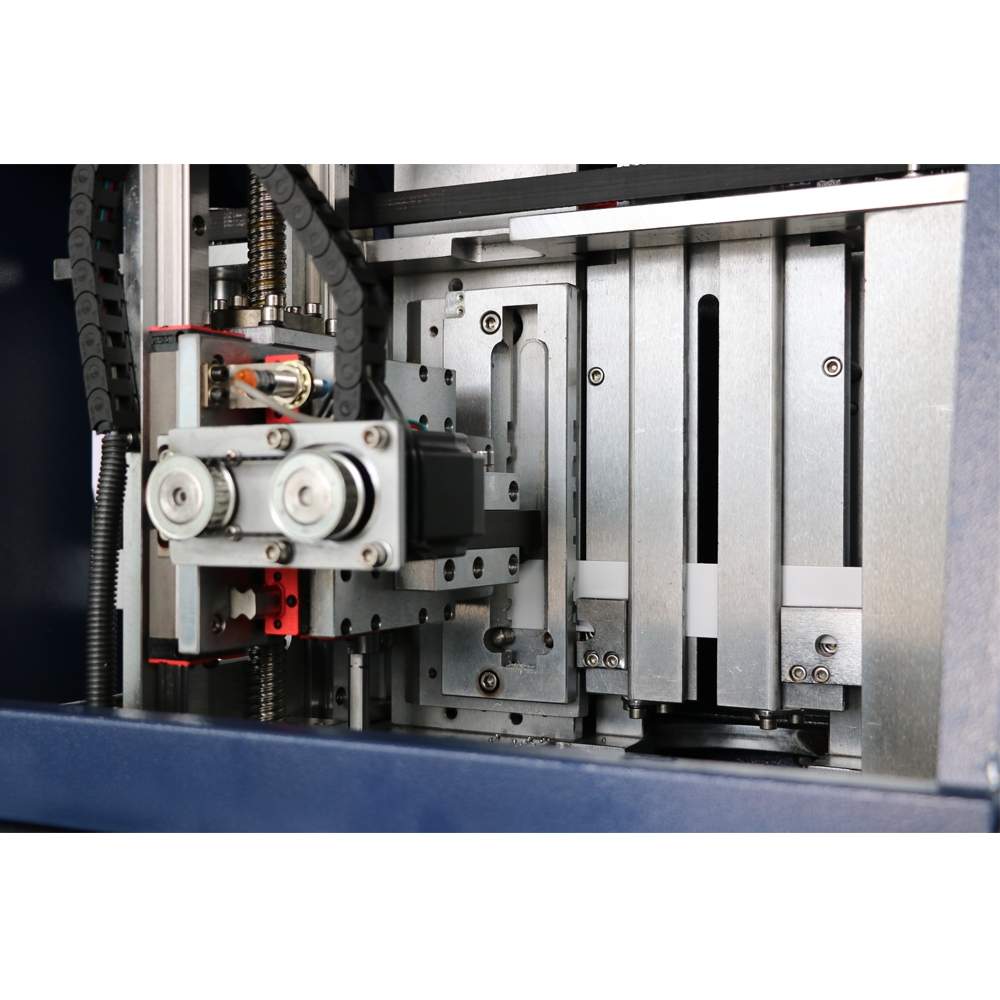

5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of the motion card, we use high-class CPU. Its cost comes up to 2-3 times than other machine suppliers.
7. The software is more functional: compensation on the straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI, DXF, and PLT format. Perfect match cnc router.
TECHNICAL SPECIFICATIONS:
Samples:

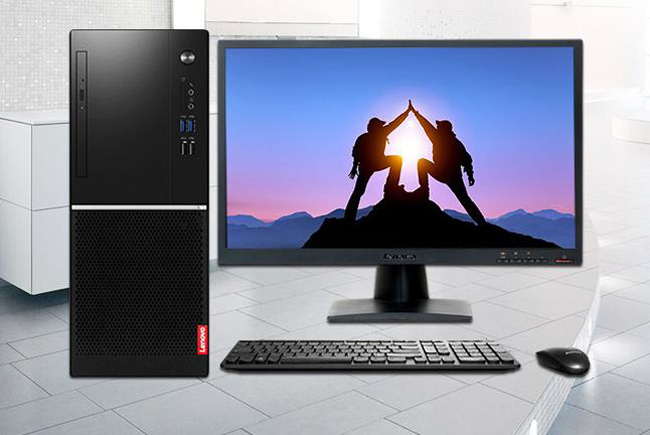

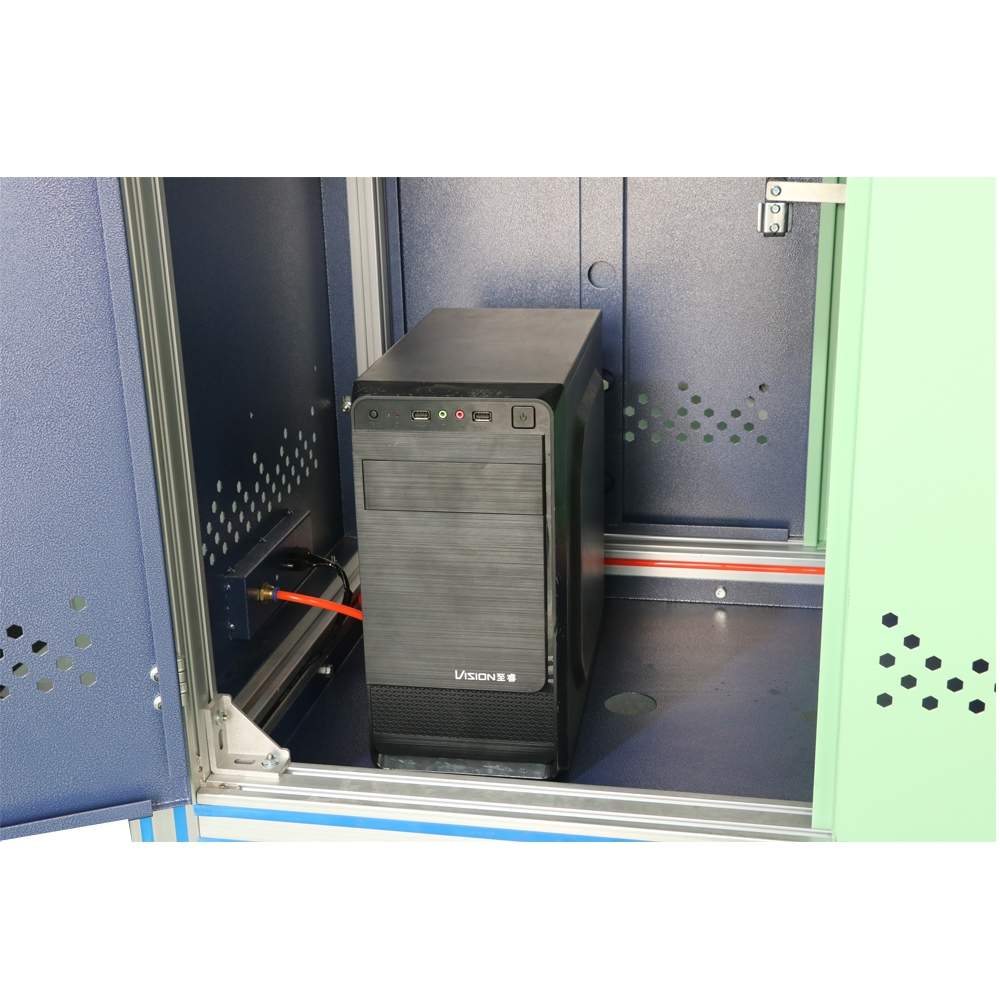

If you choose the option with computer, computer pictures as follows

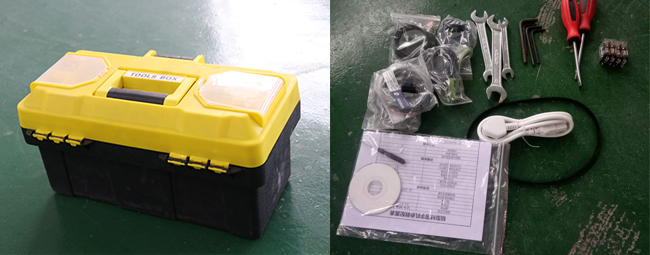

Package:
Quality report:

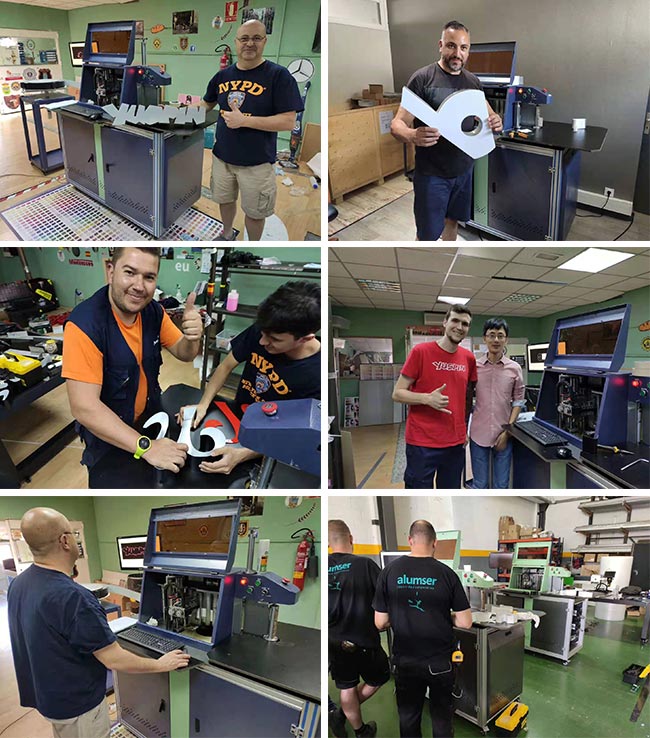

Customer Case:
Exhibition Gallery:
- 1. I don’t know this website well, how can I trust you?
-
Sign-in-Global.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. Not clear about the Price Policy of Sign-in-Global.com?
-
a) The Stepped Price
According to the different procurement quantities of customers, Sign-in-Global.com formulates different price levels for commodity. Hence, your purchase price will be ultimately attributed to the procurement quantity.
The Stepped Prices shown on the product page is as following:
b) Trial Order Price / Sample Price
We offer free samples or some lower priced products（the product price plus shipping cost only）for our customers easily to experience our products and services from purchasing.
For details, please click:
https://www.sign-in-global.com/product/sampleproduct.html
c) Limited Time Offers
Every Tuesday Sign-in-Global.com releases the latest products for Limited Time Offer, and after one week, the original price will be recovered. We sincerely expect your timely attention to the discount activities of Limited Time Offers on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/discount.html
d) Flash Wholesale
Every Monday Sign-in-Global.com and cooperation factory jointly campaigns the Flash Wholesale products for bulk purchase customers, and after a week, the original price will be receovered. We sincerely expect your timely attention to the preferential activities on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/hotproduct.html
e) You decide the prices for Bulk Orders
If the commodity quality you choose beyonds the quantity of fourth step price on Sign-in-Global.com, or if you think the website stepped prices don’t meet your bulk purchase demand, you can use our "Make Offer" service on Sign-in-Global.com to fill out your planned purchase quantity and target price then submit as a Bulk Order, for which we will review and endeavor to realize the deal with you.
If you need bulk order , please enter here to Make Offer:
- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.
For details, please refer to the following:
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce.
For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.
- 8. How to receive my order ? Is it safe during shipping?
- For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 10. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 11. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
- 12. How to change my shipping address?
- You can change your shipping address on the confirmation page of your purchase order.
- 1. I don’t know this website well, how can I trust you?
- Sign-in-Global.com has launched online business for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. How to calculate shipping cost.
-
Please click here to get the shipping cost, you can choose to ship by express or by sea, Shipping cost is an estimation, if has surplus, we will send back to you or offset in your next order, if not enough, we will ask you to add. For exactly shipping cost, please send to this email: inquiry@sign-in-global.com.
- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, Bank Transfer (T/T) payment, Western Union Payment.
For details, please refer to the following:
a) Bank Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-Global.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
b) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online
c) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments
d) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
e) Bank transfer (through PayPal gateway)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
f) Western Union Payment
Receiver’s First name: Zifei
Receiver’s Last name: Li
Address: 4th Floor., Building No.8, Community No.12. Advanced Business Park, No.188 Western Road of the 4th Ring, Fengtai, Beijing.
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
If you failed to make payment via PayPal, please choose Bank Transfer(T/T) or Western Union Payment.
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment. If you use check or Bank Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. Ship from where?
- We have 4 overseas warehouses all over the world including: Russia, USA, Brazil and Mexico. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.
- 8. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The shipping time by express is about 3-6 business days, and if you choose to ship by sea, generally the shipping time is Between 10 and 30 days, depending on the consignee address.
- 10. How to receive my order? Is it safe during shipping?
-
We will ship your order by Express or by sea and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 11. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 12. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 13. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
| Model |
MBM-HS-8150 |
| Operation principle |
Automatic feeding, slotting and bending |
| Available material |
Aluminum, stainless steel, galvanized iron |
| Slot angle |
45°-135°(just for aluminum) |
| Bending radius |
≥7mm(0.27in) |
| Material width |
20-150mm (0.79-5.9in) |
| Material thickness |
Aluminum 0.3-1.2mm(0.012-0.047in), stainless steel ≤1mm(0.04in) |
| Power |
≤1800W |
| Max Bending Angle |
360 degree |
| Max Approach Speed (in/sec) |
6 |
| Max Bending Speed (in/sec) |
120 |
| Voltage |
Single phase AC 220V |
| Working Air pressure |
0.6Mpa |
| Computer Parameter |
| CPU type |
Intel Celeron dual-core G3900 |
| CPU Clock Speed |
2.8GHz |
| Memory Capacity |
4GB |
| Hard disk capacity |
500GB |
| Display size |
20in |
| Display chip |
Intel GAM HD 510 |
Remark:
The computer is not included, please prepare it by yourself.
Wooden Box: There is total one wooden box.
| Machine Dimension |
(73" x 35" x 51") 1850mm*880mm*1300mm |
| Machine Weight |
400kg(881.8lb) |
| Package |
Wooden box |
| Packing Size |
(65" x 33" x 63") 1650mm x 850mm x 1600mm |
| Gross Weight |
420kg(925.9lb) |
